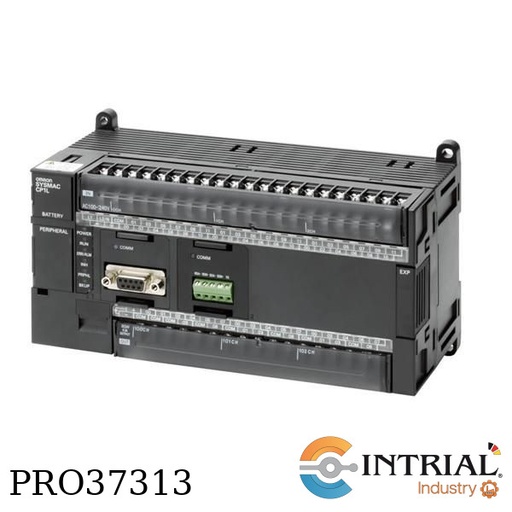

PLC MODULE
BRAND: OMRON
CP1 SERIES
DIGITAL
36 INPUT
24 OUTPUT
60 IO PORTS

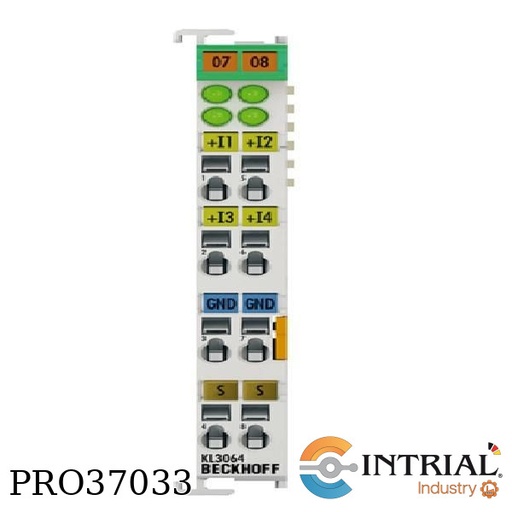

ANALOG INPUT TERMINAL
Brand: BECKHOFF
4-Channel
0-10 V
Single-Ended
12 BIT

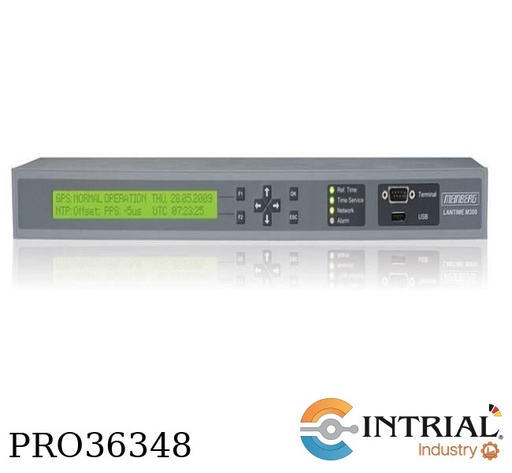

Modelo: LANTIME M300/MRS/LNE/TC-1-1 w/o (GPSANT+SPRO+10)
Description:  NTP time server with ultra-stable integrated oscillator OCXO-HQ *)
and Intelligent Reference Selection Algorithm (IRSA)
Marca: MEINBERG
Intelligent switching between available synchronization sources
(MRS): GPS, Time Code (e.g. IRIG-B), Pulse Per Second (PPS)
10MHz or  external NTP servers.
4 x LAN interface 10/100 MBit, RJ45 connector
1 x Terminal RS232 interface, 9pin D-Sub male connector
for initial setup and configuration
1 x USB Service interface
1 x LC-Display (2 x 40 characters) and 8 push buttons
4 x status LEDs

Reference Inputs:
1 x Meinberg GPS antenna input, BNC connector, isolated
1 x PPS input, TTL, pulse duration >= 5µs, active high, female BNC connector
1 x 10 MHz input, sine (1.5Vpp - 5Vpp) or TTL,  female BNC connector
1 x Time Code modulated input, BNC connector, isolated by transformer
      Insulation voltage  3000 VDC
      Input impedance: 50 Ohm, 600 Ohm, 5 kOhm
      Internally selectable by jumper (default 600 Ohm)
      Input signal : 600mV to 8V (Mark, peak-to-peak)
1 x Time Code unmodulated input, BNC connector, isolated  by opto-coupler
      Insulation voltage           : 3750 Vrms
      Internal series resistor  : 330 Ohm,
      Max. input current           : 25mA
      Diode forward voltage : 1.0V...1.3V
      selectable Time Code Inputs, modulated / unmodulated (DCLS):
      B122/123 / B002/003
      B126/127 /  B006/007
      IEEE1344 (modulated and DCLS)
      AFNOR NFS 87-500 (modulated and DCLS)

Signal Outputs:
2 x RS232 interface, independent, 9pin D-Sub female connector
with multi data formats timestrings.
1 x PPS, TTL into 50 ohm, pulse duration 200 msec, active high
female BNC connector
1 x Standard Frequency 10 MHz, TTL into 50 ohm
female BNC connector
1 x Alarm Relay Output, change-over contact, 3pin DFK connector
1 x IRIG-B amplitude modulated sinewave output (TC mod)
3 Vpp into 50 ohm, female BNC connector
1 x IRIG-B pulse-width modulated DC output (TC DCLS)
TTL into 50 ohm, active high, female BNC connector
(mod.and unmod. Time Code signals are generated in parallel )
additional Time Codes  available: IEEE1344, C37.118
and AFNOR NFS 87-500

Technical specifications:
Power supply: 100-240 V AC (50-60 Hz), with EU power cable
Power consumption: max. 30 W
19" metal chassis, 1 U/84 HP (483 mm wide x 43 mm high x 285 mm deep)
Includes:
1 x Manuals in English on USB stick
Without GPS Antenna, surge suppressor and coaxial cables.

Modelo: LANTIME M300/MRS/LNE/TC-1-1+GPSANT+SPRO+10
Description:
NTP time server with ultra-stable integrated oscillator OCXO-HQ *)
and Intelligent Reference Selection Algorithm (IRSA)
Marca: MEINBERG
Intelligent switching between available synchronization
sources (MRS): GPS, Time Code (e.g. IRIG-B)Pulse Per Second (PPS)
10MHz or  external NTP servers.
4 x LAN interface 10/100 MBit, RJ45 connector
1 x Terminal RS232 interface, 9pin D-Sub male connector for initial
setup and configuration
1 x USB Service interface
1 x LC-Display (2 x 40 characters) and 8 push buttons
4 x status LEDs

Reference Inputs:
1 x Meinberg GPS antenna input, BNC connector, isolated
1 x PPS input, TTL, pulse duration >= 5µs, active high, female BNC connector
1 x 10 MHz input, sine (1.5Vpp - 5Vpp) or TTL,  female BNC connector
1 x Time Code modulated input, BNC connector, isolated by transformer
      Insulation voltage  3000 VDC
      Input impedance: 50 Ohm, 600 Ohm, 5 kOhm
      Internally selectable by jumper (default 600 Ohm)
      Input signal : 600mV to 8V (Mark, peak-to-peak)
1 x Time Code unmodulated input, BNC connector, isolated  by opto-coupler
      Insulation voltage           : 3750 Vrms
      Internal series resistor  : 330 Ohm,
      Max. input current           : 25mA
      Diode forward voltage : 1.0V...1.3V
      selectable Time Code Inputs, modulated / unmodulated (DCLS):
      B122/123 / B002/003
      B126/127 /  B006/007
      IEEE1344 (modulated and DCLS)
      AFNOR NFS 87-500 (modulated and DCLS)

Signal Outputs:
2 x RS232 interface, independent, 9pin D-Sub female connector
with multi data formats timestrings.
1 x PPS, TTL into 50 ohm, pulse duration 200 msec, active high
female BNC connector
1 x Standard Frequency 10 MHz, TTL into 50 ohm, female BNC connector
1 x Alarm Relay Output, change-over contact, 3pin DFK connector
1 x IRIG-B amplitude modulated sinewave output (TC mod)
3 Vpp into 50 ohm, female BNC connector
1 x IRIG-B pulse-width modulated DC output (TC DCLS)
TTL into 50 ohm, active high, female BNC connector
(mod.and unmod. Time Code signals are generated in parallel )
additional Time Codes  available: IEEE1344
C37.118 and AFNOR NFS 87-500
Technical specifications:
Power supply: 100-240 V AC (50-60 Hz), with EU power cable
Power consumption: max. 30 W
19" metal chassis, 1 U/84 HP (483 mm wide x 43 mm high x 285 mm deep)
Includes:
1 x GPS antenna/converter unit mounted in waterproof plastic case
mounting kit, Amb. temp. -25...+65°C
1 x 20m coax-cable RG58.
1 x SPRO surge supressor fo coaxial cable
1 x 10m coax-cable RG58 for connection between GPS antenna
and surge suppressor.
1 x Manuals in English on USB stick

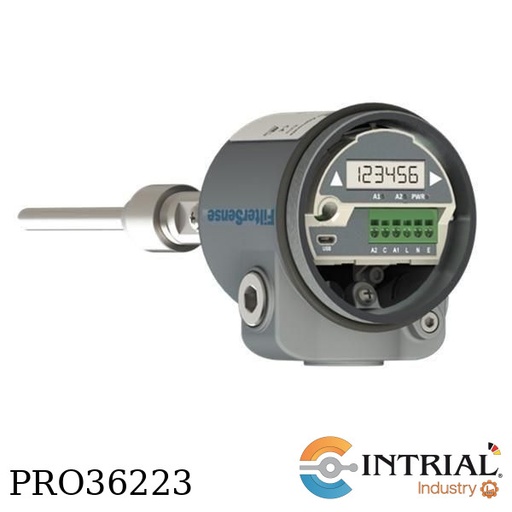

Modelo: PM-1-PRO-T-N-K-R5-G-N4X-N10-T450-P10-L30C
DynaCHARGE™ PM 1 PRO Particulate Monitor
Brand: FILTERSENSE
PM1-PRO-T: Base Electronics: Transmitter (4-20 mA), 2-Wire Loop Power
Functionality:
N: Device Diagnostics (to Namur NE 107)
K: Automatic EPA Self-Checks (Requires N)
R5: Resolution and Range: Monitoring, Resolution: 0.5 Pa
Range: 0 to 5,000 pA
G: Area Classification: Ordinary/General Purpose Only, (UL, CE) Approvals Pending
N4X: Electronics Enclosure: Type 4/IP 66 Duty Aluminum with window
N10: Nipple Assembly/Type (Integral with electronics,for remote ref PS-10-HP)
NPT Male, 1.0 in., 316L (High Performance, Heavy Duty)
T450: Process Temperature: -40 °F to 450 °F (-40 °C to 232 °C)
P10: Process Pressure: Full Vacuum to 10 PSI (0.69 Bar)
L30: Probe Length - Active Part measured from the thread: Length - 30 in (76.2 cm)
Probe Length - In-Active Part dead probe: Length - 24 in (60.9 cm)
C: Probe Type: Fully Insulated, Teflon Coated, 316L

DynaCHARGE™ PM 1 Particulate Monitor
Brand: FILTERSENSE
PM1-T: Base Electronics: Transmitter (4-20 mA), 2-Wire Loop Power
ST:Functionality: Standard Ambient Temp -13 °F to 140 °F (-25 °C to 60 °C)
R1: Resolution and Range: Monitoring, Resolution: 0.5 Pa
Range: 0 to 5,000 pA
G: Area Classification: Ordinary/General Purpose Only, (UL, CE) Approvals Pending
N4: Enclosure: Type 4/IP 66 Aluminum, Powder Coated
N10: Nipple Assembly/Type (for remote sensor ref PM 1 PRO) : NPT Male, 1.0 in., 316L
T450: Process Temperature: -13 °F to 450 °F (-25 °C to 232 °C)
P10: Process Pressure: Full Vacuum to 10 PSI (0.69 Bar)
L30: Probe Length - Active Part: Length - 30 in (76.2 cm)
Probe Length - In-Active Part: Length - 25 in (63.5 cm)
C: Probe Type: Fully Insulated, Teflon Coated, 316L

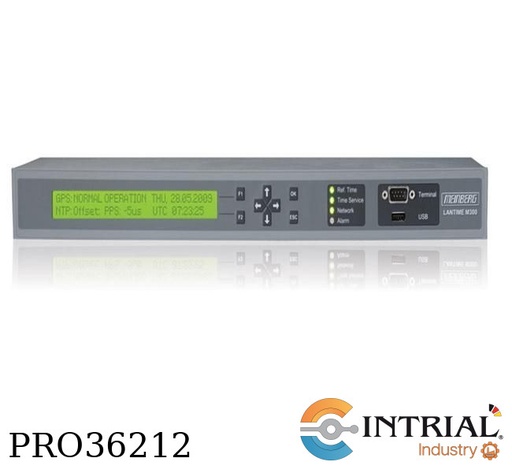

Modelo: NTP-LANTIME-M300/MRS-TC-1-1+GPSANT+SPRO+10
SERVIDOR DE TIEMPO M300 NTP/SNTP PARA 19"
Marca: MEINBERG
2 x puertos Ethernet independientes para sincronizacion con NTP
2 x puertos seriales RS232 independientes
1 x salida PPS TTL sobre BNC
1 x salida 10 MHz TTL sobre BNC
1 x salida IRIG-B modulada (AM).
1 x salida IRIG-B no modulada (DCLS = TTL)
1 x entrada de antena GPS sobre BNC
1 x entrada IRIG-B modulada (AM) sobre BNC
1 x entrada IRIG-B no modulada TTL sobre BNC
1 x entrada PPS TTL sobre BNC
1 x entrada 10 MHz TTL sobre BNC
1 x relay de alarma sobre bornera
Fuente de voltaje para 100...240 VAC
Montaje en rack de 19"
Incluye:
1 x Antena GPS con accesorios de montaje
1 x 20 metros de cable coaxial
1 x Supresor de sobretensiones SPRO para cable coaxial
1 x 10 metros de cable coaxial

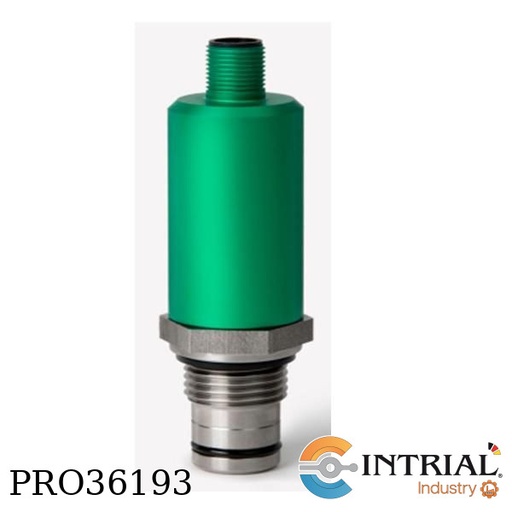

CONTAMINATION INDICATOR
Brand: BUEHLER-TECHNOLOGIES
Connection thread M20x1,5 compatible with
Third-party product Filtration Group / BoschRexroth
Maximum operating pressure 400 bar
Pressure range: 3 bar
Connector M12x1 (4-PIN)
1 x PNP output (switching point accuracy approx. 5%)
1 x IO-Link

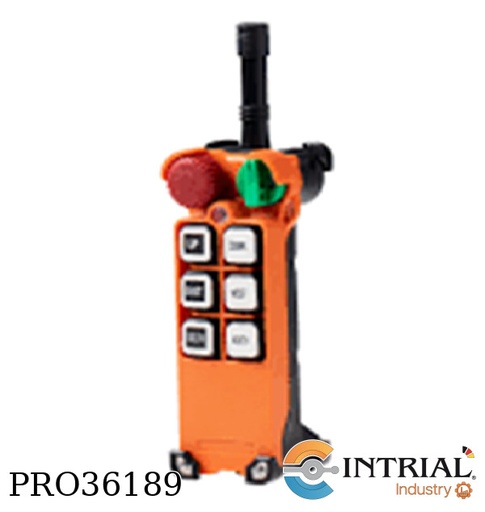

REMOTE CONTROLLER (1T+1R)
Brand: TELECRANE
Emission Power <10mW
ID Code 4.3 billion(32 bits)
Operating Temp. -35~80°C
Enclosure Nylon Fiber
Operating Distance Up to 100M
Transmitter Power 2 AA size Batteries

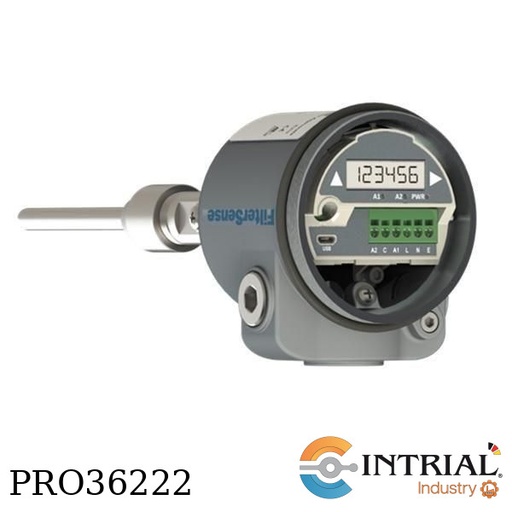

​DynaCHARGE™ PM 1 Particulate Monitor
Brand: FILTERSENSE
PM1-T: Base Electronics: Transmitter (4-20 mA), 2-Wire Loop Power
ST:Functionality: Standard Ambient Temp -13 °F to 140 °F (-25 °C to 60 °C)
R1: Resolution and Range: Monitoring, Resolution: 0.5 pA, Range: 0 to 5,000 pA
G: Area Classification: Ordinary/General Purpose Only, (UL, CE) Approvals Pending
N4: Enclosure: Type 4/IP 66 Aluminum, Powder Coated
T450: Process Temperature: -13 °F to 450 °F (-25 °C to 232 °C)
P10: Process Pressure: Full Vacuum to 10 PSI (0.69 Bar)
L30: Probe Length - Active Part: Length - 30 in (76.2 cm)
Probe Length - In-Active Part: Length - 25 in (63.5 cm)
C: Probe Type: Fully Insulated, Teflon Coated, 316L

PANEL VIEW
Brand: ALLEN BRADLEY
Model: 1000
24 V, DC

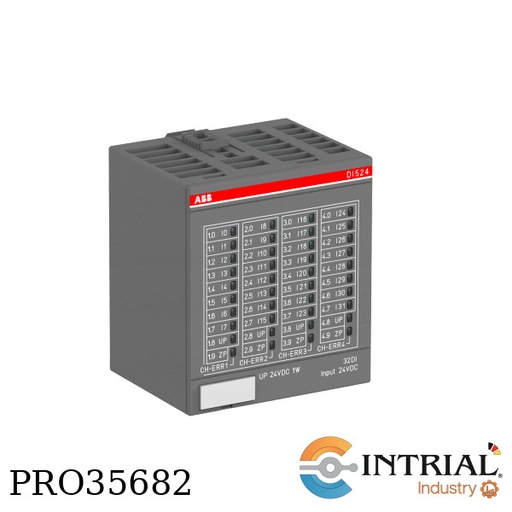

DIGITAL INPUT MODULE
Brand: ABB
Rated value 24 VDC
Max. ripple 5 %
Protection against reversed voltage Yes
Rated protection fuse for UP 10 A fast
Galvanic isolation Yes, per module
From 24 VDC power supply at the terminals UP/L+ and ZP/M of the CPU/bus module ca. 2 mA
From UP at normal operation 0.15 A
Inrush current from UP (at power up) 0.008 A²s
Weight (without terminal unit) ca. 105 g

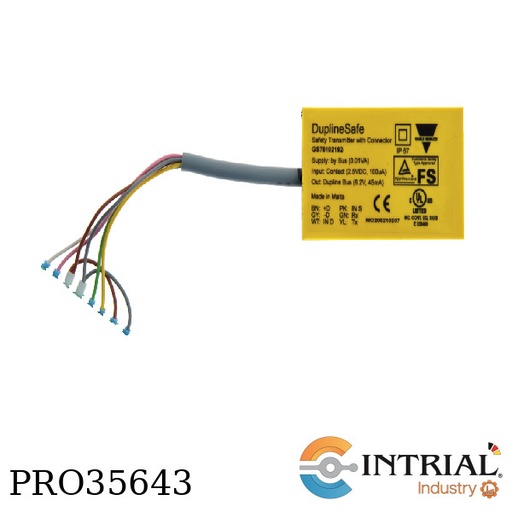

MODULO DUPLINE
MARCA: CARLO GAVAZZI
Power ON delay < 5s
Degree of protection IP 67
Pollution degree 3 (IEC 60664)
Operating temperature -40°C to 70°C
Storage temperature -40° C to 70°C
Humidity (non-condensing) 20 - 80%
Material Valox PBT, Yellow
Dimensions 57,5 x 36,0 x 16,4 mm
Termination Cable
Material PVC, Black
Length 300 mm
Dimension 6 x 0.5 mm2
Inputs 1 NC Contact
Open loop voltage 2.5 V
Short-circuit current 100 µA
Contact resistance < 1kΩ

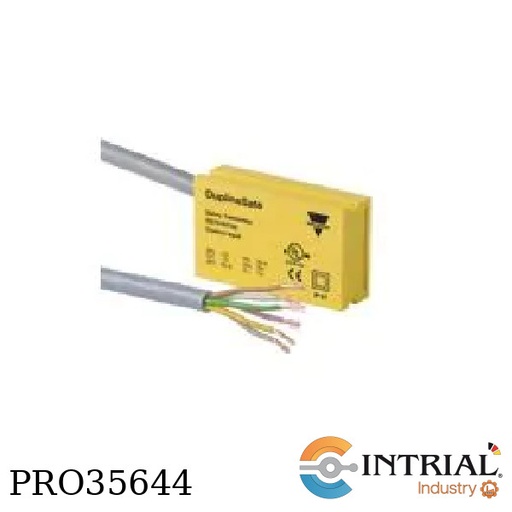

MODULO DUPLINE
MARCA: CARLO GAVAZZI
Power ON delay < 5s
Degree of protection IP 67
Pollution degree 3 (IEC 60664)
Operating temperature -40°C to 70°C
Storage temperature -40° C to 70°C
Humidity (non-condensing) 20 - 80%
Mechanical resistance
Shock 15 G (11 ms)
Vibration 2 G (6 to 55 Hz)
Material Valox PBT, Yellow
Dimensions 57,5 x 36,0 x 16,4 mm
Termination Cable
Material PVC, grey, UL2464
Length 300 mm
Dimension 6 x 0.25 mm2
Inputs 1 NC Contact
Open loop voltage 2.5 V
Short-circuit current 100 µA

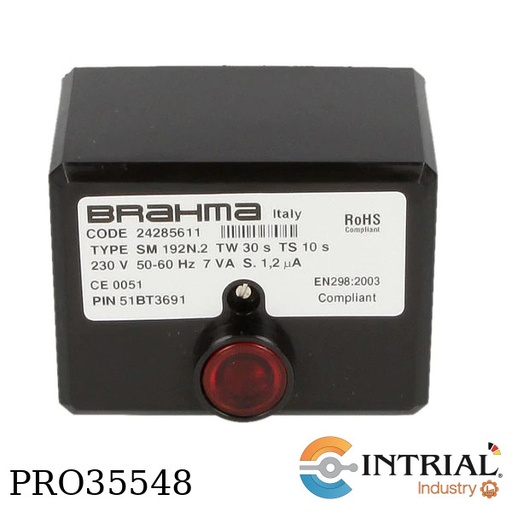

UNIDAD DE CONTROL
Marca: BRAHMA
Voltaje de suministro: 230V-50 / 60Hz
Rango de temperatura de funcionamiento: -20 ° C + 60 ° C
Humedad ambiental: 95% máx. A 40 ° C

SINGLE-ENDED CORDSETS<br />
Brand: Balluf<br />
Connection: M16x0.75-Female, right-angle, 8-pin<br />
Cable: PUR Shielded black, 10.00 m, Drag chain compatible<br />
Number of conductors:8<br />
Conductor cross-section: 0.25 mm²<br />
Cable temperature, fixed routing: -50...80 °C<br />
Operating voltage Ub: 60 VDC / 60 VAC<br />
Rated current (40 °C) 5.0 A<br />
IP rating: IP67<br />
Approval/Conformity: CE, EAC, WEEE

62H-MDC0-DH<br />
VIPA Yaskawa industria<br />

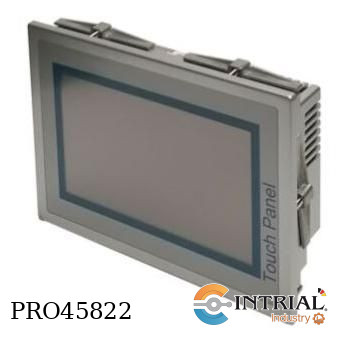

Panel Tactil (Eco Panel), 7”

REACTIVO PARA CHECKER SILICE RANGO BAJO, 25 PRUEBAS<br />
MARCA: HANNA INSTRUMENTS<br />
MODELO: HI705-25

COLORIMETRO CHECKER<br />
MARCA: HANNA INSTRUMENTS<br />
Más fácil de usar y más preciso que los kits químicos de prueba<br />
Dedicado a un solo parámetro<br />
Tamaño pequeño, gran conveniencia<br />
Ideal para: Calidad del Agua, Medio Ambiente, Educación, Piscina y Spa<br />
Rango: 0.00 a 2.00ppm<br />
Resolución: 0.01ppm<br />
Exactitud: ±0.03ppm ±5% de la lectura<br />
Método silice: Adaptación del ASTM D859, método heterópoli azul<br />
Fuente de luz: LED a 610nm<br />
Detector de luz: Fotocelda de silicio<br />
Apagado automático: Después de 10minutos de inactividad<br />
Condiciones ambientales: 0 a 50°C; HR máx. 95% sin condensación<br />
INCLUYE: 2 cubetas con tapas (2), reactivos para 12 pruebas, batería y manual de <br />
instrucciones

<strong>PROCESS Indicator<br />
Model: CS1-PR-AV-I-E24-A<br />
Brand: ADTEK</strong><br />
TECHNICAL SPECIFICATION<br />
Calibration: Digital calibration by front key<br />
Accuracy: ≤± 0.04% of FS  1C<br />
Numeric: 5 digits, 0.8”(20.0mm)H red high-brightness LED<br />
[CS1-PR] Model<br />
[AV] Input Signal, 0~10V/0(4)~20mA(all in one)<br />
[I] Optional Output, 0 ~ 10 Ma, 0(4)~20 mA<br />
[E24] Excitation Supply, DC 24V<br />
[A] Aux. Powered, AC115/230V
