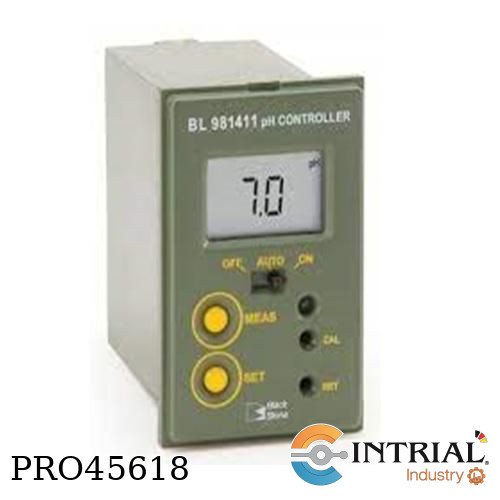

MINICONTROLADOR PH <br />
Marca :HANNA INSTRUMENTS<br />
DE PANEL / SIN ELECTRODO

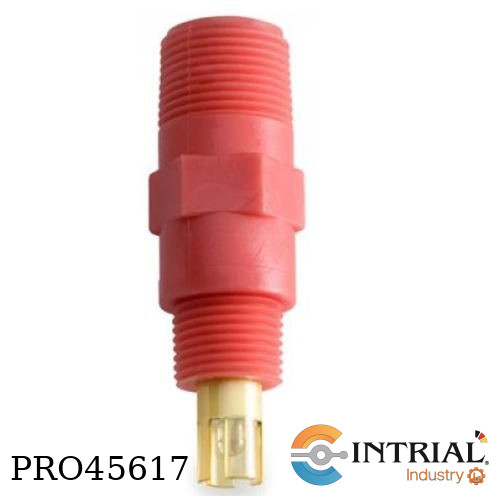

ELECTRODO DE PH <br />
Marca :HANNA INSTRUMENTS<br />
6 BARES 1/2"

COMPACT PLC SERIES CP2E, 220 VAC<br />
BRAND: OMRON<br />
NETWORK <br />
12 OF<br />
8DO<br />
RELAY OUTPUT<br />
ALIMENTATION 220 VAC<br />
10 KSTEP PROGRAM MEMORY

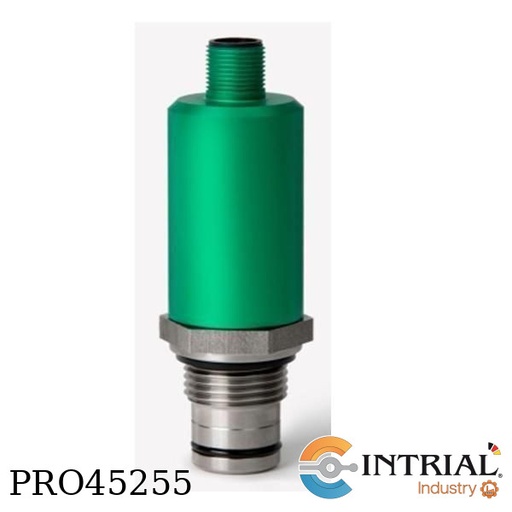

CONTAMINATION INDICATOR<br />
Brand: BUHLER TECHNOLOGIES<br />
BCI24-DM337-1D1S-1<br />
Output 1 - C/Q IO-Link (PNP Output 1 - Advance warning / NC at delta 2,0 bar)<br />
Output 2 - PNP Output 2 - Shut down / NC at delta 2,8 bar<br />
Output current max. 200mA<br />
Measuring range delta P ca. 0,3 to 3 bar<br />
Operating voltage UB = 18 - 30VDC<br />
Max. Operating temperature electronic = -20°C bis +70°C<br />
Max. Operating pressure = 400bar<br />
Max Fluid temperature = -40°C bis +85°C (Depending for seal material!)<br />
Max. Storage temperature = -40°C bis +85°C<br />
Connector: M12x1 4 pol male connector<br />
Material of housing:<br />
3.2315<br />
Material of wetted parts:<br />
Housing: 1.4305<br />
Spring:1.4310,<br />
Magnet: Hard ferrite 8/22<br />
Seal: NBR

Protective Rubber Cover<br />
Fabricante: Saga <br />
P/N: SAGA1-L10/K2 TX <br />
Protective Rubber Cover<br />
Descripción: cubierta protectora de goma

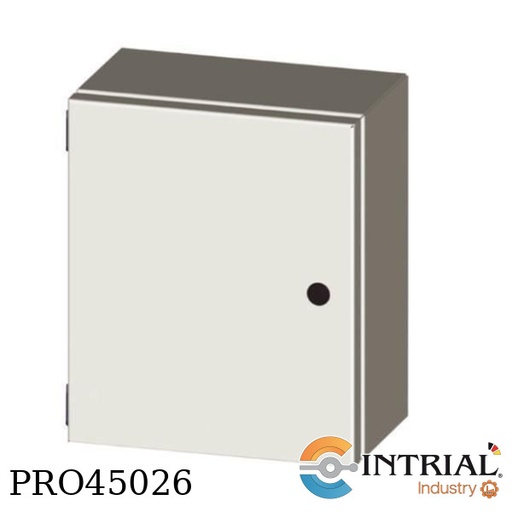

GABINETE DE ACERO INOXIDABLE <br />
Dimensiones: 12" x 12" x 6" (30 x 30 x 15 cm)<br />
Brand: DWYER <br />
Peso: 5 Kg<br />
Materials: Enclosure: 304 SS; Mounting feet: 316 SS†; Hinges: Plastic<br /><div>
<div class="gtx-trans-icon"></div>
</div>

BRICK PLC<br />
BRAND: SCHNEIDER ELECTRIC MODICON<br />
M241 SERIES<br />
24 VDC<br />
ETHERNET<br />
1.7 AMP<br />
5 MA

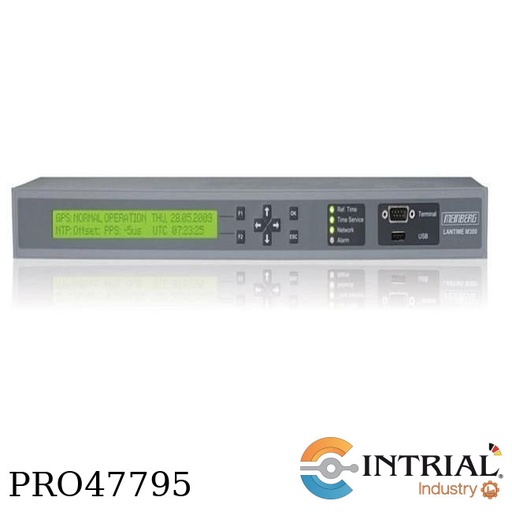

SERVIDOR DE TIEMPO M300 NTP/SNTP<br />
Marca: MEINBERG<br />
Oscilador TCXO<br />
2 x puertos Ethernet independientes para administracion y sincronizacion con NTP/SNTP, con PRP bajo IEC 62439-3.<br />
2 x puertos seriales RS232 independientes<br />
1 x salida IRIG-B modulada (AM). <br />
1 x salida IRIG-B no modulada (DCLS = TTL)<br />
1 x salidas PPS TTL<br />
1 x salida 10 MHz TTL<br />
Fuente de voltaje interna HDC para 100...200 VDC<br />
Montaje en rack de 19"<br />
Incluye:<br />
1 x Antena GPS con accesorios de montaje<br />
1 x 20 metros de cable coaxial<br />
1 x Supresor de sobretensiones SPRO para cable coaxial <br />
1 x 10 metros de cable coaxial<br />
SIN PTP !!<br />
SIN FUENTE REDUNDANTE !!<br /><br />
Description:  NTP Time Server with integrated GPS radio clock  <br />
LANTIME M300 NTP time server with integrated satellite receiver/radio clock with following <br />
inputs/outputs:<br />
2 x LAN interface, RJ45 connector, status LEDs for Link, Activity, Speed (10/100 MBit)<br />
1 x RS232 interface in front panel, 9pin D-Sub male connector for VT100 terminal<br />
2 x RS232 interface, independent, 9pin D-Sub female connector<br />
1 x USB (Rev. 1.1) connector in front panel<br />
1 x pulse per second, TTL into 50 ohm, pulse duration 200 msec, active high, female BNC connector<br />
1 x standard frequency 10 MHz, TTL into 50 ohm, female BNC connector<br />
1 x alarm relay output, changeover contact, 3pin DFK connector (VCC max. 48 V, 0,5A)<br />
1 x IRIG-B amplitude modulated sinewave output (TC mod), 3 Vpp into 50 ohm, female BNC connector <br />
1 x IRIG-B pulse-width modulated DC output (TC DCLS), TTL into 50 ohm, active high, female BNC connector<br />
(mod.and unmod. Time Code signals are generated in parallel ) <br />
additional Time Codes  available: IEEE1344, C37.118 and AFNOR NFS 87-500<br />
LC display, 40 character x 2 rows<br />
4 x status LEDs<br />
The system is assembled of:<br />
GPS180 with TCXO<br />
Power supply HDC: 100 - 200 VDC, on 3 pin DFK connector <br />
Metal 19" modular chassis, 1U/84HP, slimline (483mm wide x 43mm high x 350mm deep)<br />
Includes:<br />
1 x GPS antenna/converter unit mounted in waterproof plastic case, mounting kit, Amb. temp. -25...+65°C <br />
1 x 20m coax-cable RG58.<br />
1 x SPRO surge supressor fo coaxial cable<br />
1 x 10m coax-cable RG58 for connection between GPS antenna and surge suppressor.<br />
1 x Manuals in English on USB stick

INCLINATION SENSOR<br />
Brand: PEPPER & FUCH<br />
Type Inclination sensor, 1-axis<br />
Measurement range: 0 ... 360 °<br />
Absolute accuracy: ≤ ± 0.5 °<br />
Response delay ≤ 20 ms<br />
Resolution: ≤ 0.1 °<br />
Repeat accuracy: ≤ ± 0.1 °<br />
Temperature influence ≤ 0.027 °/K<br />
Operating voltaje: 10 ... 30 V DC<br />
No-load supply current ≤ 25 mA<br />
Time delay before availability ≤ 200 ms

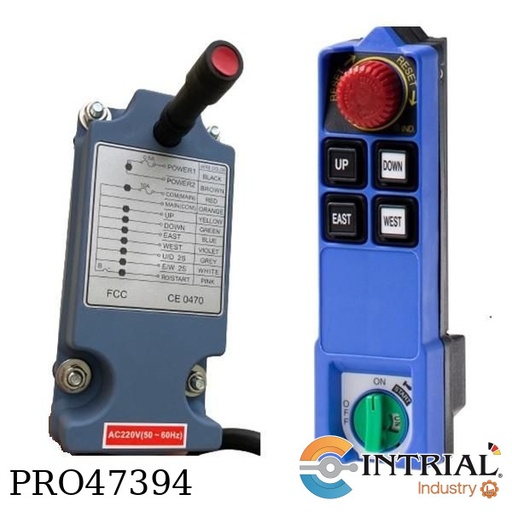

INDUSTRIAL RADIO REMOTE CONTROL<br />
Brand: SAGA RADIO<br />
Enclosure: IP65<br />
structure: Glass Fiber<br />
Operation Temperature: -45 to 80C<br />
relay: 10A/250 VAC(AC Power), 10A/36VDC(DC Power)<br />
ID Code: 32 bit<br />
Hamming distance ≥ 4<br />
Static: > 15KV<br />
remote ID code setting<br />
Operation range up to 100M<br />
function programmable<br />
include:  Transmitter(RX) y Receiver(RX)<br />
L6B: 4 push buttons with 2-steps(Up, Down, Est, West) + EMS+ start Key

DRIVE<br />
BRAND: ALLEN BRADLEY<br />
ADJUSTABLE FREQUENCY<br />
POWERFLEX 700<br />
400 VAC<br />
3 PHASE<br />
3.5 AMP<br />
1.5 KW<br />
2 HP<br />
PANEL MOUNT<br />
INTERFACE MODULE - BLANK COVER<br />
WITH BRAKE<br />
FILTERED EMISSION CLASS<br />
ENHANCED CONTROL<br />
NO FEEDBACK

MÓDULO LÓGICO<br />
Marca: MITSUBICHI<br />
Número de Entradas: 36<br />
Tipo de Salida:  Relé<br />
Tipo de Entrada Disipación: fuente<br />
Tensión de Alimentación: 12 → 24 Vdc<br />
Número de Salidas: 24<br />
Capacidad del Programa: 32000 Pasos<br />
Interfaz de Programación: Ordenador, Interfaz Hombre Máquina (HMI)<br />
Idioma de Programación Utilizado: Ladder Logic<br />
Tipo de Montaje: Carril DIN<br />
Corriente de Salida: 8 A<br />
Temperatura de Funcionamiento Máxima: +50°C<br />
Temperatura de Funcionamiento Mínima: 0°C

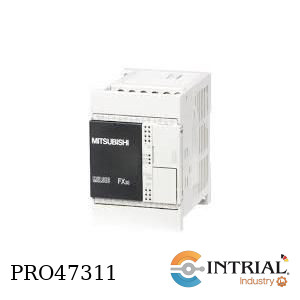

CONTROLADOR LÓGICO PROGRAMABLE DE NIVEL DE ENTRADA<br />
Marca : MITSUBISHI ELECTRIC<br />
Función principal: CPU unit<br />
Voltaje de alimentación: 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac)<br />
Capacidad de memoria: 4Ksteps (EEPROM; Program)<br />
Capacidad de conexión: 30 x I/O points<br />
Tipo de conexión: USB connector<br />
screw-clamp term. connections (I.O's)<br />
Protocolo de comunicación: RS-422<br />
Modo de montaje: DIN rail<br />
Entradas digitales8 x digital inputs (24Vdc; Sink/Source)<br />
Salidas digitales6 x digital outputs (5-30Vdc; Sink; 500mA; 0.2ms response)<br />
Temperatura ambiente en operación: 0...+55 °C<br />
Temperatura ambiente para almacenamiento: -25...+75 °C<br />
Consumo de energía: 6 W<br />

FLEXEX EXERNAL ANALOG INPUT MODULE<br />
Brand: ALLEN BRADLEY<br />
16 BIT<br />
8 POINT

CONTROLNET COAX BARRIER<br />
Brand: ALLEN BRADLEY<br />
REDUNDANT<br />
2 CHANNEL

FLEXEX REPEATER ADAPTOR<br />
Brand: ALLEN BRADLEY<br />
9.5 V<br />
1 AMP

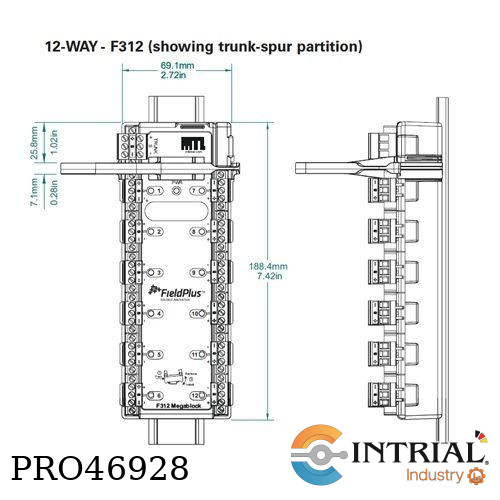

MEGABLOCK
Marca MTL
12 spurs
con terminador incluido
LED de indicación de Alimentación
montaje a riel DIN

CONTROLLOGIX ISOLATED RTD INPUT MODULE<br />
Brand: ALLEN BRADLEY<br />
Product type : Isolated RTD Input Module ControlLogix<br />
Inputs : 6 individually isolated RTD <br />
Overvoltage protection, max : 24V AC/DC<br />
Normal mode noise rejection : 60 dB at 60 Hz<br />
Data format : Integer mode (left justified, 2s complement) <br />
IEEE 32-bit floating point<br />
Module conversion method : Sigma-Delta<br />

FLEX EX NAMUR INPUT MODULE<br />
Brand: Allen-Bradley<br />
Input Frequency: 1000 Hz max<br />
Off-state Current: 1.2 mA<br />
On-state Current: 2.1 mA<br />
Product Description: Flex Ex NAMUR Input Module<br />
No. of inputs: Sixteen (16) non-isolated, sinking inputs<br />
Digital Input Type: NAMUR Compatible type<br />
Input pulse width: >500 µs on or off<br />
Input delay times:1 ms, 2 ms, 3 ms, 5 ms, 9 ms, 17 ms, 33 ms<br />
Indicators: 16 yellow status indicators 16 red fault indicators <br />
1 green module power indicator<br />
Terminal Base: 1797-TB3 or 1797-TB3S<br />
Conductor wire size: 4 mm2 (12 gauge) stranded; max 1.2 mm (3/64 in.) <br />
insulation max<br />
Inputs 16<br />
Input Type: Nonisolated Sinking<br />
Hysteresis: 0.2 mA<br />
Power Dissipation: 2.8 W<br />
Thermal Dissipation: 9.6 BTU/hr max.<br />
Max. Load Voltage: 7.5 V DC

<div>CONTROLNET EX FIBER REPEATER MODULE<br />
Brand<span> </span>ALLEN BRADLEY<br />
Communication Rate: 5 Mbits<br />
Fiber Media Length: 3 km<br />
Fiber Type: 62.5-125 mm<br />
Fiber Termination Type<span> </span>ST Plastic or Ceramic<br />
Fiber Operating Wavelength: 1300 mm<br />
Optical Power Budget<span> </span>13.3 dB<br />
Input Power: 5.4V<br />
Fiber Optic Transmitter<span> </span>Optical peak output power Poptical < 1 mW<br />
Indicators: Channel 1 status - green Channel 2 status - green<br />
IS Media Type<span> </span>Ex ia IIB/IIC T4, AEx ia IIC T4, Class I,<br />
Division 1 Groups A to G T4<br />
IS Module Type<span> </span>Ex ib IIB/IIC T4, AEx ib IIC T4, Class I<br />
Division 1 Groups A to D T4</div>
