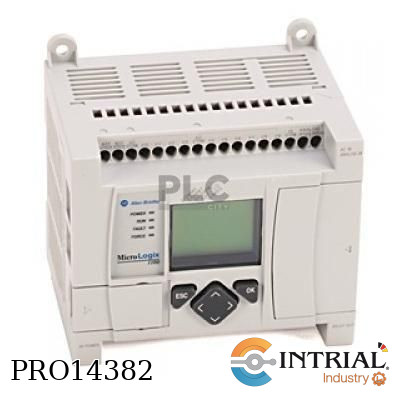

PLC Micrologix 1100
Marca: Allen Bradley
Familia: Micrologix 1100
Alimentación: 24VDC
Caracteristicas:
10 DI, 6DQ, 2AI
Serie B
RS-232, DF1, DH-485, Modbus RTU y mensajería Ethernet/IP

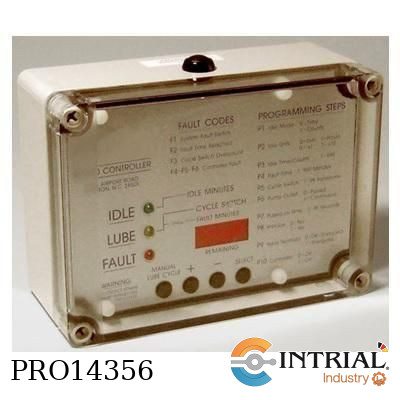

CONTROLADOR
Marca: BIJUR DELIMON
50/60 HZ
Nema 4X
Mem. Eprom
Reles 2 Amp SW Ciclo 12-16 VDC

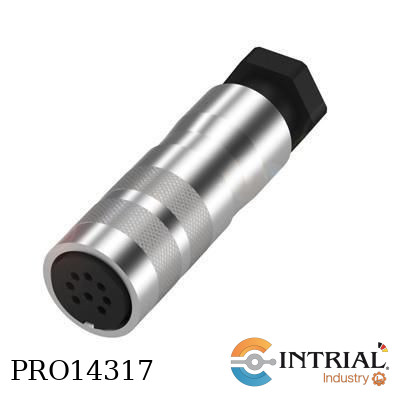

CONECTOR TRANSDUCTOR LINEAL
MARCA: BALLUFF
Connection: M16x0.75-Female, straight, 8-pin
Number of connectable contacts: 8
Connection cross-section: 0.14...0.75 mm²
Type of wire mounting: Solder connections
Cable diameter D: 6...8 mm
Operating voltage Ub: 60 VDC / 60 VAC
Rated current (40 °C): 5.0 A
IP rating: IP67
Ambient temperature: -30...95 °C
Approval/Conformity: EAC, WEEE

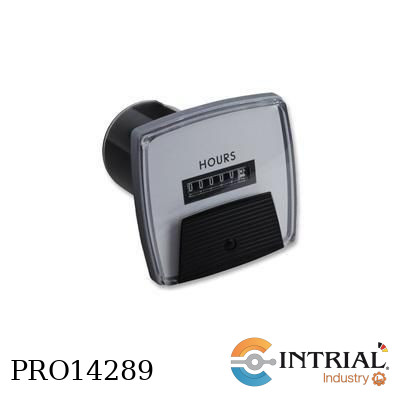

HOROMETRO
FABRICANTE: YOKOGAWA CORP. OF AMERICAS
BOBINA 110 VAC 60 HZ 3W
USO:PORTABLES LAUREL
NO DE PARTE 240311AAAB8

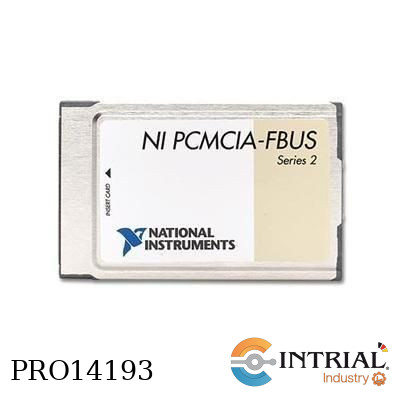

INTERFAZ FOUNDATION FIELBUS DE 1 PUERTO PARA PCMCIA
Marca: NATIONAL INSTRUMENTS (USA)
Procesador Intel 80386EX
Se ejecuta como enlace maestro o dispositivo básico
Interfaz H1 (31.25 kb/s) para PCMCIA (Tarjeta de PC de 3.3 y 5 V)
Incluye servidor compatible con OPC 2.0

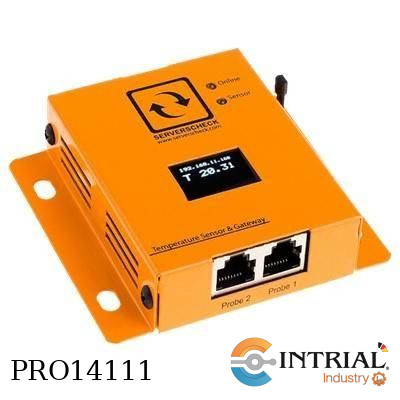

BASE UNIT (SensorGateway)
Brand: SERVERSCHECK
Base unit for all sensor probes
Supports up to 2 additional probes
Max length between Sensor Gateway and probes is 30ft / 10m

SSE-J-121006

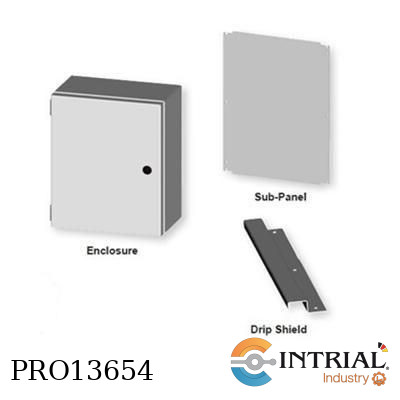

GABINETE DE ACERO INOXIDABLE
Dimensiones: 12" x 10" x 6"
Brand: DWYER
Peso: 4.5 Kg
Materials: Enclosure: 304 SS; Mounting feet: 316 SS†; Hinges: Plastic
All other components: Carbon steel SSE-J-121006

Modelo: DCT1022

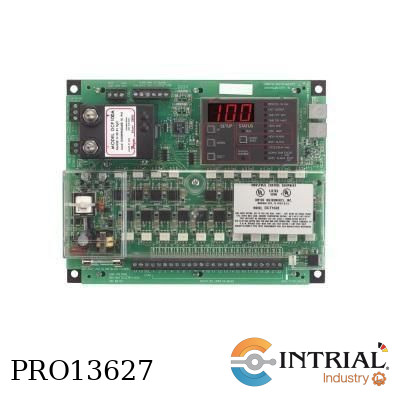

TIMER CONTROLLER
With Universal Power For Both 120 and 220 VAC
Brand: Dwyer
DCT1000 TIMER CONTROLLER
Output Channels: 22 channels.
Expandable to 255 channels using
DCT1122 & DCT1110 channel expander
boards.
Power Requirements: 85 to 270 VAC,
50 or 60 Hz.
Power Consumption: 5 W.
Solenoid Supply: 3 A max per channel.
Fuse: 3 A @ 250 VAC. Low voltage
control circuitry is isolated from the line
voltage for system safety.
Temperature Limits: -40 to 140°F (-40to 60°C).
Storage Temperature Limits: -40 to 176°F (-40 to 80°C).
On Time: 10 ms to 600 ms, 10 ms steps.
On Time Accuracy: ±10 ms.
Off Time: 1 s to 255 s, 1 s steps.
Off Time Accuracy: ±1% of the value or ±50 ms, whichever is greater.
Agency Approvals: cULus.

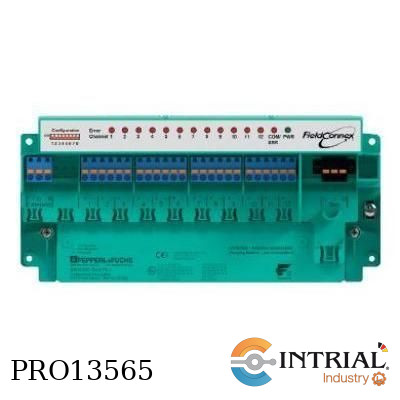

FIELDCONNEX I/O
Brand: PEPPERL & FUCHS
Connection type plug-in terminals , spring terminal and screw terminal
Core cross-section
Bus up to 2.5 mm2
Inputs up to 2.5 mm2
Housing material Polycarbonate
Degree of protection IP20

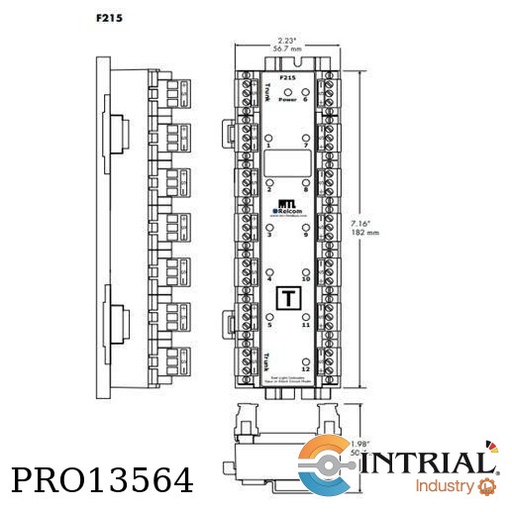

FIELDBUS MEGABLOCK WIRING COMPONENTS
Marca: EATON - MTL
Megablocks: 12 way with switched Terminator

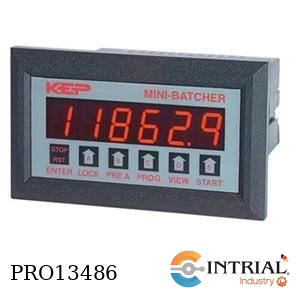

CONTROLADOR TIPO BATCH Totalizador
Marca: KEP(USA)
Modelo: MB2-B-3-4
Alimentación: 220 VAC  15% or 12 to 15 VDC
Salida 2 contactos tipo Rele
Entrada de Pulsos
Montaje en Panel
Opcion A:4 a 20 mA
[MB2]:  MiniBatcher
[B]:  220 VAC ± 15% or 12 to 15 VDC
[3]:  Standard, 4-30 VDC pulse inputs.
[4]:  Modbus RTU RS422/RS485

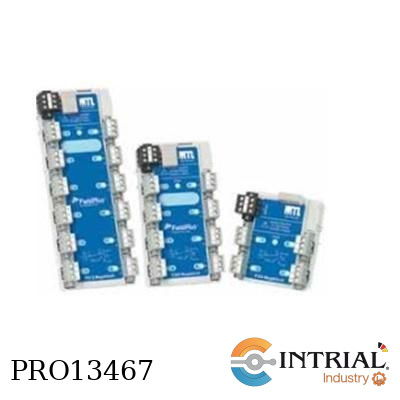

MEGABLOCK
Marca: RELCOM INC
SWITCH:NETWORK TYPE:FIELDBUS VOLTAGE RATING:10.5 V
CURRENT RATING:4.4 MA
NUMBER OF PORTS:10 MATERIAL:LEXAN
POLYCARBONATE CASE MOUNTING TYPE:35 MM
DIN-RAIL TEMPERATURE RATING:-45 TO 70 DEG C
DIMENSIONS:2.23 WD X 1.98 DP X 6.16 HT
IN CERTIFICATION/STANDARD:EN,IEC ADDITIONAL FEATURES:MEGABLOCK

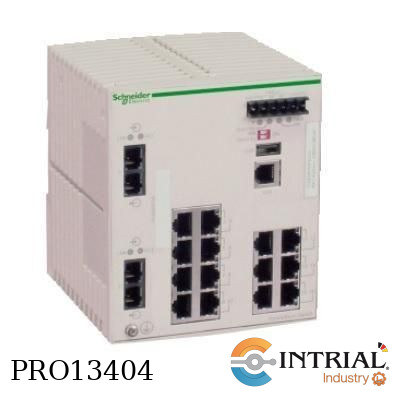

ETHERNET TCP/IP MANAGED SWITCH
Model: TCSESM163F2CS0
ConneXium - 14TX/2FX – single mode
Brand: SCHNEIDER

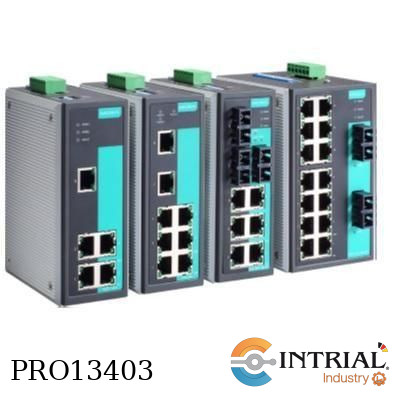

ETHERNET SWITCHES
• Brand: MOXA
• Relay output warning for power failure and port break alarm
• Broadcast storm protection
• Technology Standards:
• IEEE 802.3 for 10BaseT
• IEEE 802.3u for 100BaseT(X) and 100BaseFX
• IEEE 802.3x for Flow Control
• Processing Type: Store and Forward
• Switch Properties
• MAC Table Size:
• EDS-316: 4K
• Packet Buffer Size:
• EDS-316: 1.25 Mbit

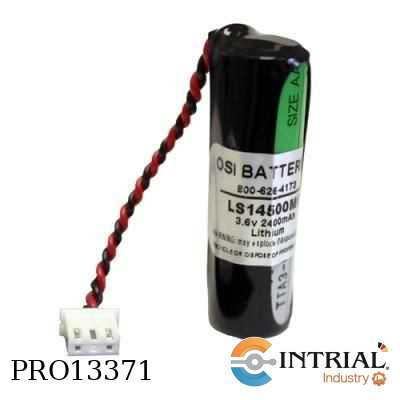

Modelo: FX2N Battery PLC
Marca: Mitsubishi
Características:

• Application: Programmable Logic Controller

• Device Manufacturer: Mitsubishi

• Voltage: 3.6V

• Nominal Capacity: 2450mAh

• Chemistry: Lithium

• Size: 0.59" dia. x 1.99" tall

• Terminals: Wire Leads Connector

FX Family
Melsec PLC
Brand: MITSUBISHI ELECTRIC

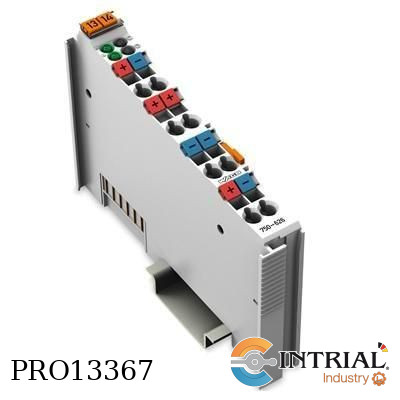

FILTER MODULE
Brand: WAGO
for system and field side power supply
24V DC Power Supply Filter with Overvoltage
Voltage via power jumper contacts (max.) 24 V DC (-25 % ... +30 %)
Current via power jumper contacts (max.) 10 A DC
Current via system voltage (max.) 1.5 A (1 A up to hardware 04)
Wire connection CAGE CLAMP®
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
Strip lengths 8 ... 9 mm / 0.33 in
Width 12 mm
Weight 51 g
EMC immunity of interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications

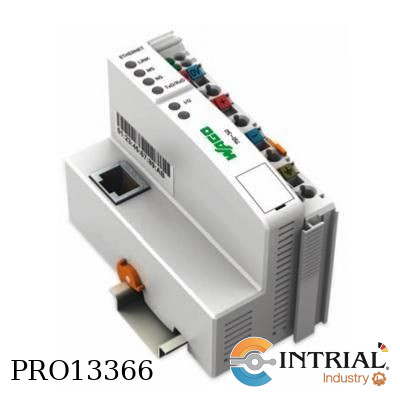

ETHERNET TCP/IP Fieldbus Coupler
10/100 Mbit/s; digital and analog signals
Brand: WAGO
Operating temperature 0 °C ... +55 °C
Wire connection CAGE CLAMP®
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
Stripped lengths 8 ... 9 mm / 0.33 in
Dimensions (mm) W x H x L 51 x 65 x 100
Height from upper-edge of DIN 35 rail
Weight 179.5 g
Storage temperature -25 °C ... +85 °C
Relative air humidity (no condensation) 95 %
Vibration resistance acc. to IEC 60068-2-6
Shock resistance acc. to IEC 60068-2-27
Degree of protection IP20
EMC 1-Immunity to interference acc. to EN 61000-6-2 (2005)
EMC 1-Emission of interference acc. to EN 61000-6-3 (2007)
EMC marine applications - Immunity to
interference acc. to Germanischer Lloyd (2003)
EMC marine applications - Emission of
interference acc. to Germanischer Lloyd (2003)

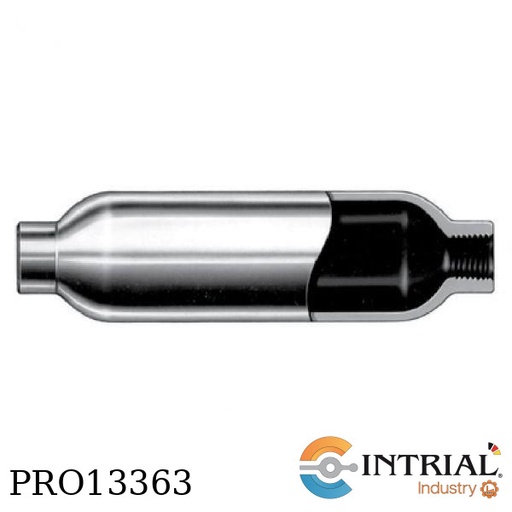

Cilindro Toma muestra
Brand: SWAGELOK
Model: INT-105-18
• 1000cc de capacidad / Acero Inox 304L
• Presión de Servicio: 1800 Psi
• Rosca 1/4 “NPT hembra en ambos lados
• Incluye Válvula de aguja 1/4" NPT macho en SS 316.
• Incluye disco de Ruptura (Presión nominal de Ruptura 1900 Psig)

Cilindro Toma muestra
Model: INT-106-18
• 300cc de capacidad / Acero Inox 304L
• Presión de Servicio: 1800 Psi
• Rosca 1/4 “NPT hembra en ambos lados
• Incluye Válvula de aguja 1/4" NPT macho en SS 316.
• Incluye disco de Ruptura (Presión nominal de Ruptura 1900 Psig)
