CONTROLNET MODULAR REPEATER ADAPTER<br />
Brand: ALLEN BRADLEY<br />
Power consumption, max: 16.8 W<br />
Power dissipation, max: 8.8 W<br />
Input current rating, max: 700 mA @ 24V DC max, SELV(2)<br />
Input voltage range(1): 18...36V DC<br />
Backplane output current, max: 1.6A @ 5V DC, max<br />
Isolation voltage: N/A (SELV), Functional Insulation Type, <br />
ControlNet to System<br />
Wire size: 0.21...3.3 mm2 (24..12 AWG) solid or stranded copper <br />
wire that is rated at 105°C (221°F), or greater, 1.2mm (3/64 in.) <br />
insulation max for power connections<br />
Wiring category: <br />
2 - on power ports<br />
2 - on ControlNet ports(3)<br />
Terminal block torque specifications: 0.6...0.8 N-m (5.3...7.0 Lb-in) <br />
on Power RTB<br />
Enclosure type rating: None (open-style)<br />
North American temp code: T5<br />
IECEx temp code: T5<br />
ATEX temp code: T5

CONTROLLER<br />
Brand: ALLEN BRADLEY<br />
CompactLogix L3<br />
3 MB User Memory<br />
1 GB Secure Digital Memory Card<br />
No Embedded I/O<br />
16 Axis CIP Motion Support<br />
1769 Power Supply

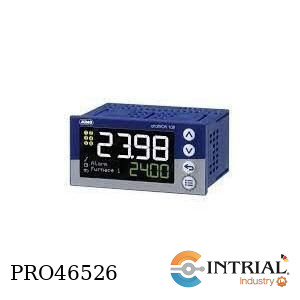

COMPACT CONTROLLER<br />
Brand: JUMO<br />
JUMO diraTRON 108 (size 96x48 mm, 1x<br />
analog input, 2x relay, 1x digital<br />
input, 1x digital input / digital output)<br />
Version : Standard with default settings<br />
Option 1:  1 logic output (only 702111, 702112<br />
702113, 702114)<br />
Option 2: 1 analog output (configurable)<br />
Option 3:  1 relay output (make contact) (only<br />
702112, 702113, 702114)<br />
Option 4:  1 relay with longer contact life (only<br />
702112, 702113, 702114)<br />
Voltage Supply: AC/DC 20..30V,48..63Hz<br />
UL approval material With UL-approval

SINGLE-ENDED CORSET<br />
Brand: BALLUF<br />
Connection: M16x0.75-Female, angled, 8-pin<br />
Cable: PUR Shielded black, 10 m, Drag chain compatible<br />
Number of conductors: 8<br />
Conductor cross-section: 0.25 mm²<br />
Cable temperature, fixed routing: -40...90 °C<br />
Cable temperature, flexible routing: -5...90 °C<br />
Operating voltage Ub: 60 VDC / 60 VAC<br />
Rated current (40 °C): 5.0 A<br />
IP rating: IP67<br />
Approval/Conformity: CE, EAC, WEEE

PROFIBUS SLAVE INTERFACE<br />
BRAND: ANYBUS<br />
32PIN<br />
9PIN FEMALE CONNECTOR<br />

<strong>Industrial Secure Router Switc<br />
Model: EDR-810-2GSFP <br />
Marca: MOXA </strong><br />
Industrial Secure Router Switch with 8 10/100BaseT(X) ports, <br />
2 1000BaseSFP slots, 1 WAN, Firewall/NAT, -10° to 60°C

SAFETY SWITCH<br />
BRAND: CONVEYOR<br />
CABLE PULL, 20AMP<br />
125/250/480 VAC<br />
6 WATT,2 SPDT<br />
NO LIGHT, CAST ALUMINUM<br />
3/4" NPT CONDUIT OPENINGS

ETHERNET SWITCH<br />
BRAND: MOXA<br />
UNMANAGED<br />
18-30 V AC<br />
12-48 V DC<br />
5 10/100 BASET(X) PORTS<br />
-10 TO 60°C<br />

CONECCTION CABLES<br />
Brand: Balluf<br />
Connection:M16x0.75-Female, right-angle, 8-pin<br />
Cable: PUR Shielded black, 10.00 m, Drag chain compatible<br />
Number of conductors: 8<br />
Conductor cross-section: 0.25 mm²<br />
Cable temperature, fixed routing: -50...80 °C<br />
Cable temperature, flexible routing: -25...80 °C<br />
Operating voltage Ub: 60 VDC / 60 VAC<br />
Rated current (40 °C): 5.0 A<br />
IP rating: IP67<br />
Approval/Conformity. CE, cULus, EAC, WEEE

SINGLE-ENDED CORSET<br />
Brand: BALLUF<br />
Brand: Balluf<br />
Connection: M16x0.75-Female connector, straight, 8-pole<br />
Cable: Black shielded PUR, 10 m, Suitable for chains drag<br />
Number of conductors: 8<br />
Conductor section: 0.25 mm²<br />
Cable temperature, fixed position: -40 ... 90° C<br />
Cable temperature, flexible positioning: -5 ... 90 ° C<br />
Operating voltage Ub: 60 VDC / 60 VAC<br />
Nominal current (40 ° C): 5.0 A<br />
Degree of protection: IP67<br />
Approval / conformity: CE, EAC, WEEE<br /><br />

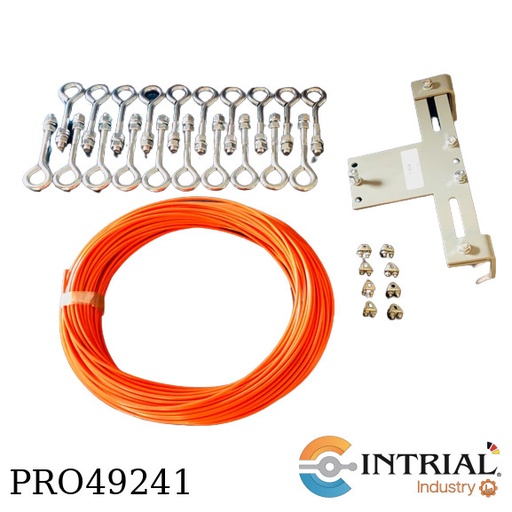

RS / RSB HARDWARE KIT<br />
CONVEYOR<br />
INCLUDES: 210 FT RS-25 CABLE (2 PIECES EACH AT 105 FT) <br />
20 RS-27 EYEBOLTS<br />
8 RS-28 CABLE END FITTINGS<br />
& 1 RS-30 MOUNTING BRACKET

SENSOR CAPACITATIVO CON BRIDA<br />
Marca: DLG<br />
Sensibilidad Ajustable de 0 a 50 mm (vía trimpot interno)<br />
Tipo de señalización “LED”<br />
Salida : NPN (CA) y PNP (NV) máx.: 100 mA<br />
Consumo 0,7 VA<br />
Fuente de alimentación 12 ~ 30 Vcc<br />
temperatura Operación 0°C a 85°C<br />
Grado de Protección IP 65<br />
Construcción: En carcasa de polipropileno, <br />
encapsulado en resina a base de poliuretano, impermeable<br />

MODULO DE ETHERNET BRIDGE<br />
Marca : ALLENBRADLEY

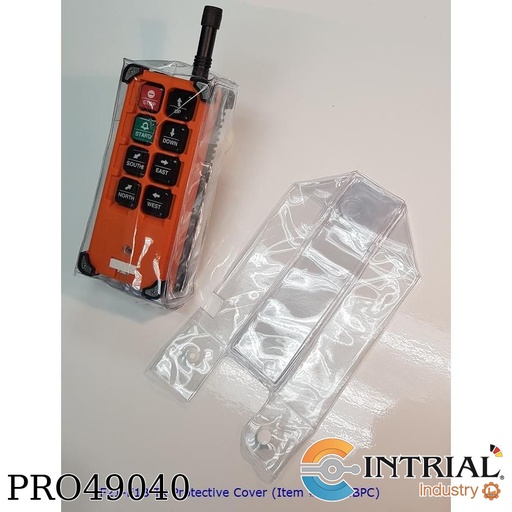

TRANSMITTER PROTECTIVE COVER FOR F21-E1B<br />
Brand: TELECRANE<br />

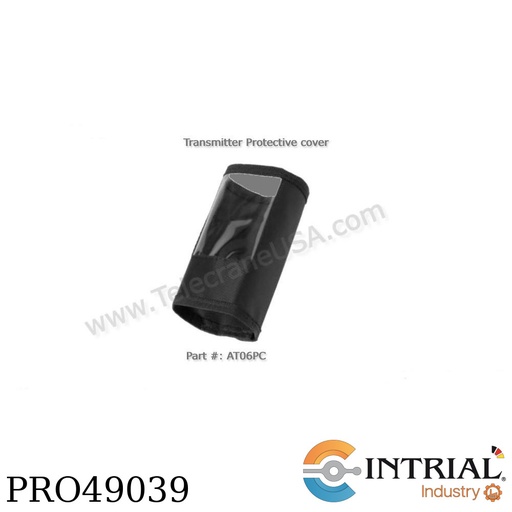

TRANSMITTER PROTECTIVE COVER FOR F21-E1<br />
Brand: TELECRANE<br />

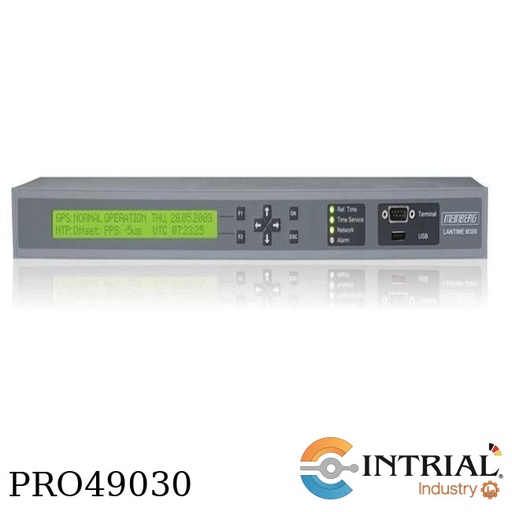

SERVIDOR DE TIEMPO M300 NTP/SNTP<br />
Marca: MEINBERG<br />
con:<br />
2 x puertos Ethernet independientes para administración y sincronización con NTP/SNTP<br />
con PRP bajo IEC 62439-3.<br />
2 x puertos seriales RS232 independientes<br />
1 x salida IRIG-B modulada (AM).<br />
1 x salida IRIG-B no modulada (DCLS = TTL)<br />
1 x salidas PPS TTL<br />
1 x salida 10 MHz TTL<br />
Fuente de voltaje AD10:  100…240 VAC /  100…200 VDC<br />
Montaje en rack de 19"<br />
Incluye:<br />
1 x Antena GPS con accesorios de montaje<br />
1 x 20 metros de cable coaxial<br />
1 x Supresor de sobretensiones SPRO para cable coaxial<br />
1 x 10 metros de cable coaxial<br />
CON salidas IRIG-B !<br />
CON NTP/SNTP en PRP !<br />
SIN puertos PTP  !<br />
Description:  NTP Time Server with integrated GPS radio clock  <br />
LANTIME M300 NTP time server with integrated satellite<br />
receiver/radio clock with following inputs/outputs:<br />
2 x LAN interface, RJ45 connector, status LEDs for Link<br />
Activity, Speed (10/100 MBit)<br />
1 x RS232 interface in front panel, 9pin D-Sub male connector for VT100 terminal<br />
2 x RS232 interface, independent, 9pin D-Sub female connector<br />
with serial time formats<br />
1 x USB (Rev. 1.1) connector in front panel<br />
1 x pulse per second, TTL into 50 ohm, pulse duration 200 msec<br />
active high, female BNC connector<br />
1 x standard frequency 10 MHz, TTL into 50 ohm, female BNC connector<br />
1 x alarm relay output, changeover contact<br />
3pin DFK connector (max. 125 VCC, 1,0 A)<br />
1 x IRIG-B amplitude modulated sinewave output (TC mod), 3 Vpp into 50 ohm<br />
female BNC connector<br />
1 x IRIG-B pulse-width modulated DC output (TC DCLS), TTL into 50 ohm, active high<br />
female BNC connector (mod. and unmod.<br />
Time Code signals are generated in parallel )<br />
additional Time Codes  available: IEEE1344, C37.118 and AFNOR NFS 87-500<br />
LC display, 40 character x 2 rows<br />
4 x status LEDs<br />
The system is assembled of:<br />
GPS180 with TCXO<br />
AD10 modular power supply. Nominal range: 100-240 VAC, 50-60Hz /100-200 VDC.<br />
Max. Voltage Range: AC: 90-265 V, 47-63 Hz / DC: 90-250 V<br />
on 5 pin DFK connector with two part power cable<br />
(US type power plug)<br />
Metal 19" modular chassis, 1U/84HP, slimline (483mm wide x 43mm high x 350mm deep)<br />
Includes:<br />
1 x GPS antenna/converter unit mounted in waterproof plastic case, mounting kit,<br />
Amb. temp. -25...+65°C<br />
1 x 20m coaxial cable<br />
1 x Overvoltage suppressor SPRO for coaxial cable<br />
1 x 10m coaxial cable<br />
1 x Manuals on USB stick.<br /><br />

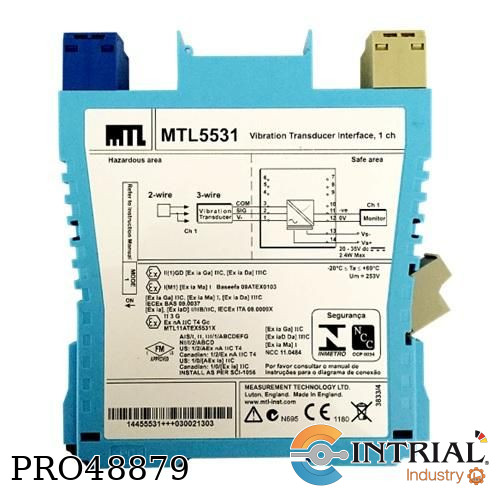

VIBRATION TRANSDUCER INTERFACE<br />
Brand: MTL<br />
Number of channels : One<br />
Sensor type :  2- or 3-wire vibration transducer<br />
Location of signal source : Zone 0, IIC, <br />
T4–6 hazardous area if suitably certified Div. 1<br />
Group A hazardous location<br />
Hazardous-area input : Input impedance (terminals 2 & 3): 10k<br />
Transducer supply current, 2-wire : 3.3mA (nom.) for 2-wire sensors<br />
user selectable by switch<br />
Signal range : Minimum –20V, maximum –0.5V<br />
DC transfer accuracy at 20°C : <±50mV<br />
LED indicator : Green =  power indication<br />
Supply voltage : 20 to 35V dc<br />
Maximum current consumption (10mA transducer load) : 65mA at 24V<br />
Maximum power dissipation within unit : 1.33W

COMMUNICATOR<br />
BRAND: ANYBUS<br />
FOR PROFIBUS DP<br />
SERIAL GATEWAY

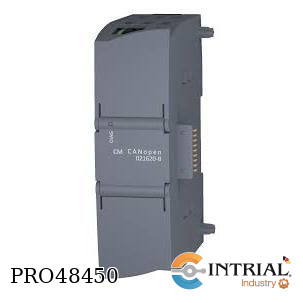

CM CANOPEN FOR SIMATIC S7-1200<br />
Brand : HMS INDUSTRIAL NETWORKS ANYBUS<br /><br />

TRANSFORMADOR ELECTRÓNICO<br />
Marca: BRAHMA<br />
PRIMARIO 220-230V<br />
SECUNDARIO 1 X 9000V<br />
AB 33 % DE DE 3 MINUTOS
