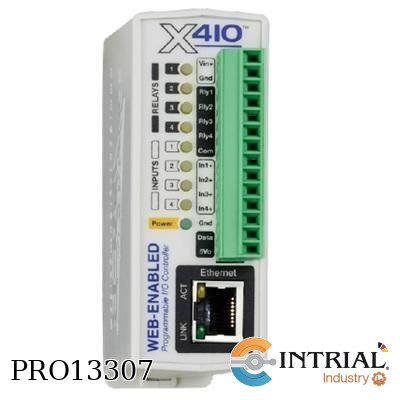

CONTROLADOR PROGRAMABLE, HABILITADO WEB
Marca: XYTRONIX RESEARCH & DESIGN INC
2 ENTRADAS DIGITALES
4 RELES HASTA 16 SENSORES DE 1 HILO
9-28 VDC

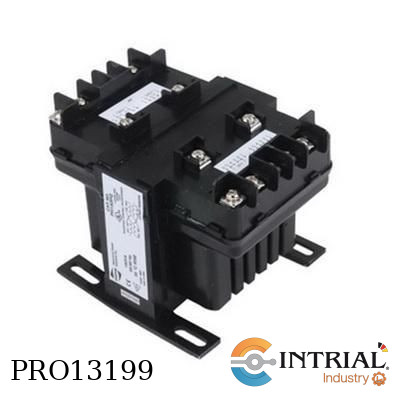

TRANSFORMER
Brand: HAMMOND
Model: PH250MQMJ
Available Voltage, 240 VAC ; 480 VAC ; 230 VAC ; 460 VAC ; 220 VAC ; 440 VAC
Configuration, Encapsulated
Frequency, 50/60 Hz
Mounting Hole Size, 3.75 in ; in
Mounting Type, Panel Mount
Needed Voltage, 120 VAC ; 240 VAC ; 115 VAC ; 230 VAC ; 110 VAC ; 220 VAC
Number of Outlets, 2
Operating Temperature, 80 °C
Phase, 1 Phase
Power Rating, 250 VA
Primary Voltage, 240 (230, 220)/480 (460, 440) VAC
Secondary Current, 2.08/1.04 A
Secondary Voltage, 120 (115, 110)/240 (230, 220) VAC

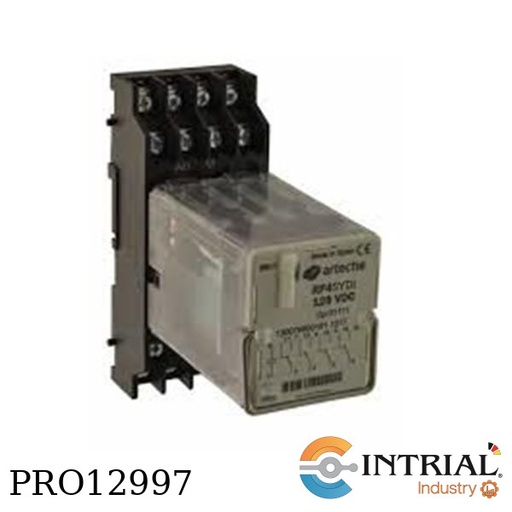

RELÉS DE DISPARO
Marca: ARTECHE
Peso (g): 250
Nº contactos: 4 Inversores
Dimensiones (mm) : (A) 42,5 x (B) 50,4 x (C) 72 (Tipo F corto)
Calibres de tensión: 24, 48, 110, 125, 220,250 Vdc / 110, 127,230 Vac (50-60 Hz)

Modelo: 901-594

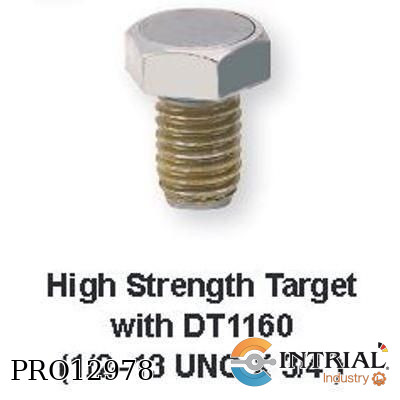

DT ACTUATION MAG 1/2-13
High Strength Target with DT1160
(1/2–13 UNC X 3/4")

Modelo: DT1160
Detector y accionador de alta intensidad, distancia de detección de 0.5" (12.7 mm).
Temperature Limits: -40 to 163°F (-40 to 73°C).
Switch Type: Tungsten, SPDT, Form C.
Electrical Rating: 3 A @ 125 VAC, 3 A @ 30 VDC.
Enclosure Rating: Weatherproof; Hermetically sealed;
Explosion-proof UL & CSA listed for Class I,
Groups A, B, C, & D; Class II, Groups E, F & G. Divisions 1 & 2.
Intrinsically Safe: Simple apparatus (w/barrier).
Operating/Response Time: 3.0 ms.
Initial Contact Resistance: 0.50 Ω (max).
Repeatability: 0.005" (.01 cm).
Hysteresis: 0.030" (.08 cm).
Electrical Connection: Factory sealed leads with 18" min, 4 conductor,
PVC insulated, 18 AWG – green/red/black/white (ground/NC/ NO/common). Housing: 316 SS.
Potting: Epoxy resin.
Conduit: 1/2"-14" female NPT.
Weight: 0.32 lb (145 g); 0.45 lb (204 g) with actuator

CONTROLADOR UNIVERSAL
Marca: JUMO PROCESS CONTROL

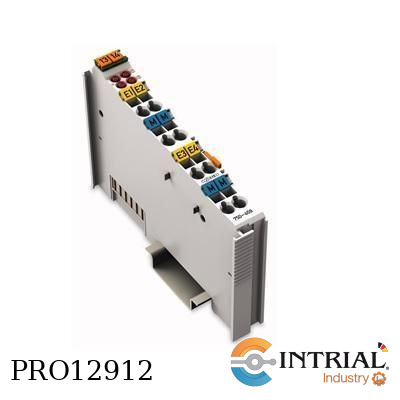

ANALOG INPUT MODULE
Current Rating:65mA; Product Range
Accessory Type:Input Module; External Depth:64mm; External
Width:12mm; For Use With:WAGO I/O System
Length:100mm
No. Of Analog Inputs:4
Voltage Rating:10V
Manufacturer's Brand: WAGO

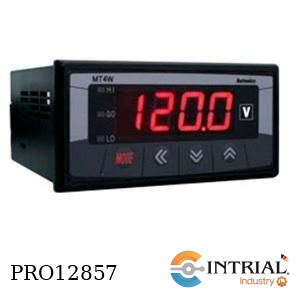

VOLTÍMETRO DIGITAL PROGRAMABLE 4 DÍGITOS
• Marca : AUTONICS
• W96xH48mm
• Entrada: 0-50mV/0-500VDC
• Alimenctacion: 100-240VAC
• Salida: 3relés

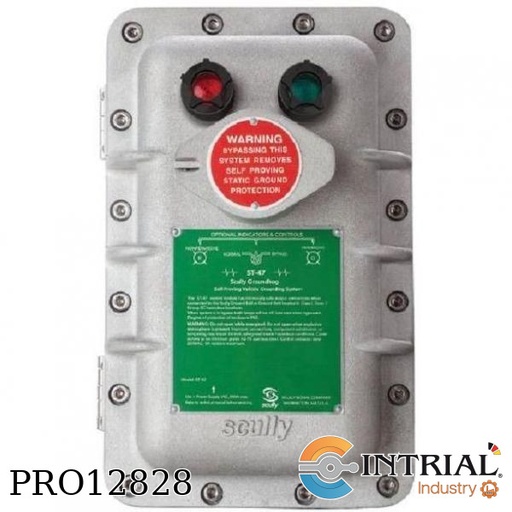

Modelo:  ST-47-115 ELK

MONITOR DE CONEXIÓN A TIERRA

Control Monitor with Lamps and Key Protected Bypass Switch (115 VAC operation)

Brand: SCULLY (USA)

/////TECHNICAL SPECIFICATIONS/////////

Operation Temperature: -40° to +140° F (-40° to +60° C)

Enclosure: Explosion-Proof Weather-Proof

Housing, suf_x “E”

Indicators: Red-not grounded/non-permit.

Green-grounded/permit.

Response Time: 0.5 seconds maximum.

Electrical Connections: Internal terminal strips,identi_ed for easy installation.

Bypass Switch: Key lockable off-on bypass switch for ELK model only.

Output Control: One normally open user contact rated 250, 5A resistive load.

Modelo:  ST-47-115 ELK -Y

MONITOR DE CONEXIÓN A TIERRA Monitor de conexión a tierra

Control Monitor with Lamps and Key Protected Bypass Switch (115 VAC operation)

Brand: SCULLY (USA)

/////TECHNICAL SPECIFICATIONS/////////

Operation Temperature: -40° to +140° F (-40° to +60° C)

Enclosure: Explosion-Proof Weather-Proof

Housing, suf_x “E”

Indicators: Red-not grounded/non-permit.

Green-grounded/permit.

Response Time: 0.5 seconds maximum.

Electrical Connections: Internal terminal strips,identi_ed for easy installation.

Bypass Switch: Key lockable off-on bypass switch for ELK model only.

Output Control: One normally open user contact rated 250, 5A resistive load.

Power Requirements:

Y: Include: Junction Box, 10 meters Coiled Cable, Clamp



ST-47–115 Models: 105–125 VAC, 50/60 Hz. 0.250 Amperes maxim

ST-47–240 Models: 208–240 VAC, 50/60 Hz. 0.125 Amperes maximum.

Approvals: The explosion-proof housing is approvedfor • mounting in Class I, Division 1, Groups C & D environments • by FM Global (FM) and the Canadian Standards Association (CSA). The intrinsically safe outputs are approved for use in Class I, Division 1, Groups A, B, C and D environments by FM and CSA.



For  Tag: 5780-GSP-30130A Tag: 5780-GSP-30130B Tag: 5780-GSP-30131 Tag: 5780-GSP-30132

• PCA;CPU

• MARK III(TESTED BOARD) SP1676

• Brand: EMERSON

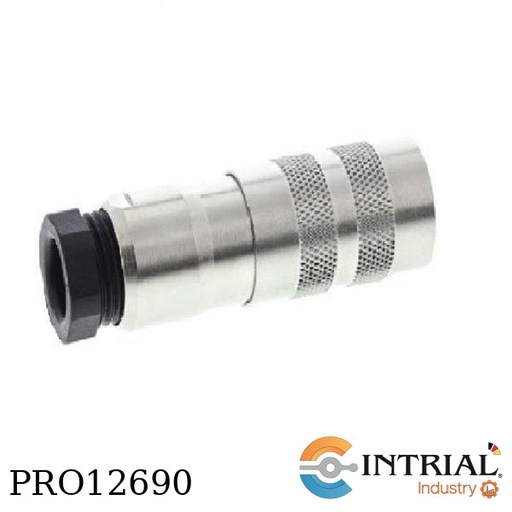

Single-Ended Cordsets
Brand: BALLUFF
Connection: M16x0.75-Female, straight, 8-pin
Cable: PUR Shielded black, 60.00 m, Drag chain compatible
Number of conductors: 8
Conductor cross-section: 0.25 mm²
Cable temperature, fixed routing: -50...80 °C
Cable temperature, flexible routing: -25...80 °C
Operating voltage Ub: 60 VDC / 60 VAC
Rated current (40 °C): 5.0 A
IP rating: IP67
Approval/Conformity: CE, EAC, WEEE

Enclosure for Industrial PC

OK-N

QUADRITALIA

• Altura: 1965mm

• Profundidad: 415mm

• Ancho: 800mm

Mayor detalle ver imagenes adjuntas

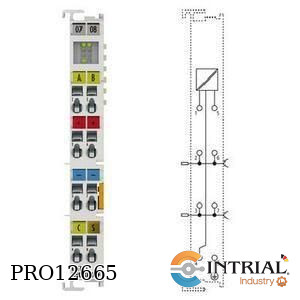

INTERFAZ COUNTER INCREMENTAL ENCODER
Brand: BECKHOFF
Number of channels 1 incremental encoder
Counter 16 bit, binary
Current consumption K-bus typ. 40 mA
Technology incremental encoder interface 24 V DC

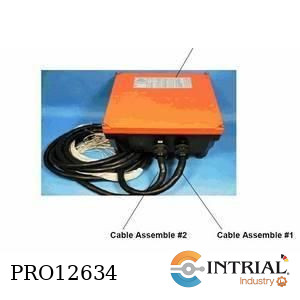

SAGA1-L40RX
SAGA1-L40 RECEIVER
RECEIVER UNIT:
• L x W x H: 253 x 267 x 150 mm
• Weight: 2400g (exclude wire cable)
• Contact: Max. 40-relay outputs (programmable)
• Input Voltage: 24 / 48 / 110 / 220 / 380 VAC;14~ 40VDC
SPECIFICATION:
• Frequency Control: Crystal.
• 2. I.D. Code: 2; more than 4 billion sets (set by factory, never be repeated)
• 3. Operating Temperature: -45° ~ +80°C
• 4. Operation Range: Up to 100 Meters
• 5. Hamming Distance : ≥ 4
• 6. 3-stage power indicator.
• 7. One axis of joystick could program with maximum 16 relay outputs
• 8. Structure: Nylon + Glass Fiber.
• 9. Shock resistance.

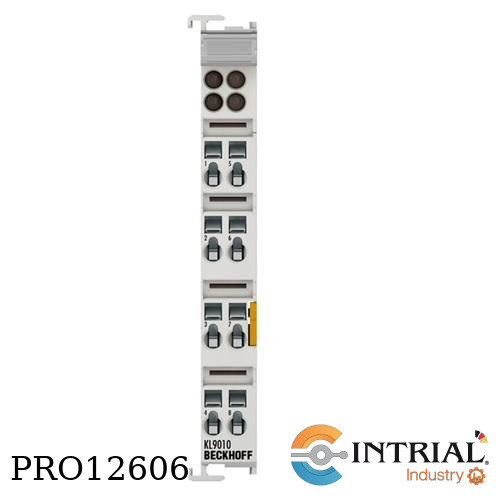

TERMINAL FINAL DE CONEXION BUS
Brand: BECKHOFF
Recommended fuse ≤ 10 A
Special features end terminal for bus communication
Approvals/markings CE, UL, ATEX, DNV GL, IECEx, cFMus

SWCD-0040-INT; SOFTWARE
Marca GEMINI
Para programación y ordenamiento de data en PC.

HY3003 Mastech Single-Output DC Power Supply
Input Voltage: 110/220 VAC
       Output Voltage: 0 - 30 V
       Output Amperage: 0 - 3 A
       Modes: Constant Voltage/Constant Current
       Voltage Regulation: < 0.01% + 1 mV
       Amperage Regulation: < 0.2% + 1 mA
       Display Type: LED
       Display Accuracy: +/- 2.5%
       Size: 292 mm x 158 mm x 160 mm
       Weight: 3.6 Kg

EL-USB-4
Current Data Logger with USB
Range: 4 to 20mA
Accuracy +/- 1%
Readings: 32510
Logging Rate: user selectable between 1 sec to 12 Hours
Battery Life: 3 years (at 25C and 2 sec logging rate)

I/O PLC EXPANSION MODULE
BRAND: OMRON
INPUT: 24VDC
5MA
OUTPUT: 0.3AMP
30 V DC
INPUT: 24
OUTPUT: 16
