Flujómetro de bajo volumen (4,0...40 L/h water; 1/4 NPT) <strong>Low Volume Flowmeter<br /> Model: KDF-92-85-N-V-0-00-E<br /> Brand: Kobold (Alemania)</strong><br /> [KDF-92]<br /> Mounting length: 90 mm<br /> Operating principle: variable area<br /> Flow direction: from bottom to top<br /> Body material: st.st.<br /> Glass: Borosilicate<br /> Accuracy: class 3<br /> Max. temperature: without/with contact 100 °C / 70 °C<br /> Max. pressure: PN 16<br /> [85]: Measuring range: 4,0...40 L/h water<br /> [N]: Connection, 1/4 NPT<br /> [V]: Seal, FPM<br /> [0]: Wall mounting kit, w/o<br /> [00]: Contacts measuring range: w/o<br /> [E]: Flow differential pressure regulator, diff. press. regulator <br /> for constant outlet pressure, inlet valve, FPM-membrane S/ 3,279.71 3279.71 PEN	Coriolis Massflowmeter,Process temperature: -4° to 212°F, -20° to 100°C <div> <div> <div><strong>Coriolis Massflowmeter<br /> Brand: Kobold - Heinrichs (Alemania)<br /> Model: TMU-S-008-201R-A-0-0-A-0-1-1-0-K+UMC4-B-1-1-A-0-0</strong><br /> [TMU-S]:<br /> Wetted materials, Stainless steel<br /> [008]: Meter line size, DN8, ANSI ¼"<br /> Range: 0 a 120 lph<br /> [201R]: Process connnection, ½" Class 150 RF ASME B16.5-2003<br /> Installation length, 336 mm<br /> [A]: Containment options, Stainless steel containment 1.4301 (304)<br /> [0]: Heating/cooling, none<br /> [0]: Connection for heating / cooling, none<br /> [A]: Sensor configuration, Integral mount transmitter<br /> Process temperature: -4° to 212°F, -20° to 100°C<br /> [0]: ApprovaIs, None<br /> [1]: Calibration Flow, standard, 3-points<br /> [1]: Calibration Density, Standard (3-point)<br /> [0]: Supplementary equipment, None<br /> [K]: Design: Kobold<br /> </div> <div>[UMC4-B]:Mounting, Integratel mount,<br /> Conduit port opening, M20 x 1.5<br /> [1]: Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br /> [1]: Power supply, 90 - 265V AC, 50/60Hz<br /> [A]: Outputs,<br /> Analog output 1: 4 - 20mA with HART®<br /> Analog output 2: 4 - 20mA<br /> Pulse output: passive Um=30V DC<br /> Status output: passive Um=30V DC<br /> [0]: Approvals,None<br /> [0]: Type of protection (signal output), None</div> </div> </div> S/ 28,854.68 28854.68 PEN	Coriolis Massflowmeter,Process temperature: -4° to 212°F, -20° to 100°C <div> <div><strong>Coriolis Massflowmeter<br /> Brand: Kobold - Heinrichs (Alemania)<br /> Model: TMU-S-008-6010-A-0-0-A-0-1-1-0-K+UMC4-B-1-1-A-0-0<br /> [TMU-S]:</strong><br /> Wetted materials, Stainless steel<br /> [008]: Meter line size, DN8, ANSI ¼"<br /> Range: min. 0-120 lph<br /> [6010]: Process connnection, ¼" NPT (f)<br /> Installation length, 300 mm<br /> [A]: Containment options, Stainless steel containment 1.4301 (304)<br /> [0]: Heating/cooling, none<br /> [0]: Connection for heating / cooling, none<br /> [A]: Sensor configuration, Integral mount transmitter<br /> Process temperature: -4° to 212°F, -20° to 100°C<br /> [0]: ApprovaIs, None<br /> [1]: Calibration Flow, standard, 3-points<br /> [1]: Calibration Density, Standard (3-point)<br /> [0]: Supplementary equipment, None<br /> [K]: Design: Kobold<br /> </div> <div>[UMC4-B]:Mounting, Integratel mount,<br /> Conduit port opening, M20 x 1.5<br /> [1]: Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br /> [1]: Power supply, 90 - 265V AC, 50/60Hz<br /> [A]: Outputs,<br /> Analog output 1: 4 - 20mA with HART®<br /> Analog output 2: 4 - 20mA<br /> Pulse output: passive Um=30V DC<br /> Status output: passive Um=30V DC<br /> [0]: Approvals,None<br /> [0]: Type of protection (signal output), None</div> </div> S/ 28,125.45 28125.45 PEN	Coriolis Massflowmeter,Process temperature: -4° to 212°F, -20° to 100°C <div><strong>Coriolis Massflowmeter<br /> Brand: Kobold - Heinrichs (Alemania)<br /> Model: TMU-S-010-201R-A-0-0-A-0-1-1-0-K+UMC4-B-1-1-A-0-0</strong><br /> [TMU-S]:<br /> Wetted materials, Stainless steel<br /> [010]: Meter line size,DN10, ANSI 3/8"<br /> Range: min 0 a 400 lph<br /> [201R]: Process connnection, ½" Class 150 RF ASME B16.5-2003<br /> Installation length,416 mm<br /> [A]: Containment options, Stainless steel containment 1.4301 (304)<br /> [0]: Heating/cooling, none<br /> [0]: Heating/cooling, none<br /> [A]: Sensor configuration, Integral mount transmitter<br /> Process temperature: -4° to 212°F, -20° to 100°C<br /> [0]: ApprovaIs, None<br /> [1]: Calibration Flow, standard, 3-points<br /> [1]: Calibration Density, Standard (3-point)<br /> [0]: Supplementary equipment, None<br /> [K]: Design: Kobold</div> <div>[UMC4-B]:Mounting, Integratel mount,<br /> Conduit port opening, M20 x 1.5<br /> [1]: Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br /> [1]: Power supply, 90 - 265V AC, 50/60Hz<br /> [A]: Outputs,<br /> Analog output 1: 4 - 20mA with HART®<br /> Analog output 2: 4 - 20mA<br /> Pulse output: passive Um=30V DC<br /> Status output: passive Um=30V DC<br /> [0]: Approvals,None<br /> [0]: Type of protection (signal output), None</div> S/ 26,634.35 26634.350000000002 PEN
Medidor de flujo electromagnético (DN 6 - 1/2 <div>EPS Electromagnetic Flow Meter<br /> Model: EPS-A-006A-N-N-0-1-0<br /> Brand: Kobold-Heinrichs<br /> [EPS]:Sensor<br /> [A]: Material Lining, Ceramics,<br /> Electrodes, Standard 2x Measuring Electrodes: -20...+150 °C<br /> [006A]:Process connection, DN 6 - 1/2"NPT(316L) / incl. Gasket/EPDM<br /> Material: Ceramics / Platinum / EPDM<br /> Max. measuring range, 0.025 m3/h a 1.02 m3/h<br /> [N]: Material Process connection, HC22(2.4602)PTFE-gasket<br /> [N]:Material electrodes, Platinum / Iridium<br /> [0]: Earthing electrode, w/o<br /> [1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br /> [0]:Certificates, w/o<br /> </div> <div>UMF2-A-1-2-F-0BK<br /> [UMF2]: Transmitter<br /> [A]: Mounting, integrated transmitter IP67 standard<br /> Electrical connection, ½" NPT (f)<br /> [1]: Display and control unit, integrated<br /> [2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br /> [F]: Output:<br /> current output: 1x 0/4-20 mA<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK]: Design, Kobold</div> S/ 7,176.18 7176.18 PEN	All-Metal Variable Area Flowmeter BGN, Range: 0.6 a 6 m3/h <strong>All-Metal Variable Area Flowmeter BGN<br /> Model: BGN-S40-205R-R-0-A-0-0-S-5-0-0-K<br /> Brand: Kobold - Heinrichs</strong><br /> [S40]: Model, Stainless Steel, process temperature ≤ 350°C<br /> [205R]: Connection, size, 1½" 150 lbs RF ASME B16.5-2003<br /> [R]: Range (water 20°C, 1 mPas), 0.6 a 6 m3/h<br /> [0]: Heating/cooling, without heating / Cooling<br /> [A]: Damping/spring stop, Spring stop<br /> [0]: Self-draining, without<br /> [0]: Certificates, without<br /> [S]: Display<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [5]: Scale, Measuring range-Scale (Media)<br /> [0]: Switches, without<br /> [0]: Accessories, without<br /> [K]: Design, Kobold <br /><br /> Include:<br /> Certificado de calibración<br /> certificado de Materiales S/ 8,142.43 8142.43 PEN	All-Metal Variable Area Flowmeter BGN, Range (water 20°C, 1 mPas), 1.6 a 16 m3/h <strong>All-Metal Variable Area Flowmeter BGN<br /> Model: BGN-S80-208R-T-0-A-0-0-S-5-0-0-K<br /> Brand: Kobold - Heinrichs</strong><br /> [S80]: Model, Stainless Steel, process temperature ≤ 350°C<br /> [208R]: Connection, size, 3" Class 150 RF ASME B16.5-2003<br /> [T]: Range (water 20°C, 1 mPas), 1.6 a 16 m3/h<br /> [0]: Heating/cooling, without heating / Cooling<br /> [A]: Damping/spring stop, Spring stop<br /> [0]: Self-draining, without<br /> [0]: Certificates, without<br /> [S]: Display<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [5]: Scale, Measuring range-Scale (Media)<br /> [0]: Switches, without<br /> [0]: Accessories, without<br /> [K]: Design, Kobold <br /><br /> Include:<br /> Certificado de calibración<br /> certificado de Materiales S/ 9,684.33 9684.33 PEN	All-Metal Variable Area Flowmeter BGN, Range: 10 a 100 m3/h <div><strong>All-Metal Variable Area Flowmeter BGN<br /> Model: BGN-S1H-210R-2-0-A-0-0-S-5-0-0-K<br /> Brand: Kobold - Heinrichs</strong><br /> [S1H]: Model, Stainless Steel, process temperature ≤ 350°C<br /> [210R]: Connection, size, 2" Class 150 RF ASME B16.5-2003<br /> [2]: Range (water 20°C, 1 mPas), 10 a 100 m3/h<br /> [0]: Heating/cooling, without heating / Cooling<br /> [A]: Damping/spring stop, Spring stop<br /> [0]: Self-draining, without<br /> [0]: Certificates, without<br /> [S]: Display<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [5]: Scale, Measuring range-Scale (Media)<br /> [0]: Switches, without<br /> [0]: Accessories, without<br /> [K]: Design, Kobold <br /><br /> Include:<br /> Certificado de calibración<br /> certificado de Materiales</div> S/ 11,033.95 11033.95 PEN

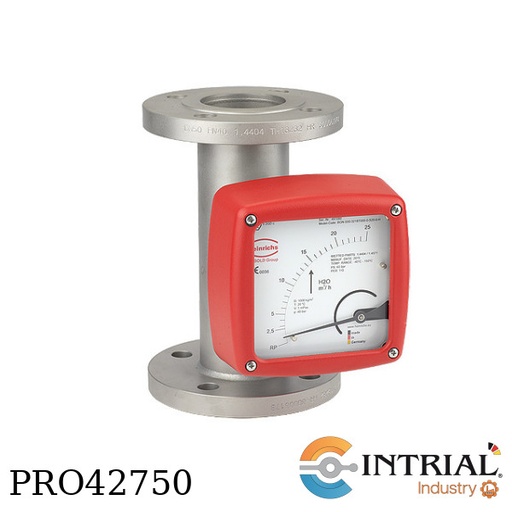

All-Metal Variable Area Flowmeter BGN, Range: 1.6 a 16 m3/h <div> <div><strong>All-Metal Variable Area Flowmeter BGN<br /> Model: BGN-S50-206R-T-0-A-0-0-S-5-0-0-K<br /> Brand: Kobold - Heinrichs</strong><br /> [S50]: Model, Stainless Steel, process temperature ≤ 350°C<br /> [206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003<br /> [T]: Range (water 20°C, 1 mPas), 1.6 a 16 m3/h<br /> [0]: Heating/cooling, without heating / Cooling<br /> [A]: Damping/spring stop, Spring stop<br /> [0]: Self-draining, without<br /> [0]: Certificates, without<br /> [S]: Display<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [5]: Scale, Measuring range-Scale (Media)<br /> [0]: Switches, without<br /> [0]: Accessories, without<br /> [K]: Design, Kobold <br /><br /> Include:<br /> Certificado de calibración<br /> certificado de Materiales</div> </div> S/ 7,500.27 7500.27 PEN	All-Metal Variable Area Flowmeter BGN, Range: 2.5 a 25 m3/h <strong>All-Metal Variable Area Flowmeter BGN<br /> Model: BGN-S50-206R-U-0-A-0-0-S-5-0-0-K<br /> Brand: Kobold - Heinrichs</strong><br /> [S50]: Model, Stainless Steel, process temperature ≤ 350°C<br /> [206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003<br /> [U]: Range (water 20°C, 1 mPas), 2.5 a 25 m3/h<br /> [0]: Heating/cooling, without heating / Cooling<br /> [A]: Damping/spring stop, Spring stop<br /> [0]: Self-draining, without<br /> [0]: Certificates, without<br /> [S]: Display<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [5]: Scale, Measuring range-Scale (Media)<br /> [0]: Switches, without<br /> [0]: Accessories, without<br /> [K]: Design, Kobold <br /><br /> Include:<br /> Certificado de calibración<br /> certificado de Materiales S/ 7,500.27 7500.27 PEN	Medidor/contador de flujo de engranajes ovalados (10-150 L/min; 1” NPT) <strong>Oval Gear Flow Meter/Counter<br /> Model: DON-2-25H-N6-1-M4-N-0<br /> Brand: Kobold (Alemania)</strong><br /> [DON-2]:<br /> Operating principle Gear Wheel<br /> Mounting position horizontal / vertical<br /> Flow direction in direction of the arrow<br /> max. temperature 120 °C<br /> max. pressure 70 Bar<br /> Accuracy ±0,2 % …1 % of reading<br /> Housing material st. steel<br /> Rotor material st. steel<br /> [25H]: Measuring range, 10-150 L/min<br /> [N6]: Mech. Connection for meas. range 25H, 1” NPT<br /> [1]: Seal, FKM up to DON-x25<br /> [M4]: Electronic, mech. totaliser 4-digit (not for DON-x05…DON-x15)<br /> [N]: Cable entry, 1/2 NPT<br /> [0]: Options, without S/ 7,129.02 7129.02 PEN	Compact Magnetic Inductive Measuring range (liquid >30 µS/cm): 16...320 L/min, G 2 male <strong>Compact Magnetic Inductive Flow Meter<br /> Brand: Kobold (Alemania)<br /> Model: MIK-5NA-65-A-G14R</strong><br /> [MIK-5NA]<br /> Operating principle Magnetic Inductive<br /> Mounting position all directions<br /> Max. temperature/pressure 80 °C / 10 bar<br /> Protection IP 65<br /> Housing PPS<br /> Electrodes St. st.<br /> Seal NBR<br /> [65]: Measuring range (liquid >30 µS/cm), 16...320 L/min G 2 male<br /> [A]: Connection set, without<br /> [G14R]: Evaluation electronic, 4-20 mA, 24 VDC, 1,5 m cable connection<br /><br /> Include:<br /> Model: DOK-F306 <br /><span style="font-size:12px;"><b><span style="font-family:'Times New Roman', serif;"><span style="font-family:arial, helvetica, sans-serif;">Factory Calibration Certificate </span> </span></b></span> S/ 2,155.03 2155.03 PEN

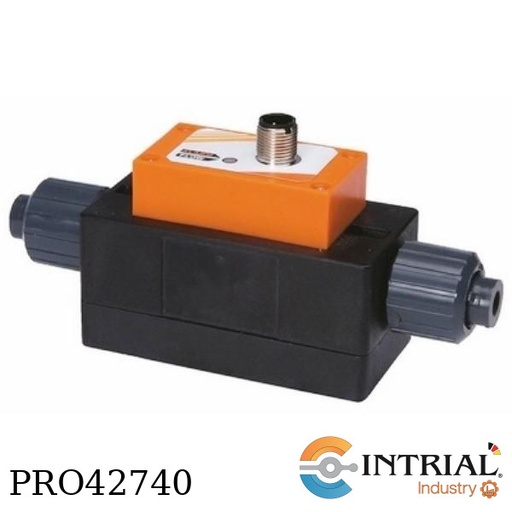

Compact Magnetic Inductive Measuring range (liquid >30 µS/cm): 16...320 L/min, G 2 male <strong>Compact Magnetic Inductive Flow Meter<br /> Brand: Kobold (Alemania)<br /> Model: MIK-5NA-65-A-G14R</strong><br /> [MIK-5NA]<br /> Operating principle Magnetic Inductive<br /> Mounting position all directions<br /> Max. temperature/pressure 80 °C / 10 bar<br /> Protection IP 65<br /> Housing PPS<br /> Electrodes St. st.<br /> Seal NBR<br /> [65]: Measuring range (liquid >30 µS/cm), 16...320 L/min G 2 male<br /> [A]: Connection set, without<br /> [G14R]: Evaluation electronic, 4-20 mA, 24 VDC, 1,5 m cable connection S/ 2,155.03 2155.03 PEN	Medidor/contador de flujo de engranajes ovalados (10-150 L/min; 1” NPT) <strong>Oval Gear Flow Meter/Counter<br /> Model: DON-2-25H-N6-1-R0-N-0<br /> Brand: Kobold (Alemania)</strong><br /> [DON-2]:<br /> Operating principle Gear Wheel<br /> Mounting position horizontal / vertical<br /> Flow direction in direction of the arrow<br /> max. temperature 120 °C<br /> max. pressure 70 Bar<br /> Accuracy ±0,2 % …1 % of reading<br /> Housing material st. steel<br /> Rotor material st. steel<br /> [25H]: Measuring range, 10-150 L/min<br /> [N6]: Mech. Connection for meas. range 25H, 1” NPT<br /> [1]: Seal, FKM up to DON-x25<br /> [R0]: Electronic, Pulse output / Reed switch<br /> [N]: Cable entry, 1/2 NPT<br /> [0]: Options, without S/ 5,293.25 5293.25 PEN	Indicadores de nivel de bypass con tubo de vidrio, 1700mm, SS Bypass-Level Indicators with glass tube<br /> Model: SZM-S-5-1-N4-G1-G1-0<br /> Brand: Kobold (Alemania)<br /> [SZM-S]: Model<br /> Bypass- tube: Borosilicate glass<br /> O-ring: FPM<br /> Protecting tube: st. steel 1.4404<br /> Connection: st. steel 1.4404<br /> Max. temperature: 100 °C<br /> Max. pressure 10 bar<br /> Installation length, 1700 mm<br /> [5]: Version (top/bottom), top: cleaning hole, bottom: drain valve<br /> [1]: Valves, 2 shut off valves in connection<br /> [N4]: Connection, union nut 1/2" NPT male<br /> [G1]: Scale, Plastic foil on meas. tube (2 mm-division)<br /> [G1]: Scale, Plastic foil on meas. tube (2 mm-division)<br /> Length of scale, scale length = install. length - 120 mm, 1600 mm<br /> [0]: Limit switch, without S/ 6,421.56 6421.56 PEN	Indicadores de nivel de bypass con tubo de vidrio, 2315, SS Bypass-Level Indicators with glass tube<br /> Model: SZM-S-5-1-N4-G1-G1-0<br /> Brand: Kobold (Alemania)<br /> [SZM-S]: Model<br /> Bypass- tube: Borosilicate glass<br /> O-ring: FPM<br /> Protecting tube: st. steel 1.4404<br /> Connection: st. steel 1.4404<br /> Max. temperature: 100 °C<br /> Max. pressure 10 bar<br /> Installation length, 2315 mm<br /> [5]: Version (top/bottom), top: cleaning hole, bottom: drain valve<br /> [1]: Valves, 2 shut off valves in connection<br /> [N4]: Connection, union nut 1/2" NPT male<br /> [G1]: Scale, Plastic foil on meas. tube (2 mm-division)<br /> [G1]: Scale, Plastic foil on meas. tube (2 mm-division)<br /> Length of scale, scale length = install. length - 120 mm, 2215 mm<br /> [0]: Limit switch, without S/ 7,183.44 7183.4400000000005 PEN
All-Metal Variable Area Flowmeter BGN, Range (Air), 80.00-800.04 Nm3/h <strong>All-Metal Variable Area Flowmeter BGN<br /> Model: BGN-S80-208R-T-0-S-0-0-S-5-0-0-H<br /> Brand: Kobold - Heinrichs (Alemania)</strong><br /> [BGN]: Model<br /> [S80]: Stainless Steel, process temperature ≤ 350°C<br /> [208R]: Connection, 3" Class 150 RF ASME B16.5-2003<br /> [T]: Range (Air), 80.00-800.04 Nm3/h<br /> [0]: Heating / cooling, without heating / Cooling<br /> [S]: Damping/spring stop, Gas damping, and spring stop<br /> [0]: Self-draining, without<br /> [0]: Certificates, without<br /> [S]: Display,<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [5]: Scale, Measuring range-Scale (Media)<br /> [0]: Switches, without<br /> Ambient temperature, -40° to +80°C<br /> [0]: Accessories, without<br /> [H]: Design, Heinrichs S/ 7,738.52 7738.52 PEN	Medidor de flujo de área variable totalmente metálico (H2O: 8000 - 80000 l/h) All-Metal Variable Area Flowmeter BGN<br /> Brand: Kobold – Heinrichs<br /> Model: BGN-S1H-210R-2-0-0-0-0-S-5-0-0-K<br /> [BGN]: Model,<br /> [S1H]: Model, Stainless Steel, process temperature = 350°C<br /> [210R]: Connection, size, 4" Class 150 RF ASME B16.5-2003<br /> [2]: Range (water 20°C, 1 mPas), 10 a 100 m3/h<br /> [0]: Heating / cooling, without heating / Cooling<br /> [0]: Damping / spring stop, with liquid damping<br /> [0]: Self draining, without<br /> [0]: Certificates, without<br /> [S]: Display, <br /> Standard display housing,<br /> Process temperature = 150°C for electrical output,<br /> Process temperature = 200°C for local indication<br /> [5]: Scale, Measuring range-Scale (Water)<br /> [0]: Switches, without<br /> [0]: Accessories, without<br /> [K]: Design, Kobold S/ 10,761.85 10761.85 PEN	All-Metal Variable Area Flowmeter BGNAll-Metal Variable Area Flowmeter BGN, Rango: 1.6 a 16 m3/h <strong>All-Metal Variable Area Flowmeter BGN<br /> Model: BGN-S50-206R-T-0-0-0-0-S-5-0-0-K<br /> Brand: Kobold - Heinrichs</strong><br /> [S50]: Model, Stainless Steel, process temperature ≤ 350°C<br /> [206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003<br /> [T]: Range (water 20°C, 1 mPas), 1.6 a 16 m3/h<br /> [0]: Heating/cooling, without heating / Cooling<br /> [0]: Damping/spring stop, without<br /> [0]: Self-draining, without<br /> [0]: Certificates, without<br /> [S]: Display<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [5]: Scale, Measuring range-Scale (Media)<br /> [0]: Switches, without<br /> [0]: Accessories, without<br /> [K]: Design, Kobold S/ 4,132.29 4132.29 PEN	All-Metal Variable Area Flowmeter BGN, Rango: 2.5 a 25 m3/h <strong>All-Metal Variable Area Flowmeter BGN<br /> Model: BGN-S50-206R-U-0-0-0-0-S-5-0-0-K<br /> Brand: Kobold - Heinrichs</strong><br /> [S50]: Model, Stainless Steel, process temperature ≤ 350°C<br /> [206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003<br /> [U]: Range (water 20°C, 1 mPas), 2.5 a 25 m3/h<br /> [0]: Heating/cooling, without heating / Cooling<br /> [0]: Damping/spring stop, without<br /> [0]: Self-draining, without<br /> [0]: Certificates, without<br /> [S]: Display<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [5]: Scale, Measuring range-Scale (Media)<br /> [0]: Switches, without<br /> [0]: Accessories, without<br /> [K]: Design, Kobold S/ 4,132.29 4132.29 PEN
