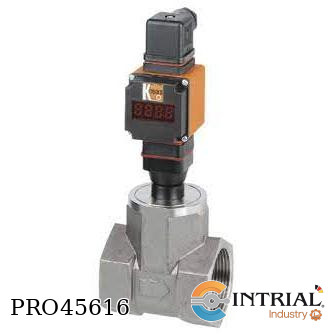

<strong>Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-12-25-N9-L442</strong><br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: St. St.<br />
Material Axis Hard metal<br />
[25]: Measuring range, 30-350 L/min <br />
[N9]: Mech. connection, for MR-Code: 25, 2 NPT female<br />
[L442]: Analogue output 4-20 mA, DIN- plug, 2-wire<br />

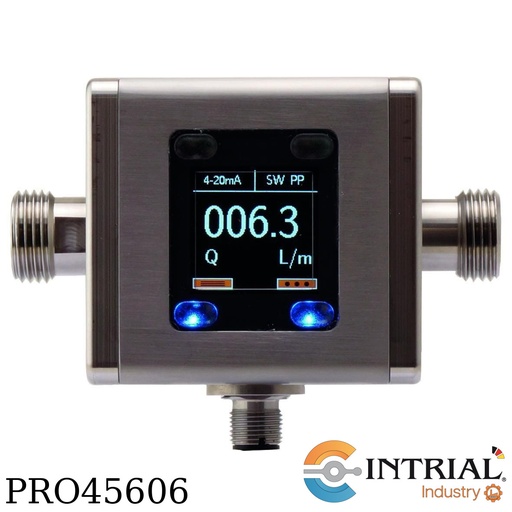

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-03HG4-C3T-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Min. conductivity, >20 uS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature (medium) -20°C..+70°C (compact),<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part, st. steel 1.4404 / PEEK / FKM <br />
[03HG4] Measuring range (flow/temperature), 0,03…3 l/min / [°C] G ½ male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0] Options, without<br /><br />
Include: <br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K502<br />
[ZUB-KAB-12]<br />
[K502]: Version: M12x1 box 2 m cable, 5-pin

Variable Area Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: DSV-11-05H-00-N15<br />
[DSV-11]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Fitting material, Brass<br />
Sight glass, Borosilicate<br />
Accuracy, ±4 % FS<br />
Max. temperature, 100 °C (metal-float)<br />
Max. pressure: 10 bar<br />
[05H]: Measuring range, 2...18 L/min water<br />
[00]: Contact, w/o<br />
[N15]: Connection measuring range, 1/2 NPT female (up to 18 L/min)

<strong>Plastic Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSM-2-120-H-T50-R0</strong><br />
[KSM-2]<br />
Operating principle: Variable area<br />
Mounting position: Vertical<br />
Flow direction: From bottom<br />
Armature material: Polysulfone<br />
Accuracy: +/-4% FS<br />
Max. Temperature: 100°C<br />
Max. pressure PN 16 Bar<br />
[120] Measuring range: 1200...12000 L/h water<br />
[H] either scales for liquid media: L/h water<br />
[T50] Option connection for size 060 + 120: Cast iron G 2 female<br />
[R0] Option contact: w/o contact

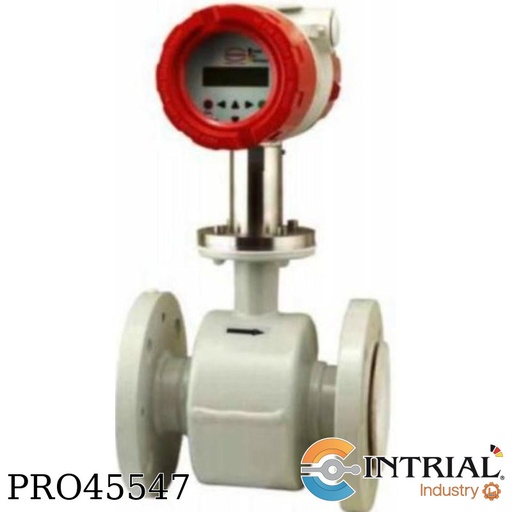

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-212R-1-S-S-1-0<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit) <br />
Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature, 0°C…+95°C<br />
[212R] Process connection, 6" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 632 m³/h, Installation length, 300 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br /><br />
UMF2-A-1-4-F-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold<br /><br />
*INCLUYE CERTIFICADO DE CALIBRACIÓN

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold<br />
Model: DVH-P-40-1-S-L-L-2-S-2-H</strong><br />
[DVH]<br />
[P] Elektronic - Options,  Volume Measurement of Liquids, Gases and Steam<br />
+ temperature sensor + pressure sensor<br />
[40] Flow Body FLANGE, ANSI B16.5-2003 RF  1½" ANSI<br />
[1] Process Connection, ANSI Class 150 ASME B16.5-2003 (not for wafer)<br />
Range: 30 a 830 Nm3/h /  Nitrogen (N2)<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option (IP 66 / Nema 4)<br />
Compact incl. Digital Display and Programming Buttons<br />
[L] Power supply, 12-36 VDC loop powered for Output Signal: 2<br />
[2] Output Signal, 1x 4-20mA, HART 1x Impuls, Loop powered<br />
[S] Process Temperature, Standard temperature -40….+260°C<br />
[2] Option Pressure Sensor, Incl. Pressure Sensor 7 bar abs (100 psia)<br />
[H] Version Heinrichs

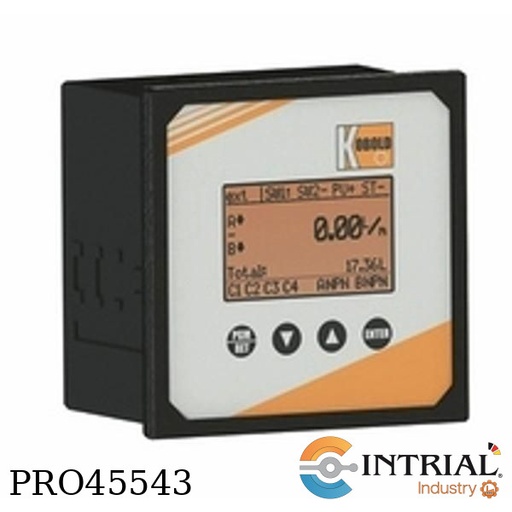

<strong>Flow Counter and Batch controller<br />
Brand: Kobold (Alemania)<br />
Model: ZOK-Z5-P-KF-0-R-0</strong><br />
[ZOK-Z5]:<br />
Function: Totaliser/ rate<br />
LCD Digital display: grafic, 128 x 64 , backlight<br />
Measuring inputs: 2 x pulse (0,1…1000 Hz), <br />
type NPN, PNP, NAMUR, Reed, Hall, active<br />
Counter function: Partial /total value<br />
Actual flow, yes<br />
Pulse output (actual flow) PushPull<br />
Analogue output: 4-20 mA<br />
Ambient temperature, -20…+80 °C<br />
Battery, incl.<br />
[P]: Housing version, Panel mounting housing (IP 20/front IP65) <br />
[KF]: Electrical connection/Cable gland, only screw terminal (for ZOK-xxP)<br />
[0]: Supply voltage, 90…260 VAC<br />
[R]: Output Optocouplers, 2 x Relay SPDT as limit switch<br />
[0]: Options, w/o
<div>
<div class="gtx-trans-icon"></div>
</div>

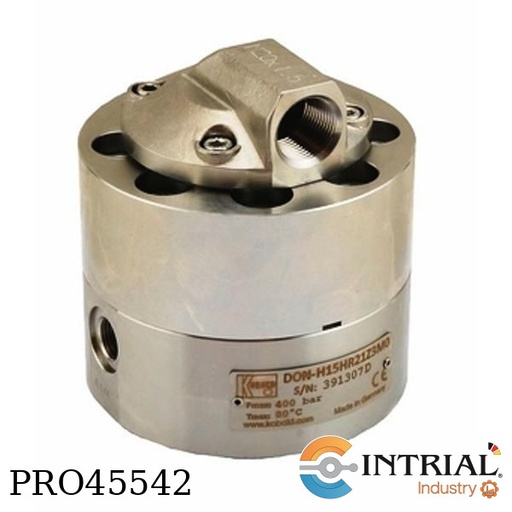

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-15H-N3-3-K0-N-N</strong><br />
[DON-2]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. Temperature 120 °C*<br />
max. Pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[15H]: Measuring range, 15-550 L/h<br />
[N3]: Mech. Connection, for meas. range 15H G 3/8<br />
[3]: Seal, FEP O-seal / EPDM-core up to DON-x15<br />
[K0]: Electronic, Pulse output Hall sensor Push Pull (8-30 VDC), <br />
high resolution (x2)<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery<br /><br />
* Incluye certificado de calibración 1 punto

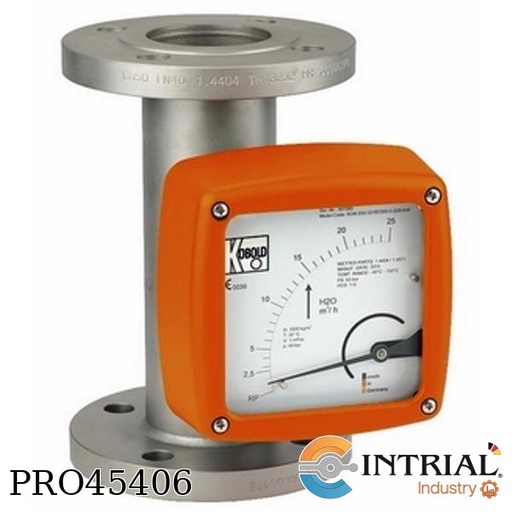

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S15-202R-J-0-0-0-0-S-5-1-0K<br />
Brand: Kobold – Heinrichs</strong><br />
[BGN]: Model<br />
[S15]: Model, Stainless Steel, process temperature = 350°C<br />
[202R]: Connection, size,  ¾" Class 150 RF ASME B16.5-2003<br />
[J]: Range (water 20°C, 1 mPas): H2O: 25 - 250 l/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[0]: Damping / spring stop, without<br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[1]: Switches,  1 x inductive switch, Type SJ 3,5 N <br />
Ambient temperature, -25° to +80°C<br />
[0K]: Accessories, without / Design, Kobold<br />
<br />
Replacement Sensor.<br />
N° Seríe: 297681 <br />
Flow range: 10 to 230 L / h

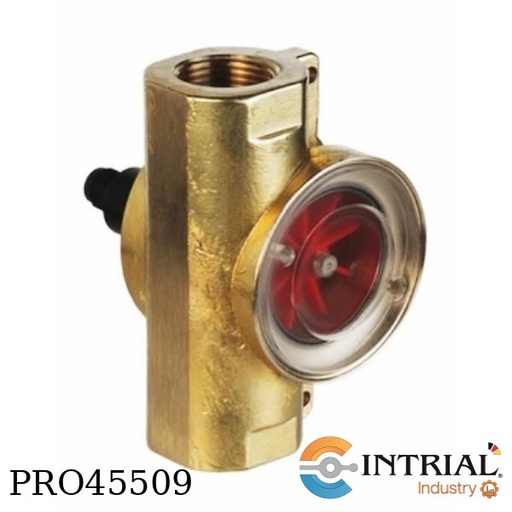

<strong>Rotating Vane Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DRG-15-20-G4-F300</strong><br />
[DRG-15]<br />
Operating principle: Rotating Vane<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Accuracy: +/-3%<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: 40 bar<br />
Material of housing: 1.3955<br />
Material housing cover: 1.4404<br />
[20]: Measuring range, 2 - 45 L/min<br />
[G4]: Mech. connection, G 1/2  female<br />
[F300]: Electronic, Frequency output, plug M12x1

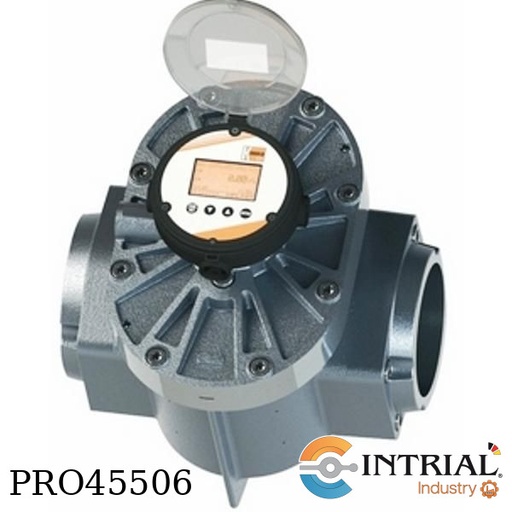

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model:DON-2-25H-A6-1-3A-N-N</strong><br />
[DON-2]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. Temperature 120 °C*<br />
max. Pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[25H]: Measuring range, 10-150 L/min<br />
[A6]: Mech. Connection, for meas. range 25H, ANSI flange 1" 150 lb<br />
[1]: Seal, FKM up to DON-x25<br />
[3A]: Electronic, ZOK-E3 + HA (ATEX Exi)<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery

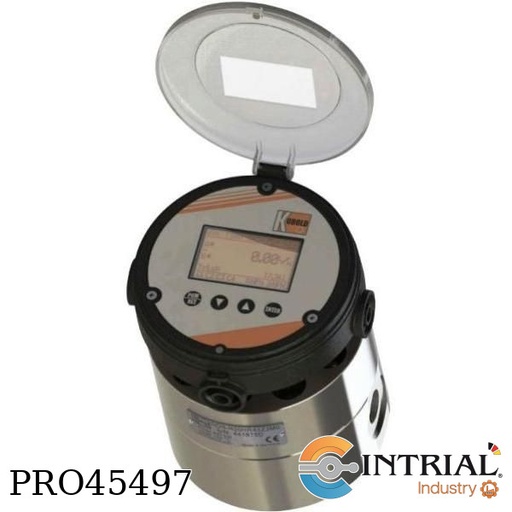

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-20H-N4-1-3A-N-N</strong><br />
[DON-2]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. Temperature 120 °C*<br />
max. Pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[20H]: Measuring range, 1-40 L/min<br />
[N4]: Mech. Connection, for meas. range 20H, NPT 1/2<br />
[1]: Seal, FKM up to DON-x25<br />
[3A]: Electronic, Z3 electronic with ATEX approval (Exi), incl. battery<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without bat

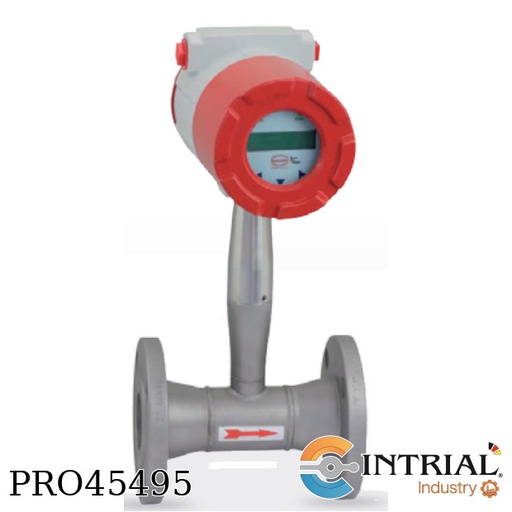

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Kobold - Heinrichs<br />
Model: DVH-P-25-2-S-L-L-2-S-5-H</strong><br />
[DVH]: Inline Version<br />
[P] Electronic – Options, Volume Measurement of Liquids, Gases and Steam<br />
+ temperature sensor + pressure sensor<br />
[25] Prozess connection - Flange, ANSI B16.5-2003 RF 1 inch ANSI<br />
Fluido: Gas Natural<br />
Range: 65 a 3800 Nm3/h<br />
[2] Process Connection, ANSI 300 lbs ASME B16.5.2003<br />
[S] Material Flow Body, Edelstahl 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option (IP 66 / Nema 4)<br />
Compact incl. Digital Display and Programming Buttons<br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1x Impuls<br />
[S] Process Temperature, Standard Temperature -40….+260 °C<br />
[5] Option Pressure Sensor (Electronic versions T/P/E/M),<br />
Incl. Pressure Sensor 100 bar abs (1500 psia), <br />
Electr.version P / M 172 bar abs. (2500 psia)<br />
[H] Version, Heinrichs<br />

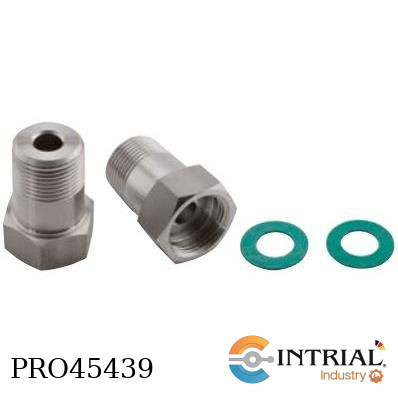

MIM Fitting Sets Accessory Kits<br />
Model: ZUB-AD2G20P20 <br />
Meter connection: G 3/4 female<br />
Process  connection: 3/4" NPT male<br />
Fitting set type: Adapter

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-15HG5-C3T-K</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >= 20 uS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature: -20°C..+70°C (media)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part, st. steel 1.4404 / PEEK / FKM<br />
[15HG5]: Measuring range (flow/temperature),0,2…50 L/min / [°C] G ¾ male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[K]: Options, with calibration report according to the following line item<br /><br />


<strong>Baffle Plate System Flow Transmitter for Liquids<br />
Brand: Kobold (Alemania)<br />
Model: DWD-36-W1F-3-L-T-0</strong><br />
[DWD-36]:<br />
Operating principle: Baffle plate system<br />
Indication: LCD-display<br />
Flow direction: in directon of the arrow<br />
Output: 2 switching contacts + 4-20 mA<br />
Max. temperature: 120 °C<br />
Connection: weld on<br />
Material (T-piece): st. st.<br />
Flow range (m3/h): 24 a 240<br />
[W1F]: Connection size,  for pipe size DN 150<br />
[3]: Power supply, 24 VDC<br />
[L]: Flow direction, from left to right<br />
[T]: Mounting position, on top of the lead<br />
[0]: Option, w/o further options

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-15HG5-C3T-K</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >=20 uS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature: -20°C..+70°C (media)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part, st. steel 1.4404 / PEEK / FKM<br />
[15HG5]: Measuring range (flow/temperature),0,2…50 L/min / [°C] G ¾ male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[K]: Options, with calibration report according to the following line item<br /><br />
MIM Fitting Sets Accessory Kits<br />
Model: ZUB-AD2G20P20 <br />
Meter connection: G 3/4 female<br />
Process  connection: 3/4" NPT male<br />
Fitting set type: Adapter

<strong>Oval Gear Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: OVZ-303G5NF300Y</strong><br />
Measuring range: 1,6-40 L/min<br />
Connection: G 3/4<br />
[Y] Special Options <br />
version OVZ-303R2001NYS c/w special options:      <br />
- Terminal connection box Polycarbonate           <br />
- c/w PC board for PNP output signal              <br />
- electrical connection M12 plug socket (w/o plug <br />
- flow body without sealing groove for connection <br />
- Electronic epoxy encapsulated

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S80-208R-V-0-F-0-B-S-2-0-0-H</strong><br />
[BGN]:<br />
[S80]: Model, Stainless Steel, process temperature ≤ 350°C<br />
[208R]: Connection, 3" Class 150 RF ASME B16.5-2003<br />
[V]: Range (water 20°C, 1 mPas), 4 – 40 m3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[F]: Damping / spring stop, with liquid damping<br />
[0]: Self draining, without<br />
[B]: Certificates, nspection certificate 3.1 with material <br />
certificate (DIN EN 10204:2004)<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[0]: Switches, without<br />
Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-20HG6-C3T-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >= 20 uS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[20HG6]: Measuring range (flow/temperature), 0,4...100 L/min. / [°C] G 1 male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K502<br />
[ZUB-KAB-12]<br />
[K502]: Version: M12x1 box 2 m cable, 5-pin
