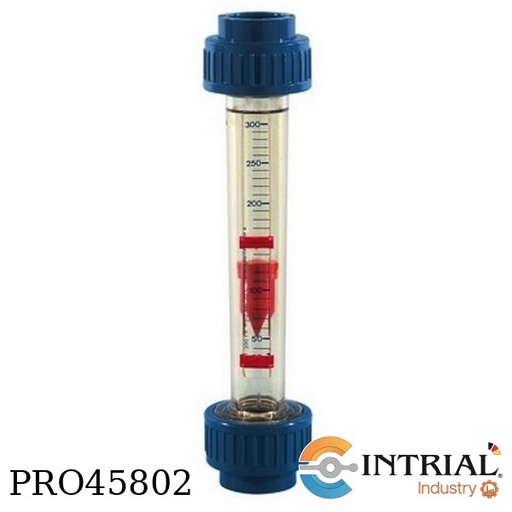

Low Volume Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSK-2-080-H-K20-00<br />
[KSK-2]:<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material Polysulfone<br />
Accuracy Class 4<br />
Max. temperature 100 °C<br />
Max. pressure PN 10<br />
Seal EPDM<br />
[080]: Measuring range 8...80 L/h water<br />
[H]: Scale: L/h waterscale<br />
[K20]:Connection for size 80, 150, 200 L/h water<br />
PVC-glue connection o.d. 20 (standard)<br />
[00]: Option contact w/o

<strong>Low Volume Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSK-1-080-H-K20-00</strong><br />
[KSK-1]:<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material Trogamide<br />
Accuracy Class 4<br />
Max. temperature 60 °C<br />
Max. pressure PN 10<br />
Seal EPDM<br />
[080]: Measuring range 8...80 L/h water<br />
[H]: Scale: L/h waterscale<br />
[K20]:Connection for size 80, 150, 200 L/h water<br />
PVC-glue connection o.d. 20 (standard)<br />
[00]: Option contact w/o

<strong>Flowindicator with Rotor<br />
Brand: Kobold (Alemania)<br />
Model: DAA-1-1-07H-R-40</strong><br />
[DAA-1]<br />
Operating principle: rotor<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Max. temperature 100 °C<br />
Max. pressure 16 bar<br />
[1] Material (housing/connection): brass, nickle-plated<br />
[07H] Nom. diameter/ind. range: 1 1/2" 8...100 L/min water<br />
[R] Thread, G-thread female<br />
[40] Connection 1 1/2"

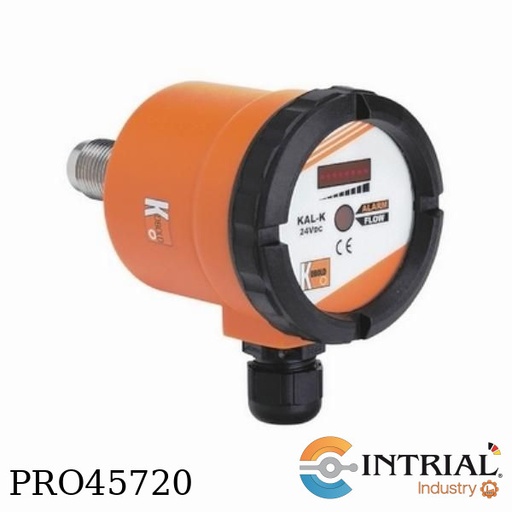

Calorimetric Flowswitch, Compact Version<br />
Brand: Kobold<br />
SN: 348877 <br />
(KAL-K5415ÖPG09)<br />
Operating principle calorimetric<br />
Mounting position all directions<br />
Indication DUO-LED and LED-chain<br />
max. temperature 80 °C<br />
max. pressure 100 bar
<div>
<div class="gtx-trans-icon"></div>
</div>

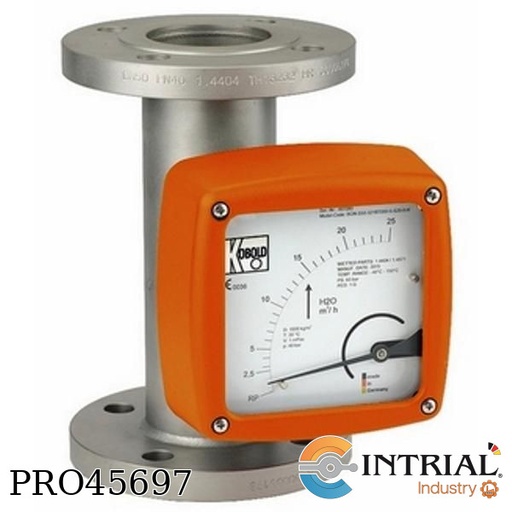

<strong>All-Metal Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S80-208R-V-0-F-0-0-S-2-0-0-K</strong><br />
[BGN]: Model,<br />
[S80]: Model, Stainless Steel, process temperature <span style="color:rgb(32,33,36);font-family:arial, sans-serif;font-size:16px;background-color:rgb(255,255,255);"><=</span> 350°C<br />
[208R]: Connection, 3" Class 150 RF ASME B16.5-2003<br />
[V]: Range (water 20°C, 1 mPas), Range medium, 4 - 40 m3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[F]: Damping / spring stop, with liquid damping<br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature <span style="color:rgb(32,33,36);font-family:arial, sans-serif;font-size:16px;background-color:rgb(255,255,255);"><=</span> 150°C for electrical output,<br />
Process temperature <span style="color:rgb(32,33,36);font-family:arial, sans-serif;font-size:16px;background-color:rgb(255,255,255);"><=</span> 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water) <br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

<strong>Flowindicator with Threaded Connection<br />
Brand: Kobold (Alemania)<br />
Model: DAK-1-3-07H-R-40-P</strong><br />
[DAK-1]<br />
Operating principle Flap<br />
Mounting position horizontal<br />
Flow direction in direction of the arrow<br />
Max. Temperature 150 °C (Option B: 280 °C)<br />
Max. pressure 16 bar (Option 25 or 40 bar)<br />
[3]: Housing, Cast steel<br />
[07H]: Nom. Diameter, 1 1/2" <br />
[R]: Thread, G-thread female<br />
[40]: Connection, 1 1/2"<br />
[P] Option, pmax. 25 bar

<strong>Flowindicator with Threaded Connection<br />
Brand: Kobold (Alemania)<br />
Model: DAK-1-2-07H-R-40-P</strong><br />
[DAK-1]<br />
Operating principle Flap<br />
Mounting position horizontal<br />
Flow direction in direction of the arrow<br />
Max. Temperature 150 °C (Option B: 280 °C)<br />
Max. pressure 16 bar (Option 25 or 40 bar)<br />
[2]: Housing, St.st.<br />
[07H]: Nom. Diameter, 1 1/2" <br />
[R]: Thread, G-thread female<br />
[40]: Connection, 1 1/2"<br />
[P] Option, pmax. 25 bar

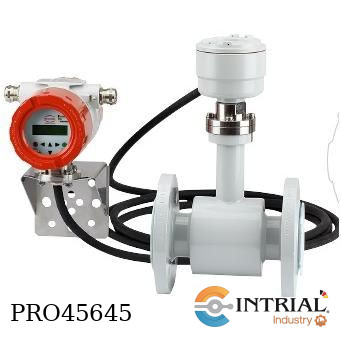

Magnetic Inductive Flow Meter with flange<br />
Brand: Kobold<br />
Model: EPS-H-208R-1-S-S-2-0<br />
[EPS-H]<br />
Mounting position, all directions<br />
Display / Protection class, LCD Display / IP 68<br />
Output, Analogue, frequency, connection and status output<br />
max. medium temperature, 0…+95 °C<br />
Coating, hard rubber<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature 0°C...95°C<br />
[208R]: Connection flange ASME 16.5./ 3" 150 Class lbs max. 170 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571<br />
[S]: Earthing electrode, st.st. 1.4571<br />
[2]: Transmitter mounting, separate version, protection IP 67 <br />
[0]: Certificates, without<br /><br />
UMF2-C-1-2-G0BK-1<br />
[UMF2]<br />
Output analogue, binary, status<br />
Communication HART®<br />
Power supply 115/250 VAC, 24 VDC<br />
Ambient temperature -20...+60 °C<br />
Housing material Aluminium painted, display cover out of safety class<br />
Protection IP 68<br />
[C]: Mounting, remote version IP67 incl. <br />
[1]: Display / Interface board, with display / interface board<br />
[2]: Power supply, 115 VAC 50/60 Hz<br />
[G0BK]: Output, Analogue, pulse, status, with HART®<br />
[1] Longer cable, IP 67  5 m (fixed cable)

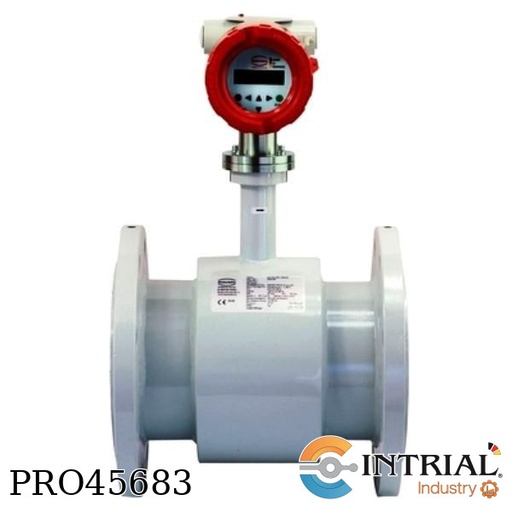

EPS Electromagnetic Flow Meter<br />
Brand: Kobold<br />
Model: EPS-H-208R-1-S-S-1-0<br />
[EPS]: Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature 0°C...95°C<br />
[208R]: Connection flange, 3" Class 150 RF ASME B16.5-2003<br />
Max. measuring range: 170 m³/h, Installation length: 272 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571<br />
[S]: Earthing electrode, st.st. 1.4571<br />
[1]: Transmitter mounting integrated version, protection IP 67<br />
[0]: Certificates, without<br /><br />
UMF2-A-1-4-G-0BK<br />
[UMF2]: Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output signal<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

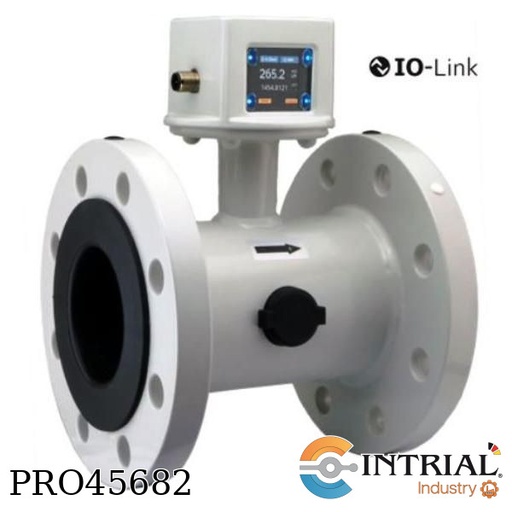

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-208R-1-HH-100<br />
Brand: Kobold (Alemania)</strong><br />
[MIS]<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display: TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 outputs free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display window PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity 70 mm²/s<br />
Min. conductivity >=20 uS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H] Material Lining, Hard rubber (NBR)<br />
[208R] Flange size, ASME B16.5-2003, 3" Class 150FF<br />
Measuring range (m3/h): 0.6-160<br />
[1] Material Process Connection, steel, coated<br />
[HH] Measuring and Grounding electrodes, Hastelloy C-276<br />
[100] Transmitter Mounting, direct mounted<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K502<br />
[ZUB-KAB-12]<br />
[K502]: Version: M12x1 box 2 m cable, 5-pin

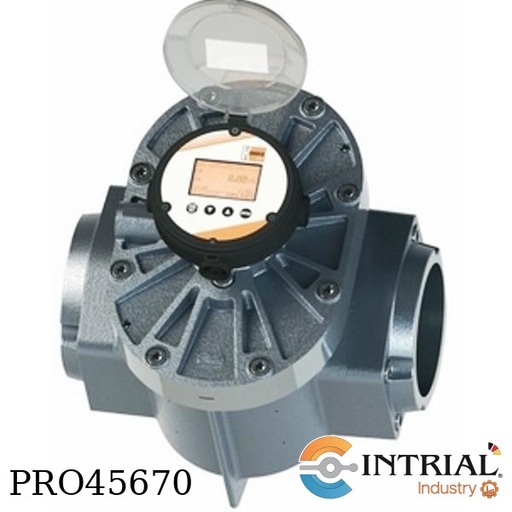

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-50H-AB-1-DE-N-N</strong><br />
[DON-1]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-64 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material:  ***from DON-x20 PTFE<br />
[50H]: Measuring range, 50-1000 L/min<br />
[AB]: for meas. range  50H ANSI flange 3" 150 lbs<br />
[1]: Seal, FKM for DON-x45…DON-x60<br />
[DE]: Electronic, 2x pulse output, 90° phased Hallsensor Push Pull <br />
(8-30 VDC) + ATEX (Exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-60H-AC-1-DE-N-N</strong><br />
[DON-1]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-64 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material:  ***from DON-x20 PTFE<br />
[60H]: Measuring range, 150-2500 L/min<br />
[AC]: Mech. connection for meas. range 55H and 60H, ANSI flange 4" 150 lbs<br />
[1]: Seal, FKM for DON-x45…DON-x60<br />
[DE]: Electronic, 2x pulse output, 90° phased Hallsensor Push Pull <br />
(8-30 VDC) + ATEX (Exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-50H-AB-1-DE-N-N</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[50H]: Measuring range, 50-1000 L/min<br />
[AB]: for meas. range  50H ANSI flange 3" 150 lbs<br />
[1]: Seal, FKM for DON-x45…DON-x60<br />
[DE]: Electronic, 2x pulse output, 90° phased Hallsensor Push Pull <br />
(8-30 VDC) + ATEX (Exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-60H-AC-1-DE-N-N</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[60H]: Measuring range, 150-2500 L/min<br />
[AC]: Mech. connection for meas. range 55H and 60H, ANSI flange 4" 150 lbs<br />
[1]: Seal, FKM for DON-x45…DON-x60<br />
[DE]: Electronic, 2x pulse output, 90° phased Hallsensor Push Pull <br />
(8-30 VDC) + ATEX (Exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery

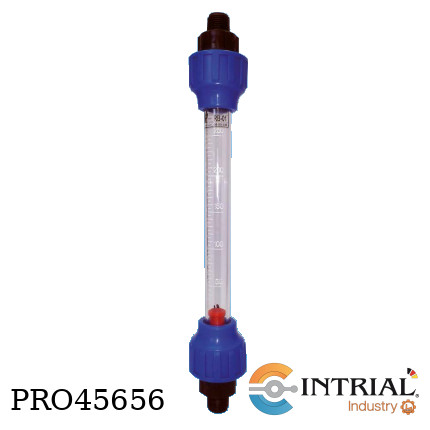

<strong>Variable Area Flowmeter with glass measuring tube<br />
Brand: Kobold (Alemania)<br />
Model: URB-10L-G4</strong><br />
[URB]:<br />
Operating principle: variable area<br />
Mounting position: vertical, from bottom<br />
Accuracy: class 4 acc. VDI/VDE 3513<br />
Max. temperature: 65°C<br />
Max. pressure: 3 bar<br />
Connection: PVC<br />
Seal: NBR option: EPDM<br />
Measuring tube/float: Borosilicate glass/st. steel (1.4404)<br />
[10L]: Measuring range: 0,32...3,2 Nm³/h air<br />
[G4]: Connection: G 1/2 male

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-335B-1-S-S-2-0<br />
Brand: Kobold-Heinrich<br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit)<br />
Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature, 0°C…+95°C<br />
[335B] Process connection, DN100 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range, 274 m³/h, Installation length, 250 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[2] Transmitter mounting, Remote Transmitter<br />
Protection class, sensor, IP 67 terminal conn.box via M 20 x 1,5 <br />
cable > 10m add. term.conn.box on transmitter<br />
[0] Certificates, w/o<br /><br />
UMF2-C-1-4-F-0BK-1<br />
[UMF2] Transmitter<br />
[C] Mounting, Remote transmitter, <br />
Connection to sensor: incl 2,5 m cable, c/w pipe-/wall mounting bracke<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold<br />
[1] Longer cable 5m, breakout cable

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-330B-1-S-S-2-0<br />
Brand: Kobold-Heinrich<br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit)<br />
Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature, 0°C…+95°C<br />
[330B] Process connection, DN80 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range, 170 m³/h, Installation length, 200 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[2] Transmitter mounting, Remote Transmitter<br />
Protection class, sensor, IP 67 terminal conn.box via M 20 x 1,5 <br />
cable > 10m add. term.conn.box on transmitter<br />
[0] Certificates, w/o<br /><br />
UMF2-C-1-4-F-0BK-1<br />
[UMF2] Transmitter<br />
[C] Mounting, Remote transmitter, <br />
Connection to sensor: incl 2,5 m cable, c/w pipe-/wall mounting bracke<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold<br />
[1] Longer cable 5m, breakout cable

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-20H-R4-1-Z3-N-N</strong><br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. Temperature 120 °C*<br />
max. Pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[20H]: Measuring range, 1-40 L/min<br />
[R4]: Mech. Connection, for meas. range 20H G 1/2<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, <br />
outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery<br /><br />

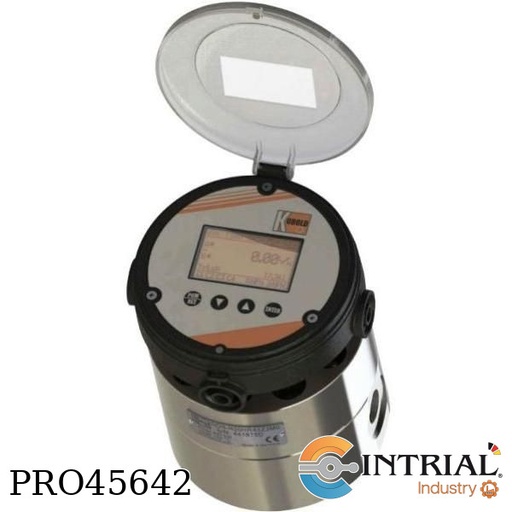

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-15H-R3-1-Z3-N-N</strong><br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. Temperature 120 °C*<br />
max. Pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[15H]: Measuring range, 15-550 L/h<br />
[R3]: Mech. Connection, for meas. range 15H G 3/8<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, <br />
outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery

<strong>Turbine Wheel Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DOT-13-20H-N5-Z3N-L</strong><br />
[DOT-13]<br />
Operating principle Turbine wheel<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Connection/ Housing material st. Steel / st. steel<br />
max. temperature -20…+120 °C<br />
max. pressure 250 bar<br />
Linearity ± 0.5 % of Reading<br />
[20H] measuring range, 0.8-8 m³/h<br />
[N5] Mechanical connection, 3/4" NPT<br />
[Z3N] Electronics / cable entry,<br />
dual LCD totaliser/rate, outputs: pulse, analogue,  cable entry 1/2 NPT<br />
[L] Flow direction, from left to right, indication on top
