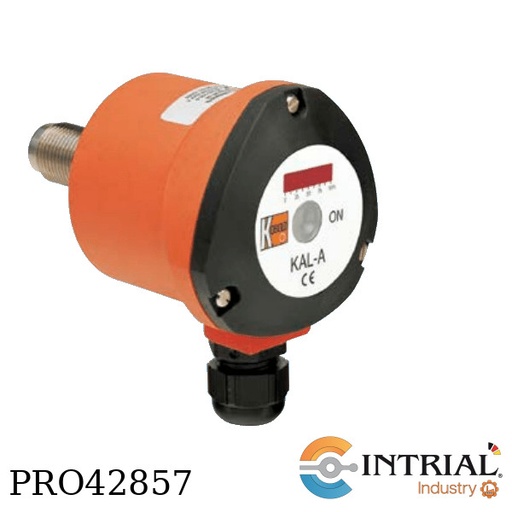

Thermal Flow Switch for Water-Based Liquids<br />
Model: KAL-6205<br />
Brand: Kobold<br />
[KAL-6205]<br />
Specifications<br />
Cable:   PVC Clad, Silicone Optional<br />
Length:   6 feet (Max. 330 feet)<br />
Protection:   IP 68<br />
Temperature:  0...176 °F<br />
Probe Material: 304 SS<br />
Fitting: 1/4 NPT

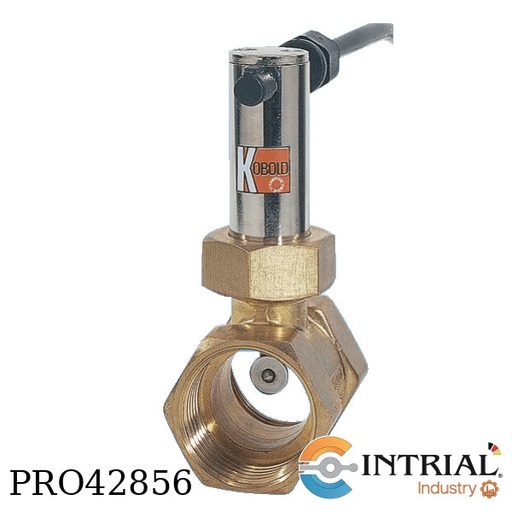

<strong>Paddle Type Flow Switch<br />
Model: PSR-11-257-R-25-R-4<br />
Brand: Kobold (Alemania)</strong><br />
[PSR-11]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
incl. fitting: brass<br />
Body material: brass<br />
max. presure 100bar<br />
[257]: Measuring range/paddle; 17.7-26.8 L/min paddle: 7<br />
[R]: Connection; G-thread<br />
[25]: Connection; 1" (for PSR-xx25...)<br />
[R]: Contact version; N/O<br />
[4]: Connecting cable; PVC-cable 3.0 m

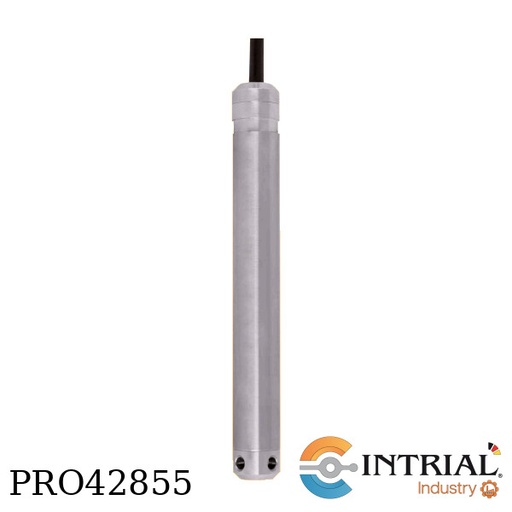

<strong>Hydrostatic Pressure Sensor<br />
Model: NTB-13-02-YY+NTB-NAA-209<br />
Brand: Kobold (Alemania)</strong><br />
[NTB-13]:<br />
Sond- material: stainless steel<br />
Cable-material: Polyurethane<br />
Output signal (2 wire): 4..20 mA<br />
Power supply: 12...30 VDC<br />
Overloading: 3x measuring range<br />
[02]: Measuring range, 2 mWs<br />
[YY]: Length of cable, 25 m<br /><br /><strong>Include:</strong><br /><strong>Accessory for Mounting<br />
Model: NTB-NAA-209</strong><br />
[NTB-NAA]: Accessory for Mounting<br />
[209]: Design, mounting clamp

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-8-15H-N3-1-E5-N-0<br />
[DON-8]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 80 °C<br />
max. pressure 16...100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material PPS<br />
[15H] Measuring range, 15-550 L/h<br />
[N3] Mech. connection, 3/8 NPT<br />
[1] Seal, FKM up to DON-x25<br />
[E5] Electronic, Counter / Controller with LCD (Exia)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without<br />
*No include Battery

<strong>Low Volume Flowmeter<br />
Model: KDF-92-87-N-V-0-00-0<br />
Brand: Kobold (Alemania)</strong><br />
[KDF-92]<br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st.<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature: without/with contact 100 °C / 70 °C<br />
Max. pressure: PN 16<br />
[87]: Measuring range, 10...100 L/h water<br />
[N]: Connection, ¼” NPT<br />
[V]: Seal, FPM<br />
[0]: Wall mounting kit, w/o<br />
[00]: Contacts measuring range: w/o<br />
[0]: Flow differential pressure regulator, w/o

<strong>Calorimetric Flow Meter / Monitor, Compact Version<br />
Model:  KAL-A0-3-12-A4-ST<br />
Brand: Kobold (Alemania)</strong><br />
[KA-A0]:<br />
Operating principle, calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
Output, 4-20 mA (KAL-AK with contact output)<br />
max. temperature, 80 °C<br />
max. pressure, 100 Bar<br />
Power supply: 24 VDC<br />
Protection class: IP 65<br />
Connection thread, M 12x1<br />
[3] Probe material: st.st. 1.4301<br />
[12] Connection: M 12x1<br />
[A4] Output: 4-20 mA<br />
[ST] Electron. Connection: Circular plug connector M12x1 NPN/PNP

<strong>Magnetic Inductive Flow Meter with special connections<br />
Brand: Kobold (Alemania)<br />
Model: DMH-5-C2H-H-1-1-A-2-8<br />
[DMH-5]</strong><br />
Operating principle all directions<br />
Mounting position LCD Display / IP 67<br />
Display / Protection class Analogue, frequency, connection and status output<br />
Output 120 °C (180 °C sep. vers.)<br />
max. medium temperature, 80 °C<br />
Coating, hard rubber<br />
Connection flange ASME 16.5 IP 67<br />
[C2H] wafer flange for flange DIN EN ,DN 200 PN 16 max. 0..1188 m³/h<br />
[H] Lining: hard rubber<br />
[1] Electrodes material: st.st.<br />
[1] Grounding Electrodes material: st.st.<br />
[A] Version/cable length: compact version, 1/2 NPT connection<br />
[2] UMF2(B)-Electronic with HART<br />
[8] Power supply/Cable entries: 24 VDC, 1/2 NPT

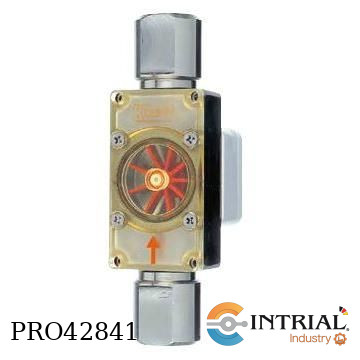

<strong>Rotating Vane-Flowmeter with Pulse Output<br />
Model: DF-48-G-R20-HPO-3K<br />
Brand: Kobold -  Alemania</strong><br />
[DF] Model<br />
Operating principle, Rotating Vane<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Max. temperature, s. material combination<br />
Max. pressure, s. material combination<br />
Accuracy, +-2,5% FS<br />
[48] Measuring range, 2...48 L/min water<br />
[G] Material combination, Housing/ cover/ connection/ Temp./ pressure,<br />
Brass (all)/ 80 °C/ 100 bar<br />
[R20] Connection, Material combination code: A/D/G G 3/4<br />
[HPO] Model of electronic, PC-plug socket, PNP, w/o calibration report<br />
[3K] Power supply, 5...24 VDC

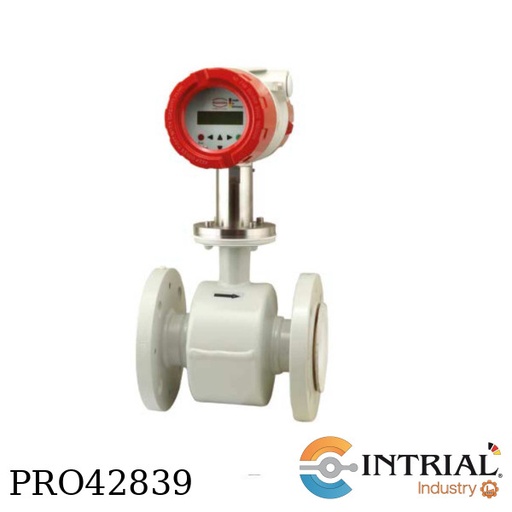

<div>Magnetic Inductive Flowmeter<br />
Brand: KOBOLD (Heinrichs)<br />
Model: EPS-H-321B-1-S-S-1-0<br />
[H]: Lining material, Hardrubber (Ebonite)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes<br />
Process temperature, 0…+95 °C<br />
[331B]: Process connection<br />
DIN - Flange, DN50 PN40 Form B1 DIN EN 1092-1<br />
Q Max., 70 m³/h<br />
Installation length, 200 mm<br />
[1]: Material-Process connection, Flange steel painted<br />
[S]: Material-Measuring electrodes, st.st. 1.4571 (316 -Ti)<br />
[S]: Material-Grounding electrodes, st.st. 1.4571 (316 -Ti)<br />
[1]: Transmitter mounting, Integral mount transmitter<br />
Protection class, IP67<br />
[0]: Certificate, without<br />
<br />
Include<br />
TRANSMITTER<br />
Brand: KOBOLD (Heinrichs)<br />
Model: UMF2-A-1-4-G-0BK<br />
[A]: Transmitter design, compact mounting<br />
protection class, IP 67<br />
Conduit port opening, 1/2" NPT (f)<br />
[1]: Display/Interface board, Integral within transmitter housing<br />
[4]: Power supply, 24V DC (±15 %)<br />
[G]: Output,<br />
1x current output: 4...20mA, active. With HART® protocol<br />
1x pulse output: passive Um=24V DC<br />
1x status output: passive Um=24V DC<br />
[0BK]: Design, Kobold<br />
 </div>

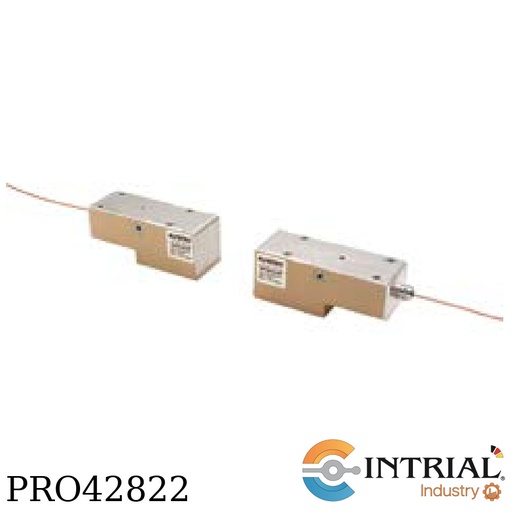

<strong>Transmitter Clamp-on Ultrasonic Flow Meter<br />
Model: DUC-MF-1-7-0-D-00+DUC-WF-10-0-10<br />
Brand: Kobold (Alemania) </strong><br />
[DUC-MF]:<br />
Operating principle: Ultrasonic<br />
Mounting position: stationary, wallmount<br />
Measuring units: volume flow, flow velocity, thermal output<br />
Counter: heat quantity, volume<br />
Housing: ABS<br />
Additional input for heat measuring: 2x Pt100<br />
Output: 2x4-20 mA, 1(2) pulse, 1x micro-USB, 1 relay; optional RS232/RS485<br />
Measuring channels: 1, optional 2 channels<br />
Protection: IP 65<br />
[1] Measuring channels, 1 channel<br />
[7] Power supply, 18-36 VDC<br />
[0] Ex-approval, without<br />
[D] Language packages,  german/english/french<br />
[00] Options, without<br /><br /><strong>Include:<br />
Transducer Clamp-on Ultrasonic Flow Meter<br />
Model: DUC-WF-10-0-10</strong><br />
[DUC-WF]:<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+150 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[10]: for tube diameter, DN32..DN400, 1 MHz<br />
[0]: Ex-approval¸ without<br />
[10]: Cable length, 10 m

<strong>Transmitter Clamp-on Ultrasonic Flow Meter<br />
Model: DUC-MF-1-7-0-D-00+DUC-WF-21-0-10<br />
Brand: Kobold (Alemania) </strong><br />
[DUC-MF]:<br />
Operating principle: Ultrasonic<br />
Mounting position: stationary, wallmount<br />
Measuring units: volume flow, flow velocity, thermal output<br />
Counter: heat quantity, volume<br />
Housing: ABS<br />
Additional input for heat measuring: 2x Pt100<br />
Output: 2x4-20 mA, 1(2) pulse, 1x micro-USB, 1 relay; optional RS232/RS485<br />
Measuring channels: 1, optional 2 channels<br />
Protection: IP 65<br />
[1] Measuring channels, 1 channel<br />
[7] Power supply, 18-36 VDC<br />
[0] Ex-approval, without<br />
[D] Language packages,  german/english/french<br />
[00] Options, without<br /><br /><strong>Include:<br />
Transducer Clamp-on Ultrasonic Flow Meter<br />
Model: DUC-WF-21-0-10</strong><br />
[DUC-WF]:<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+150 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[21]: for tube diameter, DN10..DN100, 2 MHz<br />
[0]: Ex-approval¸ without<br />
[10]: Cable length, 10 m

<strong>Electromagnetic Flowmeter DMH<br />
MODEL: DMH-1-A50-H-1-1-A-1-8<br />
MARCA: KOBOLD</strong><br />
DMH-1:<br />
Mounting position, all directions<br />
Display / Protection class, LCD Display / IP 67<br />
Output, Analogue, frequency, connection and status output<br />
max. medium temperature, 80 °C<br />
Connection, St. steel<br />
Coating, hard rubber<br />
A50: Connection flange DIN EN 1092-1/MB, DN 50 PN 40/max. 0..62 m³/h<br />
H: Lining, hard rubber<br />
1: Electrodes material, st.st.<br />
1: Grounding Electrodes material, st.st.<br />
A: Version/cable length, compact version, 1/2 NPT connection<br />
1: Electronic, UMF2 (B)-Electronic<br />
8: Power supply/Cable entries, 24VDC/1/2 NPT

Transducer Clamp-on  Ultrasonic Flow Meter <br />
Brand: Kobold (Alemania)<br />
Model: DUC-WF-05-0-20<br />
[DUC-WF]:<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range  (-40..+100°C)<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[05]: for tube diameter, DN200..DN6000, 0,5 MHz<br />
[0]: Ex-approval¸ without<br />
[20]: Cable length, 20 m

Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: <span style="float:none;background-color:rgb(255,255,255);color:rgb(34,34,34);font-family:Arial, Helvetica, sans-serif;font-size:small;font-style:normal;font-variant:normal;font-weight:700;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;">VKM-82-05-C4P-N08-B</span><br />
[VKM-82]<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, St.St.<br />
Seal, FPM<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 350 bar<br />
Viscosity range 1...540 mm²/s<br />
[05] Measuring range: 0.8...3.1 L/min oil<br />
[C4P] Output/Indicator, Compact electr. 24 VDC, 4-20 mA, 1xPNP<br />
[N08] Connection, 1/4 NPT female<br />
[B] Flow direction, from bottom

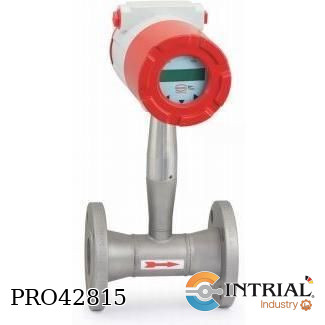

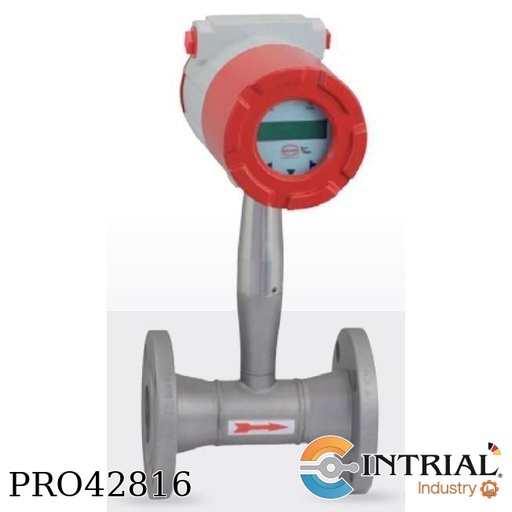

<strong>Vortex Flow Meter Insertion Version<br />
Model: DVE-T-S-L-A-H-S-0-D<br />
Brand: Kobold (Alemania)</strong><br />
[DVE-T]: Version, Standard<br />
Integrated temperature sensor, yes<br />
Integrated pressure sensor, no<br />
Transmitter Housing, Aluminium<br />
[S]: Probe length, Standard (max. stem length app. 690 mm)<br />
[L]: Transmitter Version/ Mounting, compact incl. Display<br />
[A]: Supply voltage, 85-240 VAC, 50/60 Hz<br />
[H]: Output, 1x 4-20 mA, HART, 1x Alarm, 1x Pulse<br />
[S]: Process temperature, -200..+260°C (-330..+500°F) (standard)<br />
[0]: Option Pressure Sensor/ Version, without<br />
[D]: Process connection, Flange ANSI 2 inch 300 lbs,sensor-bushing compression fitting

<strong>Vortex Flow Meter with Flange<br />
Model: DVH-T-H52-S-L-A-H-S-0H<br />
Brand: Kobold (Alemania)</strong><br />
[DVH-T]: Version, Standard<br />
Integrated temperature sensor, yes<br />
Integrated pressure sensor, no<br />
Transmitter Housing, Aluminium<br />
[H52]: Connection (ASME B16.5.2003), Flange ANSI 6 inch 300 lbs<br />
[S]: Material Measuring Tube/Connection, Stainless steel 1.4404/316L<br />
[L]: Transmitter Version/ Mounting, compact incl. Display<br />
[A]: Supply voltage, 85-240 VAC, 50/60 Hz 2)<br />
[H]: Output, 1x 4-20 mA, HART, 1x Alarm, 1x Pulse<br />
[S]: Process temperature, -200..+260°C (-330..+500°F) (standard)<br />
[0H]: Option Pressure Sensor/ Version, without

<div><strong>Transmitter Clamp-on  Ultrasonic Flow Meter<br />
Model: DUC-MF-1-0-0-D-00+DUC-WF-05-0-10+DUC-ZF-05+DUC-ZF-BE<br />
Brand: Kobold (Alemania)</strong><br />
[DUC-MF]:<br />
Operating principle Ultrasonic<br />
Mounting version stationary, wallmount<br />
Measuring units volume flow, flow velocity, thermal output<br />
Counter heat quantity, volume<br />
Housing ABS<br />
Additional input for heat measuring 2x Pt100<br />
Output 2x4-20 mA, 1(2) pulse, 1x micro-USB, 1 relay; optional RS232/RS485<br />
Measuring channels 1, optional 2 channels<br />
Protection IP 65<br />
[1]: Measuring channels, 1-channel<br />
[0]: Power supply, 90-240 VAC<br />
[0]: Ex-approval, without<br />
[D]: Language packages, german/english/french<br />
[00]: Options, without<br /><br /><strong>Transducer Clamp-on  Ultrasonic Flow Meter<br />
Model: DUC-WF-05-0-10</strong><br />
[DUC-WF]:<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+150 °C <br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[05]: for tube diameter, DN200..DN6000, 0,5 MHz<br />
[0]: Ex-approval¸ without<br />
[10]: Cable length, 10 m<br /><br /><strong>Accessories 1<br />
Model: DUC-ZF-05</strong><br />
[DUC-ZF]: Application area for, stationary<br />
[05]: coupling foil 1 pair for DUC-WF05<br /><br /><strong>Accessories 2<br />
Model: DUC-ZF-BE</strong><br />
[DUC-ZF]: Application area for, stationary<br />
[BE]: stainless steel strap (1 pair) suitable for ultrasonic transducer DUC-WF 05</div>

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-H-384B-1-S-S-1-0+UMF2-A-1-2-G-0BK</strong><br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[384B]: Process connection, DN600 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 9566 m³/h, Installation length, 600 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br /><strong>UMF2-A-1-2-G-0BK<br />
[UMF2]: Transmitter</strong><br />
[A]: Mounting, IP67<br />
Integrated transmitter IP 67 standard<br />
term.conn.box on transmitter ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal: <br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-H-355B-1-S-S-1-0+UMF2-A-1-2-G-0BK+ZUB-EPS-P-214R</strong><br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[355B]: Process connection, DN250 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 1786 m³/h, Installation length, 450 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br /><strong>UMF2-A-1-2-G-0BK<br />
[UMF2]: Transmitter</strong><br />
[A]: Mounting, IP67<br />
Integrated transmitter IP 67 standard<br />
term.conn.box on transmitter ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal: <br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br /><br /><strong>GROUNDING-RING-SET-1.4436<br />
ZUB-EPS-P-214R</strong><br />
Size, 10"<br />
Pressure rating, ANSI B16.5 Class 150<br />
Material, stainless steel AISI 316 1.4436

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-H-355B-2-S-S-1-0+UMF2-A-1-2-G-0BK+ZUB-EPS-P-214R</strong><br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[355B]: Process connection, DN250 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 1786 m³/h, Installation length, 450 mm.<br />
[2]: Material Process connection, Flange st.st. 1.4301 (DN2…10 in 1.4404)<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br /><strong>UMF2-A-1-2-G-0BK<br />
[UMF2]: Transmitter</strong><br />
[A]: Mounting, IP67<br />
Integrated transmitter IP 67 standard<br />
term.conn.box on transmitter ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal: <br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br /><br /><strong>GROUNDING-RING-SET-1.4436<br />
ZUB-EPS-P-214R</strong><br />
Size, 10"<br />
Pressure rating, ANSI B16.5 Class 150<br />
Material, stainless steel AISI 316 1.4436
