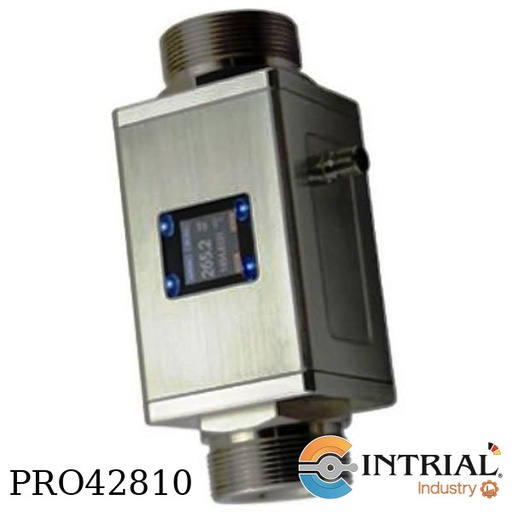

<div><strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-35HG9-C3T-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[35HG9] Measuring range (flow/temperature), 1,5…350 L/min. / [°C] G 2 male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without</div>

<div>
<div>Compact Magnetic Inductive Flow Meter<br />
Brand: KOBOLD(Alemania)<br />
Modelo: MIM-1-3-35HG9-C3T-0+ZUB-KAB-K002<br />
[MIM-1]:<br />
Operating principle: Magnetic Inductive<br />
Mounting position: all directions, display rotatable<br />
Display:TFT-display, 128 x 128 color pixel, <br />
1,4", rotatable in 90° steps,<br />
2 outputs free assignable<br />
Integrated temperature sensor: Pt 1000<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Min. conductivity >20 µS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (medium) -20°C …+60°C<br />
Max. temperature (medium)<br />
 -20°C..+70°C (compact)*,<br />
-20°C..+85°C (remote, PVC cable, FKM or EPDM seal),<br />
-20°C..+140°C (remote, ETFE cable, FKM seal)<br />
-40°C..+140°C (remote, ETFE cable, EPDM seal)<br />
Max. pressure: PN16<br />
Protection: IP67<br />
[3]:Material housing/insulation part/sealing, st. steel 1.4404 / PEEK / EPDM<br />
[35HG9]:Measuring range (flow/temperature), 1,5…350 L/min. / [°C] G 2 male<br />
[C3T]: Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output Part- or grand totaliser<br />
[0]: Options, without<br /><br />
Include:<br />
Accessories Circular Plug-in connector<br />
Model:ZUB-KAB-12-K002<br />
Brand: KOBOLD(Alemania)<br />
[K002]: M12x1 box 2 m cable, 4-pin</div>
</div>

<div><strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-P-210R-1-H-0-1-0+UMF2-A-1-4-G-0BK</strong><br />
[EPS-P]: Sensor<br />
Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[210R]: Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 274 m³/h, length, Installation 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br />
 </div>

<div>UMF2-A-1-4-G-0BK<br />
[UMF2] Transmitter<br />
[A] IP67; Mounting Integrated transmitter IP 67 standard<br />
Thread - electrical connection ½" NPT<br />
[1] Display and control unit, integrated<br />
[4] Power suppy, 24V DC (±15%)<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold</div>

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIK-5NA-65-A-G14R</strong><br />
[MIK-5NA]<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal NBR<br />
[65]: Measuring range (liquid >30 µS/cm), 16...320 L/min G 2 male<br />
[A]: Connection set, without<br />
[G14R]: Evaluation electronic, 4-20 mA, 24 VDC, 1,5 m cable connection<br /><br />
Include:<br />
Model: DOK-F305 <br /><span style="font-size:12px;"><b><span style="font-family:'Times New Roman', serif;"><span style="font-family:arial, helvetica, sans-serif;">Factory Calibration Certificate      </span>      </span></b></span>

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-20H-R4-1-HE-N-0</strong><br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[20H]: Measuring range, 1 - 40 L/min<br />
[R4]: Mech. Connection, G 1/2<br />
[1]: Seal, FKM up to DON-x25<br />
[HE]: Electronic, Pulse output Hallsensor/Reed switch, Push Pull (exd) ATEX<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-20H-R4-1-RE-N-0</strong><br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[20H]: Measuring range, 1 - 40 L/min<br />
[R4]: Mech. Connection, G 1/2<br />
[1]: Seal, FKM up to DON-x25<br />
[RE]: Electronic, Pulse output / Reed switch with ATEX approval (Exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without

<strong>Low Volume Vane Flowmeter<br />
Model: DPL-1-E-10-G4-F500<br />
Brand: Kobold (Alemania)</strong><br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, Polypropylene<br />
max. temperature 70 °C<br />
max. pressure 10 bar<br />
Accuracy, +-2,5(5,0)% of FS<br />
Protection, IP 65<br />
[1]: Version, Standard<br />
[E]: Seal, EPDM<br />
[10]: Measuring range, 0,05...1,8 L/min water<br />
[G4]: Mech. connection, G 1/2 male<br />
[F500]: Electronic, Frequency output, PNP, 2 m PVC-cable

Plastic Flowmeter-switch<br />
Brand: Kobold<br />
Model: KSM-1-020-H-P40-R0<br />
[KSM-1]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure, 16 bar<br />
[020] Measuring range: 200...2000 L/h water<br />
[H] either scales for liquid media, L/h water<br />
[P40] Option conection, PVC G 1 1/2 female<br />
[R0] Option contact: w/o contact<br />


<div><strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-215R-1-H-0-1-0+UMF2-A-1-4-G-0BK<br />
Brand: Kobold-Heinrich</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[215R]:Process connection, 12" Class 150 RF ASME B16.5-2003, (Water 20°C, 1 mPas)<br />
Max. measuring range 2560 m³/h, Length Installation 500 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated Transmitter,<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o</div>

<div>UMF2-A-1-4-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard, Thread – electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold</div>

<strong>Paddle Type Flow Switch<br />
Model: PSR-5120-EC15<br />
Brand: Kobold (USA)</strong><br />
Switching Tolerance: ± 15%<br />
Media Temperature  Brass/NBR Seal: -4...158 °F<br />
Max. Pressure, Brass: 1/4"...1" = 1450 PSIG<br />
Cable Length: Standard: 5 Ft. (1.5m)<br />
Connection: 3/4" NPT<br />
Approximate Switching Range*:<br />
Increasing GPM (Water): 2.0...3.5<br />
Decreasing GPM (Water): 1.6...3.4<br />
[EC15]: 15 Ft. Cable in place of standard 5 Ft. Cable

<strong>Pelton Wheel Flow Meter<br />
Model: DRB-11-20-N8-F300<br />
Brand: Kobold (Alemania)</strong><br />
[DRB-11]: <br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection IP 65<br />
Max. temperature 80 °C<br />
Max. pressure, 16bar<br />
Accuracy of final value, +/-3%<br />
Material Housing Brass casting <br />
Material Axis Hard metal <br />
[20]: Measuring range 25-250 L/min <br />
[N8]: Mech. connection, for MR-Code: 20, 1 1/2 NPT female<br />
[F300]: Electronic, Frequency output, plug M12x1

<strong>Pelton Wheel Flow Meter<br />
Model: DRB-11-30-NB-F300<br />
Brand: Kobold (Alemania)</strong><br />
[DRB-11]: <br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP 65<br />
Max. temperature, 80 °C<br />
Max. pressure, 16 bar<br />
Accuracy of final value, +/-3% <br />
Material Housing, Brass casting<br />
Material Axis, Hard metal<br />
[30]: Measuring range, 50-750 L/min<br />
[NB]: Mech. connection for MR-Code: 30, 3 NPT female<br />
[F300]: Electronic, Frequency output, plug M12x1

<strong>Rotating Vane-Flowmeter with Pulse Output<br />
Brand: Kobold (Alemania)<br />
Model: DF-12-H-N15-KLK-3-4</strong><br />
[DF]:<br />
Operating principle, Rotating Vane<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Max. temperature, s. material combination<br />
Max. pressure, s. material combination<br />
Accuracy, +-2,5% FS<br />
Model, indication, analogue, 2 contacts<br />
[12]: Measuring range, 0,5...12 L/min water<br />
[H]: Material combination Housing/ cover/ connection/ Temp./ pressure<br />
st.st. (all)/ 80 °C/ 100 bar<br />
[N15]: Connection, Material combination code: B/C/E/H 1/2 NPT<br />
[KLK]: Model of electronic, LC-Display, 1.5 m cable<br />
[3]: Power supply, 24 VDC<br />
[4]: Analogue output, 0(4)...20 mA

<strong>Rotating Vane-Flowmeter with Pulse Output<br />
Brand: Kobold (Alemania)<br />
Model: DF-12-E-N15-KLK-3-4</strong><br />
[DF]:<br />
Operating principle, Rotating Vane<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Max. temperature, s. material combination<br />
Max. pressure, s. material combination<br />
Accuracy, +-2,5% FS<br />
Model, indication, analogue, 2 contacts<br />
[12]: Measuring range, 0,5...12 L/min water<br />
[E]: Material combination Housing/ cover/ connection/ Temp./ pressure<br />
st.st./ Polysulfone/ st.st./ 80 °C/ 16 bar<br />
[N15]: Connection, Material combination code: B/C/E/H 1/2 NPT<br />
[KLK]: Model of electronic, LC-Display, 1.5 m cable<br />
[3]: Power supply, 24 VDC<br />
[4]: Analogue output, 0(4)...20 mA

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-S50-6080-S-K-L-0-0-S-2-0-0-H<br />
Brand: Heinrichs (Kobold Group – Alemania)</strong><br />
[BGF]: Model<br />
[S50]: Stainless Steel, process temperature <= 200°C<br />
[6080]: Connection, 2" NPT(f), 350 mm, float not removable<br />
[S]: Range medium, 1 - 10 m3/h<br />
[K]: Magnet bearer, Standard PP <= 80°C<br />
[L]: Flow direction, left to right<br />
[0]: Heating / cooling, without heating / cooling<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature <= 150 °C for electrical output,<br />
Process temperature <= 200°C for local indication,<br />
[2]: Scale, measuring range-scale (water)<br />
[0]: Switches, without<br />
[0]: Accessory, without<br />
[H]: Design, Heinrichs

<strong>Thermal Mass Flow Meter for Gas<br />
Model: KEC-1-S-116-1-A-S-0-0<br />
Brand: Kobold (Alemania)</strong><br />
[KEC-1]:<br />
Function principle, direct thermal flow<br />
Mounting position all directions<br />
version inserting versión<br />
Output Modbus RTU, 2x4-20 mA (°C/Nm³/h), Modbus TCP, puls, alarm<br />
Counter 1 total counters (resettable)<br />
max. temperature -40…+180 °C<br />
max. pressure 50 (100) bar<br />
Accuracy,<br />
±1,5% of meas. value, ±0,3% of F.S.<br />
Option: ±1,0% of meas. value, ±0,3% of F.S.<br />
sensor material, st. st. 1.4571 /glass<br />
[S]: Measuring range, Standard 92,7 m/s<br />
[116]: Connection / sensor-length, 160 mm/ 1/2 NPT<br />
[1]: Display, 2" TFT-display, backlight<br />
[A]: Gas type, methane<br />
[S]: max. pressure, 50 bar (standard)<br />
[0]: Calibration, Standard<br />
[0]: Option, w/o

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-203R-1-H-0-1-0+UMF2-A-1-1-F-0BH<br />
Brand: Kobold-Heinrich</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C <br />
[203R]:Process connection, 1" Class 150 RF ASME B16.5-2003, (Water 20°C, 1 mPas)<br />
Max. measuring range 19,1 m³/h, Length Installation 200 mm <br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated Transmitter, <br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br /><br /><strong>[UMF2]:Transmitter</strong><br />
[A]: Mounting, Integrated transmitter IP 67 standard, Thread – electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal: <br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC <br />
[0BH]: Design, Heinrichs

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-206R-1-H-H-1-0+UMF2-A-1-1-F-0BH<br />
Brand: Heinrich (Alemania)</strong><br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[206R]: Process connection, 2" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br /><strong>[UMF2]:Transmitter</strong><br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal: <br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

<strong>Low Volume Flowmeter<br />
Model: KDF-92-86-N-V-0-00-0<br />
Brand: Kobold (Alemania)</strong><br />
[KDF-92]<br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st.<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature: without/with contact 100 °C / 70 °C<br />
Max. pressure: PN 16<br />
[86]: Measuring range, 6,0...63 L/h water<br />
[N]: Connection, ¼” NPT<br />
[V]: Seal, FPM<br />
[0]: Wall mounting kit, w/o<br />
[00]: Contacts measuring range: w/o<br />
[0]: Flow differential pressure regulator, w/o

<strong>Low Volume Flowmeter<br />
Model: KDF-92-85-N-V-0-00-A<br />
Brand: Kobold (Alemania)</strong><br />
[KDF-92]<br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st.<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature: without/with contact 100 °C / 70 °C<br />
Max. pressure: PN 16<br />
[85]: Measuring range: 4,0...40 L/h water<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Wall mounting kit, w/o<br />
[00]: Contacts measuring range: w/o<br />
[A]: Flow differential pressure regulator, diff. press.regulator <br />
for constant inlet pressure, outlet valve, FPM-membrane
