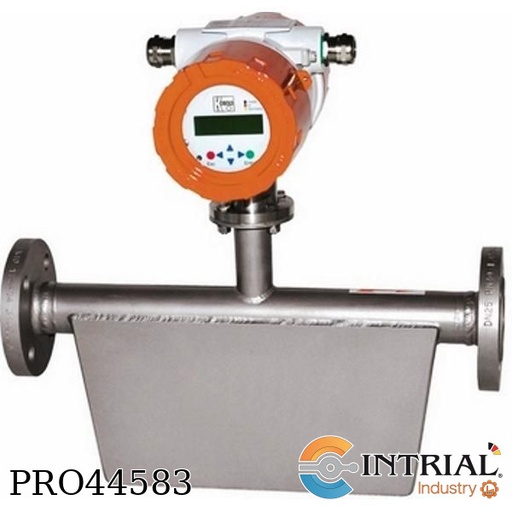

<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-050-208R-A-0-0-E-0-1-1-0-H+UMC4-E-1-1-A-0-0</strong><br />
[TMU-S]<br />
Wetted materials, Stainless steel<br />
[050] Meter line size, DN50, ANSI 2"<br />
Range: min. 0-20.000 kg/h - max. 0-80.000 kg/h<br />
[208R] Process connnection, 3" Class 150 RF ASME B16.5-2003<br />
Installation length: 1066 mm<br />
[A] Containment options, Stainless steel containment 1.4301 (304)<br />
[0] Heating/cooling, none<br />
[0] Heating/cooling, none<br />
[E] Sensor configuration, Remote mount transmitter<br />
Process temperature: -40° to 500°F, -40° to 260°C<br />
Connection Terminal block via ½" NPT, <br />
Sensor Cable , IP66<br />
[0] ApprovaIs, none<br />
[1] Calibration mass Flow, standard, 3-points<br />
[1] Calibration Density, Standard (3-point)<br />
[0] Supplementary equipment, None<br />
[H] Design: Heinrichs<br /><br />
[UMC4] Model<br />
[E] Transmitter Remote mount / Transmitter with 5 m cable<br />
Mounting of transmitter, without connection box<br />
Conduit port opening: M20 x 1,5<br />
[1] Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Outputs,<br />
Analog output 1: (0) 4 20mA with HART®<br />
Analog output 2: (0) 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals, none<br />
[0] Type of protection (signal output), none

<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-040-228R-A-0-0-E-0-1-1-0-H+UMC4-E-1-1-A-0-0</strong><br />
[TMU-S]<br />
Wetted materials, Stainless steel<br />
[040] Meter line size, DN40, ANSI 1½"<br />
Range: min. 0-6.000 kg/h - max. 0-60.000 kg/h<br />
[228R] Process connnection, 3" Class 300 RF ASME B16.5-2003<br />
Installation length: 650 mm<br />
[A] Containment options, Stainless steel containment 1.4301 (304)<br />
[0] Heating/cooling, none<br />
[0] Heating/cooling, none<br />
[E] Sensor configuration, Remote mount transmitter<br />
Process temperature: -40° to 500°F, -40° to 260°C<br />
Connection Terminal block via ½" NPT, <br />
Sensor Cable , IP66<br />
[0] ApprovaIs, none<br />
[1] Calibration mass Flow, standard, 3-points<br />
[1] Calibration Density, Standard (3-point)<br />
[0] Supplementary equipment, None<br />
[H] Design: Heinrichs<br /><br />
[UMC4] Model<br />
[E] Transmitter Remote mount / Transmitter with 5 m cable<br />
Mounting of transmitter, without connection box<br />
Conduit port opening: M20 x 1,5<br />
[1] Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Outputs,<br />
Analog output 1: (0) 4 20mA with HART®<br />
Analog output 2: (0) 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals, none<br />
[0] Type of protection (signal output), none

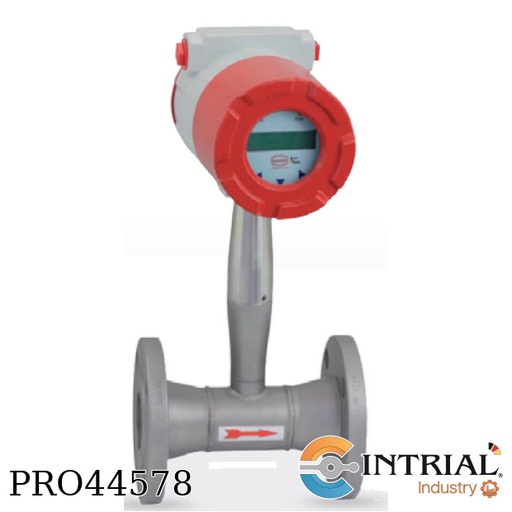

Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs<br />
Model: DVH-T-50-1-S-R-A-H-S-0-H<br />
[DVH]: Inline Version<br />
[T]: Volume Measurement of Liquids, Gases and Steam + temperature sensor<br />
[50]: Flow Body FLANGE, 2 inch ANSI - PN40/ 150 lbs<br />
[1]: Process Connection, ANSI 150 lbs / ASME B16.5.2003<br />
[S]: Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[R]: Sensor Configuration / Mounting Option, Remote incl. Digital Display IP 66 / Nema 4 <br />
[A]: Input Power, 85-240 VAC 50/60 Hz 12 W<br />
[H]: Output Signal, 1x 4-20mA HART 1x Alarm, 1x Pulse<br />
[S]: Process Temperature, Standard Temperature -200….+260 °C<br />
[0]: Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor Electr.version V / T / E Max. test pressure<br />
[H]: Version, Heinrichs

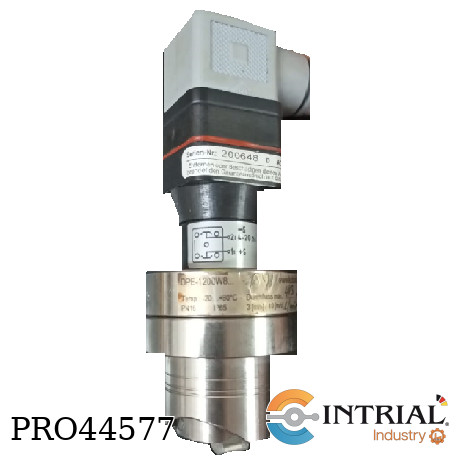

<strong>Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-12-00-W8-L442</strong><br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: St. St.<br />
Material Axis Hard metal<br />
[00] Measuring range, 0-10 m/s<br />
[W8] Mech. connection, for pipe size DN40..DN50<br />
[L442] Electronic, Analogue output 4-20 mA, DIN-plug, 2-wire

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs<br />
Model: DVH-P-50-1-S-R-A-H-S-1-H</strong><br />
[DVH]: Inline Version<br />
[P]: Elektronic – Options, Flow Velocity including temperature and pressure sensor<br />
[50]: Flow Body FLANGE, 2 inch ANSI - PN40/ 150 lbs<br />
[1]: Process Connection, ANSI 150 lbs / ASME B16.5.2003<br />
[S]: Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[R]: Sensor Configuration / Mounting Option, Remote incl. Digital Display IP 66 / Nema 4 <br />
[A]: Input Power, 85-240 VAC 50/60 Hz 12 W<br />
[H]: Output Signal, 1x 4-20mA HART 1x Alarm, 1x Pulse<br />
[S]: Process Temperature, Standard Temperature -200….+260 °C<br />
[1]: Option Pressure Sensor (Electronic versions T/P/E/M), Incl. Pressure Sensor 2 bar abs (30 psia) Electr.version P / M 4 bar abs.(60 psia) <br />
[H]: Version, Heinrichs

<strong>Turbine Wheel Flowmeter<br />
Model: TUV-12-01<br />
Brand: Kobold (Alemania)</strong><br />
[TUV-12]<br />
Operating principle, Turbine Wheel<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, st.st.<br />
Max. temperature, 125 °C<br />
Linearity, +-1% MV<br />
Output, Pulse<br />
Power supply, 10…30 VDC<br />
[00] Measuring range, 0,5...4 L/min<br />
connection, G 1/4<br />
max. pressure, 630 bar

<strong>Turbine Wheel Flowmeter<br />
Model: TUV-12-00<br />
Brand: Kobold (Alemania)</strong><br />
[TUV-12]<br />
Operating principle, Turbine Wheel<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, st.st.<br />
Max. temperature, 125 °C<br />
Linearity, +-1% MV<br />
Output, Pulse<br />
Power supply, 10…30 VDC<br />
[00] Measuring range, 0,3...1,5 L/min<br />
connection, G 1/4<br />
max. pressure, 630 bar

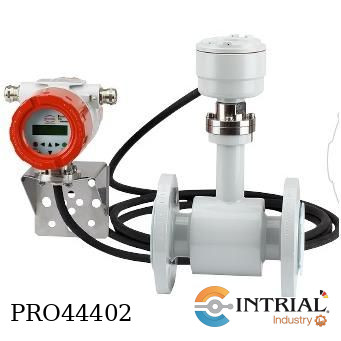

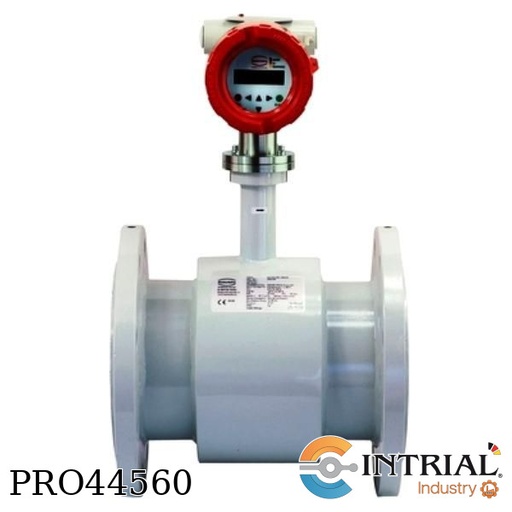

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-H-214R-1-S-S-1-0</strong><br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[214R]:Process connection, 10" Class 150 RF ASME B16.5-2003 <br />
Max. measuring range 1786 m³/h,<br />
length, Installation 450 mm<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, Integrated transmitter, Protection class, sensor IP 67<br />
[0] Certificates, w/o<br /><br />
UMF2-A-1-4-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard, <br />
Thread - electrical connection ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-H-213R-1-S-S-1-0</strong><br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[213R]:Process connection, 8" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 1110 m³/h,<br />
length, Installation 350 mm<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, Integrated transmitter, Protection class, sensor IP 67<br />
[0] Certificates, w/o<br /><br />
UMF2-A-1-4-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard, <br />
Thread - electrical connection ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-H-211R-1-S-S-1-0</strong><br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[211R]:Process connection, 5" Class 150 RF ASME B16.5-2003 <br />
Max. measuring range 431 m³/h,<br />
length, Installation 250 mm<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, Integrated transmitter, Protection class, sensor IP 67<br />
[0] Certificates, w/o<br /><br />
UMF2-A-1-4-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard, Thread - electrical connection ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

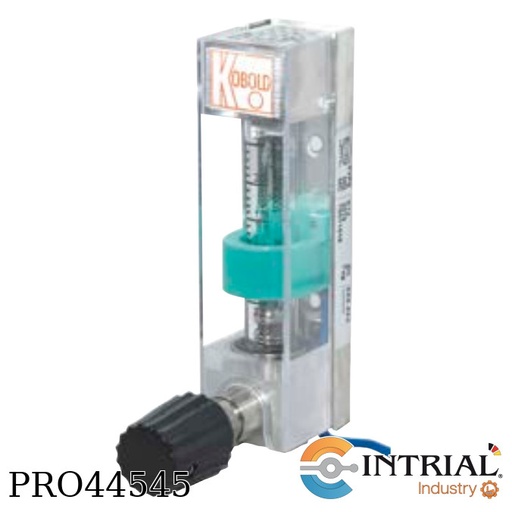

Low Volume Flowmeter<br />
Brand:  Kobold(Alemania)<br />
Model: KDG-92-76-N-V-0-M3-0<br />
[KDG-92]:<br />
Mounting length 90 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 3<br />
Max. temperature without/with contact 70 °C<br />
Max. pressure PN 16<br />
[76]: Measuring range, 120...1200 L/h air<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Wall mounting kit, w/o<br />
[M3]: Contacts measuring range, 1 monost. contact with 2 m cable<br />
[0]: Flow differential pressure regulator: w/o

<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-010-305B-A-0-0-A-0-1-0-0-K+UMC4-B-1-1-A-0-0</strong><br />
[TMU-S]<br />
Wetted materials, Stainless steel<br />
[010] Meter line size, DN10, ANSI 3/8"<br />
Range: min. 0-250 kg/h - max. 0-2.500 kg/h<br />
[305B] Process connnection, DN15 PN40 Form B1 DIN EN 1092-1<br />
Installation length: 396 mm<br />
[A] Containment options, Stainless steel containment 1.4301 (304) <br />
[0] Heating/cooling, none<br />
[0] Heating/cooling, none<br />
[A] Sensor configuration, Integral mount transmitter<br />
Process temperature: -4° to 212°F, -20° to 100°C, IP65<br />
[0] ApprovaIs, none<br />
[1] Calibration Flow, standard, 3-points<br />
[0] Calibration Density, None<br />
[0] Supplementary equipment, None<br />
[K] Design: Kobold<br /><br />
Include:<br />
[UMC4] Transmitter Model<br />
[B] Mounting, Integratel mount<br />
Conduit port opening: M20 x 1,5<br />
[1] Display/Interface board, Integral within transmitter housing, <br />
for ambient temperature up to 60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Outputs,<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals, none<br />
[0] Type of protection, none<br />

<strong>All-Metal Variable Area Flowmeter<br />
Model: BGF-S50-206R-Q-P-O-0-0-S-5-6-0-H<br />
Brand: Kobold - Heinrichs</strong><br />
[BGF]: Model<br />
[S50] Stainless Steel, process temperature <= 200°C<br />
[206R] Connection, size, 2" Class 150 RF ASME B16.5-2003<br />
[Q] Range, 12.07 - 120.74 Sm3/h Instrument Air<br />
[P] Magnet bearer, 81 - 125 °C PTFE<br />
[O] Flow direction, Top to bottom<br />
[0] Heating/cooling, without Heating / Cooling<br />
[0] Certificates, without<br />
[S] Display,<br />
Standard display housing,<br />
Process temperature <= 150°C for electrical output,<br />
Process temperature <= 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[6] Switches, Transmitter ES with HART-protocol, 4-20 mA, <br />
EEx ia, Ambient temperature--40° to +70°C<br />
[0] Accessories, without<br />
[H] Design, Heinrichs

<strong>Flowindicator with Flange Connection<br />
Brand: Kobold<br />
Model: DAT-2-2-03H-F-25-B</strong><br />
[DAT-2]<br />
Operating principle, Drip tube<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. Temperature, 150 °C (Option B: 280 °C)<br />
max. pressure 16 bar (Option 25 or 40 bar)<br />
[2] Housing, st. st<br />
[03H] Nom. diameter 25<br />
[F] flange acc. EN 1092-1<br />
[25] Connection, DN 25 / 1"<br />
[B] Option, borosilicate glass

<strong>Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br />
Brand: Kobold(Alemania)<br />
Model: DUK-12-G6G-K042-L</strong><br />
[DUK-12]<br />
Operating principle: Ultrasonic<br />
Mounting position: all directions<br />
Indication/Output: see electronic version<br />
Max. temperature/pressure: 90 °C / 16 bar<br />
Protection: IP 65<br />
Seal: NBR<br />
Sensor Housing: St. st.<br />
[G6G] Measuring range/connection; 0,06…16.64 G/min - G1 female<br />
[K] Evaluation electronic for DUK;<br />
Ousing: 97 x 96<br />
Display: 3.5 LED + Bar graph<br />
Temperature range: -20...80 °C<br />
Min./Max. Memory: Yes<br />
Housing: Aluminium/ PA66<br />
Protection: IP 65<br />
[0] Supply voltaje: 100-240 VAC/DC<br />
[4] Output; 0-10 VDC, 0(4)-20 mA selectable<br />
[2] Contacts; 2 change over contacts<br />
[L] Flow direction; from left to right

<strong>Gear Wheel Flowmeter<br />
Model: KZA-18-99R25-S3-3<br />
Brand: Kobold (Alemania)</strong><br />
[KZA-18]<br />
Operating principle: FPM<br />
Mounting position:horizontal / vertical<br />
Flow direction: s. data sheet<br />
Material: Aluminium<br />
Max. temperature: 80 °C<br />
Max. pressure: 80 bar<br />
Accuracy. s. data sheet<br />
[99R25] Measuring range / connection, 1...200 L/min / G 1 female<br />
[S3] Sensor, 24 VDC<br />
[3] Electr. Connection, plug-on display with 0(4)..20 mA output

<br /><strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S25-203R-M-0-S-0-0-S-5-6-0-H<br />
Marca: Kobold-Heinrichs</strong><br />
[BGN] Model<br />
[S25] Stainless Steel, process temperature ≤ 350°C<br />
[203R] Connection, 1" Class 150 RF ASME B16.5-2003<br />
[M] Range (water 20°C, 1 mPas), 12  a 118  kg/h Gas Cloro<br />
[0] Heating / cooling, without heating / Cooling<br />
[S] Damping / spring stop, Gas damping and spring stop<br />
[0] Self draining, without<br />
[0] Certificates, without<br />
[S] Display, <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[6] Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0] Accessories, without<br />
[H] Design,Heinrichs

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-P25-203R-M-0-0-0-0-S-5-6-0-H<br />
Marca: Kobold-Heinrichs</strong><br />
[BGN] Model<br />
[P25] Stainless Steel, Wetted Parts PTFE, process temperature ≤ 125°C, <br />
process pressure max. 16 bar<br />
[203R] Connection, 1" Class 150 RF ASME B16.5-2003<br />
[M] Range (water 20°C, 1 mPas), 12  a 118  kg/h Gas Cloro<br />
[0] Heating / cooling, without heating / Cooling<br />
[0] Damping / spring stop, without<br />
[0] Self draining, without<br />
[0] Certificates, without<br />
[S] Display, <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[6] Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0] Accessories, without<br />
[H] Design, Heinrichs

EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Kobold Group)<br />
Model: EPS-P-335B-1-H-0-2-0+UMF2-C-1-2-G-0BK-7<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, Process Temperature, -20°C...150°C<br />
[335B]:Process connection, DN100 PN16 Form B1 DIN EN 1092-1  <br />
Max. measuring range, 274 m³/h<br />
length, Installation 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter, <br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5, <br />
cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br />
Include:<br />
Model: UMF2-C-1-1-G-0BK-7<br />
[UMF2] Transmitter Model<br />
[C] Mounting, Remote transmitterr IP 67 standard,<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread – electrical connection, ½" NPT (f).<br />
[1] Display and control unit, integrated<br />
[2] Power supply, 115 VAC 50/60 Hz<br />
[G] current output: 1x 0/4-20 mA c/w HART ppulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Kobold<br />
[7] Loger cable  50 m

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-335B-1-S-S-2-0+UMF2-C-1-2-G-0BK-7<br />
Brand: Heinrichs (Kobold Group)<br />
[EPS]: Sensor Model<br />
[H] Material Lining, Hard Rubber (Ebonit)<br />
Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature 0°C…+95°C<br />
[335B] Process connection, DN100 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range 274 m³/h, length, Installation 250 mm<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2] Transmitter mounting, Remote Transmitter<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5<br />
[0] Certificates, w/o<br /><br />
Include:<br /><br />
Model: UMF2-C-1-2-G-0BK-7<br />
[UMF2] Transmitter Model<br />
[C] Mounting, Remote transmitterr IP 67 standard,<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread – electrical connection, ½" NPT (f).<br />
[1] Display and control unit, integrated<br />
[2] Power supply, 115 VAC 50/60 Hz<br />
[G] current output: 1x 0/4-20 mA c/w HART ppulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Kobold<br />
[7] Loger cable  50 m
<p class="MsoNormal" style="margin-left:35.4pt;"></p>

<p></p>
