<strong>Low Volume Flowmeter<br />
Brand: Kobold<br />
Model: KFR-22-14-N0+KFR-PPHW024</strong><br />
[KFR-22]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length,102 mm<br />
Accuracy, ±5 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, St.st.<br />
Connection size,1/8" NPT female <br />
Seal: FPM<br />
[14] Measuring range, 0,4...5 L/min air<br />
[N0] Needle valve<br />
<br />
Include: <br />
Accessories<br />
Model: KFR-PPHW024<br />
set hose barbes (2 pcs.)

<div><strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: DVE-T-S-L-D-H-S-0-D-H</strong><br />
[DVE] Model: Insertion Version<br />
[T] Electronic - Options,  Flow Velocity including temperature sensor<br />
[S] Probe length, Standard length (Max.Stem Length 690 mm)<br />
[L] Sensor Configuration / Mounting Option: Compact incl. LCD Display IP 66 / Nema 4<br />
[D] Input Power, 12-36 VDC / 4-Leiter / required for output options H<br />
[H] Output signal, 1x 4-20mA, HART, 1x Alarm, 1x Pulse, <br />
[S] Process temperatura: Standard temperature -200..+260°C (-330..+500°F)<br />
[0] Option Pressure Sensor: w/o Pressure Sensor<br />
[D] Process connection: 2" 300 lbs Flange Compression fitting<br />
[H] Version, Heinrichs<br />
<br />
Caudal TOP Oxígeno 95%<br />
Rango: 2100  a 145000 Nm3/h</div>

<div></div>

<div><strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: DVE-T-S-L-D-H-S-0-B-H</strong><br />
[DVE] Model: Insertion Version<br />
[T] Electronic - Options,  Flow Velocity including temperature sensor<br />
[S] Probe length, Standard length (Max.Stem Length 690 mm)<br />
[L] Sensor Configuration / Mounting Option: Compact incl. LCD Display IP 66 / Nema 4<br />
[D] Input Power, 12-36 VDC / 4-Leiter / required for output options H<br />
[H] Output signal, 1x 4-20mA, HART, 1x Alarm, 1x Pulse, <br />
[S] Process temperatura: Standard temperature -200..+260°C (-330..+500°F)<br />
[0] Option Pressure Sensor: w/o Pressure Sensor<br />
[B] Process connection: 2" 150lbs Flange Compression fitting<br />
[H] Version, Heinrichs<br />
<br />
Caudal TOP Aire Comprimido<br />
Rango: 1650  a 91000 Nm3/h<br />
  </div>

<div></div>

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold<br />
Model: DVH-T-80-1-S-L-D-H-S-0-H</strong><br />
[DVH]<br />
[T] Elektronic - Options, Flow Velocity including temperature sensor<br />
[80] Flow Body FLANGE, DN 80 DIN EN 3 inch ANSI JIS 80<br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L<br />
[L] Sensor Configuration / Mounting Option, <br />
Compact including LCD display / IP 66 / Nema 4<br />
[D] Input Power, 12-36 VDC 4-wire required for output options H<br />
[H] Output Signal, 1x 4-20mA HART 1x Alarm, 1x Impuls<br />
[S] Process Temperature, Standard Temperature -200….+260 °C <br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Version Heinrichs <br />
<br />
Caudal TOP Aire Instrumentos<br />
Rango: 215  a 12000 Nm3/h

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold<br />
Model:DVH-T-50-2-S-L-D-H-S-0-H</strong><br />
[DVH] Model<br />
[T] Elektronic - Options, Flow Velocity including temperature sensor<br />
[50] Flow Body FLANGE, DN 50 DIN EN 2 inch ANSI JIS 50<br />
[2] Process Connection, ANSI 300 lbs ASME B16.5.2003 <br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard) <br />
[L] Sensor Configuration / Mounting Option, <br />
Compact including LCD display / IP 66 / Nema 4<br />
[D] Input Power, 12-36 VDC 4-wire required for output options H<br />
[H] Output Signal, 1x 4-20mA HART 1x Alarm, 1x Impuls<br />
[S] Process Temperature, Standard Temperature -200….+260 °C <br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Version Heinrichs <br />
<br />
Caudal TOP Oxígeno 99,5%<br />
Rango: 140  a 9400 Nm3/h

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold<br />
Model: DVH-T-40-1-S-L-D-H-S-0-H</strong><br />
[DVH] Model<br />
[T] Elektronic - Options, Flow Velocity including temperature sensor<br />
[40] Flow Body FLANGE, DN 40 DIN EN 1,5 inch ANSI JIS 40<br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard) <br />
[L] Sensor Configuration / Mounting Option, <br />
Compact including LCD display / IP 66 / Nema 4<br />
[D] Input Power, 12-36 VDC 4-wire required for output options H<br />
[H] Output Signal, 1x 4-20mA HART 1x Alarm, 1x Impuls<br />
[S] Process Temperature, Standard Temperature -200….+260 °C <br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Version Heinrichs <br />
<br />
Caudal TOP Argón<br />
Rang: 66 a 4900 Nm3/h<span style="font-size:8pt;font-family:'Times New Roman', serif;"></span>

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold<br />
Model: DVH-T-80-1-S-L-D-H-S-0-H</strong><br />
[DVH]<br />
[T] Elektronic - Options, Flow Velocity including temperature sensor<br />
[80] Flow Body FLANGE, DN 80 DIN EN 3 inch ANSI JIS 80<br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L<br />
[L] Sensor Configuration / Mounting Option, <br />
Compact including LCD display / IP 66 / Nema 4<br />
[D] Input Power, 12-36 VDC 4-wire required for output options H<br />
[H] Output Signal, 1x 4-20mA HART 1x Alarm, 1x Impuls<br />
[S] Process Temperature, Standard Temperature -200….+260 °C <br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Version Heinrichs <br />
<br />
Caudal TOP Nitrógeno<br />
Rango: 300  a 18000 Nm3/h

<strong>Plastic Flowmeter-switch<br />
Brand: Kobold<br />
Model: KSM-1-020-M-K50-R0</strong><br />
[KSM-1] <br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure, 16 bar<br />
[020] Measuring range:  3,3...33 LPM<br />
[M] either scales for liquid media, L/min water<br />
[K50] Option connection, Glue connection da 50 (PVC) <br />
[R0] Option contact: w/o contact

Plastic Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSM-2-120-1-P50-R0<br />
[KSM-2]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Polysulfone<br />
Accuracy ±4 % FS<br />
Max. temperature 60 °C <br />
Max. pressure 16 bar<br />
Fluid Chlorinated water 0.2%<br />
[120]: Measuring range, 1200...12000 L/h water   or   45...370 Nm³/h air* <br />
[1]: scales for air (measuring range s. data sheet):1 bar rel. <br />
[P50]: Option connection for size 060, PVC G 2 female<br />
[R0]: w/o contact

Plastic Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSM-2-060-1-P50-R0<br />
[KSM-2]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Polysulfone<br />
Accuracy ±4 % FS<br />
Max. temperature 60 °C <br />
Max. pressure 16 bar<br />
Fluid Chlorinated water 0.2%<br />
[060]: Measuring range, 22...190 Nm³/h<br />
[1]: scales for air (measuring range s. data sheet):1 bar rel. <br />
[P50]: Option connection for size 060, PVC G 2 female<br />
[R0]: w/o contact

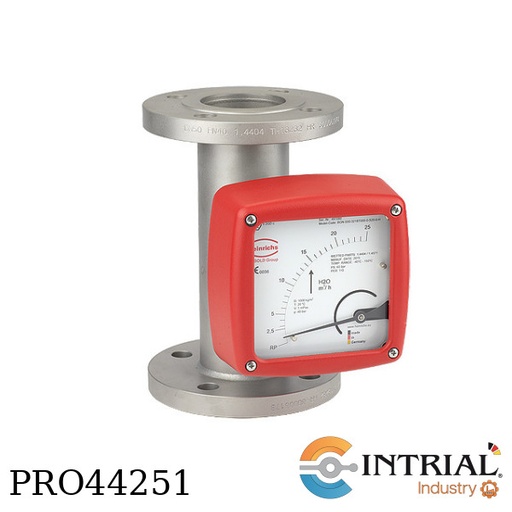

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S40-6060-P-0-F-0-0-S-5-D-0-H<br />
[BGN-S40]: Stainless Steel, process temperature : 350°C <br />
[6060]: Thread connections, 1-1/4" NPT(f) 300 mm float not removable<br />
[P]: Range (Aceite) :1.08 a 33.33 lpm<br />
[0]: Heating / cooling: without heating / Cooling <br />
[F]: Damping / spring stop: with liquid damping<br />
[0]: Self draining: without<br />
[0]: Certificates: without<br />
[S]: Display: <br />
Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5] Scale: Measuring range-Scale (Media)<br />
[D] Switches: 2 x microswitch <br />
[0]: Accesories: without<br />
[H]: Design: Heinrichs

<strong>Variable Area Flowmeter<br />
Brand: Heinrichs (Kobold Group)<br />
Model: V31-60301S-09-C1L-B-F-A-0-0-4-0-0-0-0-0-0-0-H</strong><br />
[V31]: Model<br />
[60301S] Thread, NPT ½"(F), Length 375 mm,<br />
Connection-wetted parts, Stainless steel<br />
[09] Type of float, Aluminium 3.1645 - guided<br />
guide rod 1.4571with<br />
[C1L] Measuring Range: 0.54 a 5.4  Nm3/h<br />
[B] Gasket, EPDM<br />
[F] Float – stop, PVDF, without guide<br />
[A] Union nut, Aluminium lacquered<br />
[0] Shatter protection max. 80°C, without<br />
[0] Electrical output, without<br />
[4] Scale, Measuring range-scale (Medium)<br />
[0] Approvals, without<br />
[0] Calibration certificate, without<br />
[0] Cleaning according works standard, without<br />
[0] Pressure / leakage test, without<br />
[0] Approvals, without<br />
[0] Marking, without<br />
[0] Accessories, without<br />
[H] Make, Heinrich

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-345B-1-S-S-1-0+UMF2-A-1-1-G-0BH<br />
Brand: Kobold-Heinrich<br />
[EPS-H]: Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, Process-Temperature 0°C...95°C<br />
[345B]:Process connection,DN150 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range, 632 m³/h, Installation length, 300 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter, Protection class, sensor, IP67,<br />
[0]:Certificates, w/o<br />
<br />
UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting IP 67, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz,<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

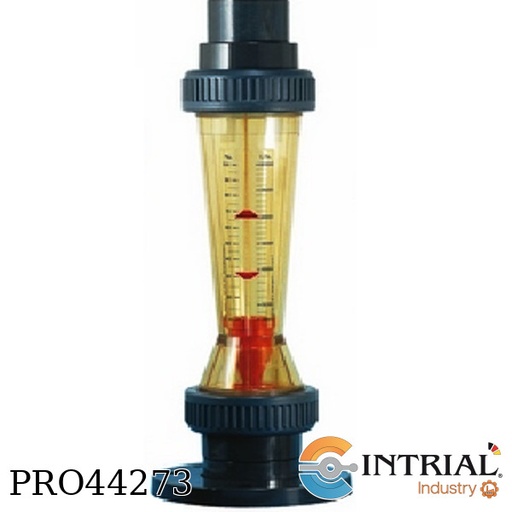

<strong>Plastic Flowmeter-switch<br />
Brand: Kobold<br />
Model: KSM-1-020-H-K50-R0</strong><br />
[KSM-1]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure, 16 bar<br />
[020] Measuring range: 200...2000 L/h water<br />
[H] either scales for liquid media, L/h water<br />
[K50] Option conection, Glue connection da 50 (PVC)<br />
[R0] Option contact: w/o contact

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold Alemania<br />
Model: EPS-H-331B-1-S-S-1-0+UMF2-A-1-1-G0BK</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit) <br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature 0°C...95°C<br />
[331B] Process connection, DN80 PN40 Form B1 DIN EN 1092-1<br />
Max. measuring range, 170 m³/h, Installation length, 272 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G0BK] Output Signal:<br />
Analogue, pulse, status, with HART®; Kobold

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-42-42-N0+KFR-PPHW024</strong><br />
[KFR-42]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Total length 165 mm<br />
Accuracy ±3 % FS<br />
Max. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material, st.st.<br />
Connection size 1/8 NPT female on rear<br />
Seal ,FPM<br />
[42] Measuring range, 2...20 L/min air<br />
[N0] Options, Needle valve<br />
<br />
Include:<br />
Accessories KFR<br />
Brand: Kobold (Alemania)<br />
Model: KFR-PPHW024<br />
hose connector set, straight for ¼" hose<br />
set hose barbes (2 pcs.)

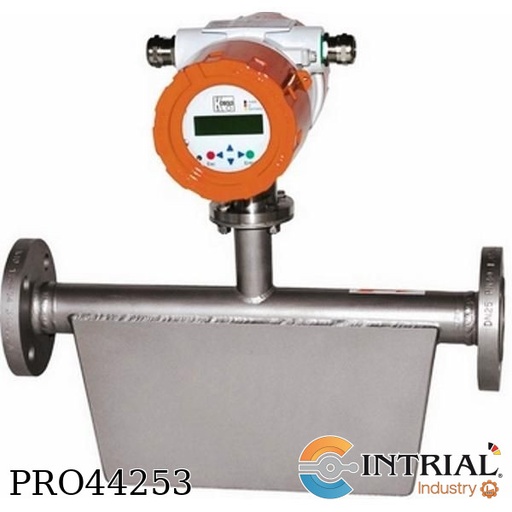

<br /><strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-010-305B-A-0-0-A-0-1-0-0+UMC3-B-0-1-F-0-0-K</strong><br />
[TMU-S]<br />
Wetted materials, Stainless steel<br />
[010] Meter line size, DN10, ANSI 3/8"<br />
Range: min. 0-250 kg/h - max. 0-2.500 kg/h<br />
[305B] Process connnection, DN15 PN40 Form B1 DIN EN 1092-1 <br />
Installation length: 396 mm<br />
[A] Containment options, Stainless steel containment 1.4301 (304)<br />
[0] Heating/cooling, none<br />
[0] Heating/cooling, none<br />
[A] Sensor configuration, Integral mount transmitter<br />
Process temperature: -4° to 212°F, -20° to 100°C<br />
[0] ApprovaIs, none<br />
[1] Calibration Flow, standard, 3-points<br />
[0] Calibration Density, None<br />
[0] Supplementary equipment, None<br /><br /><br />
Include:<br />
[UMC3] Transmitter Model<br />
[B] Mounting, Integratel mount<br />
Conduit port opening: M20 x 1,5<br />
[0] Display/Interface board, None<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[F] Outputs,<br />
Modbus RTU (RS 485)<br />
Analog output 1: (0) 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals, none<br />
[0] Type of protection (signal output) none<br />
[K] Kobold

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs<br />
Model: BGN-S50-321B-Q-0-F-0-0-S-2-6-0-H</strong><br />
[BGN]: Model<br />
[S50]: Stainless Steel, process temperature  ≤ 350°C <br />
[321B]: Connection, size, DN50 PN40 Form B1 DIN EN 1092-1<br />
[Q]: Range (water 20°C, 1 mPas), H2O,0.40 - 4.00 m3/h<br />
[0]: Heating/cooling, without<br />
[F]: Damping/spring stop, with liquid damping <br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br /><br /><u><strong>Process data:</strong></u><br />
Media Water<br />
Installation position vertical<br />
Flow direction bottom to top<br />
Indication range 0,4 - 4 m³/h<br />
Density 1.000 kg/m³<br />
Process temperature 20 °C<br />
Working pressure p abs. 40 bar<br />
Viscosity 1 mPa s

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Alemania<br />
Model: BGN-S50-321B-T-0-F-0-0-S-5-6-0-H (1.8 - 18 M3/h)</strong><br />
[BGN] Model<br />
[S50] Stainless Steel, process temperature ≤ 350°C<br />
[321B] Connection, size, DN50 PN40 Form B1 DIN EN 1092-1<br />
[T] Range  1.8 - 18 M3/h Isopropanol<br />
[0] Heating/cooling, without<br />
[F] Damping/spring stop, with liquid damping<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[6] Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0] Accessories, without<br />
[H] Design, Heinrichs

Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V31-60801S-02-B-F-A-0-0-4-0-0-0-0-0-0-0-K<br />
[V31]:<br />
[60801S]: Thread: NPT 2"(F) Verschraubung<br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
[02]: Type of float, Material, Stainless steel 1.4571 - guided, guide rod 1.4571, with <br />
[B]: Gasket, EPDM                 <br />
[F]: Float Stop, PVDF <br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without <br />
[0]: Electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium) <br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[K]: Make, KOBOLD
