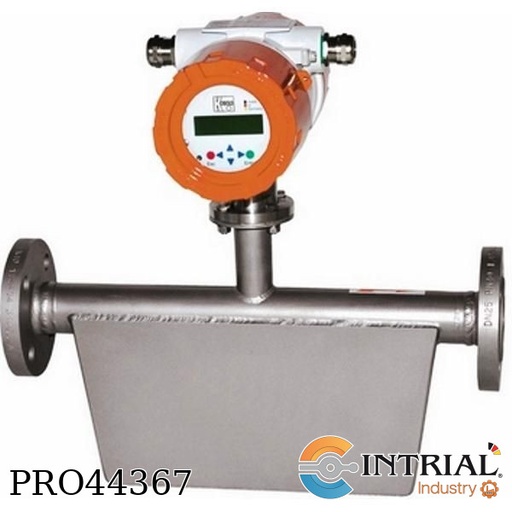

<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-025-203R-B-0-0-A-0-1-1-0-H</strong><br />
[TMU-S] Wetted materials: Stainless steel<br />
[025] Meter line size DN25, ANSI 1", 0 - 120 Lpm<br />
[203R] Process connection, 1" Class 150 RF ASME B16.5-2003<br />
Installation length 664 mm<br />
[B] Containment options, Standard containment with drain connection ½" NPT (f)<br />
[0] Heating / cooling, None<br />
[0] Connection for heating / cooling, None<br />
[A] Sensor configuration, Integral mount transmitter<br />
Process temperature -4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection: IP 66<br />
[0] Approvals, None.<br />
[1] Calibration flow, Standard, 3-point<br />
[1] Calibration density, Standard (3-point)<br />
[0] Supplementary equipment, None<br />
[H] Design, Heinrich<br /><br />
Transmitter UMC4<br />
Model: UMC4-B-1-1-A-0-0<br />
[B] Mounting, Integral mount:<br />
Conduit port opening, M20 x 1,5.<br />
[1] Display / Interface board:<br />
Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Outputs:<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals, None<br />
[0] Type of protection (signal output), None<br />

<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-025-203R-A-0-0-A-0-1-1-0-H</strong><br />
[TMU-S] Wetted materials: Stainless steel<br />
[025] Meter line size DN25, ANSI 1", 0 - 120 Lpm<br />
[203R] Process connection, 1" Class 150 RF ASME B16.5-2003<br />
Installation length 664 mm<br />
[A] Containment options, Stainless steel containment 1.4301 (304)<br />
[0] Heating / cooling, None<br />
[0] Connection for heating / cooling, None<br />
[A] Sensor configuration, Integral mount transmitter<br />
Process temperature -4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection: IP 66<br />
[0] Approvals, None.<br />
[1] Calibration flow, Standard, 3-point<br />
[1] Calibration density, Standard (3-point)<br />
[0] Supplementary equipment, None<br />
[H] Design, Heinrich<br /><br />
Transmitter UMC4<br />
Model: UMC4-B-1-1-A-0-0<br />
[B] Mounting, Integral mount:<br />
Conduit port opening, M20 x 1,5.<br />
[1] Display / Interface board:<br />
Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Outputs:<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals, None<br />
[0] Type of protection (signal output), None

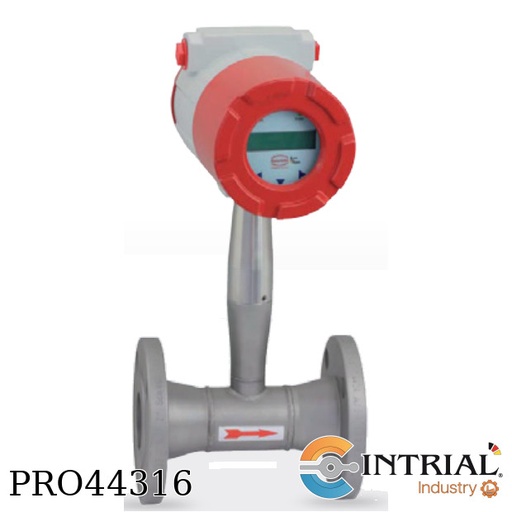

<strong>Multivariable Vortex Flowmeter<br />
Model: DVH-E-25-5-S-L-L-2-S-0-H<br />
Brand: Kobold - Heinrich</strong><br />
[DVH] Model<br />
[E] Elektronic - Options, Energy Consumption Measurement including temperature sensor<br />
[25] Flow Body FLANGE, DN 25 DIN EN 1 inch ANSI JIS 25<br />
[5] Process Connection, DIN PN 40 DIN EN 1092-1 <br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4<br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1x Impuls<br />
[S] Process Temperature, Standard Temperature - 200….+260 °C<br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Heinrich<br />
<br />
Range: 12.5 a 350 Kg/ h

<strong>Multivariable Vortex Flowmeter<br />
Model: DVH-E-40-5-S-L-L-2-S-0-H<br />
Brand: Kobold - Heinrich</strong><br />
[DVH] Model<br />
[E] Elektronic - Options, Energy Consumption Measurement including temperature sensor<br />
[40] Flow Body FLANGE, DN 40 DIN EN 1,5 inch ANSI JIS 40<br />
[5] Process Connection, DIN PN 40 DIN EN 1092-1 <br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4<br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1x Impuls<br />
[S] Process Temperature, Standard Temperature - 200….+260 °C<br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Heinrich<br />
<br />
Range: 31 a 1029 Kg/ h

<strong>Multivariable Vortex Flowmeter<br />
Model: DVH-P-80-1-S-L-L-2-S-3-H<br />
Brand: Kobold - Heinrich</strong><br />
[DVH] Model<br />
[P] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam<br />
+ temperature sensor + pressure sensor<br />
[80] Flow Body FLANGE,DN 80 DIN EN - 3 inch ANSI - JIS 80 - PN40/ 150 lbs<br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option,<br />
Compact incl. Digital Display and Programming Buttons<br />
[L] Input Power, 12-36 VDC loop powered for Output Signal: 2<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L passive<br />
[S] Process Temperature, Standard Temperature  -40….+260°C<br />
[3] Option Pressure Sensor, Incl. Pressure Sensor; 20 bar abs ( 300 psia)<br />
[H] Version, Heinrichs<br /><br />
Caudal TOP Aire Instrumentos<br />
Simulation Range: 215  a 12000 Nm3/h<br />
Setting range: 215  a  1,500  Nm3/h

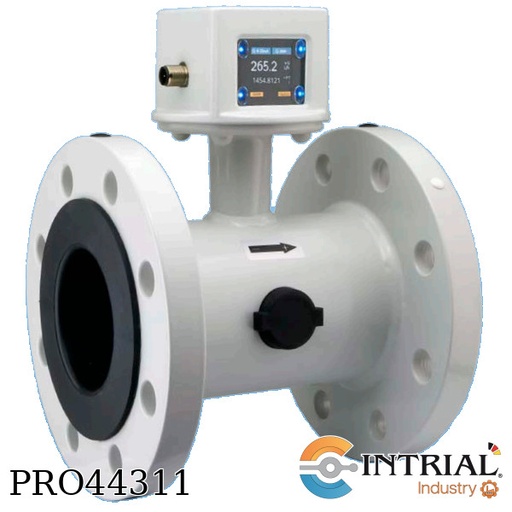

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-208R-1-HH-100 <br />
Brand: Kobold (Alemania)</strong><br />
[MIS]<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display: TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 outputs free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display window PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H] Material Lining, Hard rubber (NBR)<br />
[208R] Flange size, ASME B16.5-2003, 3" Class 150FF<br />
Measuring range (m3/h): 0.6-160<br />
[1] Material Process Connection, steel, coated<br />
[HH] Measuring and Grounding electrodes, Hastelloy C-276<br />
[100] Transmitter Mounting, direct mounted<br /><br />
Accessories Round Plug<br />
Brand: Kobold<br />
Model: ZUB-KAB-12-D500<br />
[D500]: M12x1 box with terminal , 5-pin

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-208R-1-HH-100 <br />
Brand: Kobold (Alemania)</strong><br />
[MIS]<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display: TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 outputs free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display window PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H] Material Lining, Hard rubber (NBR)<br />
[208R] Flange size, ASME B16.5-2003, 3" Class 150FF<br />
Measuring range (m3/h): 0.6-160<br />
[1] Material Process Connection, steel, coated<br />
[HH] Measuring and Grounding electrodes, Hastelloy C-276<br />
[100] Transmitter Mounting, direct mounted

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S15-202R-L-0-S-0-0-S-5-6-0-H<br />
[BGN]:<br />
[S15]: Model, Stainless Steel, process temperature  = 350°C<br />
[202R]: Connection, size ¾" Class 150 RF ASME B16.5-2003<br />
[L]: Range 4.97 a 48.83 Nm3/h, Oxigeno<br />
[0]: Heating / cooling, without heating / Cooling<br />
[S]: Damping / spring stop, Gas damping and spring stop <br />
[0]: Self draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia, Ambient temperatura: -40° to +70°C<br />
 [0]: Accessories, without<br />
[H]: Design, Heinrichs

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S15-202R-L-0-S-0-0-S-5-0-0-H<br />
[BGN]:<br />
[S15]: Model, Stainless Steel, process temperature  = 350°C<br />
[202R]: Connection, size ¾" Class 150 RF ASME B16.5-2003<br />
[L]: Range 4.97 a 48.83 Nm3/h, Oxigeno<br />
[0]: Heating / cooling, without heating / Cooling<br />
[S]: Damping / spring stop, Gas damping and spring stop <br />
[0]: Self draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without <br />
 [0]: Accessories, without<br />
[H]: Design, Heinrichs

<div>Turbine Wheel Flowmeter<br />
Model: DOT-13-10H-A5-Z3N-L<br />
Brand: Kobold - Alemania<br />
[DOT-13]:<br />
Operating principle, Turbine wheel<br />
Mounting position,  all directions<br />
Flow direction, in direction of the arrow<br />
Connection/ Housing material, st.steel / st. steel<br />
max. temperature, max. temperature -20…+120 °C<br />
max. pressure, 250 bar (with flange acc. flange specification)<br />
Linearity, ± 0.5 % of reading<br />
[10H]: measuring range, 0.22-2.2 m³/h <br />
[A5]: Mechanical connection, 3/4" ANSI 150 RF Flange for range code 10/15/20<br />
[Z3N]: Electronics / cable entry,<br />
dual LCD totaliser/rate, outputs: pulse, analogue,<br />
 cable entry  1/2 NPT <br />
[L]: Flow direction, from left to right, indication on top</div>

<div></div>

<div>Turbine Wheel Flowmeter<br />
Model: DOT-13-05H-A4-Z3N-L<br />
Brand: Kobold - Alemania<br />
[DOT-13]:<br />
Operating principle, Turbine wheel<br />
Mounting position,  all directions<br />
Flow direction, in direction of the arrow<br />
Connection/ Housing material, st.steel / st. steel<br />
max. temperature, max. temperature -20…+120 °C<br />
max. pressure, 250 bar (with flange acc. flange specification)<br />
Linearity, ± 0.5 % of reading<br />
[05H]: measuring range, 0.11-1.1 m³/h<br />
[A4]: Mechanical connection, 1/2" ANSI 150 RF Flange for range code 05<br />
[Z3N]: Electronics / cable entry,<br />
dual LCD totaliser/rate, outputs: pulse, analogue,<br />
 cable entry  1/2 NPT <br />
[L]: Flow direction, from left to right, indication on top</div>

Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-YYY-N9-0 (65H)<br />
[URM-33]:<br />
Mounting position vertical, flow direction from bottom<br />
Accuracy Class 4<br />
Max. temperature 65 °C<br />
Max. pressure<br />
Material: connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[YYY]: Range Full Scale, 2.5  a 25  m3/h<br />
[N9]: Connection, 2 NPT<br />
[0]: Contacts, w/o

Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-YYY-N8-0 (65H)<br />
[URM-33]:<br />
Mounting position vertical, flow direction from bottom<br />
Accuracy Class 4<br />
Max. temperature 65 °C<br />
Max. pressure<br />
Material: connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[YYY]: Range Full Scale, 2.5  a 25  m3/h<br />
[N8]: Connection, 1 1 /2 NPT<br />
[0]: Contacts, w/o

EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-335B-1-H-0-2-0+UMF2-C-1-1-G-0BH<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, Process Temperature, -20°C...150°C<br />
[335B]:Process connection, DN100 PN16 Form B1 DIN EN 1092-1  <br />
Max. measuring range, 274 m³/h<br />
length, Installation 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter, <br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5, <br />
cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br />
<br />
Include:<br />
Model: UMF2-C-1-1-G-0BH<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, <br />
c/w pipe-/wall mounting bracket, cable > 10m add. term.conn.box on transmitter ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal: <br />
current output: 1x 0/4-20 mA c/w HART protocoll <br />
pulse output: passive Um=24 VDC <br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold<br />
Model: MIK-6FC-15-A-E91R</strong><br />
[MIK-6FC]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions<br />
Max. temperature/pressure, 80 °C / 10 bar<br />
Protection, IP 65<br />
Housing, PVDF<br />
Electrodes, Hastelloy<br />
Seal, FFKM<br />
[15] Measuring range, 0,16...3,2 L/min  G 1/2 male<br />
[A] Connection set, PVC-glue connection, without<br />
[E91R] Evaluation electronic for MIK,<br />
Counter electronic, LC-display, 0/4-20 mA 2 relays, 24 VDC cable connection<br />
<br />
* 2m cable<br />

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold<br />
Model: MIK-5NA-10-A-E91R</strong><br />
[MIK-5NA]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions<br />
Max. temperature/pressure, 80 °C / 10 bar<br />
Protection, IP 65<br />
Housing, PPS<br />
Electrodes, St. st.<br />
Seal, NBR<br />
[10] Measuring range, 0,05...1,0 L/min G 1/2 male<br />
[A] Connection set, PVC-glue connection, without<br />
[E91R] Evaluation electronic for MIK,<br />
Counter electronic, LC-display, 0/4-20 mA 2 relays, 24 VDC cable connection<br />
<br />
* 2m cable

<strong>Multivariable Vortex Flowmeter<br />
Model: DVH-T-50-2-S-L-L-2-S-0-H<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[DVH] Model<br />
[T] Elektronic - Options, Flow Velocity including temperature sensor<br />
[50] Flow Body FLANGE,  DN 50 DIN EN 2 inch ANSI JIS 50<br />
[2] Process Connection, ANSI 300 lbs ASME B16.5.2003<br />
[S] Material Flow Body,  st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4 <br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1x Impuls<br />
[S] Process Temperature, Standard Temperature -200….+260 °C <br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Version, Heinrichs<br />
<br />
Caudal TOP Aire Instrumentos<br />
Rango: 215  a 12000 Nm3/h<br />


<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-12-32B-R-32-R-1</strong><br />
[PSR-12]<br />
Operating principle paddle<br />
Mounting position all directions<br />
incl. fitting st. st.<br />
Body material st. st.<br />
max. pressure 250 bar<br />
[32B] Measuring range/paddle, 19.7-36.8 L/min <br />
[R] Connection, G-thread <br />
[32] Connection, 1 1/4"<br />
[R] Contact version, N/O<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-12-40B-R-40-R-1<br />
[PSR-12]<br />
Operating principle paddle<br />
Mounting position all directions<br />
incl. fitting st. st.<br />
Body material st. st.<br />
max. pressure 250 bar<br />
[40B] Measuring range/paddle, 23.1-57.9 L/min  <br />
[R] Connection, G-thread <br />
[40] Connection, 1 1/2" <br />
[R] Contact version, N/O<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

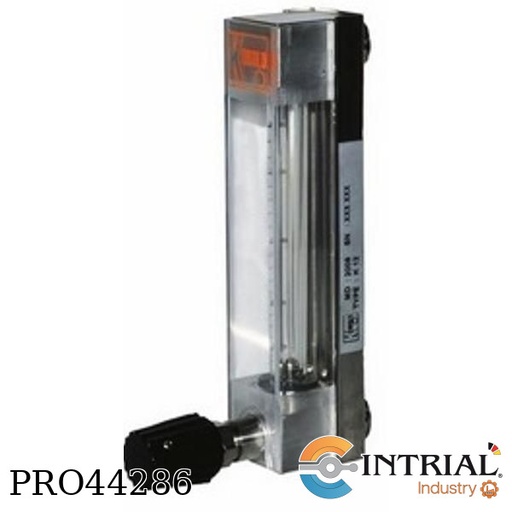

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDG-22-37-N-V-0-00-0</strong><br />
[KDG-22]:<br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 2.5<br />
Max. temperature without/with contact 100 °C / 80 °C<br />
Max. pressure PN 16<br />
With needle valve<br />
[37] 50...500 L/h air<br />
[N] Connection, 1/4 NPT<br />
[V] Seal, FPM<br />
[0] Panel mounting kit, w/o<br />
[00] Contacts measuring range, w/o<br />
[0] Flow differential pressure regulator, w/o
