<div>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-212R-1-H-0-1-0<br />
Brand: Kobold-Heinrich<br />
[EPS-P]:<br />
Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, Process-Temperature, -20°C...150°C<br />
[212R]:Process connection, ANSI FLANGES 6" Class 150 RF ASME B16.5-2003.<br />
Max. measuring range (Water 20°C, 1 mPas), 636 m³/h, Installation length 300 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]: Certificates, w/o</div>

<div>UMF2-A-1-1-G-0BK-66<br />
[UMF2]:Transmitter<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[66]: Earthing ring / price per piece, grounding ring, 6" class 150, Material, stainless steel 1.4404</div>

Paddle Flow Switch<br />
Brand: Kobold - USA<br />
Model: PSR-5215<br />
[PSR-5215]<br />
Material: Stainless Steel.<br />
Ingress Protection: IP 65<br />
Temperature, SS/FPM Seal: 14...230 °F<br />
Mounting Orientation: Horizontal Flow Preferred<br />
1/4"...1" = 3600 PSIG<br />
Connection, 1/2" NPT<br />
Approximate Switching Range (GPM), 0.7...1.6 Water.

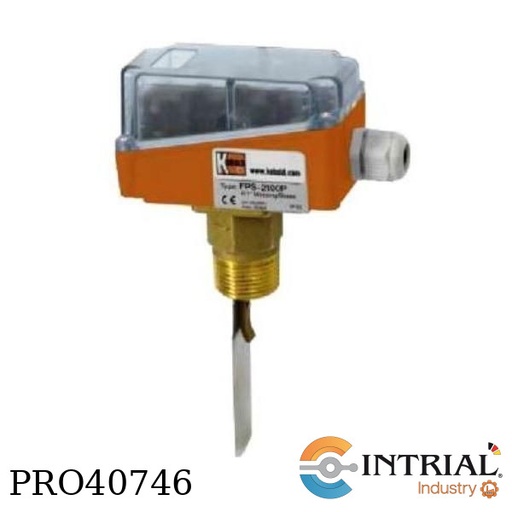

Paddle Flow Switch<br />
Brand: Kobold <br />
Model: FPS-5200P<br />
[FPS-5200P]:<br />
Max. Media Temperature: -40 ... 250°F<br />
Max. Ambient Temp: -30 ... 150°F<br />
Max. Pressure: 30 bar<br />
Material: St. Steel.<br />
Process Connection: 1" NPT Male.<br />
Switch: SPDT Contact.<br />
Protection Type: IP 65.<br />
Standard Switching Ranges<br />
Pipe Size: 1" - 8"

Multivariable Vortex Flowmeter<br />
Model: DVH-T-15-1-S-L-L-2-S-0-H<br />
Brand: Kobold - Heinrich<br />
[DVH] Model<br />
[T]: Elektronic – Options: Flow Velocity including temperature sensor<br />
[15]: Flow Body FLANGE: DN15 DIN EN, 1/2 inch ANSI, JIS 15<br />
[1]: Process Connection: ANSI 150 lbs ASME B16.5.2003 (not for wafer) <br />
[S]: Material Flow Body:  st.st. 1.4404 / 316 L (standard)<br />
[L]: Sensor Configuration / Mounting Option: Kompakt inkl. LCD Anzeige,IP 66 / Nema 4 <br />
[L]: Input Power, 12-36 VDC loop powered <br />
[2]: Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L passive<br />
[S]: Process Temperature,:Standard Temperature -200….+260 °C -330+500°F<br />
[0]: Option Pressure Sensor (Electronic versions T/P/E/M) (min. temp -40°C): w/o Pressure Sensor<br />
[H]: Version, Heinrichs<br />
Range: 10 a 300 Nm3/h

Thermal Mass Flow Meter for gases<br />
Brand: KOBOLD (Alemania)<br />
Model: MAS-30-07-C1-00-A<br />
[MAS-30]:<br />
Operating principle, thermal, Bypass<br />
Mounting position, all directions<br />
Indication, LC-Display<br />
max. temperature, 50 °C<br />
max. pressure, 35 bar<br />
Design, st.st.<br />
[07]: Measuring range, 0-1 LN/min N2<br />
[C1]: Connection, Swagelok 1/8" (max. 5 LN/min)<br />
[00]: Power supply, 12 VDC<br />
[A]: Output, 4-20 mA

Variable Area Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: V31-60501S-02-D9W-F-F-A-0-0-2-0-0-0-0-0-0-0-H<br />
[V31]: Model<br />
[60501S]: Thread<br />
NPT 1"(F) Verschraubung, Length, 375 mm, connection-wetted parts Edelstahl<br />
[02]: Type of float, Material, Stainless steel 1.4571 guided, with guide rod 1.4571,<br />
[D9W]: Measuring range - stainless steel float, 0.31 – 3.1 m3/h<br />
[F]: Gasket, Viton®<br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrichs

Flow indicator with Flange Connection<br />
Brand: Kobold<br />
Model: DAT-2-3-10H-F-1Z-B<br />
[DAT-2]:<br />
Operating principle Drip tube<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
max. temperature 150 °C (Option B: 280 °C)<br />
max. pressure 16 bar (Option 25 or 40 bar)<br />
[3]: Housing, cast steel.<br />
[10H]: Nom. Diameter, 125<br />
[F]: Flanges, flange acc. EN 1092-1<br />
[1Z]: Connection*, DN 125 / 5"<br />
[B]: Option, DN 125 borosilicate glass

Flow indicator with Flange Connection <br />
Brand: Kobold<br />
Model: DAR-2-3-10H-F-1Z-B<br />
[DAR-2]:<br />
Operating principle Rotor <br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C (Option B/R: 260 °C)<br />
max. pressure 16 bar (Option 25 or 40 bar)<br />
[3]: Housing, cast steel.<br />
[10H]: Nom. Diameter, 125<br />
[F]: Flanges, flange acc. EN 1092-1<br />
[1Z]: Connection*, DN 125 / 5"<br />
[B]: Option, DN 125 borosilicate glass

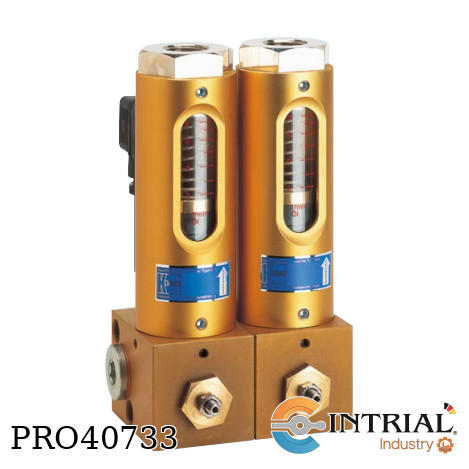

Manifold Valves For Multiple Installation<br />
Brand: Kobold(Alemania)<br />
Model: BVB-1102<br />
[BVB]:<br />
Housing, Aluminium<br />
Max. temperature, 100 °C<br />
Max. pressure, PN 64<br />
Max. flow per multiple block, 24 L/min<br />
Process connection, G 1/2 IG<br />
[1102]:Version, Double fold blockvalve

Paddle Type Flow Switch<br />
Model: PSE-12-498-N-15-U-1<br />
Brand: Kobold<br />
[PSE-12]<br />
Operating principle: Paddle<br />
Mounting position: Horizontal<br />
Approvals: w/o<br />
Body material: st.st.<br />
Max. pressure: 250 bar<br />
[498] Measuring range/paddle: Paddle length: 49 mm(60 mm for NPT)<br />
[N] Connection: NPT-thread<br />
[15] Connection, 1/2''<br />
[U] Contact version: SPDT<br />
[1] Connecting cable: PVC-cable 1.5 m (standard)

<strong>Low Volume Flowmeter<br />
Model: KSK-1-300-H-K32-00<br />
Brand: Kobold (Alemania)</strong><br />
[KSK-1]: <br />
Operation principle, variable area.<br />
Mounting position, vertical.<br />
Flow direction, from bottom.<br />
Material, Trogamide.<br />
Accuracy, Class 4.<br />
Max. temperature, 60 °C.<br />
Max. pressure, PN 10.<br />
Seal, EPDM.<br />
[300]: Measuring range, 30...300 L/h water.<br />
[H]: Scale, L/h waterscale.<br />
[K32]: Connection for size 300 L/h water, PVC-glue connection o.d. 32 (standard).<br />
[00]: Option contact, w/o.

Flowindicator with Flange Connection<br />
Brand: Kobold (Alemania)<br />
Model: DAK-2-2-01H-A-15-B<br />
[DAK-2]:<br />
Operating principle, Flap<br />
Mounting position, Horizontal<br />
Flow direction, in direction of the arrow<br />
max. temperature, 150 °C (Option B: 280 °C)<br />
max. pressure, 16 bar<br />
[2]: Housing, st.st<br />
[01H]: Nom. diameter, 15<br />
[A]: Flanges, ANSI-flange<br />
[15]: Connection, DN 15 / 1/2"<br />
[B]: Option, DN 15/20 borosilicate glass

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-12-153-N-15-R-1</strong><br />
[PSR-12]<br />
Operating principle paddle<br />
Mounting position all directions<br />
incl. fitting st. st.<br />
Body material st. st.<br />
max. pressure 250 bar<br />
[153] Measuring range/paddle, 2.7-6.4 L/min paddle: 3<br />
[N] Connection, NPT-thread<br />
[15] Connection, 1/2" NPT<br />
[R] Contact version, N/O<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

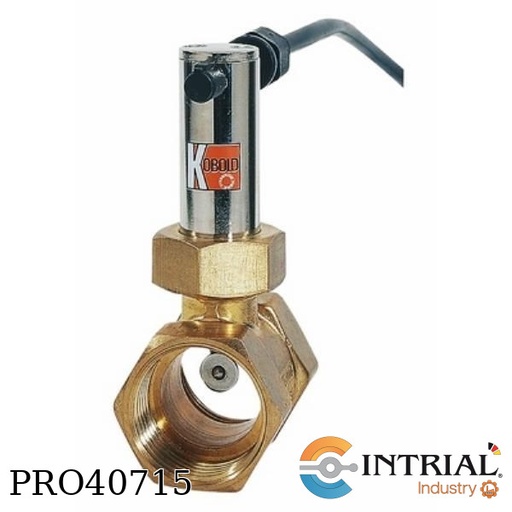

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-153-N-15-R-1</strong><br />
[PSR-11]<br />
Operating principle paddle<br />
Mounting position all directions<br />
incl. fitting brass<br />
Body material brass<br />
max. pressure 100 bar<br />
[153] Measuring range/paddle, 2.5-6.4 L/min paddle: 3<br />
[N] Connection, NPT-thread<br />
[15] Connection, 1/2" NPT (for PSR-xx15..)<br />
[R] Contact version, N/O<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

Flow Limiter<br />
Model: REG-1-2-00-D<br />
Brand: Kobold<br />
[REG-1]:<br />
operating temperature max. 300 °C<br />
operating pressure max. 200 bar<br />
differential pressure min. 2 bar / max. 10 bar<br />
type of thread, inside<br />
size of thread, G 1/2<br />
[2]: housing material, st. st. 1.4301<br />
[00]: flow rate, 0,5 L/min<br />
[D]: Version, Longer version (DIN thread)

Low Volume Flowmeter<br />
Brand: Kobold  - USA<br />
Model: KDG-22-YY-N-V-0-00-0-Y<br />
[KDG-22]:<br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy: ±2.5% qG <br />
Process temperature: -20°C ... +100°C<br />
Max. pressure PN 16<br />
Protection type: IP65 (EN60529)<br />
With needle valve<br />
[YY]: Measuring range: Special<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o<br />
[Y]: Range Special <span lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">0.5..6</span> Nl/h.

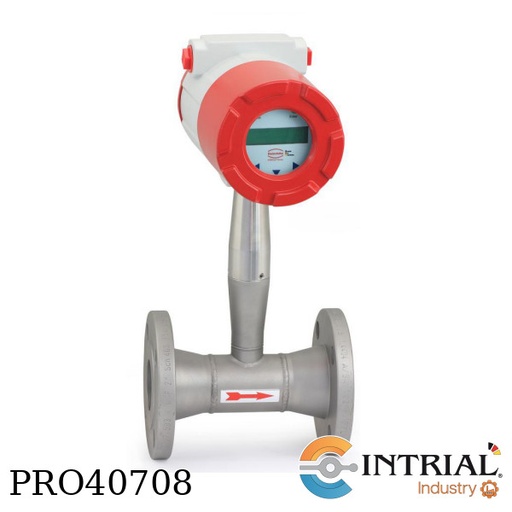

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: DVH-P-1H-5-S-L-L-2-S-3-H</strong><br />
[DVH]: Model, Inline Version<br />
[P]: Electronic – Options, Flow Velocity including temperature and pressure sensor  <br />
[1H]: Flow Body Flange, DN 100 DIN EN 4 inch <br />
[5]: Process Connection, DIN PN 40 DIN EN 1092-1 <br />
[S]: Material Flow Body, st.st. 1.4404 / 316 L (standard) <br />
[L]: Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4<br />
[L]: Input Power, 12-36 VDC loop powered<br />
[2]: Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with  Input Power L passive <br />
[S]: Process Temperature, Standard Temperature  -200….+260 °C  -330….+500 °F<br />
[3]: Option Pressure Sensor (Electronic versions T/P/E/M), Incl. Pressure Sensor 20 bar abs (300 psia) Electr.version P / M41 bar abs. (600 psia)<br />
[H]: Version, Heinrichs

<strong>EPS Electromagnetic Flow Meter<br />
EPS-A-006A-G-N-0-1-0<br />
Brand: Kobold-Heinrichs</strong><br />
[EPS]:Sensor<br />
[A]: Material Lining, Ceramics,<br />
Electrodes, Standard 2x Measuring Electrodes: -20...+150 °C<br />
[006A]:Process connection, DN 6 - 1/2"NPT(316L) / incl. Gasket/EPDM<br />
Material: Ceramics / Platinum / EPDM<br />
[G]: Material Process connection, 316L(1.4404)/EPDM-gasket<br />
[N]:Material electrodes, Platinum / Iridium<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o<br /><br /><strong>UMF2-A-1-1-G-0BK<br />
[UMF2]: Transmitter</strong><br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<div>EPS Electromagnetic Flow Mete<br />
EPS-H-203R-1-S-S-1-0<br />
Brand: Kobold-Heinrichs<br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[203R]:Process connection, 1" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 17,6 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o</div>

<div>UMF2-A-1-1-G-0BK<br />
[UMF2]: Transmitter<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold</div>

<div>EPS Electromagnetic Flow Mete<br />
EPS-H-206R-1-S-S-1-0<br />
Brand: Kobold-Heinrichs<br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[206R]:Process connection, 2" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 2,0- 300 LPM<br />
Installation length, 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, integrated transmitter.<br />
Protection class sensor, IP67<br />
[0]:Certificates, w/o</div>

<div>UMF2-A-1-1-G-0BK<br />
[UMF2]: Transmitter<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output,<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold</div>
