EPS Electromagnetic Flow Meter<br />
Model: EPS-P-205R-1-H-0-1-0<br />
Brand: Kobold-Heinrich<br />
[P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[205R]:Process connection, 1½" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 1, 0 a 300LPM, Installation length 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o<br /><br />
UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>Flow Indicator with Rotating Vane<br />
Brand: Kobold (Alemania)<br />
Model: DIG-18-30R20</strong><br />
[DIG-18]<br />
operation principle Rotating vane<br />
Mounting position all directions, vane axle horizontal<br />
Flow direction in direction of arrow<br />
Max. temperature 80 °C<br />
Max. pressure, 7 bar<br />
Material of housing, PP<br />
[30R20]<br />
Indication range / mech. connection: <br />
2-50 L/min, G 3/4 female

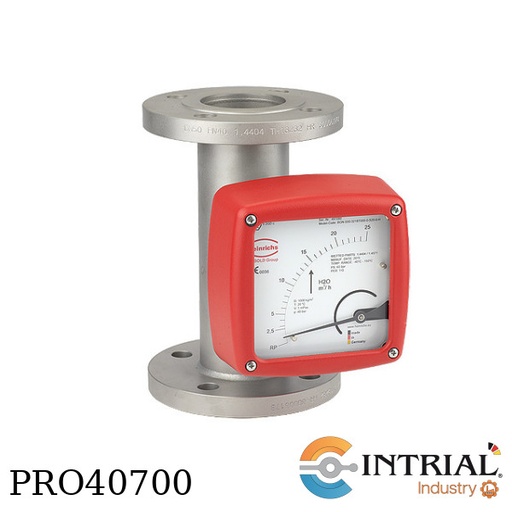

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S50-6070-R-0-0-0-0-S-5-C-0-K<br />
[BGN]: Model<br />
[S50]: Stainless Steel, process temperature ≤ 350°C <br />
[6070]: Thread connection, 1-1/2" NPT(f), 300 mm, float not removable <br />
[R]: Range (water 20°C, 1 mPas): H2O: 600 - 6000 l/h<br />
[0]: Heating/cooling: without heating / Cooling <br />
[0]: Damping/spring stop: without<br />
[0]: Self-draining: without<br />
[0]: Certificates: without<br />
[S]: Display: <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale: Measuring range-Scale (Media)<br />
[C]: Switches: 1 x microswitch, Ambient temperature, -40° to +65°C<br />
[0]: Accessories: without<br />
[K]: Design: Kobold.

<strong>Oval Gear Flow Meter-Counter<br />
Model: DON-1-35H-N9-1-M4-N-0<br />
Brand: Kobold (Alemania)</strong><br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80°C<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[35H]: Measuring range, 30-450 L/min<br />
[N9]: Mech. connection, 2" NPT<br />
[1]: Seal, FKM for DON-x30…DON-x40<br />
[M4]: Electronic, mech. totaliser 4-digit<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

Oval Gear Flow Meter-Counter<br />
Model: DON-8-35H-N9-1-M4-N-0<br />
Brand: Kobold (Alemania)<br />
[DON-8]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80°C<br />
max. pressure, 16…100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, PPS<br />
[35H]: Measuring range, 30-450 L/min<br />
[N9]: Mech. connection, 2" NPT<br />
[1]: Seal, FKM for DON-x30…DON-x40<br />
[M4]: Electronic, mech. totaliser 4-digit<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

Oval Gear Flow Meter-Counter<br />
Model: DON-2-35H-N9-1-M4-N-0<br />
Brand: Kobold (Alemania)<br />
[DON-2]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C<br />
max. pressure, 16...100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[35H]: Measuring range, 30-450 L/min<br />
[N9]: Mech. connection, 2" NPT<br />
[1]: Seal, FKM for DON-x30…DON-x40<br />
[M4]: Electronic, mech. totaliser 4-digit<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

Low Volume Flowmeter<br />
Brand: Kobold (USA)<br />
Model: KDG-22-YY-N-V-0-00-0<br />
[KDG-22]:<br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 2.5<br />
Max. temperature without/with contact  100 °C / 80 °C<br />
Max. pressure PN 16<br />
With needle valve<br />
Flow range: 1.1-19 Nl/h.<br />
[YY]: Measuring range, 243...1839 Nl/h nitrogen<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o<br />
Pressure: 7 bar<br />
Temperature: 20°C

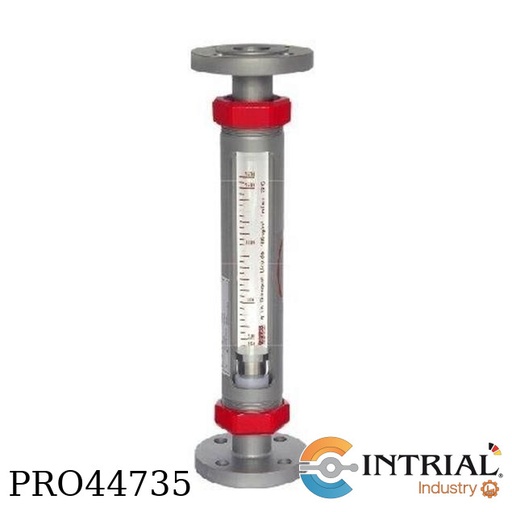

VARIABLE AREA FLOWMETER<br />
Brand: KOBOLD-HEINRICHS<br />
max. 10 bar<br />
Temp. min. -10 °C, max. 80 °C<br />
Accuracy: 2,5% Gas / 1,6% Liquid qG=50%<br />
[60401S] Thread; NPT ¾"(F) Verschraubung; Length: 375 mm; connection - wetted parts: Edelstahl<br />
[02] Type of float, Material; Stainless steel 1.4571 - guided<br />
[D4L] Measuring range - PVDF float: Air: 1200 - 12000 Nl/h<br />
[F] Gasket; Viton®<br />
[F] Float – stop; PVDF<br />
[A] Union nut; Aluminium lacquered<br />
[0] Shatter protection max. 80°C; without<br />
[0] electrical output; withou<br />
[4] Scale; Measuring range-scale (Medium)<br />
[0] Approvals; without<br />
[0] Calibration certificate; without<br />
[0] Cleaning according works standard; without<br />
[0] Pressure / leakage test; without<br />
[0] Approvals; without<br />
[0] Marking; without<br />
[0] Accessories; without<br />
[K] Make; without

ALL-METAL VARIABLE AREA FLOWMETER<br />
Brand: KOBOLD-HEINRICHS<br />
Stainless Steel, process temperature ≤ 350°C<br />
[6030] Thread connections: 1/2" NPT(f) 300 mm float not removable<br />
[L] Range (water 20°C, 1 mPas): H2O: 60 - 600 l/h<br />
[0] eating / cooling: without heating / Cooling<br />
[G] Damping / spring stop: Gas damping<br />
[0] Self draining; without<br />
[0] Certificates: without<br />
[S] Display; Standard display housing,, Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]  Scale; Measuring range-Scale (Media)<br />
[0] Switches; without<br />
[0] Accessories; without<br />
[K] Design; Kobold

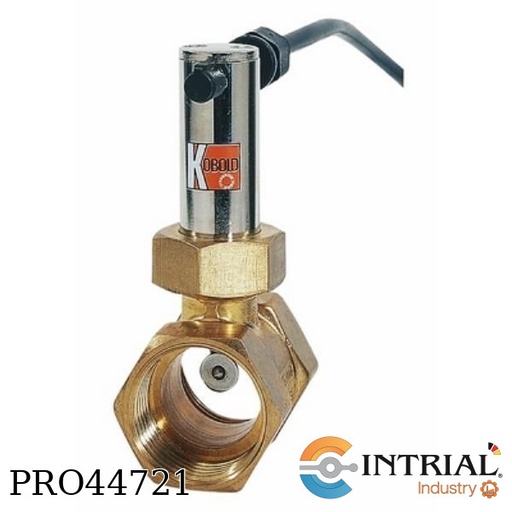

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-21-251-R-25-U-1</strong><br />
[PSR-21]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Approvals: ATEX / IECEx<br />
incl. fitting: brass<br />
Body material: brass<br />
max. presure* 100bar<br />
[251] Measuring range/paddle; 47.6-67.2 L/min paddle: 1<br />
[R] Connection; G-thread<br />
[25] Connection; 1" (for PSR-xx25...)<br />
[U] Contact version; SPDT (ATEX IECEx)<br />
[1] Connecting cable; PVC-cable 1.5 m (standard)

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs<br />
Model: DVH-P-50-3-S-L-L-2-S-5-H</strong><br />
[DVH] Inline Version<br />
[P] EElektronic - Options<br />
Volume Measurement of Liquids, Gases and Steam + temperature sensor+pressure sensor<br />
[50] Flow Body FLANGE, 2 inch ANSI - PN40/ 150 lbs<br />
Range: 350 Nm3/h a 29000 Nm3/h<br />
[3] Process Connection, ANSI Class 600 ASME B16.5-2003<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option, Compact / incl. Digital Display and Programming Buttons<br />
[L] Input Power, 12-36 VDC  loop powered for Output Signal: 2<br />
[2] Output Signal, 1x 4-20mA HART / 1x Impuls, Loop powered<br />
[S] Process Temperature, Standard Temperature  -40….+260°C<br />
[5] Option Pressure Sensor , Incl. Pressure Sensor 100 bar abs (1500 psia)<br />
[H] Version, Heinrichs

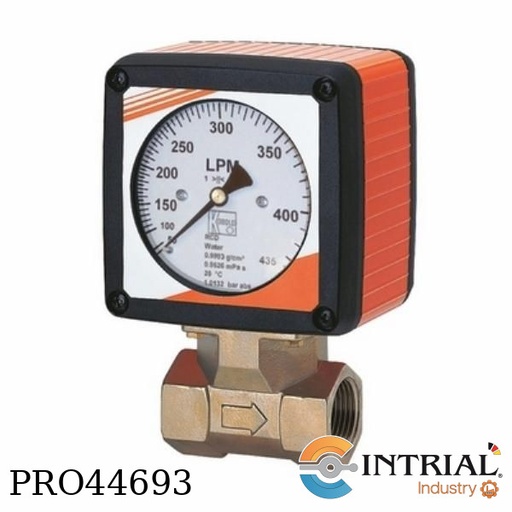

<strong>Differential Pressure Flow Meter/Monitor<br />
Model: RCD-12-39H-G9-ZBL<br />
Brand: Kobold - Alemania</strong><br />
[RCD-12]<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class, IP 65<br />
max. temperature, 80 °C (100 °C)<br />
max.pressure, 40 bar<br />
Material, st. st<br />
[39H] Measuring range, 50-435 L/min water<br />
[G9] Process Connection, G 2 female<br />
[ZBL] Evaluating electronics,<br />
mech. pointer indication Flow from bottom/indication left

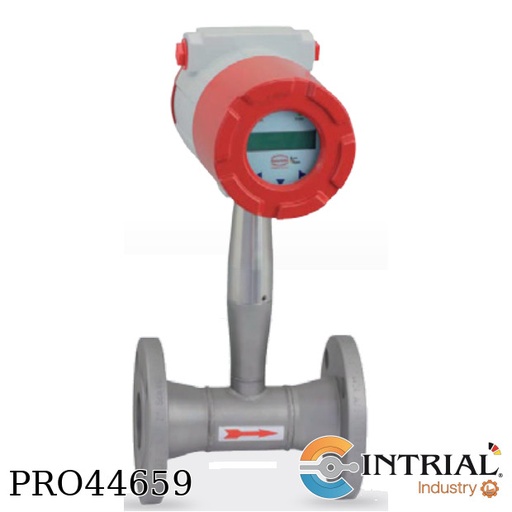

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: DVH-P-1H-2-S-L-L-2-S-5-H</strong><br />
[DVH] Model, Inline Version<br />
[P] Electronic – Options, Volume Measurement of Liquids, Gases and Steam<br />
 + temperature sensor + pressure sensor<br />
[1H] Flow Body Flange, 4 inch ANSI 300 lbs<br />
[2] Process Connection, ANSI 300 lbs ASME B16.5.2003<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4<br />
Compact incl. Digital Display and Programming Buttons<br />
[L] Input Power, 12-36 VDC loop powered,  for Output Signal: 2<br />
[2] Output Signal (passiv) 1x 4-20mA, HART 1x Impuls, Loop powered <br />
[S] Process Temperature, Standard temperature -40….+260°C<br />
[5] Option Pressure Sensor (Electronic versions T/P/E/M), <br />
Incl. Pressure Sensor 100 bar abs (1500 psia)<br />
[H] Version, Heinrichs

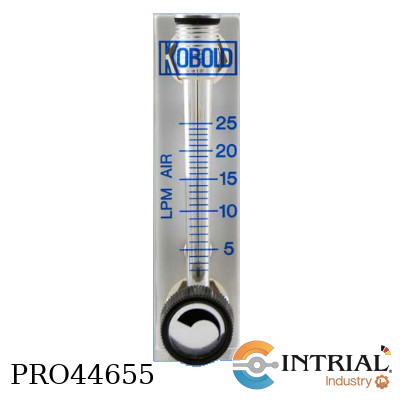

<strong>Low Volume Flowmeter<br />
Brand: Kobold<br />
Model: KFR-42-41-N0+KFR-PPHW024</strong><br />
[KFR-42]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Total length 165 mm<br />
Acuracy ±3 % FS<br />
Ac. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material st.st.<br />
Connection size 1/8" NPT female on rear<br />
Seal FPM<br />
[41]: Measuring range, 1...10 L/min air <br />
[N0]: Options, Needle valve<br />
[KFR-PPHW024] Accessories, set hose barbes (2 pcs.)

<strong>Low Volume Flowmeter<br />
Brand: Kobold<br />
Model: KFR-42-40-N0+KFR-PPHW024</strong><br />
[KFR-42]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Total length 165 mm<br />
Acuracy ±3 % FS<br />
Ac. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material st.st.<br />
Connection size 1/8" NPT female on rear<br />
Seal FPM<br />
[40]: Measuring range, 0,4...5 L/min air<br />
[N0]: Options, Needle valve<br />
[KFR-PPHW024] Accessories, set hose barbes (2 pcs.)

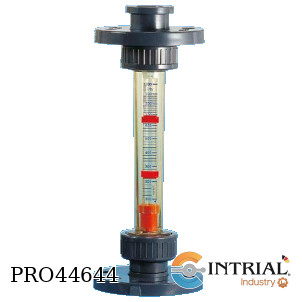

<strong>Variable Area Flowmeter Plastic<br />
Brand: Kobold (Alemania)<br />
Model: URL-VD-27HF7-0</strong><br />
[URL-VD]<br />
Operating principle, variable area<br />
Mounting position, vertical, flow direction from bottom<br />
Accuracy, Class 4<br />
Max. temperature, 65 °C<br />
Max. pressure loss, 57 mbar<br />
Connection,housing, PVC<br />
Float, PTFE<br />
Ring, PVC<br />
Seal, NBR<br />
[27HF7] Measuring Range water, 50-500 L/H<br />
Loose flange EN 1092-1 Typ 02, PN16 DN32<br />
[0] Contacts, w/o

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-35H-M4-0</strong><br />
[URM-33]<br />
Mounting position vertical, flow direction from bottom<br />
Accuracy Class 4<br />
Max. temperature 65 °C<br />
Max. pressure 16 bar<br />
Material: connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[35H] Range Full Scale, 63 - 630 L/h<br />
[M4] Connection, 1/2 NPT<br />
[0] Contacts, w/o

<div><strong>Plastic Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSM-1-060-H-F50-R0</strong><br />
[KSM-1]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure, 16 bar<br />
[060] Measuring range, 600...6000 L/h water<br />
[H] either scales for liquid media, L/h water<br />
[F50] Option connection for size 060, PVC flange DN 50<br />
[R0] Option contact, w/o contact</div>

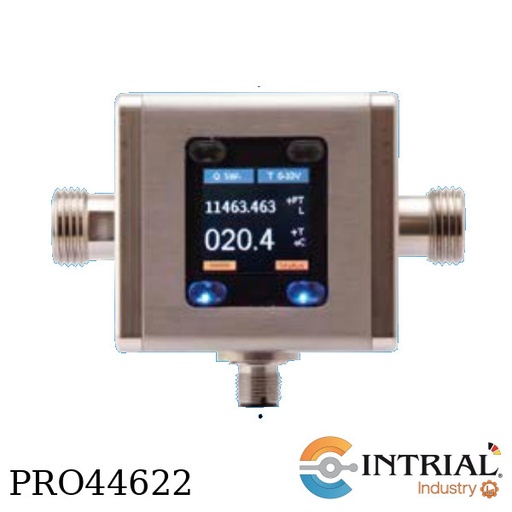

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-20HG6-CT3-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 uS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[20HG6]: Measuring range (flow/temperature), 0,4...100 L/min. / G 1 male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without<br />
<br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

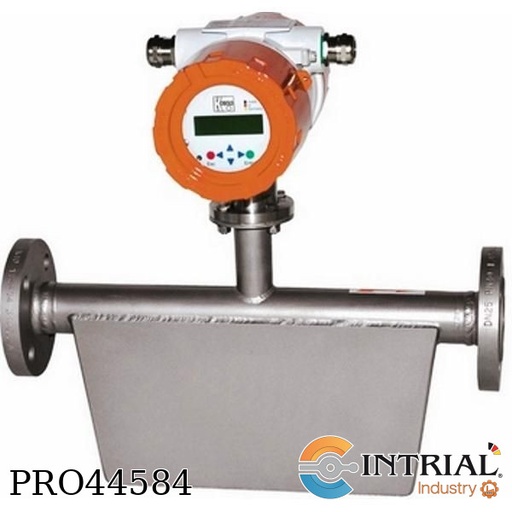

<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-080-208R-A-0-0-E-0-1-1-0-H+UMC4-E-1-1-A-0-0</strong><br />
[TMU-S]<br />
Wetted materials, Stainless steel<br />
[080] Meter line size, DN80, ANSI 3"<br />
Range: min. 0-25.000 kg/h - max. 0-120.000 kg/h<br />
[208R] Process connnection, 3" Class 150 RF ASME B16.5-2003<br />
Installation length: 1218 mm<br />
[A] Containment options, Stainless steel containment 1.4301 (304)<br />
[0] Heating/cooling, none<br />
[0] Heating/cooling, none<br />
[E] Sensor configuration, Remote mount transmitter<br />
Process temperature: -40° to 500°F, -40° to 260°C<br />
Connection Terminal block via ½" NPT, <br />
Sensor Cable , IP66<br />
[0] ApprovaIs, none<br />
[1] Calibration mass Flow, standard, 3-points<br />
[1] Calibration Density, Standard (3-point)<br />
[0] Supplementary equipment, None<br />
[H] Design: Heinrichs<br /><br />
[UMC4] Model<br />
[E] Transmitter Remote mount / Transmitter with 5 m cable<br />
Mounting of transmitter, without connection box<br />
Conduit port opening: M20 x 1,5<br />
[1] Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Outputs,<br />
Analog output 1: (0) 4 20mA with HART®<br />
Analog output 2: (0) 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals, none<br />
[0] Type of protection (signal output), none
