Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-15H-N3-1-H0-N-0<br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16…100 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[15H]: Measuring range,15-550 L/h<br />
[N3]: Mech. connection for meas. range 15H, NPT 3/8,<br />
[1]: Seal, FKM up to DON-x25<br />
[H0]: Electronic, Pulse output Hallsensor/Reed switch, Push Pull (8-30 VDC)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: UTR-3-30L-1-N4-0<br />
[UTR-3]:<br />
Mounting length 240 mm<br />
Material: body / valve st.st. 1.4301<br />
Float st.st. 1.4301<br />
Measuring glass Borosilicate<br />
Operating principle Float<br />
Flow direction from bottom to top<br />
Accuracy class 4<br />
Max. temperature without/with contact 100 °C / 70 °C<br />
Max. pressure PN 10  <br />
[30L]: Measuring range, 1…10 Nm³/h air<br />
[1]: Valve, with valve<br />
[N4]: Connection, 1/2” NPT<br />
[0]: Contacts, w/o

<div>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-206R-1-H-0-2-0<br />
Brand: Kobold-Heinrich<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[206R]:Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5,<br />
cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o</div>

<div>UMF2-C-1-1-F-0BK-2<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable,<br />
c/w pipe-/wall mounting bracket, Thread - electrical connection,<br />
cable > 10m add. term.conn.box on transmitter ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[2]: Longer cable, 10m., breakout cable</div>

<div>Include:<br />
RING 2"<br />
Magnetic Inductive Flowmeter<br />
Brand: Heinrichs<br />
Grounding Ring Set (2pc)</div>

Oval Gear Flow Meter for OEM-application<br />
Brand: Kobold (Alemania)<br />
Model: DOE-8-15H-R3-1-T0-D-0<br />
[DOE-8]:  <br />
Operating principle, Oval Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature 80 °C<br />
max. pressure 64 bar<br />
Accuracy ± 1 % of reading<br />
Housing material st. steel<br />
Rotor material PEEK (DOE-805 /DOE-820..:PPS)<br />
Calibration, 3 points, oil<br />
(viscosity 4 mm²/s, DOE-805/DOE-820 10 mm²/s)<br />
[15H]: Calibration, 15-550 L/H.<br />
[R3]: Mech. connection, for meas. range 15H G 3/8<br />
[1]: Seal, FKM.<br />
[T0]: Electronic, Pulse output Hallsensor, Push pull <br />
[D]: Cable entry, plug acc. EN175301-803 Form A (not for electronic "BP").<br />
[0]: Options, without.

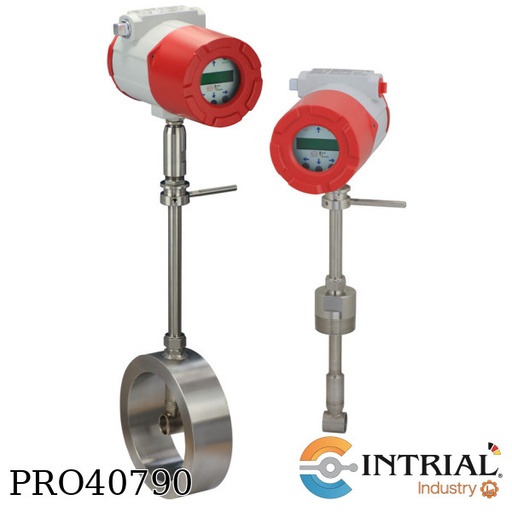

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Modelo: DVE-P-S-R-A-H-S-3-A-H</strong><br />
[DVE]: Model code Insertion Version<br />
[P]: Electronic - Options, Flow Velocity including temperature and pressure sensor<br />
[S]: Probe length: Standard length (max. stem length app. 690 mm)<br />
[R]: Sensor Configuration / Mounting Option, remote incl. Display, IP 66 / Nema 4, cable length 15 meters<br />
[A]: Input Power, 85-240 VAC 50/60 Hz 12 W erforderlich für Ausgangs-Optionen H / M / 3 / 4<br />
[H]: Output signal: 1x 4-20mA HART 1x Alarm, 1x Pulse only with input power D/ A passive<br />
[S]: Process temperature: Standard temperature -200..+260°C (-330..+500°F)<br />
[3] Option Pressure Sensor, Incl. Pressure Sensor 20 bar abs ( 300 psia) Electr.version P / M 41 bar abs. (600 psia).<br />
[A] Process connection: 2 " NPT Male thread Compression fitting<br />
[H]: Versión, Heinrichs

EPS Electromagnetic Flow Meter<br />
Model: EPS-P-206R-1-H-0-2-0<br />
Brand: Kobold-Heinrich<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[206R]:Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5,<br />
cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br />
UMF2-C-1-1-F-0BK-2<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable,<br />
c/w pipe-/wall mounting bracket, Thread - electrical connection,<br />
cable > 10m add. term.conn.box on transmitter ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA,<br />
pulse output: passive Um=24 VDC.<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[2]: Longer cable, 10m., breakout cable

EPS Electromagnetic Flow Meter<br />
Model: EPS-P-321B-1-S-0-2-0 <br />
Brand: Kobold-Heinrich<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[321B]:Process connection, DN50 PN40 Form B1 DIN EN 1092-1<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI) (Standard for hard rubber, soft rubber, EPDM)<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter, Protection class, sensor, IP 67 terminal conn.box via M 20 x 1,5, cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br />
UMF2-C-1-1-F-0BK<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket, Thread - electrical connection, cable > 10m add. term.conn.box on transmitter ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[2]: Longer cable, 10m., breakout cable

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S25-305B-N-0-0-0-B-S-2-2-0-K</strong><br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[305B]: DN15 PN40 Form B1 DIN EN 1092-1<br />
[N]: Range: 0.16-1.60 m³/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[B]: Certificates, Inspection certificate 3.1 with material certificate (DIN EN 10204:2004).<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water). <br />
[2]: Switches, 2 x inductive switch, Type SJ 3,5 N, Ambient temperature -25° to +80°C.<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S25-203R-Q-0-0-0-B-S-2-2-0-K</strong><br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[203R]: 1" Class 150 RF ASME B16.5-2003<br />
[Q]: Range: 0.4-4.00 m³/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[B]: Certificates, Inspection certificate 3.1 with material certificate (DIN EN 10204:2004).<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water). <br />
[2]: Switches, 2 x inductive switch, Type SJ 3,5 N, Ambient temperature -25° to +80°C.<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

Plastic Flowmeter/-switch<br />
Model: KSM-1-601-Q-K75-R0<br />
Brand:Kobold(Alemania)<br />
[KSM-1]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure 16 bar<br />
[601]: Measuring range: 8.0 - 60 m³/h water<br />
[Q]: Range scale: m³/h water<br />
[K75]: connection for size >=200, Glue connection da 75 (PVC)<br />
[R0]: Option contact: w/o contact

Plastic Flowmeter/-switch<br />
Model: KSM-1-301-Q-K75-R0<br />
Brand:Kobold (Alemania)<br />
[KSM-1]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure 16 bar<br />
[301]: Measuring range: 3.0 - 30 m³/h water<br />
[Q]: Range scale: m³/h water<br />
[K75]: connection for size >=200, Glue connection da 75 (PVC)<br />
[R0]: Option contact: w/o contact

<strong>Plastic Flowmeter/-switch<br />
Model: KSM-1-201-Q-K75-R0<br />
Brand:Kobold (Alemania)</strong><br />
[KSM-1]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure 16 bar<br />
[201]: Measuring range: 2.0 - 20 m³/h water<br />
[Q]: Range scale: m³/h water<br />
[K75]: connection for size >=200, Glue connection da 75 (PVC)<br />
[R0]: Option contact: w/o contact

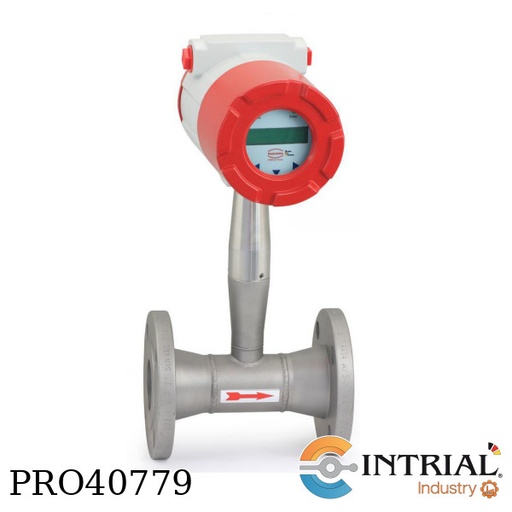

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: DVH-P-H5-1-S-R-A-H-S-3-H</strong><br />
[DVH]: Model, Inline Version<br />
[P]: Electronic – Options, Flow Velocity including temperature and pressure sensor<br />
[H5]: Flow Body Flange, 6 inch ANSI <br />
[1]: Process Connection, ANSI 150 lbs ASME B16.5.2003<br />
[S]: Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[R]: Sensor Configuration / Mounting Option, remote incl. LCD Display IP 66 / Nema 4, 15m.<br />
[A]: Input Power, 85-240 VAC 50/60 Hz 12 W<br />
[H]: Output Signal, 1x 4-20mA HART 1x Alarm, 1x Pulse only with Input Power D/ A passive<br />
[S]: Process Temperature, Standard Temperature  -200….+260 °C  -330….+500 °F<br />
[3]: Option Pressure Sensor (Electronic versions T/P/E/M), Incl. Pressure Sensor 20 bar abs (300 psia) Electr.version P / M41 bar abs. (600 psia)<br />
[H]: Version, Heinrichs

Variable Area Flowmeter (WATER+ALCOHOL MIXTURE)<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V31-40401S-01-D6W-F-F-A-0-0-2-0-0-0-0-0-0-0-H<br />
[V31]: Model<br />
[40401S]: Thread, G 1"(F) Verschraubung<br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
[01]: Type of float, Material, Stainless steel 1.4571; guide rod 1.4571 without<br />
[D6W]: Measuring range - stainless steel float, 160 a 1600 LPH<br />
[F]: Gasket, Viton®<br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrich

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S25-203R-M-0-0-0-0-S-5-6-0-H(WATER+ALCOHOL)<br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[203R]: 1" Class 150 RF ASME B16.5-2003<br />
[M]: Range: 110-1100 L/H<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media), <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia <br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S15-203R-J-0-0-0-0-S-5-6-0-H(WATER+ALCOHOL)<br />
Brand: Kobold – Heinrichs </strong><br />
[BGN]<br />
[S15]: Stainless Steel, process temperature ≤ 350°C<br />
[203R]: Connection,1" Class 150 RF ASME B16.5-2003<br />
[J]: Range: 28-270 L/H<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, with liquid damping<br />
[0]: Self-draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br /><br />
Process Data:<br />
WATER+ALCOHOL MIXTURE <br />
Rango 270 L/H<br />
D=867KG/M3<br />
V=0,79CP<br />
T=35ºC<br />
P=1.5BAR G

Variable Area Flowmeter (WATER+ALCOHOL MIXTURE)<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V31-40401S-01-D6W-F-F-A-0-0-2-0-0-0-0-0-0-0-H<br />
[V31]: Model<br />
[40401S]: Thread, G 1"(F) Verschraubung<br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
[01]: Type of float, Material, Stainless steel 1.4571; guide rod 1.4571 without<br />
[D6W]: Measuring range - stainless steel float, 170 a 1700 LPH<br />
[F]: Gasket, Viton®<br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrich

Variable Area Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
 Model: V31-317B3F-06-D9W-B-F-A-0-0-4-0-0-0-0-0-0-0-H<br />
[V31]: Model<br />
[317B3F]: Thread<br />
DN40 PN10/16/25/40 Form B1 EN1092-1, Length 425 mm, connection - wetted parts, PVDF<br />
[06]: Type of float, Material, PVDF - weighted, guide rod 1.4571 without<br />
[D9W]: Measuring range - PVDF float (weighted or with magnet), 0.22 a 2.2 m3/h <br />
[B]: Gasket, EPDM<br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrichs

Variable Area Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: V31-205R3S-02-E2W-F-F-A-0-0-2-0-0-0-0-0-0-0-H<br />
[V31]: Model<br />
[205R3S]: Process connection, 1½" 150 Lbs RF ASME B16.5-2003,<br />
Length: 425 mm Material, Stainless Steel<br />
[02]: Type of float, Material; Stainless steel 1.4571 - guided<br />
[E2W]: Measuring range; 0.52 – 5.2 m3/h<br />
[F]: Gasket, Viton<br />
[F]: Float-stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals; without<br />
[0]: Calibration certificate; without<br />
[0]: Cleaning according works standard (free of oil and grease); without<br />
[0]: Pressure / leakage test; without<br />
[0]: Approvals; without<br />
[0]: Marking; without<br />
[0]: Accessories; without<br />
[H]: Make; Heinrichs

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-207R-1-H-0-1-0<br />
Brand: Heinrichs</strong><br />
[EPS-P]: <br />
Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, Process-Temperature, -20°C...150°C<br />
[207R]:Process connection, ANSI FLANGES 2½" Class 150 RF ASME B16.5-2003.<br />
Max. measuring range (Water 20°C, 1 mPas), 119 m³/h, Installation length 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]: Certificates, w/o<br /><br /><strong>UMF2-A-1-1-G-0BK-58<br />
[UMF2]:Transmitter</strong><br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[58]: Earthing ring / price per piece, grounding ring, 2-1/2" class 150, Material, stainless steel 1.4404
