<div>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-31-08-R0-N20-0-L</div>

<div>[VKM-31]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
Viscosity range 1...540 mm²/s<br />
[08]: Measuring range, 5-20 L/min<br />
[R0]: Contact, 1 N/O<br />
[N20]: Connection, 3/4 NPT female<br />
[0]: Option special connection, w/o<br />
[L]: Flow direction, from left</div>

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-40H-A9-1-E3-N-0<br /><br />
[DON-2]: <br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[40H]: Measuring range, 50-580 L/min<br />
[A9]: Mech. Connection, ANSI flange 2" 150 lbs<br />
[1]: Seal, FKM for DON-x30…DON-x40<br />
[E3]: Electronic, Z3 electronic with ATEX approval (Exi), incl. battery<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without

<strong>Calorimetric Flowswitch, compact version<br />
Modelo: KAL-K5315-S-PG0<br />
Marca: Kobold (Alemania)</strong><br />
[KAL-K5]:<br />
Version Standard<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED and LED-chain<br />
Max. Temperature, 80 °C<br />
Max. Pressure, 100 bar<br />
Protection class, IP 65<br />
Connection thread, NPT<br />
[3]: Probe material, st.st. 1.4301<br />
[1]5: Connection, 1/2"<br />
[S]: Contact versión, N/O<br />
[PG0]: Electron. connection/power supply, M 16x1,5 relay output 230 VAC

Viscosity Compensated Plastic Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKP-1-100-N25-S<br />
[VKP-1]:<br />
Operating principle variable area<br />
Mounting position vertical or horizontal<br />
Flow direction all directions<br />
Material Polysulfone<br />
Accuracy ±5 % FS<br />
Max. temperature 120 °C*<br />
Max. pressure 16 bar<br />
* c/w contact 85 °C; c/w PVC-connection 60 °C<br />
[100]: Measuring range: 20...100 L/min water<br />
[N25]: Connection, 1 NPT male<br />
[S]: Contact N/0

Paddle Type Flow Switch<br />
Brand: Kobold (USA)<br />
Model: PSR-5110<br />
Switching Tolerance: ± 15%<br />
Media Temperature  Brass/NBR Seal: -4...158 °F<br />
Max. Pressure, Brass: 1/4"...1" = 1450 PSIG<br />
Cable Length: Standard: 5 Ft. (1.5m)<br />
Connection (NPT): 3/8"<br />
Approximate Switching Range*:<br />
Increasing GPM (Water): 0.7...1.5<br />
Decreasing GPM (Water): 0.6...1.4<br /><br />


<div>Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-11-25-N9-C34P<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: Brass casting<br />
Material Axis. Hard metal<br />
[25]: Measuring range, 30-350 L/min<br />
[N9]: Mech. connection, 2 NPT female<br />
[C34P]: Electronic, Compact electronics, 4-20 mA, 1x PNP</div>

<div>include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K502<br />
[ZUB-KAB-12]<br />
[K502]: Version: M12x1 box 2 m cable, 5-pin</div>

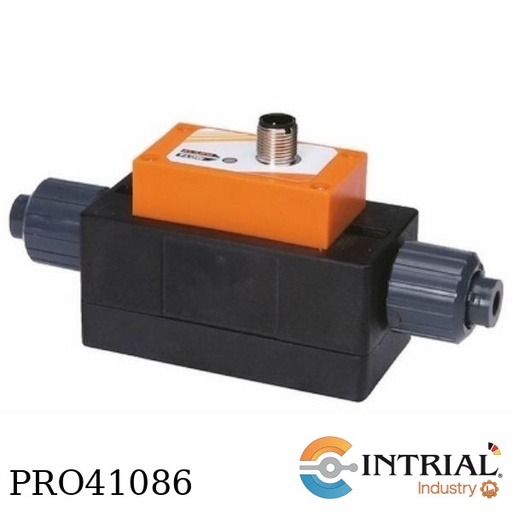

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-6FC-15-A-C34P<br />
Brand: Kobold (Alemania)</strong><br />
[MIK-6FC]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PVDF<br />
Electrodes Hastelloy <br />
Seal FFKM <br />
[15]: Measuring range (liquid >30 µS/cm), 0,16...3,2 L/min G 1/2 male<br />
[A]: Connection set, without<br />
[C34P]. Evaluation electronic for MIK, Compact electronic, 24 VDC, 4 -20 mA, 1xPNP<br /><br /><strong>Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K502</strong><br />
[ZUB-KAB-12]<br />
[K502]: Version: M12x1 box 2 m cable, 5-pin

<strong>Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br />
Brand: Kobold (Alemania)<br />
Model: DUK-12-G5H-K-0-4-2-R</strong><br />
[DUK-12]: <br />
Operating principle Ultrasonic<br />
Mounting position all directions<br />
Indication/Output see electronic version<br />
Max. temperature/pressure 90 °C / 16 bar <br />
Protection IP 65<br />
Seal NBR <br />
Sensor Housing St. st. <br />
[G5H]: Measuring range/connection, 0,16…40 L/min / G 3/4 female<br />
[K]: Evaluation electronic for DUK, ADI-Evaluation electronic Bar graph / Digital display<br />
Housing 97 x 96<br />
Display 3.5 LED + Bar graph<br />
Temperature range -20...80 °C<br />
Min. /Max. memory Yes<br />
Housing Aluminium/PA66<br />
Protection IP 65<br />
[0]: Supply voltaje, 100-240 VAC/DC<br />
[4]: Output, 0-10 VDC, 0(4)-20 mA selectable<br />
[2]: Contacts, 2 change over contacts<br />
[R]: Flow direction, from right to left.

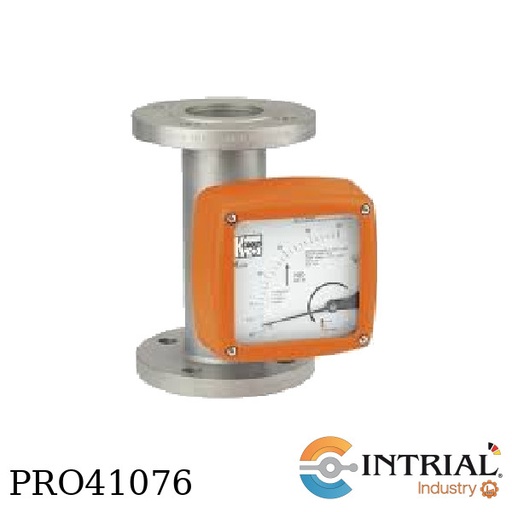

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S50-206R-R-0-S-0-0-S-5-0-0-H</strong><br />
[BGN]: <br />
[S50]: Model, Stainless Steel, process temperature ≤ 350°C <br />
[206R]: Connection, size 2" Class 150 RF ASME B16.5-2003 <br />
[R]: Range (Air), 30.35 – 303.47 Nm3/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[S]: Damping/spring stop, Gas damping, and spring stop<br />
[0]: Self-draining, without<br />
[0]: Certificates, without <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-206R-1-H-0-2-0<br />
Brand: Kobold-Heinrich</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[206R]:Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5,<br />
cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br /><strong>Include:<br />
Transmitter Electromagnetic<br />
Brand: Kobold<br />
Model: UMF2-C-1-1-F-0BK-2</strong><br />
[UMF2]: Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable,<br />
c/w pipe-/wall mounting bracket, Thread - electrical connection,<br />
cable > 10m add. term.conn.box on transmitter ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[2]: Longer cable, 10m., breakout cable

Variable Area Flowmeter-Plastic<br />
Brand: Kobold (Alemania)<br />
Model: KSM-2030-H-P25-R0<br />
[KSM-2]: Plastic Flowmeter/-switch<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Polysulfone<br />
Accuracy, ±4 % FS<br />
Max. temperature, 100 °C*<br />
*60 °C c/w PVC-connection<br />
Max. pressure, 16 bar<br />
[030]: Measuring range: 300...3000 L/h water<br />
[H]: Either scales for liquid media, L/h water<br />
[P25]: Option connection for size 030, PVC G 1 female<br />
[RO] Option contact: w/o contact

Plastic Flowmeter/-switch<br />
Model: KSM-1-010-M-P20-R0<br />
Brand:Kobold(Alemania)<br />
[KSM-1]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure 16 bar<br />
[010]: Measuring range: 100…1000 L/h water OR 4…34 Nm3/h air<br />
[M]: scales for liquid media: L/min water<br />
[P20]: connection for size 001, 005, 010, PVC G ¾ female<br />
[R0]: Option contact: w/o contact

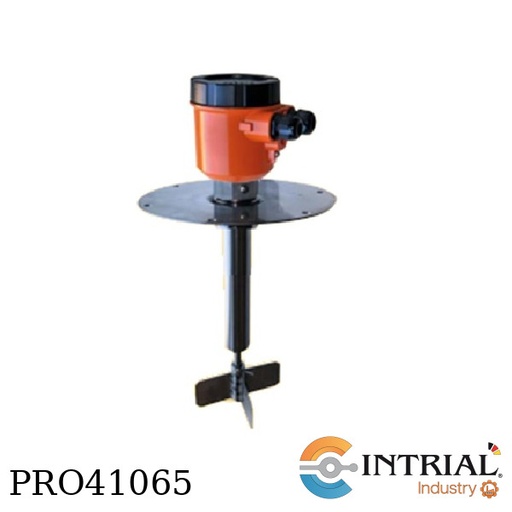

<strong>Rotating Vane Monitor for Solids NIR<br />
Model: NIR- E91-L-V-F2-4-0<br />
Brand: Kobold (Alemania)</strong><br />
[NIR-E91]:<br /><strong>Approval Ex II2/1D Ext IIIC T85°C Db/Da</strong><br />
Version neck pipe 65 mm<br />
Housing, Aluminium<br />
Connection/neck pipe/axis/vane St.st. 1.4305/1.4301<br />
max. temperature, -20..+90 °C<br />
max. pressure, -0,5....0,5 bar<br />
max. grain size, 50 mm<br />
min. bulk material density, 0,038 kg/L<br />
Protection, IP m66<br />
[L]: Neck-pipe, <strong>with extension and pipe protection</strong><br />
neck-pipe length, for neck-pipe type "L": <strong>1000 mm</strong><br />
[V]: Rotating vane,<strong> foldable vane</strong><br />
[F2]: Connection, flange,<strong> D=200 mm</strong><br />
[4]: Power-supply, <strong>110 VAC</strong><br />
[0]: Option, w/o

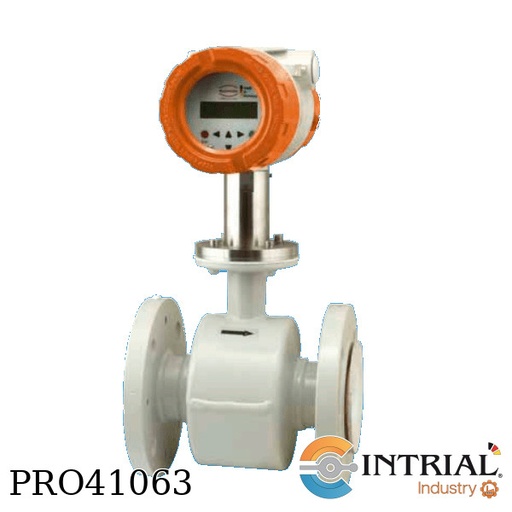

<div>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-210R-1-H-0-2-0+UMF2-C-1-1-F-0BH-2<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[210R]:Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 274 m³/h,<br />
length, Installation 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5, cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o</div>

<div>UMF2-C-1-1-F-0BH-2<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket, cable > 10m add. term.conn.box on transmitter<br />
½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
status output: passive Um=24 VDC<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[2]: Longer cable, 10m., breakout cable</div>

EPS-P-213R-1-H-0-2-0+UMF2-C-1-1-F-0BH-2<br />
EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-213R-1-H-0-2-0+UMF2-C-1-1-F-0BH-2<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[213R]:Process connection, 8" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 1110 m³/h,<br />
length, Installation 350 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5, cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br />
UMF2-C-1-1-F-0BH-2<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket, cable > 10m add. term.conn.box on transmitter<br />
½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
status output: passive Um=24 VDC<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[2]: Longer cable, 10m., breakout cable

EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-212R-1-H-0-2-0+UMF2-C-1-1-F-0BH-2<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[212R]:Process connection, 6" Class 150 RF ASME B16.5-2003  <br />
Max. measuring range 632 m³/h,<br />
length, Installation 300 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5, cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br />
UMF2-C-1-1-F-0BH-2<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket, cable > 10m add. term.conn.box on transmitter<br />
½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
status output: passive Um=24 VDC<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[2]: Longer cable, 10m., breakout cable

EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-H-205R-1-S-S-1-0+UMF2-A-1-1-F-0BH<br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[205R]: Process connection, 1½" Class 150 RF ASME B16.5-2003, <br />
Max. measuring range, 38 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated Transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
UMF2-A-1-1-F-0BH <br />
[UMF2]: Transmitter<br />
[A]: Mounting, <br />
Integrated transmitter IP 67 standard<br />
Thread-electrical ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal: <br />
status output: passive Um=24 VDC<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

<strong>Variable Area Flowmeter-switch<br />
Brand: Kobold (Alemania)<br />
Model: DSV-21-05H-U0-R15</strong><br />
[DSV-21]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Fitting material brass <br />
Sight glass Borosilicate<br />
Accuracy ±4 % FS<br />
Max. temperature 70 °C (plastic-float)<br />
Max. pressure 10 bar<br />
[05H]: Measuring range, 2...18 L/min water<br />
[U0]: Contact, 1 SPDT<br />
[R15]: Connection measuring range, G 1/2 female (up to 18 L/min)

<div>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[210R]:Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 274 m³/h,<br />
length, Installation 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5, cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o</div>

<div>UMF2-C-1-1-F-0BH-2<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket, cable > 10m add. term.conn.box on transmitter<br />
½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[2]: Longer cable, 10m., breakout cable</div>

<div>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[213R]:Process connection, 8" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 1110 m³/h,<br />
length, Installation 350 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5, cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o</div>

<div>UMF2-C-1-1-F-0BH-2<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket, cable > 10m add. term.conn.box on transmitter<br />
½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[2]: Longer cable, 10m., breakout cable</div>
