Transmitter Clamp-on  Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-MF-1-0-0-S-RL<br />
[DUC-MF]:<br />
Operating principle Ultrasonic<br />
Mounting version stationary, wallmount<br />
Measuring units volume flow, flow velocity, thermal output<br />
Counter heat quantity, volume<br />
Housing ABS<br />
Additional input for heat measuring 2x Pt100<br />
Output 2x4-20 mA, 1(2) pulse, 1x micro-USB, 1 relay; optional RS232/RS485<br />
Measuring channels 1, optional 2 channels<br />
Protection IP 65<br />
[1]: Measuring channels, 1-channel<br />
[0]: Power supply, 90-240 VAC<br />
[0]: Ex-approval, without<br />
[S]: Language packages, german/spanish/french<br />
[RL]: Options, data logger<br /><br />
Transducer Clamp-on  Ultrasonic Flow Meter<br />
Model: DUC-WF-21-0-10<br />
Brand: Kobold<br />
[DUC-WF]:<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range  -40..+150 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[21]: for tube diameter, DN10..DN100, 2 MHz<br />
[0]: Ex-approval¸ without<br />
[10]: Cable length, 10 m

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-H-234H-1-S-S-2-0 / UMF2-C-1-2-F-0BH-2</strong><br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit), <br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, <br />
Process-Temperature 0°C...95°C<br />
[234R]: Process connection, ANSI flanges 10" Class 300 RF ASME B16.5-2003<br />
Max. measuring range, 1786 m³/h, Installation length, 450 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2]: Transmitter mounting, Remote Transmitter, Protection class, sensor, IP 67 terminal conn.box via M 20 x 1,5, cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br />
UMF2-C-1-2-F-0BH-2<br />
[UMF2]:Transmitter<br />
[C]: Mounting IP 67, Remote transmitter. Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread - electrical connection, cable > 10m add. term.conn.box on transmitter ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz,<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[2]: Longer cable, 10m, breakout cable

Rotating Vane Flow Meter<br />
Brand: KOBOLD (Alemania)<br />
Model: DRG-18-25-G4-L442-Y<br />
[DRG-18]:<br />
Operating principle Rotating Vane<br />
Mounting position / flow direction in all directions/ in direction of the arrow<br />
Accuracy +/-3%<br />
Protection IP 65<br />
Max. temperature, 80 °C<br />
Max. pressure, 7 Bar<br />
Material of housing, PP<br />
Material housing cover, PP<br />
[25]: Measuring range, 5 - 90 L/min<br />
[G4]: Mech. connection, for range code: 15/20/25, G 1/2 female<br />
[L442]: Electronic, Analogue output 4-20 mA, DIN- plug, 2-wire<br />
[Y]: Special Calibration, 5 - 56 L/min

Coriolis Massflowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: TM-S-49-205R-0650-E-0-L-1-0-0-0 + UMC4-B-1-1-A-0-0-H<br />
[TM]:<br />
[S]: Wetted materials, Stainless steel<br />
[49]: Range, min. 0-2.000 kg/h - max. 0-20.000 kg/h, Meter line size, TM025<br />
[205R]: Process connection, 1½" Class 150 RF ASME B16.5-2003<br />
[0650]: Installation length, 650 mm<br />
[E]: Containment options, Standard sensor body (1.4301, SS304)<br />
[0]: Heating / cooling, without<br />
[L]: Flow direction, Left to right<br />
[1]: Sensor configuration, integral mount transmitter, Temperature Service Rating, -4°F to 212°F, -20°C to 100°C<br />
[0]: Approvals, without approval<br />
[0]: Certificate, without<br />
[0]: Supplementary equipment, without<br /><br />
UMC4-B-1-1-A-0-0-H<br />
[UMC4-B]: Mounting, integral mount, Conduit port opening, M20 x 1,5<br />
[1]: Display/ interface board, integral within transmitter housing, for ambient temperature up to 60°C<br />
[1]: Power supply, 90 – 265 VAC, 50/60Hz<br />
[A]: Outputs, Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none<br />
[0]: Type of protection (signal output), none<br />
[H]: Type, Heinrichs

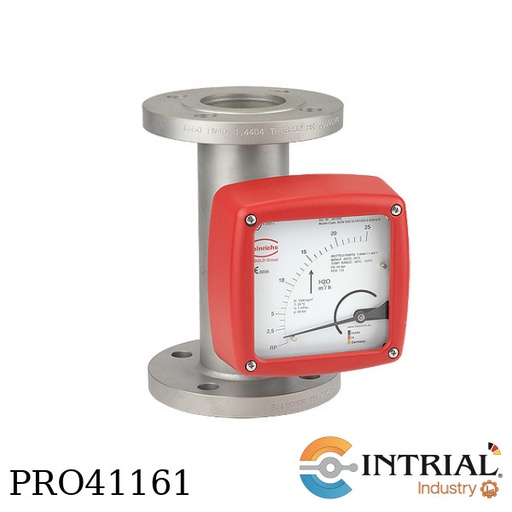

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Heinrichs (Alemania)<br />
Model: BGN-S25-309B-P-0-0-0-0-T-1-6-0-H</strong><br />
[BGN] Model <br />
[S25] Stainless Steel, process temperature ≤ 350°C <br />
[309B] Connection, size: DN25 PN40 Form B1 DIN EN 1092-1 <br />
[P] Range (water 20°C, 1 mPas) H2O, 250 - 2500 l/h <br />
[0] Heating/cooling, without heating / Cooling <br />
[0] Damping/spring stop, without<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[T] Display: <br />
Standard display housing with pressure compensation,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[1] Scale: %-Scale (Water) <br />
[6] Switches: Transmitter ES with HART-protocol, 4-20 mA, <br />
EEx ia , Ambient temperature. -40° to +70°C<br />
[0] Accessories: without<br />
[H] Design: Heinrichs

Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIK-6FC-65-A-E34R<br />
[MIK-6FC]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PVDF<br />
Electrodes Hastelloy<br />
Seal FFKM<br />
[65]: Measuring range (liquid >30 µS/cm), 16...320 L/min, G2 male<br />
[A]: Connection set, without<br />
[E34R]: Evaluation electronic for MIK, 4-20 mA, 24 VDC, plug connection

Calorimetric Flowswitch, Compact Version<br />
Brand: Kobold (Alemania)<br />
Model: KAL-K5-4-15-S-SK3<br />
[KAL-K5]:<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED and LED-chain<br />
max. temperature, 80 °C<br />
max. pressure, 100 bar<br />
Protection class, IP 65<br />
Connection thread, NPT<br />
[4]: Probe material, st.st. 1.4571<br />
Version, Standard<br />
[15]: Connection, 1/2" NPT<br />
[S]: Contact version, N/O<br />
[SK3]: Electron. connection/power supply,<br />
plug conn. M12; 2m cable NPN/PNP 24 VDC

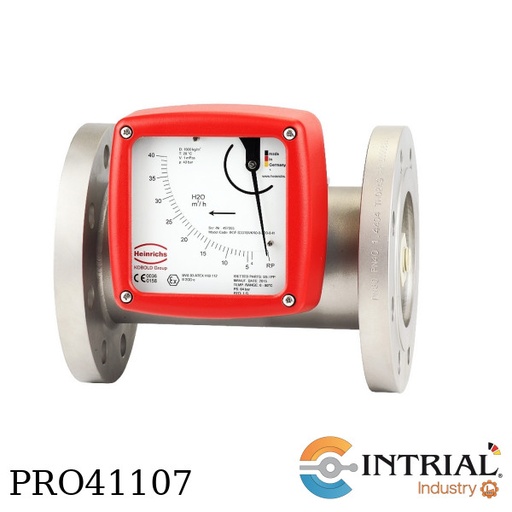

Full Metal Variable Area Flow Meter and Counter<br />
Flange ASME Class 150 RF<br />
Model: BGF-S-50206RS-P-L-0-0-S-2-0-0K<br />
Brand: Kobold - Alemania<br />
[BGF-S]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Material tube st. st.<br />
casing, PTFE<br />
Accuracy 2 % F.S<br />
Max. temperature 350 °C<br />
Max. pressure PN 40<br />
[50206RS]<br />
Measuring range water: 1000-10000 L/h<br />
Measuring range air: 29-290 m³N/h<br />
Nominal diameter: ASME 2"<br />
[P]: Magnet bearer, DN 50 PTFE (BGF-S to 150 °C) <br />
[L]: Flow direction, from left to right<br />
[0]: Heating/cooling, without<br />
[0]: Certificates, without certificate<br />
[S]: Display, Aluminium<br />
[2]: Display, Water measuring range<br />
[0]: Electrical output, without<br />
[0K]: Accessories, without

<strong>Full Metal Variable Area Flow Meter and Counter<br />
Flange ASME Class 150 RF<br />
Model: BGF-S-50206RU-P-L-0-0-S-2-0-0K<br />
Brand: Kobold-Alemania</strong><br />
[BGF-S]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Material tube st. st.<br />
casing, PTFE<br />
Accuracy 2 % F.S<br />
Max. temperature 350 °C<br />
Max. pressure PN 40<br />
[50206RU]<br />
Measuring range water: 2500-25000 L/h<br />
Measuring range air: 70-700 m³N/h<br />
Nominal diameter: ASME 2"<br />
[P]: Magnet bearer, DN 50 PTFE (BGF-S to 150 °C) <br />
[L]: Flow direction, from left to right<br />
[0]: Heating/cooling, without<br />
[0]: Certificates, without certificate<br />
[S]: Display, Aluminium<br />
[2]: Display, Water measuring range<br />
[0]: Electrical output, without<br />
[0K]: Accessories, without

EPS Electromagnetic Flow Meter<br />
Model: EPS-P-203R-1-H-0-1-0 + UMF2-A-1-4-F-0BH<br />
Brand: Kobold-Heinrich<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[203R]:Process connection, 1" Class 150 RF ASME B16.5-2003, (Water 20°C, 1 mPas)<br />
Max. measuring range 19,1 m³/h,<br />
Length Installation 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated Transmitter,<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br /><br />
UMF2-A-1-4-F-0BH<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard, Thread – electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24 VDC (±15%)<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

Sensor for KMT-3 (Remote) for KMT-316R1ZL1NQ4<br />
Brand: Kobold (Alemania)<br />
Model: ERS-KMT-S316K<br />
[ERS-KMT-S3]:<br />
Sensor for KMT-3... (remote)<br />
[16K]: for range 16:0,90-176 Nm³/h, tube DN 25 (1")<br />
According to S/N- 1628160004238E

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-206R-1-S-S-2-0<br />
Brand: Kobold - Heinrichs<br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature 0°C...95°C<br />
[206R]: Process Connection, 2" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 70 m³/h<br />
Installation length, 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2]: Transmitter mounting remote transmitter<br />
Protection class sensor, IP 67 terminal conn.box via M 20 x 1,5<br />
cable >10m add. junction box on Transmitter<br />
[0]: Certificates, without<br /><br />
UMF2-C-1-4-G-0BK-5<br />
[UMF2-C]: Mounting, remote transmitter<br />
Connection to sensor, incl. 2,5m cable and wall mounting bracket<br />
cable >10m c/w term.conn box on transmitter<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output,<br />
current output 1: 4 - 20mA with HART-protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold<br />
[5]: Extended cable length, 30m, add. Junction box on transmitter

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-208R-1-S-S-2-0<br />
Brand: Kobold - Heinrichs<br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit), <br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, <br />
Process-Temperature 0°C...95°C <br />
[208R]: Process Connection, 3" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 170 m³/h<br />
Installation length, 272 mm <br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2]: Transmitter mounting remote transmitter <br />
Protection class sensor, IP 67 terminal conn.box via M 20 x 1,5<br />
cable >10m add. junction box on Transmitter<br />
[0]: Certificates, without<br /><br />
UMF2-C-1-4-G-0BK-6<br />
[UMF2-C]: Mounting, remote transmitter <br />
Connection to sensor, incl. 2,5m cable and wall mounting bracket <br />
cable >10m c/w term.conn box on transmitter <br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output,<br />
current output 1: 4 - 20mA with HART-protocol <br />
pulse output: passive Um=24VDC <br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold<br />
[6]: Extended cable length, 40m, add. Junction box on transmitter

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-210R-1-S-S-1-0<br />
Brand: Kobold-Heinrich<br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature 0°C...95°C<br />
[210R] Process connection, ANSI flanges 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 274 m³/h, Installation length, 250 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, Integrated transmitter, Protection class, sensor, IP67,<br />
[0] Certificates, w/o<br /><br />
UMF2-A-1-4-G-0BK<br />
[UMF2]:Transmitter<br />
[A] Mounting IP 67, Integrated transmitter IP 67 standard.<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%),<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold

Oval Wheel Flowmeter DON<br />
Model: DON-2-30H-N8-3-M4-N-0<br />
Brand: Kobold ( Alemania)<br />
[DON-2]<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16…100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[30H]: Measuring range, 15-250 L/min<br />
[N8]: Mech. connection, 1 1/2" NPT<br />
[3]: Seal, FEP O-seal / EPDM-core for DON-x30<br />
[M4]: Electronic,mech. totaliser 4-digit<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Accessory, without

Oval Wheel Flowmeter DON<br />
Model: DON-2-30H-N8-3-Z3-N-0<br />
Brand: Kobold ( Alemania)<br />
[DON-2]<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16…100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[30H]: Measuring range, 15-250 L/min<br />
[N8]: Mech. connection, 1 1/2" NPT<br />
[3]: Seal, FEP O-seal / EPDM-core for DON-x30<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Accessory, without<br />
* Not include battery

Battery Powered Rate Meter and Totalizer for Water<br />
Model: EDM-8507-F<br />
Brand: Kobold USA<br />
Specifications:<br />
Accuracy: ±3% of reading<br />
Max. Pressure: 225 PSIG @ 73 °F<br />
Oper. Temp. Range: 32...140 ° F<br />
[EDM-8503]<br />
Range (Water): LPM 227...2271<br />
Fitting Size (NPT): 4 "<br />
dP at Max. Flow(PSI): 7.0<br />
[F] Fitting Style: 150# ANSI Flange<br />
* Option "F" is only available for 3" and 4" meters

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-31-08-R0-N20-0-B</strong><br />
[VKM-31]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass <br />
Seal NBR <br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar <br />
Viscosity range 1...540 mm²/s<br />
[08]: Measuring range, 5-20 L/min<br />
[R0]: Contact, 1 N/O<br />
[N20]: Connection, 3/4 NPT female<br />
[0]: Option special connection, w/o<br />
[B]: Flow direction, from bottom

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-S50-206R-S-P-L-0-0-S-2-0-0-K<br />
Brand: Kobold - Heinrichs</strong><br />
[BGF]: Model<br />
[S50]: Stainless Steel, process temperature ≤ 200°C<br />
[206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003<br />
[S]: Range (water 20°C, 1 mPas), H2O: 1000 - 10000 l/h<br />
[P]: Magnet bearer, 81 - 125 °C PTFE<br />
[L]: Flow direction, Left to right<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[0]: Switches, without, Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-S50-206R-U-P-L-0-0-S-2-0-0-K<br />
Brand: Kobold - Heinrichs</strong><br />
[BGF]: Model<br />
[S50]: Stainless Steel, process temperature ≤ 200°C <br />
[206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003 <br />
[U]: Range (water 20°C, 1 mPas), H2O: 2500 - 25000l /h<br />
[P]: Magnet bearer, 81 - 125 °C PTFE<br />
[L]: Flow direction, Left to right<br />
[0]: Heating / cooling, without Heating / Cooling <br />
[0]: Certificates, without <br />
[S]: Display, <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water) <br />
[0]: Switches, without, Ambient temperature, -40° to +80°C <br />
[0]: Accessories, without <br />
[K]: Design, Kobold
