EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[212R]:Process connection, 6" Class 150 RF ASME B16.5-2003  <br />
Max. measuring range 632 m³/h,<br />
length, Installation 300 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5, cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br />
UMF2-C-1-1-F-0BH-2<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket, cable > 10m add. term.conn.box on transmitter<br />
½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
status output: passive Um=24 VDC<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[2]: Longer cable, 10m., breakout cable

EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-362B-1-H-0-3-0+UMF2-G-1-4-G-0BH-D<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[362B]:Process connection, DN300 PN10 Form B1 DIN EN 1092-1  <br />
Max. measuring range 2560 m³/h,<br />
length, Installation 500 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[3]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 68 terminal conn.box via M 20 x 1,5, encapsulated<br />
add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br />
UMF2-G-1-4-G-0BH-D<br />
[UMF2]:Transmitter<br />
[G]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket, Transmitter c/w term.conn.box,<br />
½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll,<br />
pulse output: passive Um=24 VDC.<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[D]: Longer cable, 15m., add junction box to transmitter

EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-H-350B-1-S-S-2-0+UMF2-C-1-4-G-0BH-3<br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[350B]: Process connection, DN200 PN16 Form B1 DIN EN 1092-1, Max. measuring range, 1110 m³/h, Installation length, 350 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2]: Transmitter mounting, Remote Transmitter<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5<br />
Cable > 10m add. term.conn.box on transmitter<br />
[0]: Certificates, w/o<br /><br />
UMF2-C-1-4-G-0BH-3<br />
[UMF2]: Transmitter<br />
[C]: Mounting, <br />
Remote transmitter<br />
Connection to sensor incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread-electrical connection cable > 10m add. term.conn.box on transmitter ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%) <br />
[G]: Output Signal: <br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs <br />
[3]: Longer cable 15m, add junction box to transmitter

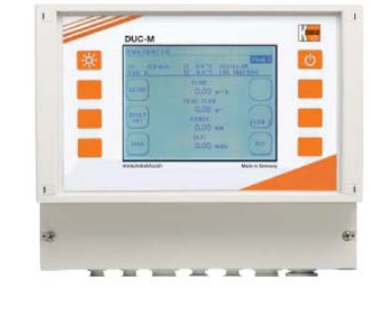

Transmitter Clamp-on Ultrasonic Flow Meter
Brand: Kobold (Alemania)
Model: DUC-MF-2-0-0-D-R4
[DUC-MF]:
Operating principle: Ultrasonic
Mounting position: stationary, wallmount
Measuring units: volume flow, flow velocity, thermal output
Counter: heat quantity, volume
Housing: ABS
Additional input for heat measuring: 2x Pt100
Output: 2x4-20 mA, 1(2) pulse, 1x micro-USB,
1 relay; optional RS232/RS485
Measuring channels: 1, optional 2 channels
Protection: IP 65
[2] Measuring channels: 2 channel
[0] Power supply: 90-240 VAC
[0] Ex-approval: without
[D] Language packages: english/german/french
[R4] Options: RS 485

Transmitter Clamp-on  Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-MF-1-0-0-D-R4<br /><br />
[DUC-MF]:<br />
Operating principle: Ultrasonic<br />
Mounting position: stationary, wallmount<br />
Measuring units: volume flow, flow velocity, thermal output<br />
Counter: heat quantity, volume<br />
Housing: ABS<br />
Additional input for heat measuring: 2x Pt100<br />
Output: 2x4-20 mA, 1(2) pulse, 1x micro-USB,<br />
1 relay; optional RS232/RS485<br />
Measuring channels: 1, optional 2 channels<br />
Protection: IP 65<br />
[1] Measuring channels: 1 channel<br />
[0] Power supply: 90-240 VAC<br />
[0] Ex-approval: without<br />
[D] Language packages: english/german/french<br />
[R4] Options: RS 485

All-Metal Flowmeter - Switch<br />
Brand: Kobold<br />
Model: SMW-12-13H-L-R0-R20<br />
[SMW-12]:<br />
Operating principle variable area<br />
Mounting position horizontal<br />
Flow direction s. below<br />
Body material St.St.<br />
Seal FPM<br />
Switch point adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 350 bar<br />
[13H]: Adjustment range, 10...120 L/min water<br />
[L]: Flow direction, from left<br />
[R0]: Contact, 1 N/O<br />
[R20]: Connection, G 3/4 female<br />
*for >=90 L/min water

<div>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-203R-1-H-0-2-0<br />
Brand: Kobold-Heinrich<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[203R]:Process connection, 1" Class 150 RF ASME B16.5-2003, (Water 20°C, 1 mPas)<br />
Max. measuring range 19,1 m³/h,<br />
length, Installation200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5,<br />
cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o</div>

<div>UMF2-C-1-1-F-0BH-2<br />
[UMF2]:Transmitter<br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket, Thread - electrical connection,<br />
cable > 10m add. term.conn.box on transmitter ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[2]: Longer cable, 10m., breakout cable</div>

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-05G-N1-1-Z3-N-0<br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure:<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[05G]: Measuring range, 0.13-9.51 GPH<br />
[N1]: Mech. connection, for meas. range 05G - 1/8 NPT<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue, incl. battery<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

All-Metal Flowmeter - Switch<br />
Brand: Kobold<br />
Model: SMW-11-13H-L-R0-R20<br />
[SMW-11]:<br />
Operating principle variable area<br />
Mounting position horizontal<br />
Flow direction s. below<br />
Body material Brass<br />
Seal NBR<br />
Switch point adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
[13H]: Adjustment range, 10...120 L/min water<br />
[L]: Flow direction, from left<br />
[R0]: Contact, 1 N/O<br />
[R20]: Connection, G 3/4 female<br />
*for >=90 L/min water

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-206R-1-H-0-1-0<br />
Brand: Kobold-Heinrich</strong><br />
[EPS]: Sensor<br />
[P]: Material Lining, PTFE, Electrodes, Standard 2x Measuring Electrodes, <br />
Process-Temperature, -20°C...150°C<br />
[206R]:Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter <br />
Protection class, sensor IP 67 <br />
[0]:Certificates, w/o<br /><br /><strong>UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter</strong><br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br /><br />
Include:<br />
Earthing ring-EPS<br />
Brand: Heinrichs<br />
Model: EPS-Ring-2<br />
Grounding Ring Set (2pc)

<div>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-206R-1-H-0-1-0<br />
Brand: Kobold-Heinrich<br />
[EPS]: Sensor<br />
[P]: Material Lining, PTFE, Electrodes, Standard 2x Measuring Electrodes,<br />
Process-Temperature, -20°C...150°C<br />
[206R]:Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o</div>

<div>UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold</div>

Positive Displacement Flowmeter<br />
Brand: Kobold (USA)<br />
Model: ZDM-4-2-40-C<br />
[ZDM4]:<br />
Viscosities up to 100,000 cSt<br />
Accuracy: ±0.3% of Flow<br />
Fitting Orientation, Type, Side Ports, NPT<br />
Max. Pressure:: 4500 PSIG ( 310 BAR)<br />
Máx. Temperature: : -40…410 °F ( 210 °C)<br />
[2]: Body Material, Stainless Steel<br />
[40]: Range Oil (GPM)**  0.2642...66.00<br />
[C]: Temps>248°F up to 410°F, SS Meters Only

Paddle Wheel Flow Sensor<br />
Model: DRH-1990-N3-F300<br />
Brand: Kobold (USA)<br />
[DRH-1990-N3]<br />
Specifications<br />
Housing; PVDF<br />
Accuracy: ±2.5% of Full Scale<br />
Max. Temperature 176 °F<br />
Max. Pressure, 230 PSIG<br />
Frequency: PNP, 25 mA max.14-28 VDC<br />
Flow Range (GPM): 0.26...6.8<br />
Fitting (NPT) 3/8"<br />
[F300]:<br />
Frequency Output<br />
Power Supply: 12-28 VDC<br />
Power Consumption: 10 mA<br />
Pulse Output:PNP, Open Collector, Max. 25 mA<br />
Electrical Connection: Plug Connector M12 x 1<br /><br />
Include:<br />
Accessories:<br />
[807.037]: (Cable: M12 4-PIN, 6 Feet)

<strong>Flowindicator for Horizontal Mounting DKB<br />
Model: DKB-21-03H-R-10<br />
Brand: Kobold (Alemania)</strong><br />
[DKB]: <br />
Operating principle, Ball<br />
Mounting position, horizontal<br />
Flow direction, in direction of the arrow<br />
Housing material, brass<br />
max. temperature, 120 °C <br />
max. pressure, 6 bar <br />
[21]: Material (rotating vane or ball), PTFE <br />
[03H]: Nom. diameter/ind. Range, 3/8" 0,06...45 L/min water<br />
[R]: Thread, G-thread female<br />
[10]: Connection*: 3/8"

Full Metal Variable Area Flow Meter and Counter<br />
Model: BGN-S-15203RF-0-0-0-0-S-5-0-0K<br />
Brand: Kobold <br />
[BGN-S]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom to the top<br />
Material tube st. st.<br />
Accuracy 1,6% F.S<br />
Max. temperature 350 °C<br />
Max. pressure Class 150<br />
[15203RF]<br />
Measuring range: 16.67 - 500.00cm3/min<br />
Nominal diameter: 1" Class 150 RF ASME<br />
[0]: Heating / cooling, without<br />
[0]: Damping / spring stop, without<br />
[0]:Draining body, without<br />
[0]: Certificates, without <br />
[S]: Display, Aluminium<br />
[5]: Display, Media measuring range<br />
[0]: Electrical output, without<br />
[0K]: Accessories, without

Rotating Vane Flow Meter<br />
Model: DPM-1-5-20-N2-C34N<br />
Marca: Kobold<br />
[DPM-1]:<br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature ,80 °C<br />
max. pressure, 16 bar<br />
Accuracy, +/-1,0 (2,5)%<br />
Protection, IP 65<br />
[5]: Material, st. st.<br />
[20]: Measuring range, 0,05-2,0 L/min<br />
[N2]: Mech. connection, 1/4 NPT female<br />
[C34N]: Evaluating Electronic,<br />
Compact electronics, 4-20mA, 1x NPN

Screw-Type Spindle Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: OMH-50F50-2F-45<br />
Operating principle : Screw spindle<br />
Mounting position : horizontal / vertical<br />
Flow direction : in direction of the arrow<br />
Material : cast iron<br />
Accuracy : +-0,3% of MV<br />
Viscosity range (pay attention on pressure loss!) : 1...5000 mm²/s<br />
[50F50]: Measuring range / connection ,7...700 L/min / flange DN 50<br />
[2F]: Pressure rating (only for flanges), PN 250<br />
[45]: Pick-up/ temp./ pressure , Magnetic PNP / 250 °C / 420 bar

Screw-Type Spindle Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: OMG-50F50-16-45<br />
Operating principle : Screw spindle<br />
Mounting position : horizontal / vertical<br />
Flow direction : in direction of the arrow<br />
Material :cast iron <br />
Accuracy : +-0,3% of MV<br />
Viscosity range (pay attention on pressure loss!) : 1...5000 mm²/s<br />
[50F50]: Measuring range / connection ,7...700 L/min / flange DN 50 <br />
[16]: Pressure rating (only for flanges), PN 16 <br />
[45]: Pick-up/ temp./ pressure , Magnetic PNP / 250 °C / 420 bar

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S40-205R-P-0-0-0-0-S-5-0-0-H</strong><br />
[BGN]: <br />
[S40]: Model, Stainless Steel, process temperature ≤ 350°C <br />
[205R]: Connection, 1½" 150 lbs RF ASME B16.5-2003<br />
[P]: Range (water 20°C, 1 mPas), 8.57-85.68 Sm3/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Air)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-P1H-210R-W-0-0-0-0-S-5-0-0-H</strong><br />
[BGN]: <br />
[P1H]: Model, Stainless Steel, Wetted Parts PTFE, <br />
process temperature  ≤ 125°C, process pressure max. 16 bar<br />
[210R]: Connection, 4" Class 150 RF ASME B16.5-2003<br />
[W]: Range (water 20°C, 1 mPas), 191.41-1914.14 Sm3/h<br />
[0]: Heating/cooling, without heating/Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Nitrogen)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs
