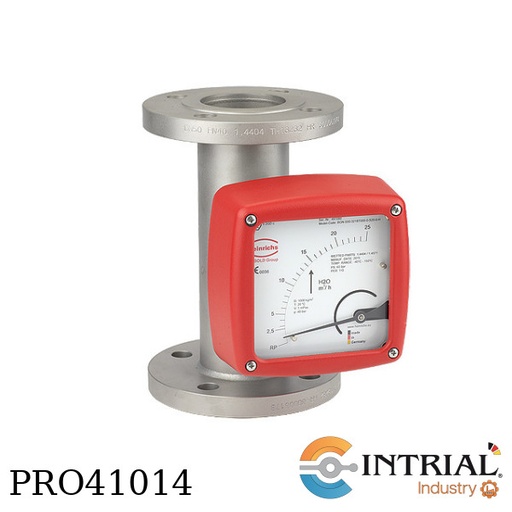

All-Metal Variable Area Flowmeter BGN, Range (water 20°C, 1 mPas), 1-10 m3/h <strong>All-Metal Variable Area Flowmeter BGN<br /> Brand: Kobold – Heinrichs (Alemania)<br /> Model: BGN-S50-206R-S-0-0-0-0-S-2-6-0-H</strong><br /> [BGN]: <br /> [S50]: Model, Stainless Steel, process temperature ≤ 350°C <br /> [206R]: Connection, size 2" Class 150 RF ASME B16.5-2003 <br /> [S]: Range (water 20°C, 1 mPas), 1-10 m3/h<br /> [0]: Heating/cooling, without heating / Cooling<br /> [0]: Damping/spring stop, without<br /> [0]: Self-draining, without<br /> [0]: Certificates, without <br /> [S]: Display,<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [2]: Scale, Measuring range-Scale (Water)<br /> [6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br /> Ambient temperature, -40° to +70°C<br /> [0]: Accessories, without<br /> [H]: Design, Heinrichs S/ 6,429.78 6429.78 PEN	Electromagnetic Flow Meter-EPS,pulse output: passive Um=24 VDC Display and control unit, integrated EPS Electromagnetic Flow Meter<br /> Brand: Heinrich (Alemania)<br /> Model: EPS-H-208R-2-H-S-2-0+UMF2-C-1-2-G-0BH+2<br /> [EPS-H]: Sensor<br /> Material Lining, Hard Rubber (Ebonit)<br /> Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br /> [208R]: Process connection, 3" Class 150 RF ASME B16.5-2003 <br /> Max. measuring range, 170 m³/h, Installation length, 272 mm.<br /> [2]: Material Process connection, Flange st.st. 1.4301 (DN2…10 in 1.4404)<br /> [H]: Material electrodes, Hastelloy C276<br /> [S]: Earthing electrode, st.st. 1.4571 (316 TI)<br /> [2]: Transmitter mounting, Remote Transmitter<br /> Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5<br /> Cable > 10m add. term.conn.box on transmitter<br /> [0]: Certificates, w/o<br /><br /> [UMF2]:Transmitter<br /> [C]: Mounting, <br /> Remote transmitter<br /> Connection to sensor incl 2,5 m cable, c/w pipe-/wall mounting bracket<br /> Thread-electrical connection cable > 10m add. term.conn.box on transmitter ½" NPT (f)<br /> [1]: Display and control unit, integrated<br /> [2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br /> [G]: Output Signal:<br /> current output: 1x 0/4-20 mA c/w HART protocoll<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BH]: Design, Heinrichs<br /> [2]: Longer cable 10m, breakout cable S/ 9,345.78 9345.78 PEN	All-Metal Variable Area Flowmeter BGN, Range: H2O: 5 - 50 l/h <strong>All-Metal Variable Area Flowmeter BGN<br /> Model: BGN-S15-203R-F-0-0-0-0-S-5-0-0-K<br /> Brand: Kobold – Heinrichs</strong><br /> [BGN]: Model<br /> [S15]: Model, Stainless Steel, process temperature ≤ 350°C<br /> [203R]: Connection, size, 1" Class 150 RF ASME B16.5-2003 <br /> [F]: Range (water 20°C, 1 mPas): H2O: 5 - 50 l/h<br /> [0]: Heating/cooling, without heating / Cooling<br /> [0]: Damping/spring stop, without<br /> [0]: Self-draining, without<br /> [0]: Certificates, without <br /> [S]: Display,<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [5]: Scale, Measuring range-Scale (Media)<br /> [0]: Switches, without, Ambient temperature, -40° to +70°C<br /> [0]: Accessories, without<br /> [K]: Design, Kobold S/ 2,977.97 2977.9700000000003 PEN	Paddle Wheel Flow Sensor-DRH , Mech. Connection, for range code:40 3/8 NPT fem , max. temperature: 8 Paddle Wheel Flow Sensor DRH<br /> Model: DRH-19-40-N3-F300<br /> Brand: Kobold (Alemania)<br /> [DRH-19]:<br /> Operating principle Rotating Vane<br /> Mounting position / flow direction in all directions/ in direction of the arrow<br /> Accuracy +/-2,5%<br /> Protection IP 65 <br /> max. temperature: 80°C <br /> max. pressure: 16 bar<br /> Material of housing: PVDF<br /> Material housing cover: PVDF<br /> [40]: Material housing cover, 1-26 L/min<br /> [N3]: Mech. Connection, for range code:40 3/8 NPT fem.<br /> [F300]: Frequency output, plug M12x1<br /><br /> Accessories round plug<br /> Model: ZUB-KAB-12-K002<br /> Brand: Kobold <br /> [ZUB-KAB-12]: <br /> [K002]: Frequency output, plug M12x1. S/ 1,625.67 1625.67 PEN
Caudalímetro de paletas de bajo volumen (0,5-7,0 L/min; 1/4 NPT) <strong>Low Volume Vane Flowmeter DTK<br /> Brand: Kobold - Alemania<br /> Model: DTK-12-35-N2-F300 </strong><br /> [DKT-12]<br /> Operating principle :Rotating vane<br /> Mounting position :horizontal<br /> Flow direction : in direction of the arrow<br /> Material :st. st.<br /> max. temperature :80 °C (140 °C)<br /> max. pressure :30 bar<br /> Accuracy :+-2% v. EW,+-5% v. EW OEM<br /> 140 °C with connection: Silicone cable<br /> [35]: Measuring range (water), 0,5-7,0 L/min<br /> [N2]:Connection ,1/4 NPT <br /> [F300]:Evaluating Electronic,Frequency output, PNP, plug M12x1<br /><br /><strong>Accessories round plug<br /> Model: ZUB-KAB-12-K002<br /> Brand: Kobold </strong><br /> [ZUB-KAB-12]: <br /> [K002]: Frequency output, plug M12x1. S/ 1,603.80 1603.8 PEN	Pelton Wheel Flow Meter Pelton Wheel Flow Meter<br /> Model: DPE-11-20-G8-F300<br /> Brand: Kobold<br /> [DPE-11]:<br /> Operating principle, Pelton Wheel (6-vane)<br /> Mounting position / flow direction, in all directions/ in direction of the arrow<br /> Protection, IP65<br /> Max. Temperatura, 80°C<br /> Max. Pressure, PN 40 (DPE-1200W: 16 bar)<br /> Accuracy of final value, +/-2,5%<br /> Material Housing, Brass casting<br /> Material Axis, Hard metal<br /> [20]: Measuring range, 25-250 L/min<br /> [G8]: Mech. Connection, for MR-Code: 20 G 1 1/2 female<br /> [F300]: Electronic, Frequency output, plug M12x1 S/ 1,928.21 1928.21 PEN	Oval Gear Flow Meter/Counter Oval Wheel Flowmeter Model DON<br /> Brand: Kobold (Alemania)<br /> Model: DON-2-25H-A6-3-Z9-N-0(FQI-013)<br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [25H]: Measuring range, 10-150 L/min <br /> [A6]: Mech. connection for meas. range 25H, ANSI flange 1" 150 lbs <br /> [3]: Seal,FEP O-seal / EPDM-core for DON-x25 <br /> [Z9]: Electronic,Z3 + D0 <br /> [N]: Cable entry, 1/2 NPT <br /> [0]: Options, without S/ 8,795.39 8795.39 PEN	Medidor/contador de flujo de engranajes ovalados (10-150 L/min ) <strong>Oval Wheel Flowmeter Model DON<br /> Brand: Kobold (Alemania)<br /> Model: DON-2-25H-A6-3-Z9-N-Y</strong><br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [25H]: Measuring range, 10-150 L/min <br /> [A6]: Mech. connection for meas. range 25H, ANSI flange 1" 150 lbs <br /> [3]: Seal,FEP O-seal / EPDM-core for DON-x25 <br /> [Z9]: Electronic,Z3 + D0 <br /> [N]: Cable entry, 1/2 NPT <br /> [Y]: Options, Special gear wheels for viscosity > 1000 cP for range 25H S/ 9,185.40 9185.4 PEN
Oval Gear Flow Meter/Counter, 10 A 150 L/MIN, 1 Pulg, SS Brand: Kobold (Alemania)<br /> Model: DON-2-25H-A6-3-Z9-N-0(FQI-016)<br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [25H]: Measuring range, 10-150 L/min <br /> [A6]: Mech. connection for meas. range 25H, ANSI flange 1" 150 lbs <br /> [3]: Seal,FEP O-seal / EPDM-core for DON-x25 <br /> [Z9]: Electronic,Z3 + D0 <br /> [N]: Cable entry, 1/2 NPT <br /> [0]: Options, without S/ 8,795.39 8795.39 PEN	Oval Gear Flow Meter/Counter, Measuring range, 10-150 L/min Oval Wheel Flowmeter Model DON<br /> Brand: Kobold (Alemania)<br /> Model: DON-2-25H-A6-3-Z9-N-0(FQI-015)<br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [25H]: Measuring range, 10-150 L/min<br /> [A6]: Mech. connection for meas. range 25H, ANSI flange 1" 150 lbs <br /> [3]Seal, FEP O-seal / EPDM-core for DON-x25<br /> [Z9]: Electronic,Z3 + D0<br /> [N]: Cable entry, 1/2 NPT<br /> [0]: Options, without S/ 8,795.39 8795.39 PEN	Oval Gear Flow Meter/Counter, Measuring range, 10-150 L/min, connection for meas. range 25H, ANSI f Oval Wheel Flowmeter Model DON<br /> Brand: Kobold (Alemania)<br /> Model: DON-2-25H-A6-3-Z9-N-0<br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [25H]: Measuring range, 10-150 L/min<br /> [A6]: Mech. connection for meas. range 25H, ANSI flange 1" 150 lbs <br /> [3]:Seal, FEP O-seal / EPDM-core for DON-x25<br /> [Z9]: Electronic,Z3 + D0<br /> [N]: Cable entry, 1/2 NPT<br /> [0]: Options, without S/ 8,795.39 8795.39 PEN	Oval Gear Flow Meter/Counter Oval Wheel Flowmeter Model DON<br /> Brand: Kobold (Alemania)<br /> Model: DON-2-45H-AB-3-Z9-N-0(FQI-005)<br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [45H]: Measuring range, 35-750 L/min <br /> [AB]: Mech. connection for meas. range 45H and 50H, ANSI flange 3" 150 lbs <br /> [3]: Seal,FEP O-seal / EPDM-core for DON-x45 <br /> [Z9]: Electronic,Z3 + D0 <br /> [N]: Cable entry, 1/2 NPT <br /> [0]: Options, without S/ 27,078.71 27078.71 PEN
Medidor/contador de flujo de engranajes ovalados (35-750 L/min) <strong>Oval Wheel Flowmeter Model DON<br /> Brand: Kobold (Alemania)<br /> Model: DON-2-45H-AB-3-Z9-N-0(FQI-004)</strong><br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [45H]: Measuring range, 35-750 L/min <br /> [AB]: Mech. connection for meas. range 45H and 50H, ANSI flange 3" 150 lbs <br /> [3]: Seal,FEP O-seal / EPDM-core for DON-x45 <br /> [Z9]: Electronic,Z3 + D0 <br /> [N]: Cable entry, 1/2 NPT <br /> [0]: Options, without S/ 27,078.71 27078.71 PEN	Oval Gear Flow Meter/Counter, 35 A 750 L/MIN, 3 Pulg, SS Brand: Kobold (Alemania)<br /> Model: DON-2-45H-AB-3-Z9-N-0(FQI-003)<br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [45H]: Measuring range, 35-750 L/min <br /> [AB]: Mech. connection for meas. range 45H and 50H, ANSI flange 3" 150 lbs <br /> [3]: Seal,FEP O-seal / EPDM-core for DON-x45 <br /> [Z9]: Electronic,Z3 + D0 <br /> [N]: Cable entry, 1/2 NPT <br /> [0]: Options, without S/ 27,078.71 27078.71 PEN	Oval Gear Flow Meter/Counter Oval Wheel Flowmeter Model DON<br /> Brand: Kobold (Alemania)<br /> Model: DON-2-45H-AB-3-Z9-N-0<br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [45H]: Measuring range, 35-750 L/min<br /> [AB]: Mech. connection for meas. range 45H and 50H, ANSI flange 3" 150 lbs<br /> [3]: Seal,FEP O-seal / EPDM-core for DON-x45 <br /> [Z9]: Electronic,Z3 + D0<br /> [N]: Cable entry, 1/2 NPT<br /> [0]: Options, without S/ 27,078.71 27078.71 PEN	Oval Gear Flow Meter/Counter, Measuring range, 75-1500 L/min Oval Wheel Flowmeter Model DON<br /> Brand: Kobold (Alemania)<br /> Model: DON-2-55H-AC-3-Z9-N-0<br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [55H]: Measuring range, 75-1500 L/min<br /> [AC]: Mech. connection for meas. range 55H and 60H, ANSI flange 4" 150 lbs<br /> [3]: Seal,FEP O-seal / EPDM-core for DON-x55<br /> [Z9]: Electronic,Z3 + D0<br /> [N]: Cable entry, 1/2 NPT<br /> [0]: Options, without S/ 37,893.42 37893.42 PEN
Caudalímetro de paletas de bajo volumen (0.3-3.5 L/min) <strong>Low Volume Vane Flowmeter<br /> Brand: Kobold (Alemania)<br /> Model: DTK-12-25-N2-L343</strong><br /> [DTK-12]<br /> Operating principle: Rotating vane<br /> Mounting position: horizontal<br /> Flow direction: in direction of the arrow<br /> Material: st. st.<br /> max. temperature: 80 °C (140 °C)*<br /> max. pressure: 30 bar<br /> Accuracy: +-2% v. EW,+-5% v. EW OEM<br /> [25]:Measuring range (water), 0,3-3,5 L/min <br /> [N2]:Connection, 1/4 NPT <br /> [L343]:Evaluating Electronic, <br /> Analogue output 4-20mA, M12x1, 3-wire <br /><br /><strong>Include:<br /> Accessories round plug<br /> Model: ZUB-KAB-12-K002</strong><br /> [K002]: M12x1 socket with 2 m cable, 4 pins S/ 1,866.24 1866.24 PEN	OEM flowmeter with switch-BVO, Range (GPM Water): 0.2 - 2.0, Fittings (NPT): ¼", Measuring Tube: Bor OEM flowmeter with switch BVO<br /> Brand: Kobold (USA)<br /> Model: BVO-6106<br /><br /> [BVO-6106]:<br /> Model: Brass<br /> Electrical Protection: IP65<br /> Range (GPM Water): 0.2 - 2.0<br /> Fittings (NPT): ¼"<br /> Pressure Loss at Max Flow (PSIG): 1.4<br /> Measuring Tube: Borosilicate Glass S/ 834.71 834.71 PEN	Medidor de flujo electromagnético <strong>EPS Electromagnetic Flow Meter<br /> Brand: Heinrichs (Alemania)<br /> Model: EPS-A-7040-G-N-0-1-0 / UMF2-A-1-1-G-0BH</strong><br /> [EPS-A]: Sensor<br /> Material Lining Ceramics, Standard 2x Measuring Electrodes<br /> Process Temperature, -20°C…+150°C<br /> [7040]: Process connection, DN65 Tri-Clamp-Connection <br /> Ceramics / Platinum, Max. measuring range, 117 m3/h, <br /> Installation length, 221 mm.<br /> [G]: Material Process connection, 316L(1.4404)/EPDM-gasket<br /> [N]: Material electrodes, Platinum / Iridium<br /> [0]: Earthing electrode, w/o<br /> [1]: Transmitter mounting, Integrated transmitter<br /> Protection class, sensor IP 67<br /> [0]: Certificates, w/o<br /><br /><strong>[UMF2]:Transmitter</strong><br /> [A]: Mounting, Integrated transmitter IP 67 standard<br /> Thread - electrical connection, ½" NPT (f).<br /> [1]: Display and control unit, integrated<br /> [1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br /> [G]: Output Signal:<br /> current output: 1x 0/4-20 mA c/w HART protocol<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BH]: Design, Heinrichs S/ 9,046.89 9046.89 PEN	Oval Gear Flow Meter-Counter-DON, 50 A 580 L/MIN, G2 <strong>Oval Gear Flow Meter-Counter<br /> Model: DON-1-40H-N9-4-Z3-N-0<br /> Brand: Kobold (Alemania)</strong><br /> [DON-1]<br /> Operating principle, Gear Wheel<br /> Mounting position, horizontal / vertical<br /> Flow direction, in direction of the arrow<br /> max. temperature, 80°C<br /> max. pressure, 16...64 bar<br /> Accuracy, ±0,2 % …1 % of reading<br /> Housing material, Aluminium<br /> Rotor material, PPS<br /> [40H] Measuring range, 50-580 L/min<br /> [N9] Mech. connection, 2 NPT<br /> [4] Seal, NBR<br /> [Z3] Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br /> [N] Cable entry, 1/2 NPT<br /> [0] Options, without S/ 6,980.18 6980.18 PEN
