Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-37H-M4-0<br /><br />
[URM-33]:<br />
Mounting position vertical, flow direction from bottom<br />
Accuracy Class 4<br />
Max. temperature 65 °C<br />
Max. pressure<br />
Material: connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[37H]: Range Full Scale*, 1000 L/h, * range factor 1:10<br />
[M4]: Connection, ½” NPT female<br />
[0]: Contacts, w/o

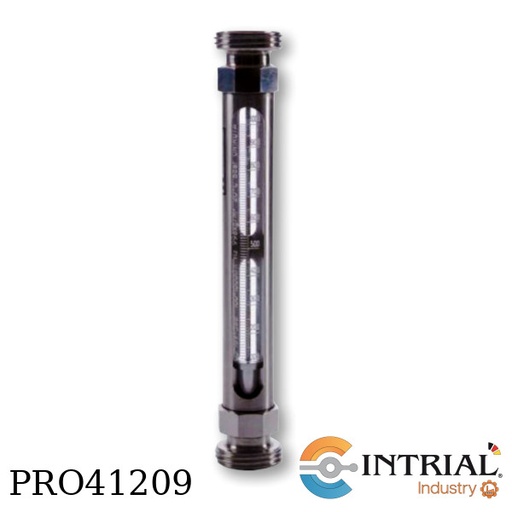

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-57H-M8-0</strong><br />
[URM-33]:<br />
Mounting position vertical, flow direction from bottom<br />
Accuracy Class 4<br />
Max. temperature 65 °C<br />
Max. pressure, 6 bar...16 bar depend see data sheet<br />
Material: connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[57H]: Range Full Scale, 1000...10 000 L/h<br />
[M8]: Connection, 1 ½” NPT female<br />
[0]: Contacts, w/o

<div>EPS Electromagnetic Flow Meter<br />
Model: EPS-W-210R-1-H-H-1-0 + UMF2-A-1-1-G-0BK<br />
Brand: Kobold-Heinrich<br />
[EPS]:Sensor<br />
[W]: Material Lining, Soft Rubber<br />
Electrodes,  Standard 2x Measuring- + 2x Groundelectrodes, 0°C...70°C<br />
[210R]:Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range, 274 m³/h, 250 mm<br />
[1]: Material Process connection,Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o</div>

<div>[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold</div>

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-05HG4-C3T-0+ZUB-KAB-12-K002</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature (medium): -20°C..+60°C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part / sealing, st. steel 1.4404 / PEEK / FKM<br />
[05HG4]: Measuring range (flow/temperature), 0,04…10 l/min G ½ male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totalizer.<br />
[0]: Options, without<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania) <br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

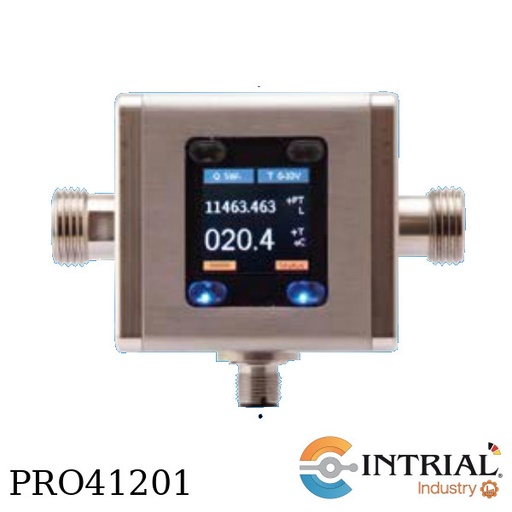

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-20HG6-C3T-0 </strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display: <br />
TFT-display, 128 x 128 color pixel, <br />
1,4", rotatable in 90° steps, <br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[20HG6]: Measuring range (flow/temperature), 0,4...100 L/min. / [°C] G 1 male<br />
[C3T]: Evaluation electronic: <br />
Analogue output: 0(4)-20 mA, 0-10 V, <br />
Switching output NPN, PNP, PushPull, <br />
Frequency output, pulse output, <br />
Part- or grand totaliser.<br />
[0]: Options, without<br /><br /><strong>Accessories round plug<br />
Brand: Kobold (Alemania)  <br />
Model: ZUB-KAB-12-K002</strong><br />
M12x1 box 2 m cable, 4-pin

EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model:  EPS-E-201R-1-H-H-1-0 + UMF2-A-1-1-G-0BK<br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[201R]: Process connection, ½ "Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 6,6 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br />
<br />
[UMF2]:Transmitter<br />
[A]: Mounting,<br />
Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-12-11-R0-R25-0-L</strong><br />
[VKM-12]:<br />
Operating principle: variable area<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Body material: St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 350 Bar<br />
Viscosity range: 1...540 mm²/s<br />
[11]: Measuring range, 7...70 L/min oil<br />
[R0]: Contact, 1 N/O<br />
[R25]: Connection, G1 female <br />
[0]: Option special connection, w/o<br />
[L]: Flow direction, from left

Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania).<br />
Model: DRB-11-25-N9-L343<br />
[DRB-11]<br />
Operating principle, Pelton Wheel (4-vane).<br />
Mounting position / flow direction, in all directions/ in direction of the arrow.<br />
Protection, IP 65.<br />
Max. Temperature, 80 °C.<br />
Max. Pressure, 16 bar.<br />
Accuracy of final value, +/-3%.<br />
Material Housing, Brass casting.<br />
Material Axis, Hard metal.<br />
[25]: Measuring range, 30-350 L/min<br />
[N9]: Mech. connection, 2 NPT female<br />
[L343]:Electronic, Analogue output 4-20 mA, M12x1, 3-wire

<div>Compound model:<br />
DUC-MP-1-0-0-S-00+DUC-WP-10-0-10+DUC-WP-05-0-10+DUC-ZF-MS</div>

<div>Transmitter Clamp-on Ultrasonic Flow Meter<br />
Model: DUC-MP-1-0-0-S-00<br />
Brand: Kobold<br />
[DUC-MP]:<br />
Operating principle Ultrasonic<br />
Mounting version portable<br />
Measuring units volume flow, flow velocity, thermal output<br />
Counter heat quantity, volume<br />
Housing Aluminium, ABS<br />
Additional input for heat measuring 2x Pt100<br />
Output 2x4-20 mA, 1 pulse, 1x microUSB, 1 relay<br />
Measuring channels 1<br />
Protection IP 40<br />
Included Accessories Case<br />
[1]: Measuring channels, 1-channel<br />
[0]: Power supply, 100-240 VAC, battery<br />
[0]: Ex-approval, without<br />
[S]: Language packages, german/spanish/french<br />
[00]: Options, without</div>

<div>Include 1:<br />
DUC-WP-10-0-10<br />
Transducer Clamp-on Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-WP-10-0-10<br />
[DUC-WP]:<br />
Application area for portable<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+100 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling gel,<br />
textile tightening straps (DUC-WP05) or clambing chain (DUC-WP-10, -WP21)<br />
[10]: for tube diameter, DN32..DN400, 1 MHz<br />
[0]: Ex-approval, without<br />
[10]: Cable length, 10 m</div>

<div>Include 2:<br />
DUC-WP-05-0-10<br />
Transducer Clamp-on Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-WP-05-0-10<br />
[DUC-WP]:<br />
Application area for portable<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+100 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling gel, textile tightening straps (DUC-WP05)<br />
[05]: for tube diameter, DN200..DN6000, 0,5 MHz<br />
[0]: Ex-approval, without<br />
[10]: Cable length, 10 m</div>

<div>Include 3:<br />
Accessories for DUC<br />
Model: DUC-ZF-MS<br />
[DUC-ZF-MS]<br />
Mounting rails suitable for transducer DUC-WF10, -WP10 (max. DN 400), max.150 °C</div>

Flowindicator with Threaded Connection<br />
Brand: Kobold<br />
Model: DAR-1-2-02H-R-10-B<br />
[DAR-1]:<br />
Operating principle: Rotor<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Max. temperature, 120 °C (Option B/R: 260 °C)<br />
Max. pressure, 16 bar (Option 25 or 40 bar)<br />
[2]: Housing: St.st.<br />
[02H]: Nom. diameter, 3/8"<br />
[R]: Thread, G-thread female<br />
[10]: Connection*, 3/8"

Magnetic inductive Flowmeter PIT with UMF2<br />
Brand: Kobold - Heinrichs<br />
Model: PIT-S-206R-163-H-L-1-0-0-0-K<br />
[PIT]: Sensor<br />
[S]: Model, Stainless steel (1.4571/1.4404)/PTFE <br />
for nominal diameters DN125 - DN2000 (PN16) (PIT-520)<br />
Temperature, Tmax. = 80°C compact version<br />
[206R]: Process connection, 2" Class 150 RF ASME B16.5-2013<br />
[163]: Sensor Length, 163 mm (for Tubes < DN600)<br />
[H]: Electrode Material, Hastelloy C-4<br />
[L]: Measuring range / medium velocity, 0,5 - 5 m/s<br />
[1]: Transmitter layout, compact transmitter<br />
Protection class, IP65<br />
[0]: Approvals, without approval<br />
[0]: Certificate, without<br />
[0]: Supplementary equipment, without<br />
[K]: Design, Kobold<br /><br />
UMF2-A-1-1-G-0BK<br />
[UMF2]: Transmitter<br />
[A]: Transmitter layout, compact transmitter IP67<br />
Power supply cable entry, ½" NPT (F)<br />
[1]: Indication / user interfcace, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Outputs, <br />
current output: (0)4-20mA with HART® - protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[OBK]: Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-H-215R-1-S-S-1-0</strong><br />
[EPS]: Sensor Model<br />
[H]: Material Lining, Hard Rubber (Ebonite),<br />
Electrodes, Standard 2x Measuring- + 2x Ground electrodes, 0°C...95°C<br />
[215R]:Process connection, 12" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 2560 m³/h<br />
Installation length, 500 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor, IP 67 <br />
[0]:Certificates, w/o<br />
<br />
UMF2-A-1-1-G-0BK<br />
[UMF2]: Transmitter Model<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-11-20-N8-C34P<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: Brass casting<br />
Material Axis. Hard metal<br />
[20]: Measuring range, 25-250 L/min<br />
[N8]: Mech. connection, 1 1/2 NPT female<br />
[C34P]: Electronic, Compact electronics, 4-20 mA, 1x NPN<br />
***Flow Direction: Left to Right

<strong>Calorimetric Flowswitch, compact version<br />
Brand: Kobold (Alemania)<br />
Model: KAL-A5-3-15-A4-PG</strong><br />
[KAL-K5]<br />
Version Standard<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED and LED-chain<br />
Max. Temperature, 80 °C<br />
Max. Pressure, 100 bar<br />
Power supply, 24 VDC<br />
Protection class, IP 65<br />
Connection thread, NPT<br />
[3] Probe material, st.st. 1.4301<br />
[15] Connection, 1/2"<br />
[A4] Output, 4-20 mA<br />
[PG] Electron. connection, M16x1,5 PNP/NPN

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-03HG4-C3T-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display: <br />
TFT-display, 128 x 128 color pixel, <br />
1,4", rotatable in 90° steps, <br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3]: Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[03HG4]: Measuring range (flow/temperature), 15…3000 ml/min / [°C] G ½ male<br />
[C3T]: Evaluation electronic: <br />
Analogue output: 0(4)-20 mA, 0-10 V, <br />
Switching output NPN, PNP, PushPull, <br />
Frequency output, pulse output, <br />
Part- or grand totaliser.<br />
[0]: Options, without

<div>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-206R-1-S-S-1-0<br />
Brand: Kobold-Heinrich<br />
[EPS]: Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,<br />
Process-Temperature, 0°C…+95°C<br />
[206R]:Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o</div>

<div>UMF2-A-1-4-G-0BH<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs</div>

EPS Electromagnetic Flow Meter<br />
Model: EPS-P-206R-1-H-0-1-0<br />
Brand: Kobold-Heinrich<br />
[EPS]: Sensor<br />
[P]: Material Lining, PTFE, Electrodes, Standard 2x Measuring Electrodes,<br />
Process-Temperature, -20°C...150°C<br />
[206R]:Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br /><br />
UMF2-A-1-4-G-0BH<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

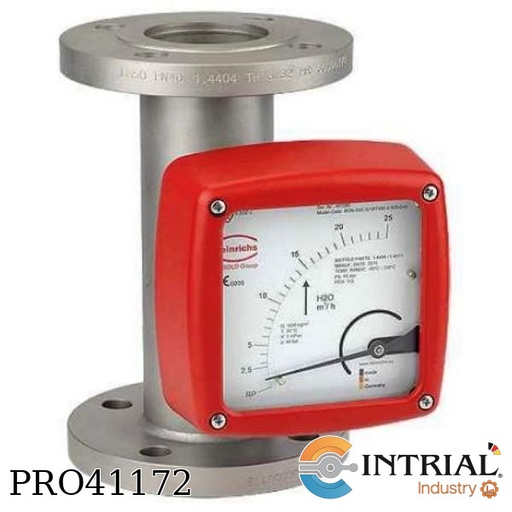

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-P50-206R-T-0-0-L-B-S-5-0-0-H<br />
Marca: Kobold-Heinrichs</strong><br />
[BGN-P50]:<br />
Stainless Steel, Wetted Parts PTFE, process temperature ≤ 125°C, process pressure max. 16 bar<br />
[206R] Connection, size: 2" Class 150 RF ASME B16.5-2003<br />
[T] Range (water 20°C, 1 mPas): 1.6 m3/h a 16 m3/h<br />
[0] Heating/cooling, without heating / Cooling<br />
[0] Damping/spring stop, without<br />
[L] Self-draining, with self-draining body<br />
[B] Certificates, Inspection certificate 3.1 with material certificate (DIN EN 10204:2004)<br />
[S] Display, <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[0] Switches, without, Ambient temperature, -40° to +80°C<br />
[0] Accessories, without<br />
[H] Heinrichs

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-P50-206R-T-0-0-L-B-E-5-0-0-H<br />
Marca: Kobold-Heinrichs</strong><br />
[BGN-P50]:<br />
Stainless Steel, Wetted Parts PTFE, process temperature ≤ 125°C, process pressure max. 16 bar<br />
[206R] Connection, size: 2" Class 150 RF ASME B16.5-2003<br />
[T] Range (water 20°C, 1 mPas): 1.6 m3/h a 16 m3/h<br />
[0] Heating/cooling, without heating / Cooling<br />
[0] Damping/spring stop, without<br />
[L] Self-draining, with self-draining body<br />
[B] Certificates, Inspection certificate 3.1 with material certificate (DIN EN 10204:2004)<br />
[E] Display, <br />
Stainless steel display housing IP67, working temperature ≤ 150°C<br />
[5] Scale, Measuring range-Scale (Media)<br />
[0] Switches, without, Ambient temperature, -40° to +80°C<br />
[0] Accessories, without<br />
[H] Heinrichs

<div>Transmitter Clamp-on  Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-MF-1-0-0-S-RL<br />
[DUC-MF]:<br />
Operating principle Ultrasonic<br />
Mounting version stationary, wallmount<br />
Measuring units volume flow, flow velocity, thermal output<br />
Counter heat quantity, volume<br />
Housing ABS<br />
Additional input for heat measuring 2x Pt100<br />
Output 2x4-20 mA, 1(2) pulse, 1x micro-USB, 1 relay; optional RS232/RS485<br />
Measuring channels 1, optional 2 channels<br />
Protection IP 65<br />
[1]: Measuring channels, 1-channel<br />
[0]: Power supply, 90-240 VAC<br />
[0]: Ex-approval, without<br />
[S]: Language packages, german/spanish/french<br />
[RL]: Options, data logger</div>

<div><br />
Transducer Clamp-on  Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-WF-10-0-10<br />
[DUC-WF]:<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+150 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[10]: for tube diameter, DN32..DN400, 1 MHz<br />
[0]: Ex-approval¸ without<br />
[10]: Cable length, 10 m</div>
