Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-1209-R0-N20-0-L<br />
[VKM-12]:<br />
Operating principle: variable area<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Body material: St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 350 Bar<br />
Viscosity range: 1...540 mm²/s<br />
[09]: Measuring range, 4...40 L/min oil<br />
[R0]: Contact, 1 N/O<br />
[N20]: Connection, 3/4 NPT female***<br />
***for 14 up to 70 L/min<br />
[0]: Option special connection, w/o<br />
[L]: Flow direction, from left

<strong>Magnetic Float Switches for Liquids<br />
Model: NCP-2554<br />
Brand: Kobold (USA)</strong><br />
[NCP-2554]:<br />
Top-Mount Polypropylene Switch<br />
Type: Top Mount<br />
Stem / Float:Polypropylene / Polypropylene<br />
Switch: 20 VA, SPST<br />
Max. Pressure: 100 PSIG<br />
Op. Temp. Range: -40...225 °F<br />
Fitting: 1/8" NPT<br />
Lead: 22 AWG x 24"<br />
Minimum S.G. of Media: 0.81

Calorimetric Meter/Switch KAL-A(K)<br />
Model: KAL-AK5-4-15-AS-ST + ZUB-KAB-12-K002<br />
Brand: Kobold (Alemania)<br />
[KA-AK5]:<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED and LED-chain<br />
max. temperature, 80 °C<br />
max. pressure, 100 bar<br />
Power supply, 24 VDC<br />
Protection class, IP 65<br />
Connection thread, NPT<br />
[4] Probe material: st.st. 1.4571<br />
[15] Connection: 1/2"<br />
[AS] Output: N/O NPN/PNP; 4-20 mA<br />
[ST] Electron. Connection: Circular plug connector M12x1 NPN/PNP<br /><br />
include: <br />
Accessories round plug<br />
Brand: Kobold (Alemania)  <br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

<strong>Calorimetric Meter/Switch KAL-A(K)<br />
Model: KAL-AK5-4-15-AS-ST<br />
Brand: Kobold (Alemania)</strong><br />
[KA-AK5]:<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED and LED-chain<br />
max. temperature, 80 °C<br />
max. pressure, 100 bar<br />
Power supply, 24 VDC<br />
Protection class, IP 65<br />
Connection thread, NPT<br />
[4] Probe material: st.st. 1.4571<br />
[15] Connection: 1/2"<br />
[AS] Output: N/O NPN/PNP; 4-20 mA<br />
[ST] Electron. Connection: Circular plug connector M12x1 NPN/PNP

<div>Calorimetric Meter/Switch KAL-A(K)<br />
Model: KAL-AK5-3-15-AS-ST + ZUB-KAB-12-K002<br />
Brand: Kobold (Alemania)<br />
[KA-AK5]:<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED and LED-chain<br />
max. temperature, 80 °C<br />
max. pressure, 100 bar<br />
Power supply, 24 VDC<br />
Protection class, IP 65<br />
Connection thread, NPT<br />
[3] Probe material: st.st. 1.4301<br />
[15] Connection: 1/2"<br />
[AS] Output: N/O NPN/PNP; 4-20 mA<br />
[ST] Electron. Connection: Circular plug connector M12x1 NPN/PNP</div>

<div>include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania) <br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin</div>

Calorimetric Meter/Switch KAL-A(K)<br />
Model: KAL-AK5-3-15-AS-ST<br />
Brand: Kobold (Alemania)<br />
[KA-AK5]:<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED and LED-chain<br />
max. temperature, 80 °C<br />
max. pressure, 100 bar<br />
Power supply, 24 VDC<br />
Protection class, IP 65<br />
Connection thread, NPT<br />
[3] Probe material: st.st. 1.4301<br />
[15] Connection: 1/2"<br />
[AS] Output: N/O NPN/PNP; 4-20 mA<br />
[ST] Electron. Connection: Circular plug connector M12x1 NPN/PNP

Viscosity Compensated  Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKG-21-08-U0-R20<br />
[VKG-21]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial w/o<br />
Switch point adjustable<br />
Accuracy ±4 % FS  (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[08]: Measuring range, 2,5...45 L/min oil<br />
[U0]: Contact,1 SPDT<br />
[R20]: Connection, G 3/4 female

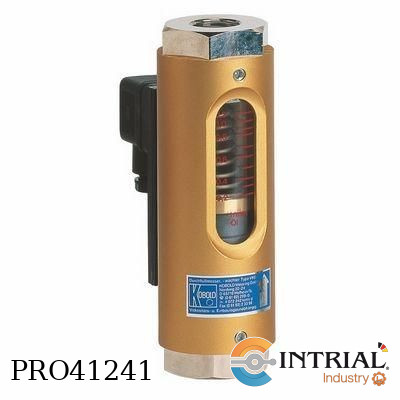

<strong>Viscosity Compensated  Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKG-21-06-U0-R15</strong><br />
[VKG-21]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial w/o <br />
Switch point adjustable <br />
Accuracy ±4 % FS  (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[06]: Measuring range, 3...15 L/min oil <br />
[U0]: Contact,1 SPDT <br />
[R15]: Connection, G 1/2 female

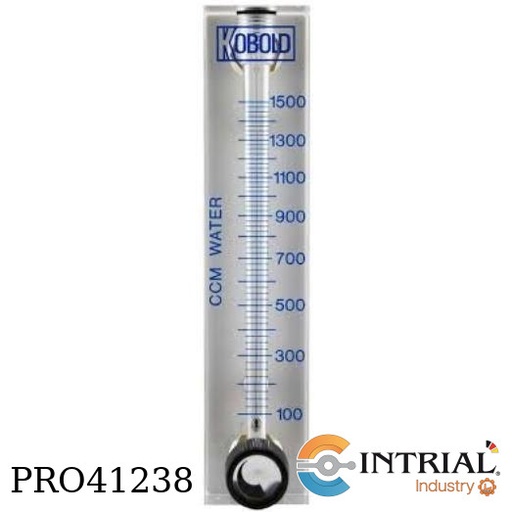

Low Volume Flowmeter<br />
Model: KFR-41-70-N0<br />
Brand: Kobold<br />
[KFR-41]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, brass<br />
Connection size,  1/4" NPT female*<br />
Seal, NBR<br />
[70] Measuring range, 30…300 L/min air<br />
[N0] Options, Needle valve

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-30H-A8-4-Z1-M-0<br />
[DON-2]:                 <br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[30H]: Measuring range, 15-250 L/min<br />
[A8]: Mech. Connection, ANSI flange 1½" 150 lbs<br />
[4]: Seal, NBR<br />
[Z1]: Electronic, LCD totaliser with rate, incl. battery<br />
[M]: Cable entry, M20<br />
[0]: Options (please specify in clear text), without

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold <br />
Model: DVH-V-25-1-S-L-A-H-S-0-H</strong><br />
[DVH]<br />
[V]: Electronic - Options, Volume Measurement of Liquids,<br />
Gases and Steam<br />
[25]: Flow Body FLANGE, DN 25 DIN EN 1 inch ANSI JIS 25<br />
[1]: Process Connection, ANSI 150 lbs ASME B16.5.2003 (not for wafer)<br />
[S]: Material Flow Body, st. st. 1.4404 / 316 L<br />
[L]:Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4<br />
[A]:Input Power, 100-240 VAC 50/60 Hz 12 W requested for output options H / M / 3 / 4<br />
[H]:Output Signal, 1x 4-20mA HART 1x Alarm, 1x Impuls, nur mit Spann.-Versorgung D/ A passiv<br />
[S]: Process Temperature, Standard Temperature -200….+260 °C -330….+500 °F<br />
[0]: Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor            <br />
[H] - Version Heinrichs

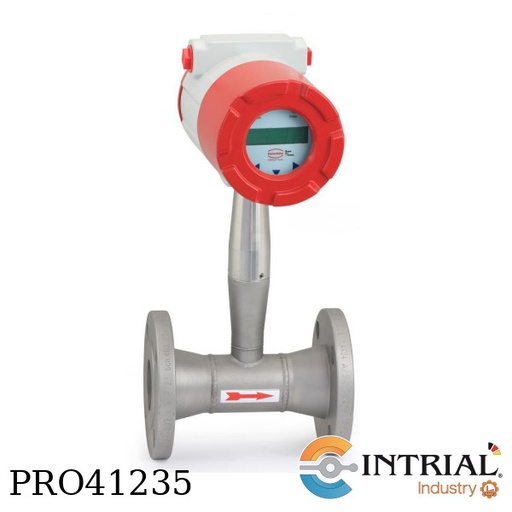

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold <br />
Model: DVH-V-20-1-S-L-A-H-S-0-H</strong><br />
[DVH]:<br />
[V]: Elektronic - Options, Volume Measurement of Liquids,<br />
Gases and Steam<br />
[20]: Flow Body FLANGE, DN20 DIN EN 3/4 inch ANSI JIS 20<br />
[1]: Process Connection, ANSI 150 lbs ASME B16.5.2003 (not for wafer)<br />
[S]: Material Flow Body, st. st. 1.4404 / 316 L<br />
[L]:Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4<br />
[A]:Input Power, 100-240 VAC 50/60 Hz 12 W requested for output options H / M / 3 / 4<br />
[H]:Output Signal, 1x 4-20mA HART 1x Alarm, 1x Impuls, nur mit Spann.-Versorgung D/ A passiv<br />
[S]: Process Temperature, Standard Temperature -200….+260 °C -330….+500 °F<br />
[0]: Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor            <br />
[H] - Version Heinrichs

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDF-22-35-N-V-0-00-0<br />
[KDF-22]:<br />
Mounting length, 125 mm<br />
Operating principle, variable area<br />
Flow direction, from bottom to top<br />
Body material, st.st.<br />
Glass, Borosilicate<br />
Accuracy, class 2.5<br />
Max. temperature without/with contact, 100 °C / 80 °C<br />
Max. pressure, PN 16<br />
[35]: Measuring range, 6...60 L/h water<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o

Low Volume Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSK-3-080-H-V20-S0<br />
[KSK-1]:<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material PVDF<br />
Accuracy Class 4<br />
Max. temperature 140 °C<br />
Max. pressure PN 10<br />
Seal FPM<br />
[080]: Measuring range, 8….80 L/h water<br />
[H]: Scale, L/h waterscale<br />
[V20]: Connection for size, PVDF-welding sleeve o.d. 20<br />
[S0]: Option contact, 1 N/O Reed

<div>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: UVR-0-20H-1-N3-0</div>

<div>[UVR-0]:<br />
Mounting length 240 mm<br />
Material: body / valve POM-C<br />
Float st.st. PTFE<br />
Measuring glass Borosilicate<br />
Operating principle Float<br />
Flow direction from bottom to top<br />
Accuracy class 4<br />
Max. temperature without/with contact 65 °C<br />
Max. pressure PN 10<br />
[20H]: Measuring range, 10…100 L/h water<br />
[1]: Valve, with valve<br />
[N3]: Connection, 3/8” NPT<br />
[0]: Contacts, w/o</div>

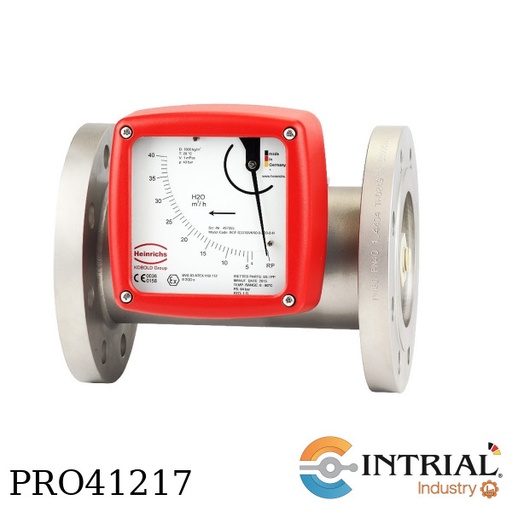

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-S50-206R-S-K-L-0-0-S-2-C-0-K<br />
Brand: Kobold (Alemania)</strong><br />
[BGF]: Model<br />
[S50]: Stainless Steel, process temperature ≤ 200°C<br />
[206R]: Connection, size 2" Class 150 RF ASME B16.5-2003<br />
[S]: Range medium, 1 a 10 m3/h<br />
[K]: Magnet bearer, Standard PP bis 80°C<br />
[L]: Flow direction, left to right<br />
[0]: Heating/cooling, without heating/cooling <br />
[0]: certificates, without<br />
[S]: Display, Standard display housing, <br />
Process temperature ≤ 150 °C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Sale, measuring range-scale (water) <br />
[C]: switches, 1 x microswitch, Ambiente temperature, -40°C to +65°C <br />
[0]: Accessory, without<br />
[K]: Design, Kobold

All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-S40-205R-R-P-L-0-0-S-2-C-0-K<br />
Brand: Kobold (Alemania)<br />
[BGF]: Model<br />
[S40]: Stainless Steel, process temperature  200°C<br />
[205R]: Connection, 1½" 150 lbs RF ASME B16.5-2003<br />
[R]: Range medium, 0.6 a 6 m3/h<br />
[P]: Magnet bearer, maximum 125 °C PTFE<br />
[L]: Flow direction, left to right<br />
[0]: Heating / cooling, without heating / cooling<br />
[0]: certificates, without<br />
[S]: Display, Standar display housing,<br />
Process temperature 150 °C for electrical output,<br />
Process temperature  200°C for local indication<br />
[2]: Sacale, measuring range-scale (water)<br />
[C]: switches, 1 x microswitch, Ambiente temperature, -40°C to +65°C<br />
[0]: Accessory, without<br />
[K]: Design, Kobold

Low Volume Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSK-3-100-H-V16-00<br />
[KSK-3]:<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material PVDF<br />
Accuracy Class 4<br />
Max. temperature 140 °C<br />
Max. pressure PN 10<br />
Seal FPM<br />
[100]: Measuring range, 10-100 L/h water<br />
[H]: Scale, L/h waterscale<br />
[V16]: Connection for size, PVDF Weld-on fitting o.d. 16<br />
[00]: Option contact, w/o

<div>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-47H-M6-0</div>

<div>[URM-33]:<br />
Mounting position vertical, flow direction from bottom<br />
Accuracy Class 4<br />
Max. temperature 65 °C<br />
Max. pressure<br />
Material: connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[47H]: Range Full Scale*, 2500 L/h, * range factor 1:10<br />
[M6]: Connection, 1” NPT female<br />
[0]: Contacts, w/o</div>

Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-55H-M6-0<br /><br />
[URM-33]:<br />
Mounting position vertical, flow direction from bottom<br />
Accuracy Class 4<br />
Max. temperature 65 °C<br />
Max. pressure<br />
Material: connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[55H]: Range Full Scale*, 6300 L/h, * range factor 1:10<br />
[M6]: Connection, 1” NPT female<br />
[0]: Contacts, w/o
