FTh 160 Ch D442 (64343442)

• TERMÓMETROS CON GAS PARA APLICACIONES QUÍMICAS

• Marca: AFRISO (Alemania)

• Vivienda Ø: 6''(160 mm)

• Carcasa: acero inoxidable 304 con bisel de ventana de cristal instrumento de calidad de tipo bayoneta,

• Vástago: Acero inoxidable 321,

• Diámetro bulbo:10 mm

• Relleno: relleno de gas a presión

• Rango: 0 a 60 º C

• Grado de protección: IP65

• Precisión: Clase 1 según EN 13190

• Montaje: Soporte de Pared



64527(240 mm)

• Longitud del bulbo Termómetro: 240 mm + Hilo



64464(3m)

• TUBO CAPILAR: ACERO INOXIDABLE 316

• 3 metros



64460

• Conexión Termómetro Fija Macho: G½B

Modelo: 2002AV
MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL
Dual Scale Air Velocity Units
For use with pitot tube
MARCA: DWYER INSTRUMENTS
Range, in w.c./ Velocity F.P.M.: 0-2.0/1000-5600
Conexión: 1/8 NPT hembra
Dial: 4"
Precisión: +/-4%

SERVOPRO-MULTIEXACT-4100(O2Purity)
GAS PURITY ANALYSER (SERVOPRO MultiExact 4100)
Supply: European Power Lead
Gas Module 1: Paramagnetic O2 Purity (0-100% O2)
Module 1 Flowmeter:  500ml/min (Sample)
Module 1 Filter
Filter Required
Analogue Outputs: Gas Module 1 mA Analogue Output
Mounting: 19" Rack Mount Ears Only
MONITORING PERFORMANCE
Accuracy (intrinsic error) <0.01% O2
Repeatability <0.01% O2
Zero drift/week <0.01% O2
T90 in secs <10@200ml/min

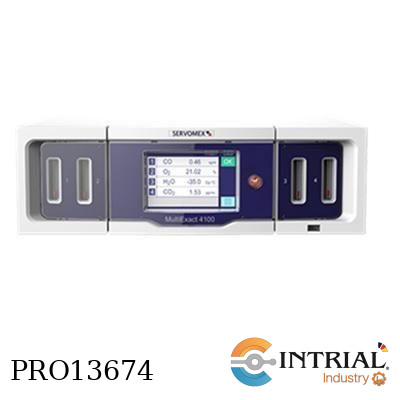

SERVOPRO-MULTIEXACT-4100(CO-CO2-ppm)
• GAS PURITY ANALYSER (SERVOPRO MultiExact 4100)
• Supply European Power Lead
• Gas Module 1: 1210D GFX 0-50/500vpm CO2, Infrared (Gfx)
• Gas Module 2: 1210D GFX 0-50/500vpm CO, Infrared (Gfx)
• Module 1 Flowmeter: 2500ml/min (Sample) 1210D
• Module 2 Flowmeter: 2500ml/min (Sample) 1210D
• Analogue Outputs: Gas Module 1 mA Analogue Output
• Analogue Outputs: Gas Module 2 mA Analogue Output
• Mounting: 19" Rack Mount Ears Only
• MONITORING PERFORMANCE

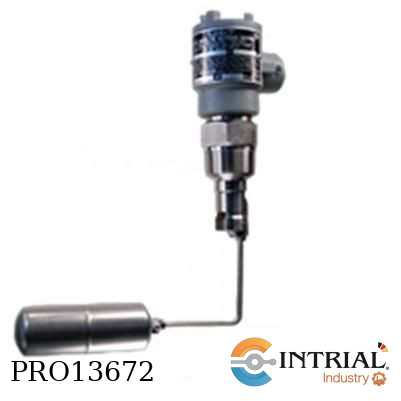

FLOTECT FLOAT SWITCH
Brand: DWYER
Brass body, side wall mounting
Service: Liquids compatible with wetted materials.
Wetted Materials: Float and Rod: 316 SS; Body: Brass
Magnet Keeper: 430 SS standard
Temperature Limits: 4 to 275°F (-20 to 135°C) standard
Pressure Limit: Brass body 1000 psig (69 bar)
Standard float rated 100 psig (6.9 bar)
Enclosure Rating: Weatherproof and Explosion-proof. **Listed with UL and CSA
for Class I, Groups C and D; Class II, Groups E, F, and G.
ATEX 0344 II 2 G Ex d IIB T6 Gb -20°C≤Tamb≤73°C.
Switch Type: SPDT snap switch standard,
Electrical Rating: UL, FM, ATEX and IECEx.
Electrical Connections: UL and CSA models: 16 AWG, 6" (152 mm) long. ATEX and IECEx unit: terminal block.
Conduit Connection: 3/4" (19.05 mm) female NPT standard or M25 with –BSPT option.
Process Connection: 1-1/2" (38.10 mm) male NPT or 1-1/2" (38.10 mm) male
BSPT standard, 2-1/2" (63.50 mm) male NPT
Mounting Orientation: Horizontal installation standard, optional vertical top mount.
Dead Band: 3/4" (19 mm) for standard float.
Specific Gravity: 0.7 minimum with standard float. For other floats see model chart.
Weight: 4 lb 9 oz (2.07 kg).
Agency Approvals: ATEX, CE, CSA, FM, IECEx, UL**.
****L4 TOP MOUNTED HSG L4 /L4-TOP V=18 Inches H=1 Inches***

MINIATURE USB DATA LOGGER
Input type: Temperature/Humidity/Dew Point
MARCA: DWYER INSTRUMENTS
SPECIFICATIONS
Temperature Range: MTL30: -40 to160°F (-40 to 70°C), 0% to 99% RH(non condensing).
Accuracy: MTL20: ±1°F (±0.5°C); MTL30: ±1°F (±0.5°C), ±2% RH from10% to 90% RH.
Resolution:  Non-LCD models: 0.01°F (0.01°C), 0.01% RH; LCD models: 0.1°F (0.1°C), 0.1% RH.
Memory Size: 43,344 temperature; 21,672 each temperature and RH.
Sampling Mode: Stop on memory full or memory rollover for continuous recording.
Sampling Rate: 1 s to 18 hrs.
Computer Requirements: Windows® based application software included.
Power Requirements: 3 V CR2032 lithium metal battery, installed  functional, user replaceable.
Alarms: Programmable high/low.
Interface: USB port (cable included).
Weight: 1 oz (28 g).
Agency Approvals: CE.
NO DISPLAY

EXPRESS ENCODER
Brand: BEI SESNSORS
Model: XHS35F-100-R2-SS-1200-ABZC-28V/V-SM18
HS = Hollow Shaft
35 = 3.5” Encoder Diameter
F = HOUSING CONFIG: Standard
100 = SHAFT BORE: 1.00”
R2 = TETHER: Tether Arm
SS = SHAFT SEAL CONFIGURATION: Through Shaft Rubber Seals
1200  = CYCLES PER TURN: 1200
ABZC = NO. OF CHANNELS:
28V/V = VOLTAGE/OUTPUT: 5–28Vin/out
SM18 = OUTPUT TERMINATION: MS3102R18-1P

THERMAL DISPERSION FLOW SWITCH
TDFS-1-P-06
Brand: dwyer
[TDFS]: series, Thermal Dispersion Flow Switch.
[1]: construction, 316SS and Polysulfone Body.
 [P]: cable type, PVC Jacketed Cable.
 [06]: cable length, 6 Ft. Cable.
Wetted Materials:  316 SS, Polysulfone, and FKM.
 Setpoint Range: 0.5 to 10 ft/s (0.15 to 3.0 m/s).
Repeatability: 0.07 ft/s +3% of setpoint.
Typical Deadband: 0.1 ft/s +15% of setpoint.
Temperature Limits: Process: 5 to 185°F (-15 to 85°C) (non-freezing); Ambient: 5 to 167°F (-15 to 75°C), Storage: -40 to 185°F (-40 to 85°C).
Pressure Limits: 300 psig (20.67 bar).
Response Time: Approximately 8 s.
Power Requirement: 9 to 24 VDC.
Switching Current: 400 mA, derate 5 mA/°C above 23°C
Current Consumption: Average: 93 mA, Peak: 300 mA.
Electrical Connection: 4 conductor 22 AWG, 6" (1.83 m) long with cable gland.
Process Connection: 1/2 " NPT male.
Enclosure Rating: NEMA 4X (IP65).
Housing Materials: 316 SS, 416 SS, polycarbonate, neoprene, and acrylated urethane.
Switch Type: 1 NO NPN, 1 NC NPN.
Input Power and Protection: 0.5A fuse (resettable) reverse polarity protected.
Switched Output Protection: 0.5 A fuse (resettable) reverse polarity protected

5200 (With Link Bluetooth)
TERMO-ANEMOMETRO
• Marca: KESTREL
• para monitoreo condiciones termo ambientales
• High Viz Green – With Link Bluetooth

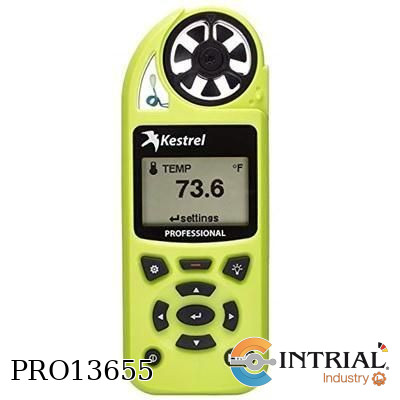

Modelo: 5200 (No Link)
TERMO-ANEMOMETRO
• Marca: KESTREL
• para monitoreo condiciones termo ambientales
• High Viz Green – No Link

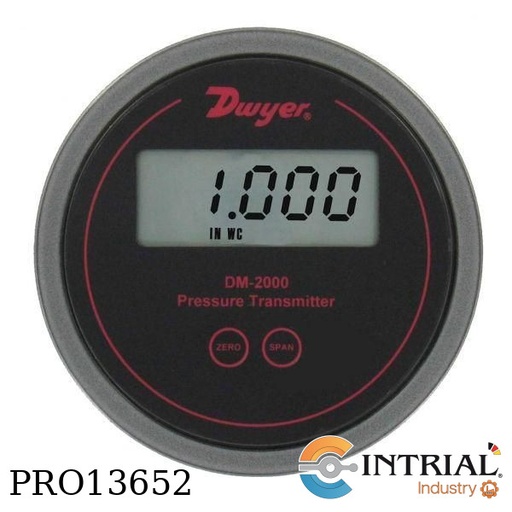

DIFFERENTIAL PRESSURE TRANSMITTER
Same Size as Standard Magnehelic® Differential Pressure Gage
Range: 3.00" w.c., 746 Pa, 76.2 mm w.c., 7.46 mbar, .746 kPa, .108 psi
Brand: DWYER
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1% FS at 70°F.
Stability: ±1% FS/yr.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Pressure Limits: 10 psig (0.69 bar).
Thermal Effect: ±0.055% FS/°F (0.099% FS/°C).
Power Requirements: 10 to 35 VDC (2 wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Digital push-button zero and span.
Loop Resistance: DC: 0 to 1250 " maximum.
Current Consumption: DC: 38 mA max.
Electrical Connections: Screw-type terminal block.
Display: 3.5 digit LCD, 0.7" H.
Process Connections: 1/8" ID tubing.
Mounting Orientation: Vertical.
Weight: 4.8 oz (136 g).

GFC-2108
GAS MASS FLOW CONTROLLER
Brand: DWYER (USA)
Range 0-2 LPM.
Specified flow range is for an equivalent flow of nitrogen at 70°F (21°C) @ 760 mm Hg
1/4" compression fitting

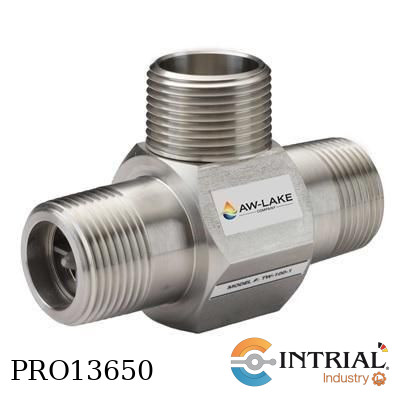

TW TURBINE FLOW METER

• Brand: AW LAKE

• Range: 15 -180 GPM

• K Factor: 330

• Porting: 2” Male NPT

• Pressure Rating: 5000 PSI

MATERIALS OF CONSTRUCTION

• Body 316 Stainless Steel

• Rotor CD4MCU Stainless Steel

• Rotor Shaft Tungsten Carbide

• Rotor Support 316 Stainless Steel

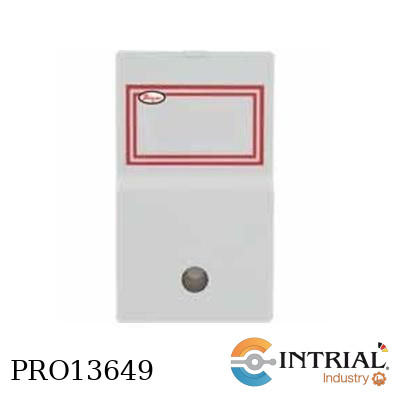

CARBON MONOXIDE TRANSMITTER
Brand: DWYER(USA)
[CMT-WR-WP]: model, configuration: NEMA 4X Wall.
External Display: No
Alarm/Buzzer: Yes
Range: 0 to 125 PPM CO.
Accuracy: ±2.5% of reading.
Repeatability: ±1% of reading.
Response Time: Less than 60 seconds typical for 90% step change.
Ambient Operating Temperature: -4 to 104°F (-20 to 40°C).
Ambient Operating Humidity: 15 to 90% non-condensing.
Power Requirements: 24 VDC/VAC at 100 mA.
Internal Display: Two line 8-digit alphanumeric LCD.
Sensor: Electrochemical (2 to 3 year expected life typical).
Output: Current/voltage: 4 to 20 mA and 2 to 10 VDC; Optional relay: (2) SPDT 1 Amp dry contact; Buzzer: 85 dB @ 1 foot.
Coverage Area: 7500 square feet (max).
Weight: 5.7 oz (161.6 g).

CDTR 2-D-4-0-4-RLY
Brand: Dwyer.
[CDTR]: series, Carbon dioxide/RH/temperature transmitter.
[2]: Range, 0 to 2000 ppm CO2 range.
[D]: Configuration, Duct mount.
[4]: CO2 Output, 4 to 20 mA / 0 to (5 or 10) VDC.
[0]: Temperature Output, None.
[4]: RH Output, 4 to 20 mA / 0 to (5 or 10) VDC.
[RLY]: Relay
Accuracy: ±40 ppm + 3% of reading (CO2); ±2% (RH).
Temperature Dependence: ±8 ppm / °C at 1100 ppm.
Non-Linearity: 16 ppm.
Pressure Dependence:  0.13% of reading per mm of Hg.
Response Time: 2 minutes for 99% step change.
Temperature Limits: 32 to 122°F (0 to 50°C).
Duct Air Velocity Range: 0-4000 FPM (20.32 m/s)
Humidity Limits: 10 to 95% RH (noncondensing).
Power Requirements: 16 to 35 VDC / 19 to 28 VAC.
Power Consumption: Average: 2 watts; Peak: 3.75 watts.
Sensor: Single beam, dual-wavelength NDIR.
Output: Current: 4 to 20 mA (max 500 Ω); Voltage: 0 to 5 VDC or 0 to 10 VDC (min 500 Ω); Relay: SPST NO 2 A @ 30 VDC; RTD or thermistor per r-t curves (depending on model).
Weight: 5.6 oz (158.8 g).

MEDIDOR DE TEMPERATURA PARA ALIMENTOS

• Marca (Intrial) Fabricado en Alemania

• Sonda con manija, contiene RTD 1 x Pt 100 Ohm DIN EN 60751,class B,

• Bulbo de ø 3 mm, con Punta de inserción

• Material en acero inoxidable

• Longitud total de 75mm

• Con manija hecho en PVC

• Con 6 metros de cable siliconado protegido( PFA/shield/Silicone)

• Color negro y conectores libres para instalar en PLC o sistema de control

• Rango de trabajo del sensor:  -40 to +150°C,

• Rango de la manija: 0 - 80°C,

• ***Nota. - Fabricación de acuerdo a Foto***

WMT2-A-C-02
MEDIDOR DE FLUJO (5/8 x 3/4")
Marca: DWYER INSTRUMENTS
Serie WMT
Conexión: 3/4” NPT
Flujo máximo: 20 GPM
Rango de flujo nominal: 1 a 20 GPM
With pulse output
Electrical Rating: 0.01 A @ 24 VAC/DC.
Orientación de montaje: Horizontal..

WMT2-A-C-01
MEDIDOR DE FLUJO (5/8 x 1/2)
Marca: DWYER INSTRUMENTS
Serie WMT
Conexión: 1/2” NPT
Flujo máximo: 20 GPM
Rango de flujo nominal: 1 a 10 GPM
With pulse output
Electrical Rating: 0.01 A @ 24 VAC/DC.
Orientación de montaje: Horizontal.

SENSOR DE TEMPERATURA PT 100

• Conexión a proceso: Rosca ½” NTP

• Escala temperatura: -50° a 300°C

• Longitud1:  9.5 cm

• Longitud2: 10.0 cm

• Diámetro Bulbo: 1 cm

• Marca: Intrial (Fabricación Alemana)

**Fabricación según esquema enviado**

Resistance Thermometer Pt100/0, single
Brand: HERTH
4-wire circuit
Shank length: 310 mm
Cabe length:15 meters
Accessories:Spring clamping unionwith screw reducing union G 1/4A
