Ensamble de luz de fondo del display

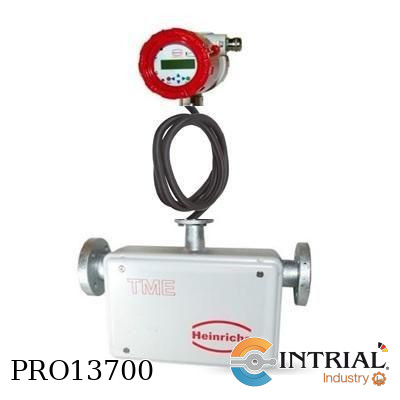

MASS FLOWMETER
Marca: Heinrichs-Kobold
Range, min. 0-3.000 kg/h - max. 0-30.000 kg/h
Process connection, 2" Class 150 RF ASME B16.5-2003
Mounting of transmitter, Remote mount
Power supply, 90 - 265VAC, 50/60Hz
Outputs, Modbus RTU
Analog output 1: (0) 4 - 20mA

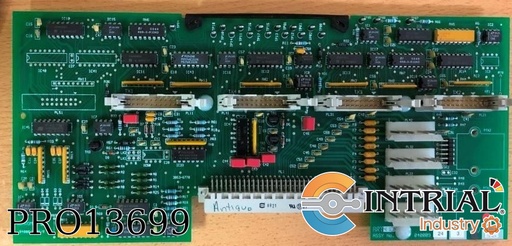

TARJETA MULTIPLEXADOR 4TX
Brand: SERVOMEX

Kit Espejos Opticos

Kit Ventanas Opticas

TRANSFORMADOR 2TX
Brand: SERVOMEX

·         Kit, IR Source
·         GFX SOURCE ASSY

Modelo: PRO13694+Thermowell
PRO13694
SCREW-IN RESISTANCE THERMOMETER
• 1 x Pt 100
• Ohm DIN EN 60751
• Class B
• Protective tube ø 6 mm
• Length suitable to TH-8x114,3
• Material stainless steel
• With thread suitable to thermowell
• Spring loaded model
• Connection head made of stainless steel
• with transmitter 4-20 mA
• measuring range: -17,7 to +71,1°C,
• Brand: Intrial (Manufacturing Germany)
THERMOWELL
• ø 8 mm
• Complete length 114,3 mm
• Built-in length 63,5 mm
• Material
• Stainless steel
• Brand: Intrial (Manufacturing Germany)
****According your photo***

SCREW-IN RESISTANCE THERMOMETER
• 1 x Pt 100 Ohm DIN EN 60751
• Class B
• 3-wire
• Protective tube ø 9,5 mm
• Length 254 mm
• Material stainless steel
• Connection 1/2" NPT
• Connection head form B
• With transmitter 4-20 mA with HART protocol
• Measuring range: 0 to +100°C
****Included suitable thermowell****
• With process connection 1/2"NPT
• Temperature range: -50 to +400°C
• Brand: Intrial (Manufacture Germany)

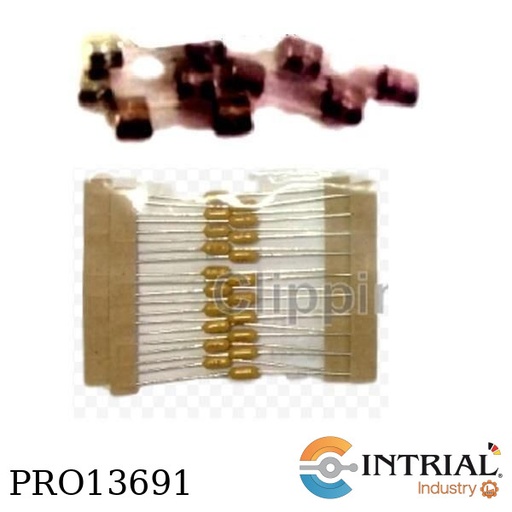

Kit, Gfx1210 Fuses Spare
Kit 1210 FUSES

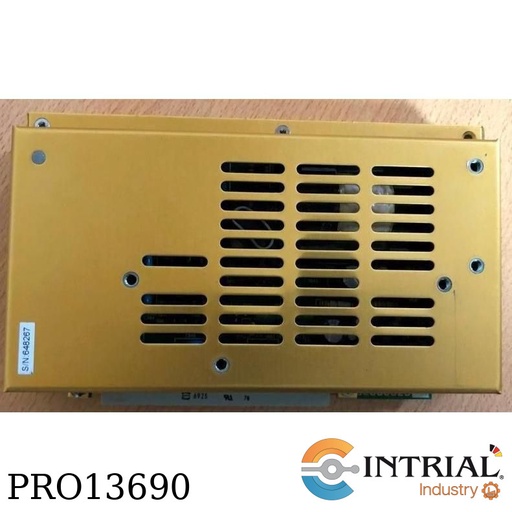

SPARE POWER SUPPLY UNIT (ATEX)
Brand: SERVOMEX

Non-Reactive Tubing (Tubing-Tygon)

FLOW DIVIDER PR 307-N
• Model: PR 307-N
• 2-section flow divider
• max. inlet flow: 80 l / min
• max. working pressure continuous: 210 bar
• with inductive sensor BES 516-300-S135-D-PU05
• and viton seals
• including mounting feet
• net weight: 7,1 kg / a piece

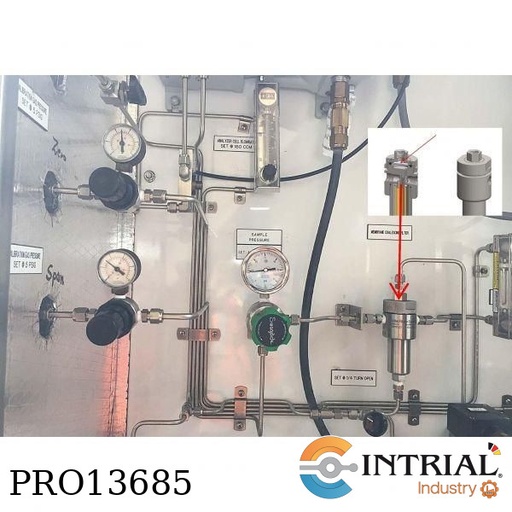

Modelo:           201867
•    Filter Coal w/Hydroph Membr Viton/SS
•    For 2200 series analyzer panel system on ISALMET

MMA-21
FLOWMETER, 0.25 - 2.5 LPM AIR, 100 psi (6.9 bar)
Brand: DWYER INSTRUMENTS
Range: 0.25 - 2.5 LPM AIR
Service: Compatible gases and liquids.
Wetted Materials: Body: Nylon 12; O-rings: Buna-N (optional materials available);
Float: Black glass, K monel, stainless steel, tungsten carbide.
Temperature Limit: 130°F (54°C).
Pressure Limit: 100 psi (6.9 bar) with compression fitting. 50 psi (3.4 bar) withtubing clamp.
Accuracy: ±4% FS.
Process Connection: 5/16" OD for push on rubber or plastic tubing with provided spring tubing clamp. Connect to rigid tubing with double compression fitting.
Weight: 1 oz (28.35 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).)

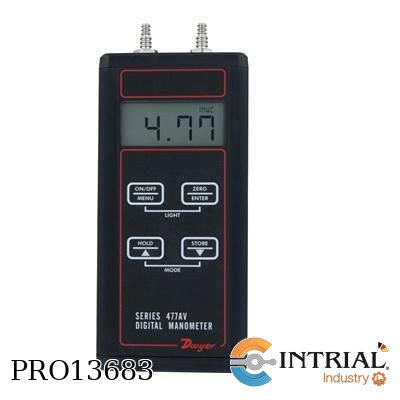

HANDHELD DIGITAL MANOMETER
Measures Pressure, Flow and Velocity; ±0.5% Accuracy
Range: 0 to 1.000 in w.c.
Brand: DWYER (USA)
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% FS, 60 to 78°F (15.6 to 25.6°C);
±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C)
Pressure Hysteresis: ±0.1% FS.
Pressure Limits: See chart.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4 digit LCD.
Resolution: See chart.
Units of Pressure: in w.c., ft w.c., in Hg,
psi, oz/in2, mm w.c., cm w.c., mm Hg,
mbar, Pa, kPa, hPa.
Units of Velocity: fpm, fps, mph, m/h, m/s, k/h, knot.
Units of Flow: cfm, m3/h, m3/s.
Power Requirements: 9 V alkaline
battery, installed non-functional, user replaceable.
Weight: 10.2 oz (289 g).
Process Connections: Two barbed
connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm)
ID tubing. Two compression fittings for use with 1/8"
(3.18 mm) ID x 1/4" (6.35 mm) OD tubing
for 477AV-7 and 477AV-8 only.
Agency Approvals: CE.
NIST certificate
NIST traceable calibration certificate

HANDHELD DIGITAL MANOMETER
Measures Pressure, Flow and Velocity; ±0.5% Accuracy
Range: 0 to 10.00 in w.c.
Brand: DWYER (USA)
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% FS, 60 to 78°F (15.6 to 25.6°C);
±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C)
Pressure Hysteresis: ±0.1% FS.
Pressure Limits: See chart.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4 digit LCD.
Resolution: See chart.
Units of Pressure: in w.c., ft w.c., in Hg,
psi, oz/in2, mm w.c., cm w.c., mm Hg,
mbar, Pa, kPa, hPa.
Units of Velocity: fpm, fps, mph, m/h, m/s, k/h, knot.
Units of Flow: cfm, m3/h, m3/s.
Power Requirements: 9 V alkaline
battery, installed non-functional, user replaceable.
Weight: 10.2 oz (289 g).
Process Connections: Two barbed
connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm)
ID tubing. Two compression fittings for use with 1/8"
(3.18 mm) ID x 1/4" (6.35 mm) OD tubing
for 477AV-7 and 477AV-8 only.
Agency Approvals: CE.
NIST certificate
NIST traceable calibration certificate

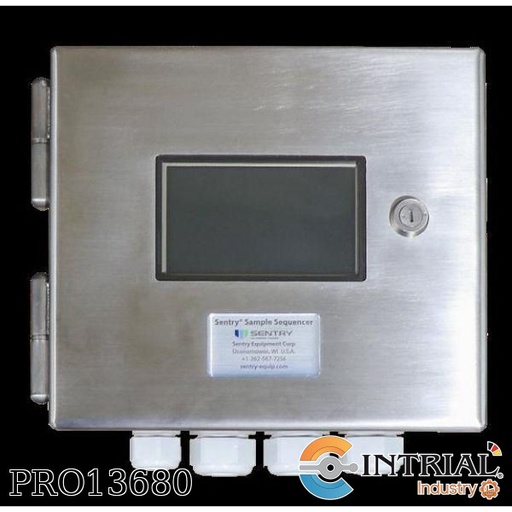

Sequencer 5

• Model: 7-02690K

• Can handle up 8 sample points between 04 Analyzer

• 100-240 VDC  50/60 Hz input}

• 8 Point track & Hold, 12 VDC valve Outputs

• Inputs from Analyzer: 04 analog Inputs (4-20mA)

• Outputs: 08 Outputs (4-20mA)

• (SM) Surfase Mounting

 More information, please review datasheet attached

FTh 160 Ch D442 (64343442)
•    TERMÓMETROS CON GAS PARA APLICACIONES QUÍMICAS
•    Marca: AFRISO (Alemania)
•    Vivienda Ø: 6''(160 mm)
•    Carcasa: acero inoxidable 304 con bisel de ventana de cristal instrumento de calidad de tipo bayoneta,
•    Vástago: Acero inoxidable 321
•    Diámetro bulbo:10 mm
•    Relleno: relleno de gas a presión
•    Rango: -20 a 60 º C
•    Grado de protección: IP65
•    Precisión: Clase 1 según EN 13190
•    Montaje: Soporte de Pared
64527(240 mm)
•    Longitud del bulbo Termómetro: 240 mm + Hilo
64464(3m)
•    TUBO CAPILAR: ACERO INOXIDABLE 316
•    3 metros
64460
•    Conexión Termómetro Fija Macho: G½B
