BCHP-KIT
[BCHP-KIT]: model, Test pump with 1/4" NPT connections, fine volume adjustment tool and case.
Media: Air.
Output Ranges: -28 in Hg to 870 psi (-0.95 to 60 bar).
Process Connections: 1/4" female BSP.
Gage Connection: 1/2" female BSP.
Materials: Anodized aluminum, brass, and ABS.
Weight: 8.4 lb (3.8 kg).

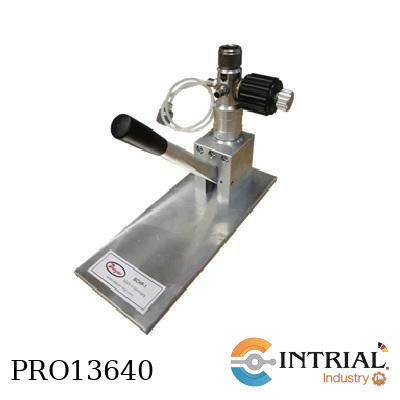

BCHP-1
Calibration test pump.
Media: Air.
Output Ranges: -28 in Hg to 870 psi (-0.95 to 60 bar).
Process Connections: 1/4" female BSP.
Gage Connection: 1/2" female BSP.
Materials: Anodized aluminum, brass, and ABS.
Weight: 8.4 lb (3.8 kg).

MANOMETRO PATRON DE PRESICION TIPO BOURDON
Marca: AFRISO (Alemania)
Diámetro Dial: 160 mm
Carcasa: Acero Inoxidable 304
Elemento de medida: Bourdon, Aleación de Cobre
Precisión: Clase 0.25
Conexión: G 1/2” B
Rango: -1 a 0 Bar

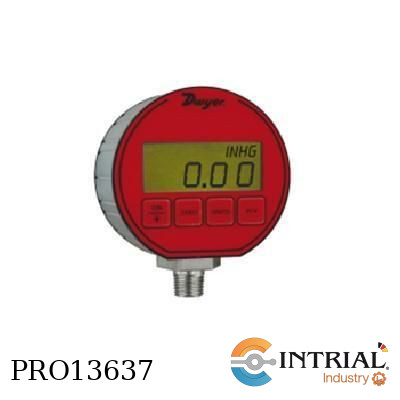

DPG-007
DIGITAL PRESSURE GAGE
Brand: DWYER
Range: 300.0 psi, 21.09 kg/cm², 20.69 bar, 610.8" Hg, 692.1 ft w.c., 2069 kPa, 4800 oz/in², 8304" w.c.
Service: Compatible liquids and combustible gases (for FM listing seeAgency Approvals below).
Wetted Materials: Type 316L SS.
Housing Materials: Polycarbonate front & back cover, anodized aluminum extruded housing with recessed grooves,polycarbonate overlay, Buna-N O-rings,316L SS sensor construction.
Accuracy: DPG-000: ±0.5% FS; ±1 least significant digit @ 70°F (21°C) (includes linearity,hysteresis, repeatability).
Enclosure Rating: Designed to meet
NEMA 4/4X (IP66).
Temperature Limits: 0 to 130°F (-18 to 55°C).
Thermal Effect: Between 70 to 130°F is 0.016%/F
Between 32 to 70°F is 0.026%/F;
Between 10 to 32°F is 0.09%/F.
Size: 3.00" OD x 1.90" deep (max).
Process Connection: 1/4" male NPT.
Weight: 8.84 oz (275 g).
Display: 4 digit (.425" H x .234" W digits).
Power Requirements: (2) AAA alkaline
batteries, included, user replaceable.
Battery Life: 2000 hours typical; Low battery indicator.
Auto Shut-Off: Gage
60 minute auto shut off
Auto shut-off may be disengaged; Backlight: 2 minute auto shut-off.
Agency Approvals: DPG-000: CE;
DPG-100: CE, FM approved to be
intrinsically safe for Class I, Division I,
Groups A, B, C and D, for ranges 0-15 to 0-3000 psi.

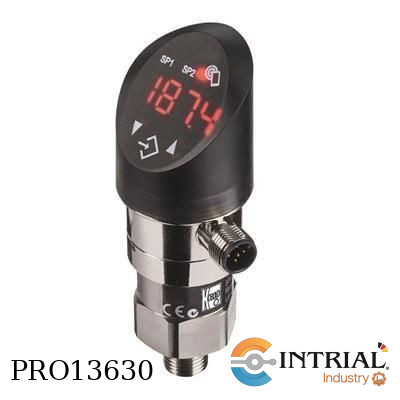

Electronic Pressure Transmitter
Brand: Kobold (Alemania)
Model: PSD-43-3-R2-B7-4-0
[PSD-43]
Measuring principal, Thin film on st.steel (1.4542)
Accuracy, ± 0,5 % of F.S.
Housing, steel, die cast metal galvanised
Connection material, st. steel 1.4542
Display, 4 digits LED, 180° rotateable
Contact output, 2 x PNP, switch point status indication 2 red LED
Analogue output, 4-20 mA, 0-10 V switchable
Power supply, 24 (15...30) VDC
Medium temperature, -25 ..+85 °C
Electrical connection, Plug M12
Protection, IP 65
[3] Seal, FPM
[R2]Connection (incl. seal ring acc. DIN 3869), G 1/4 male
[B7] Measuring Range, 0...10 bar rel
[4] Damping, Standard (with throttle 0,4 mm)
[0] Option, without

Electronic Pressure Transmitter
Brand: Kobold (Alemania)
Model: PSD-43-3-R2-C4-4-0
[PSD-43]:
Measuring principal, Thin film on st.steel (1.4542)
Accuracy, ± 0,5 % of F.S.
Housing, steel, die cast metal galvanised
Connection material, st. steel 1.4542
Display, 4 digits LED, 180° rotateable
Contact output, 2 x PNP, switch point status indication 2 red LED
Analogue output, 4-20 mA, 0-10 V switchable
Power supply, 24 (15...30) VDC
Medium temperature, -25 ..+85 °C
Electrical connection, Plug M12
Protection, IP 65
[3] Seal, FPM
[R2]Connection (incl. seal ring acc. DIN 3869), G 1/4 male
[C4] Measuring Range, 0...250 bar rel.
[4] Damping, Standard (with throttle 0,4 mm)
[0] Option, without

RF160 Ch,D402 (85265402)
MANÓMETRO TIPO BOURDON CON GLICERINA
Marca: AFRISO (Alemania)
Rangos: 0 a 10 bar)
Diámetro de Carcasa: 6''(100 mm)
Precisión: 1.0
Temperatura operación medio: Max 150°C
Material caja /conexión: Acero inoxidable 304/Acero Inoxidable 316
Doble escala: PSI/BAR


MD30 (31417W)
SELLO DE DIAFRAGMA MD 30 EN ACERO INOXIDABLE
Marca: AFRISO (Alemania)
Presión Nominal: PN25
Conexión a Proceso: ½” NPT
Material del diafragma: Acero Inoxidable 316

AQUAPRO (AP8XXDK)
Multi-Input Intelligent Process Analyzer
Capacity to Control up to 4 parameter with TWO 4-20mA output for each one. (Capacity for a total 8 Analog outputs).
Capable of Logging 1,000 data points, through the front USB Port
* Display all 4 parameter in just one screen
**** Channel 1: Data Stick (Digital Sensor)
**** Channel 2: Empty Channel
**** Channel 3: Empty Channel
**** Channel 4: Host Communication DEVICE NET
* Power Supply 90 to 240 VAC with 3 Relays
More Details, see PDF Attached

Caja y vástago de acero inoxidable 304
Rango : 0 a 150ºC
Diámetros: 100mm
Vástagos (bulbo): 100mm,
Posicion : Articulado
Diámetro del vástago de 6,25mm (0,25")
Lente de vidrio
Tornillo recalibrador externo
Exactitud 1% de FE

Manometro Fenolico
Modelo : 233.34.115L
Marca : Wika
Rango : 160 psi/1100 Kpa
Conección : 1/2 NPT

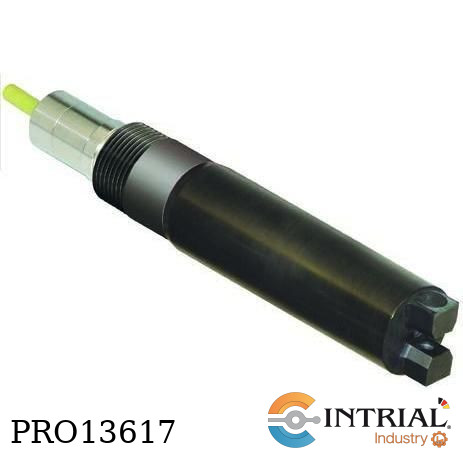

AQUASENSOR DataStick
* Wide-Range Turbidity
* 0-4000 NTU Measurement Range
* Resolution 0.1 NTU
* Accuracy: 1% of reading
* Back Body and communication Material: 316 SS
* Communication: DeviceNet
* Measuring Principle: Nephelometric
* Temp Range: -5 to 50 C
* Maximun Pressure: 65 Psi (450 kPa)
* Maximun Flow Rate: 10ft/sec (1020 m3/h)
* 90 Degree and 180 degree light paths
* Plug and play industrial communication adaptor
* Cable Length: 20 Feet (6 mts)

• Filter Elements 6 micron Spare (For 4100 series)

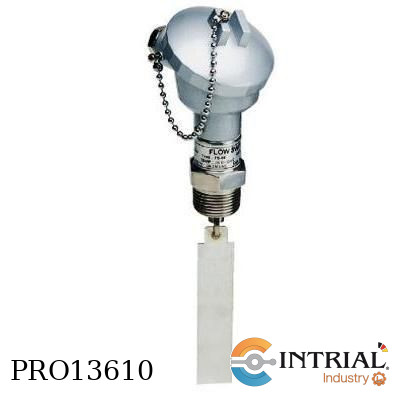

Paddle Type Flow Switch
Housing material:Aluminum Alloy, IP 65
Operation temp:-30 C~150 C
Wetted material: SUS304
Operation pressure: Max.355 PSIG
Pressure drop allowance: 3 PSIG
Set point tolerance: K25%
Repeatability tolerance: K5%
Contact capacity: 60W 220Vac/200Vdc, SPDT
SFX10000: 1800 SERIES
A1: A1
E: Housing(Aluminum, 1/2"PF-88x84)
AC: connection(ANSI)
A8: connection(1")
07: connection(NPT)
MB: Material(SUS 316)
X: Paddle length(STANDARD)

AquaSensor DataStick

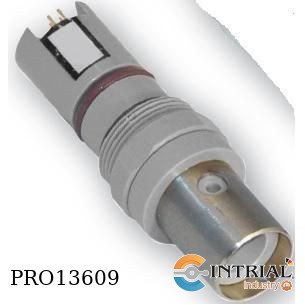

Conductivity Sensor HEAD
•    Range: 0.1 cell (0 to 500  uS/cm)
•    Accuracy: 0.1% of reading
•    Sensor Head Material: CPVC
•    Temp/Press/Max Flow: -5C to 75C / 150 Psi/10 ft/sec
•    Power: 10 to 30 Vdc
•    Electrode Material: Titanium
•    O-Ring: Viton

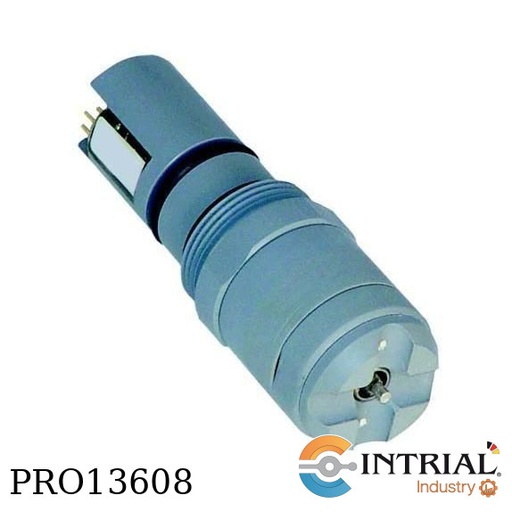

ORP SENSOR HEAD (ORP21A1A2)
•    Range: -2100mV to +2100 mV
•    Resolution: 0.1 mV
•    Temp Operation / Max Pressure: -5C to 75 C/85Psi (CPVC Sensor)
•    Max Flow Rate: 10 ft/sec
•    Body Material / Electrode Type: CPVC / Platinium
•    Sensor Tip / Fill Solution: Protected / Standard
•    Salt Bridge/Ground Rod: Standard/Titanium

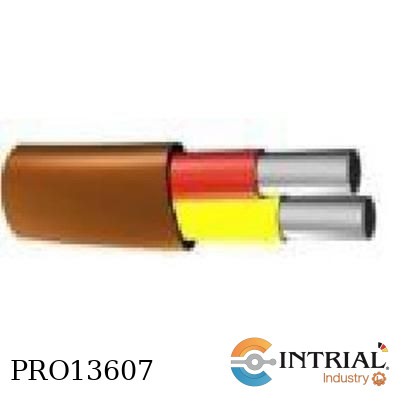

CABLE PARA TERMOCUPLA TIPO "K"
CALIBRE DE 2 X 24 AWG
FORRO DE TEFLON + CHAQUETA DE TEFLON
* ROLLOS

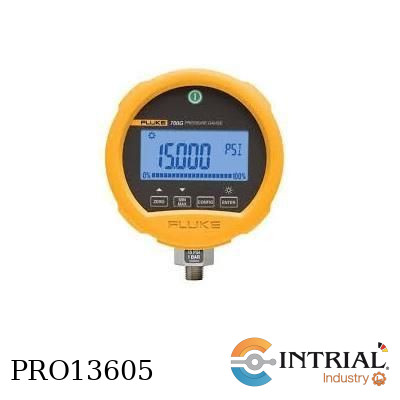

Medidor de prueba de presión de precisión de la serie, batería alcalina 3 AA, rango de -14 a 10000 psi, resolución 0.001 psi
Marca: FLUKE
Mediciones de presión precisas desde ±10 inH2O/20 mbar hasta
10.000 psi/690 bar
Rangos de medición de temperatura absoluta de 15, 30, 100, 300 psia
Precisión de hasta 0,05 % de fondo de escala
Precisión de referencia de manómetros de clase de 0,04 % de lectura
Construcción de fácil manejo y resistente para un rendimiento confiable
CSA; Clasificación clase 1, div. 2, grupos A-D
Clasificación ATEX: II 3 G Ex nA IIB T6
En combinación con los kits de bombas 700HTPK, ofrece una completa
solución de comprobación de la presión de hasta 600 psi (40 bar) con la
bomba neumática PTP-1 y hasta 10.000 psi (690 bar) con la bomba
hidráulica HTP-2
Registre hasta 8.493 mediciones de presión en la memoria (requiere el
software 700G/TRACK)

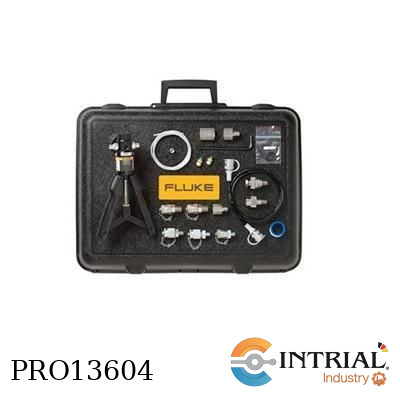

Premium Hydraulic Test Pump Kit
Brand: FLUKE
Adds premium hose kits to the standard 700HTPK. Includes “finger tight”
no tools required connectors to connect both a gauge
or pressure module and connection to a transmitter

SP35A8E20
AquaSensors AnalogPlu
Differential pH Sensor – 1.0 Inch
Range: 0-14 pH
Resolution: 0.01 PH
Accuracy: 0.1% of reading
Temperature range: -5 to 95C (PEEK sensor Head)
Electrode Type: HIGH TEMPERATURE
Maximun Flow Rate: 10 ft/sec
Proces Conection: 1" NPT
O-ring : VITON
Cable Lenght 20' (6.0 mts)
Brand: Thermo Scientific
More details: See PDF Attached

SP31A9E20
AquaSensors AnalogPlu
Differential pH Sensor – 1.0 Inch
Range: 0-14 pH
Resolution: 0.01 PH
Accuracy: 0.1% of reading
Temperature range: -5 to 95C (PEEK sensor Head)
Electrode Type: STANDARD
Maximun Flow Rate: 10 ft/sec
Proces Conection: 1" NPT
O-ring : VITON
Cable Lenght 20' (6.0 mts)
Brand: Thermo Scientific
More details: See PDF Attached
