PROCESS DATA LOGGER  SOFTWARE(DL200)
Brand: Dwyer
[DL200]: Model, Windows Software and cable

PROCESS DATA LOGGER (DL8)

Brand: Dwyer

[DL8]: Model,

Input Type: 0 to 2.5 VDC, 0 to 5 VDC (2 ch.), 0 to 10 VDC, 0 to 200 mV DC, and 0 to

25 A DC (2 ch).

No. of Channels: Eight; One for internal thermistor and seven for external analog inputs.

Internal Thermistor Range: -40 to 158°F (-40 to 70°C).

Memory Size: 32,768 readings.

Accuracy: ±1% of full-scale.

Clock Accuracy: ±8 s/day plus one sampling interval.

Resolution: 8 bits (1 in 256).

Sampling Methods: Continuous (firstin, first-out) or stop when full (fill-thenstop).

Sampling Rates: Selectable from 8 seconds to once every 5 days.

Ambient Operating Temperature: -50 to 160°F (-45 to 70°C), 0 to 95% RH, non-condensing.

Connection: Removable screw terminal.

Computer Requirements: IBM compatible 386 or above and Windows® 3.1 or later with 2 MB RAM and 2 MB hard drive disk space, one serial port.

Power Requirements: 3.6 V TL5134 lithium metal battery, internal, factory replaceable.

Power Consumption: 5-10 μA.

Housing Materials: Polyphenylene ether and polystryrene PPE & PS.

Weight: 5 oz (110 g).

Agency Approvals: CE.

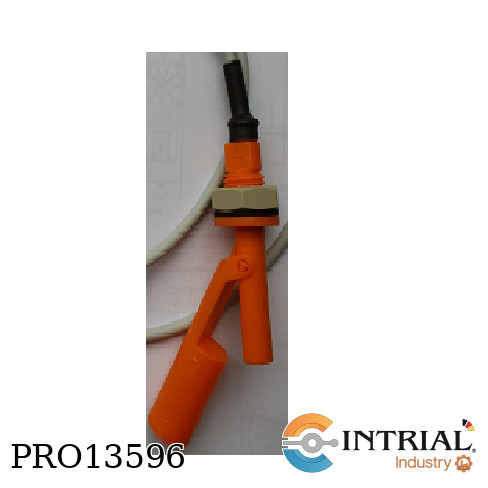

Plastic Level Switch NKP
Model: NKP-6401
Brand. Kobold
Plastic Level Switch
[NKP-6401]:
Housing material Polypropylene
max. temperature 80 °C
max. pressure 10 bar
min. density 0,6 kg/dm³
Contact N/O or N/C (each acc. to mounting)
Mechanical connection, M16
Version, with 1 m PVC cable

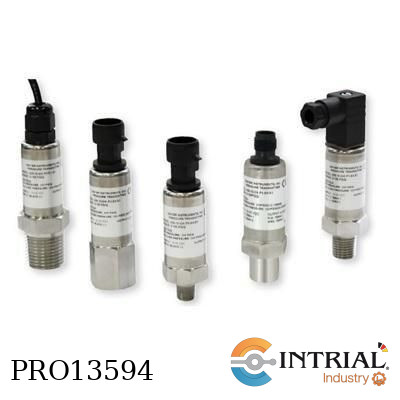

PRESSURE TRANSMITTER
Brand: DWYER
628:  Accuracy: 1.0% Full Scale
11: Rango: 0 - 150 PSIG
CB: Housing Type: Conduit Box Housing - NEMA 4X IP66
P1: Fittings: 1/4" Male NPT
E5: Cables and Connectors: 1/2" Female NPT; Conduit connection
S1: Electrical Output: 4-20 mA, 2-wire
Power Supply: : 10 – 30 VDC

FTh 160 Ch D442 (64343442)
•    TERMÓMETROS CON GAS PARA APLICACIONES QUÍMICAS
•    Marca: AFRISO (Alemania)
•    Vivienda Ø: 6''(160 mm)
•    Carcasa: acero inoxidable 304 con bisel de ventana de cristal instrumento de calidad de tipo bayoneta,
•    Vástago: Acero inoxidable 321,
•    Diámetro bulbo:10 mm
•    Relleno: relleno de gas a presión
•    Rango: 0 a 60 º C
•    Grado de protección: IP65
•    Precisión: Clase 1 según EN 13190
•    Montaje: Soporte de Pared
64527(240 mm)
•    Longitud del bulbo Termómetro: 240 mm + Hilo
64464(3m)
•    TUBO CAPILAR: ACERO INOXIDABLE 316
•    3 metros
64460
•    Conexión Termómetro Fija Macho: G½B
THERMOWELL (1”NPT)
•    THERMOWELL AC. INOXIDABLE SS316
•    Largo del bulbo 240 mm
•    Conexion a instrumento: 1/2" G
•    Conexion a proceso: 1'' NPT

FTII-100-18OD-M-18-DK
Tubing Fitting Inox
Tipo: Racor Recto (D-MT)
Para Tubing de: 1/8 OD
Tipo de Rosca: Macho
Rosca: 1/8 NPT
Marca: DK-Lock

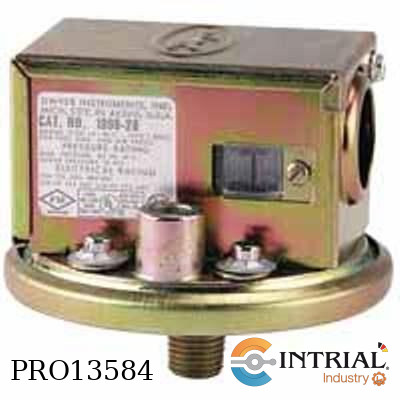

GAS PRESSURE SWITCHES
Brand: DWYER (USA)
Compact,
Range: 1.4 to 5.5 in w.c.
Service: Air, natural & manufactured gas, LP gas.
Wetted Materials: Consult factory.
Temperature Limits: 32 to 110°F (0 to
43.3°C). -30 to 110°F (-34.4 to 43.3°C) for dry gas or dry air.
Pressure Limits: 45 in w.c. (11.2 kPa)
continuous; 10 psig (68.95 kPa) surge.
Switch Type: SPDT.
Electrical Rating: 15A @ 120-480 VAC,
60 Hz. Resistive 1/8 H.P. @ 125 VAC,
1/4 H.P. @ 250 VAC 60 Hz.
Electrical Connections: 3 screw type,
common, normally open, normally closed.
Process Connections: 1/8" female NPT or 1/4" male NPT.
Vent Connection: 1/8" female NPT.
Mounting Orientation: Diaphragm in
Set Point Adjustment: Screw type
with visible indicator, inside conduit enclosure.
Weight: 1 lb 2.3 oz (349 g).
Agency Approvals: CE, CSA, FM, UL.
GAS PRESSURE SWITCHES
Brand: DWYER (USA)
Compact,
Range: 1.4 to 5.5 in w.c.
Service: Air, natural & manufactured gas, LP gas.
Wetted Materials: Consult factory.
Temperature Limits: 32 to 110°F (0 to
43.3°C). -30 to 110°F (-34.4 to 43.3°C) for dry gas or dry air.
Pressure Limits: 45 in w.c. (11.2 kPa)
continuous; 10 psig (68.95 kPa) surge.
Switch Type: SPDT.
Electrical Rating: 15A @ 120-480 VAC,
60 Hz. Resistive 1/8 H.P. @ 125 VAC,
1/4 H.P. @ 250 VAC 60 Hz.
Electrical Connections: 3 screw type,
common, normally open, normally closed.
Process Connections: 1/8" female NPT or 1/4" male NPT.
Vent Connection: 1/8" female NPT.
Mounting Orientation: Diaphragm in
Set Point Adjustment: Screw type
with visible indicator, inside conduit enclosure.
Weight: 1 lb 2.3 oz (349 g).
Agency Approvals: CE, CSA, FM, UL.

WEATHERPROOF DIAPHRAGM OPERATED PRESSURE SWITCHES
Visible Setpoint, Fixed Deadband, Pressure Ranges to 1400 psi
Brand: DWYER(USA)
Range: 50 to 350 (3.5 to 24.1) psig (bar)
Wetted Materials: See pressure
chamber and diaphragm material in
model chart.
Temperature Limits: -30 to 170°F (-35 to 77°C).
Pressure Limit: 3000 psig (206.8 bar).
Enclosure Rating: Weatherproof, meets
NEMA 4X (IP66).
Switch Type: SPDT snap switch.
Electrical Rating: 15 A @ 125/250 VAC resistive.
Electrical Connections: Screw type.
Conduit Connection: 3/4" female NPT.
Process Connection: 1/4" female NPT.
Mounting Orientation: Any position.
Set Point Adjustment: Internal thumbwheel.
Weight: 3 lb (1.4 kg).
Deadband: See model chart.
Agency Approvals: CE, UL.

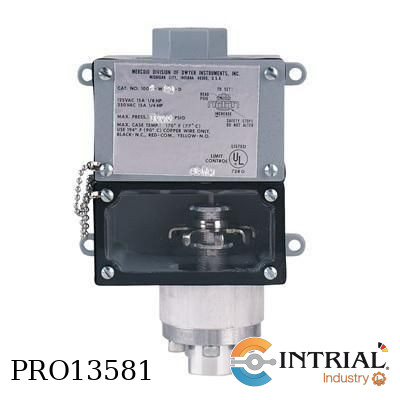

WEATHERPROOF DIAPHRAGM OPERATED PRESSURE SWITCHES
Visible Setpoint, Fixed Deadband, Pressure Ranges to 1400 psi
Brand: DWYER(USA)
Range: 25 to 200 (1.7 to 13.8) psig (bar)
Wetted Materials: See pressure
chamber and diaphragm material in
model chart.
Temperature Limits: -30 to 170°F (-35 to 77°C).
Pressure Limit: 3000 psig (206.8 bar).
Enclosure Rating: Weatherproof, meets
NEMA 4X (IP66).
Switch Type: SPDT snap switch.
Electrical Rating: 15 A @ 125/250 VAC resistive.
Electrical Connections: Screw type.
Conduit Connection: 3/4" female NPT.
Process Connection: 1/4" female NPT.
Mounting Orientation: Any position.
Set Point Adjustment: Internal thumbwheel.
Weight: 3 lb (1.4 kg).
Deadband: See model chart.
Agency Approvals: CE, UL

AQUAPRO (AP8XXBK)
Multi-Input Intelligent Process Analyzer
Capacity to Control up to 4 parameter with TWO 4-20mA output for each one. (Capacity for a total 8 Analog outputs).
Capable of Logging 1,000 data points, through the front USB Port
* Display all 4 parameter in just one screen
**** Channel 1: Data Stick (Digital Sensor)
**** Channel 2: : Empty Channel
**** Channel 3: Empty Channel
**** Channel 4: Host Communication MODBUS RTU
* Power Supply 90 to 240 VAC with 3 Relays
More Details, see PDF Attached

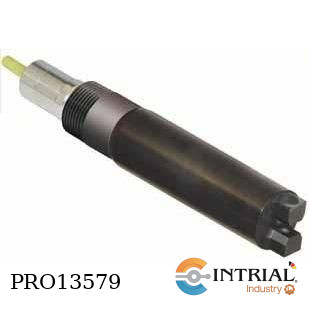

RT2143
AQUASENSOR DataStick
* Suspended Solids
* 0-20,000 mg/L
* Resolution 1 mg/L
* Back Body and communication Material: CPCV
* Communication: MODBUS RTU
* Temp Range: -5 to 50 C
* Maximun Pressure: 150 Psi at 50°C
* Maximun Flow Rate: 10ft/sec
* Cable Length: 30 Feet (9 mts)
* More Information, see Datasheet attached

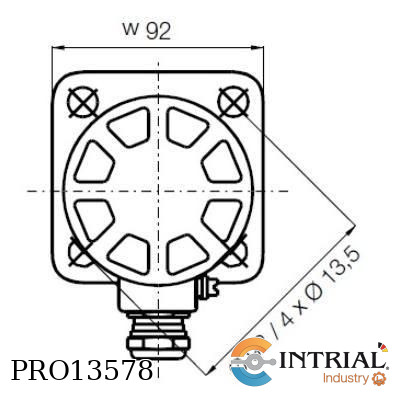

Accessories: Counter flange
Modelo: NGS-MFF2
[NGS] Accessories: Counter flange
Material (wetted parts): st. st. 1.4404
max. temperature 250 °C
max. pressure 25 bar

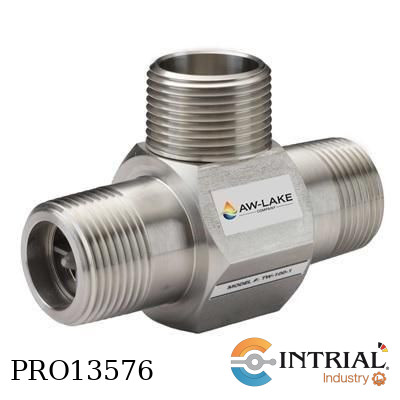

TW TURBINE FLOW METER

• Brand: AW LAKE
. Model: TW-150M-6K

• Range: 15 -180 GPM

• K Factor: 330

• Porting: 1 1/2” Male NPT

• Pressure Rating: 5000 PSI

MATERIALS OF CONSTRUCTION

• Body 316 Stainless Steel

• Rotor CD4MCU Stainless Steel

• Rotor Shaft Tungsten Carbide

• Rotor Support 316 Stainless Steel

TURBINE FLOW METER

• Brand: AW LAKE
  Model: TW-100M-2K

• Range: 5 -50 GPM

• K Factor: 870

• Porting: 1” Male NPT

• Pressure Rating: 5000 PSI

MATERIALS OF CONSTRUCTION

• Body 316 Stainless Steel

• Rotor CD4MCU Stainless Steel

• Rotor Shaft Tungsten Carbide

• Rotor Support 316 Stainless Steel

 TURBINE FLOW METER

• Brand: AW LAKE
Modelo; TW-100M-1K

• Range: 3 -30 GPM

• K Factor: 3100

• Porting: 1” Male NPT

• Pressure Rating: 5000 PSI

MATERIALS OF CONSTRUCTION

• Body 316 Stainless Steel

• Rotor CD4MCU Stainless Steel

• Rotor Shaft Tungsten Carbide

• Rotor Support 316 Stainless Steel

Spare: Cell H2S x2 (ppm levels)
Para analizador “HS2-725-22-4”
Marca: SOUTHLAND SENSING

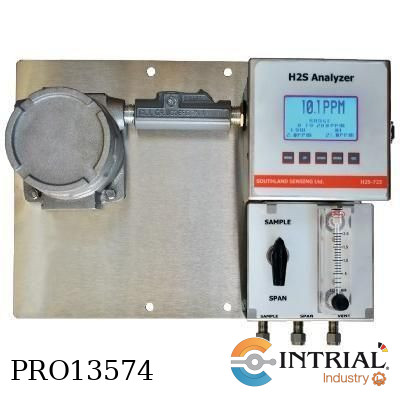

ANALYZER WITH SYSTEM
Brand: SOUTHLAND SENSING
In-Line H2S Analyzer-
Range 0-2000 ppm
Model HS2-725-22-4
Includes ¼”Swagelok valve for sample and calibration
Flowmeter
Fittings and tubing integrated
The H2S analyzer is designed to meet the standards for
Class 1, Div 1, Groups B,C,D.
Nota.- Inclutre Filtro Coalescente

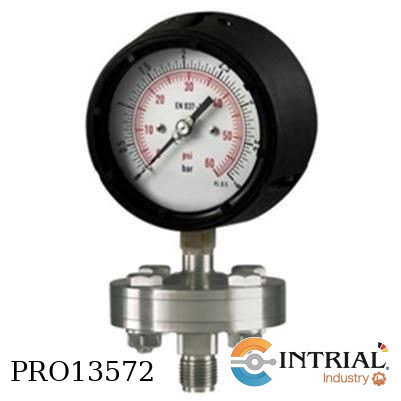

RF130PGOeD602(0 a 500 KPa)
MANOMETRO TIPO FENOLICO CON GLYCERINA
Marca: AFRISO(Alemania)
Dial Ø: 4 ½ “ (130 mm)
Carcaza: PP-GF 20, negra
Elemento de medición: Acero Inoxidable 316Ti/316 L
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)
Conexión: ½ NPTM- Inferior
Rango: 0 a 500 KPa
MD30 (31417WS)
SELLO DIAFRAGMA EN ACERO INOXIDABLE
Marca: AFRISO (Alemania)
Conexión a Instrumento: Roscada
Presión Nominal: PN25
Conexión al proceso: 1/2” NPT
Montaje: Inferior
Incluye: Tag de Identificación SS
Operating temperature range -20 / +200°C
Transmission liquid: Silicon Oil (FM01RF130PGOeD602(0 a 500 KPa)
MANOMETRO TIPO FENOLICO CON GLYCERINA
Marca: AFRISO(Alemania)
Dial Ø: 4 ½ “ (130 mm)
MD30 (31417WS)
SELLO DIAFRAGMA EN ACERO INOXIDABLE
Marca: AFRISO (Alemania)
Conexión a Instrumento: Roscada

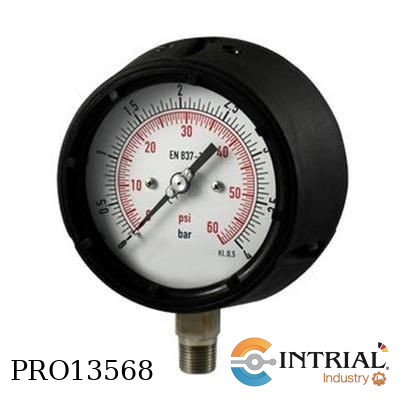

MANOMETRO TIPO FENOLICO CON GLYCERINA
•    Marca: AFRISO(Alemania)
•    Dial Ø: 4 ½ “
•    Carcaza: PP-GF 20, negra
•    Elemento de medición: Acero Inoxidable 316Ti/316 L
•    Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)
•    Conexión: ½ NPTM- Inferior
•    Rangos: 0 a 1000 Kpa
•    Doble escala en Kpa/PSI

MANOMETRO TIPO FENOLICO CON GLYCERINA

• Marca: AFRISO(Alemania)

• Dial Ø: 4 ½ “

• Carcaza: PP-GF 20, negra

• Elemento de medición: Acero Inoxidable 316Ti/316 L

• Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)

• Conexión: ½ NPTM- Inferior

• Rangos: 0 a 1400 Kpa

• Doble escala en Kpa/PSI
