Plastic Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSM-1-030-5-P25-R0<br />
[KSM-1]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Trogamide<br />
Accuracy ±4 % FS<br />
Max. temperature 60 °C<br />
Max. pressure 16 bar<br />
[030]: Measuring range, 25...230 Nm³/h air<br />
[5]: or scales for air (measuring range s. data sheet), 5 bar rel.<br />
[P25]: Option connection for size 020 + 030, PVC G 1 female P<br />
[R0]: Option contact

<strong>Paddle Flow Sensor With Frequency Output</strong><br />
Brand: Kobold<br />
Model: DF11A1C1G2A-X1

Blade Wheel Flow Meter/ Counter/ Batching System<br />
Brand: Kobold<br />
Model: DFB-ZM-0-4-F-R32<br />
Producto desfasado

Calorimetric Flowswitch, Compact Version<br />
Model: KAL-K5-4-20-S-PG0<br />
Brand: Kobold (Alemania)<br />
[KAL-K5]:<br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. temperature: 80 °C <br />
max. pressure: 100 bar<br />
Protection class: IP 65<br />
Connection thread: NPT<br />
Version: Standard<br />
[4]: Probe material,  st.st. 1.4571 <br />
Version, Standard<br />
[20]: Connection, 3/4"<br />
[S]: Contact version, N/O<br />
[PG0]: Electron. connection/power supply, M 16x1,5 relay output 230 VAC

<strong>Turbine Wheel Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: TUR-20-50-C34P</strong><br />
[TUR-20]:<br />
Operating principle Turbine Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
Material PVC <br />
Max. temperature 60 °C<br />
Max. pressure PN 10<br />
Accuracy +-1% FS<br />
Protection IP 65<br />
[50]: Connection / Measuring range, NW 50 / 1,2...20 m³/h water<br />
[C34P]: Electronic, Compact electronics, 4-20 mA, 1x PNP<br /><br /><strong>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K502</strong><br />
M12x1 box 2 m cable, 5-pin

Turbine Wheel Flowmeter<br />
Brand: Kobold<br />
Model: TUR-20-50-K-0-4-2<br /><br />
[TUR-20]:<br />
Operating principle Turbine Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
Material PVC <br />
Max. temperature 60 °C<br />
Max. pressure PN 10<br />
Accuracy +-1% FS<br />
Protection IP 65<br />
[50]: Connection / Measuring range, NW 50 / 1,2...20 m³/h water<br />
[K]: ADI-evaluating electronics-field-housing (mounted at sensor), <br />
ADI-indication Bargraph/digital-indication<br />
Housing 116 x 116<br />
Bargraph display 55 LEDs<br />
Digital display 5 digit LED<br />
Ambient temperature -20 ..60 (80) °C<br />
Min./Max. memory yes<br />
Housing material Aluminium/PA66<br />
Protection IP 65<br />
[0]: Power supply, 100-240 VAC/VDC<br />
[4]: Output, 0-10 VDC, 0(4) - 20 mA selectable<br />
[2]: Contacts, 2 SPDT

<div>Multivariable VORTEX Flowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Modelo: DVE-P-S-L-D-4-S-1-A</div>

<div>[DVE]: MODEL CODE Insertion Version<br />
[P]: Flow Velocity including temperature and pressure sensor<br />
[S]: Probe length: Standard (max. stem length app. 690 mm)<br />
[L]: Transmitter Version/ Mounting, compact incl. Display, IP 66 / Nema 4<br />
[D]: Input Power: 12-36 VDC, 4-Leiter<br />
[4] Output: 3 x 4-20 mA, 3x Alarm, 1x Pulse MODBUS<br />
[S] Process temperatura: Standard temperature -200..+260°C (-330..+500°F)<br />
[1] Option Pressure Sensor,  Incl. Pressure Sensor, 2 bar abs (30 psia)<br />
[A] Process connection: 2" NPT Male thread, sensor-bushing compression fitting</div>

Gear Wheel Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DZR-1-001-S10-F-S-V<br /><br />
[DZR-1]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Medium-viscosity low<br />
Lubricating property of the medium good<br />
Storage ball bearing<br />
Material cast<br />
Accuracy (of actual range) +-0,3%<br />
Max. Temperature 120/150 °C<br />
[001]: measuring range / pressure, 0,008...2 L/min / 400 bar<br />
[S10]: Mech. connection, G 3/8 side mounted (only for code: 001-005)<br />
[F]: Seal, FPM<br />
[S]: Electronic, up to 120 °C / 24 VDC<br />
[V]: Electr. Connection, plug w/o cable with pre amplifier

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-206-N-20-R-1<br />
[PSR-11]:<br />
Operating principle, paddle<br />
Mounting position, all directions<br />
Incl. fittin, brass<br />
Body material, brass<br />
Max. presure, 100 bar<br />
[206]: Measuring range/paddle, 7.7-13.4 L/min paddle: 6<br />
[N]: Connection, NPT-thread<br />
[20]: Connection, 3/4"<br />
[R]: Contact version, N/O<br />
[1]: Connecting cable; PVC-cable 1.5 m (standard)

Magnetic inductive flowmeter<br />
Brand: Kobold-Heinrichs<br />
Model Sensor: EP-P-206R-1-H-H-1-0<br />
Model Transmitter: UMF2-A-1-1-G-0BH<br />
[EP]: Model Sensor<br />
[P]: PTFE, standard 3 Hastelloy electrodes -20°C...150°C<br />
[206R]: Process Connection, 2"Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 62 m³/h<br />
[1]: Material flanges, steel (painted)<br />
[H]: Material electrodes, Hastelloy C-4<br />
[H]: Earting electrode, Hastelloy C-4<br />
[1]: Transmitter mounting, integrated transmitter (IP67)<br />
[0]: Approvals, without<br />
[UMF2]: Model Transmitter<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]:current output 1: 4 - 20mA with HART-protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs

Torsional Paddle Flow Meter/Monitor<br />
Model: DPT-11-35H-G6-C34P<br />
Brand: Kobold<br />
[DPT-11]<br />
Operating principle, paddle-torsion<br />
Flow direction, horizontal, in direction of the arrow<br />
max. temperature, 80 °C<br />
Material, Brass casting<br />
[35H]: Measuring range, 15-65 L/min water<br />
[G6]: Connection size, G 1 female<br />
[C34P]: Evaluating electronic, Compact electronic, 4-20mA, 1x PNP<br />
Direction of flow: from left to right

<strong>Differential Pressure Flow Meter / Monitor<br />
Brand: Kobold <br />
Model: RCD-11-14H-G6-K-000</strong><br />
[RCD-11]:<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class IP 65<br />
max. temperature 80 °C (100 °C)<br />
max.pressure 40 bar<br />
Material Brass casting <br />
[14H]: Measuring range,10-58 L/min  water <br />
[G6]: Process Connection, for range code: 06...26, 1 NPT female  <br />
[K]: ADI-Evaluating electronics, ADI-indication Bargraph/Digital <br />
Housing 97 x 96<br />
Display 3.5 LED + Bar graph<br />
Temperature range -20...80 °C<br />
Min./Max. memory Yes<br />
Housing Aluminium/PA66<br />
Protection IP 65<br />
[0]: Supply voltage, 100-240 VAC/DC <br />
[0]: Output, w/o<br />
[2]: Contacts, 2 change over contacts

Low Volume Flowmeters<br />
Brand: Kobold<br />
Model: KSV-1101<br />
Modelo desfasado

<strong>Plastic Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSM-1-030-H-P25-R1</strong><br />
[KSM-1]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Trogamide <br />
Accuracy ±4 % FS<br />
Max. temperature 60 °C <br />
Max. pressure 16 bar**<br />
[030]: Measuring range, 300...3000 L/h water <br />
[H]: either scales for liquid media, L/h water <br />
[P25]: Option connection, PVC G 1 female <br />
[R1]: Option contact, 1 contact

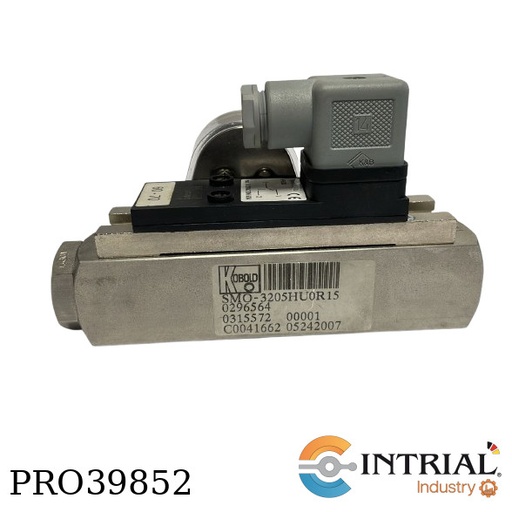

All-Metal-Flowmeter / Switch<br />
Brand: Kobold (Alemania)<br />
Model: SMO-32-05H-U0-R15<br />
[SMO-32]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from top<br />
Body material St.St.<br />
Seal FPM<br />
Side mounted indication yes<br />
Switch point adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature <br />
Max. pressure 100 °C<br />
Max. pressure 350 bar<br />
[05H]: Adjustment range, 1...7,5 L/min water <br />
[U0]: Contact, 1 SPDT <br />
[R15]: Connection, G 1/2 female

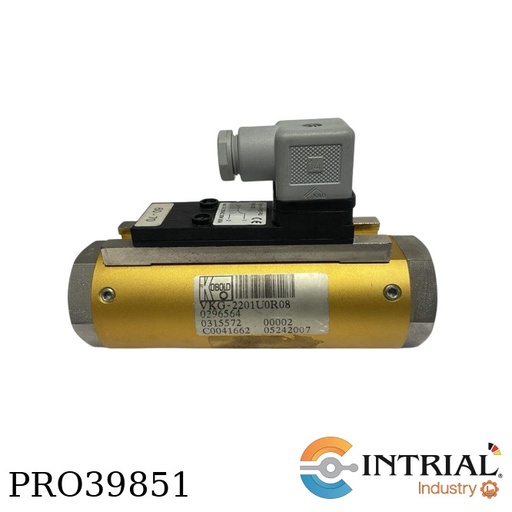

<strong>Viscosity Compensated  Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKG-22-01-U0-R08</strong><br />
[VKG-22]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material St.St. <br />
Seal FPM <br />
Sight glass Duran<br />
Side mounted dial w/o <br />
Switch point adjustable <br />
Accuracy ±4 % FS  (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[01]: Measuring range, 0,1...0,45 L/min oil <br />
[U0]: Contact, 1 SPDT <br />
[R08]: Connection, G 1/4 female

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-258-R-25-U-1<br />
[PSR-11]:<br />
Operating principle paddle<br />
Mounting position all directions<br />
Approvals  ---<br />
incl. fitting brass<br />
Body material brass<br />
max. pressure* 100 bar<br />
[258]: Measuring range/paddle, 7.4-18.2 L/min paddle: 8<br />
[R]: Connection, G-thread<br />
[25]: Connection, 1" (for PSR-xx25...)<br />
[U]: Contact version, SPDT<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

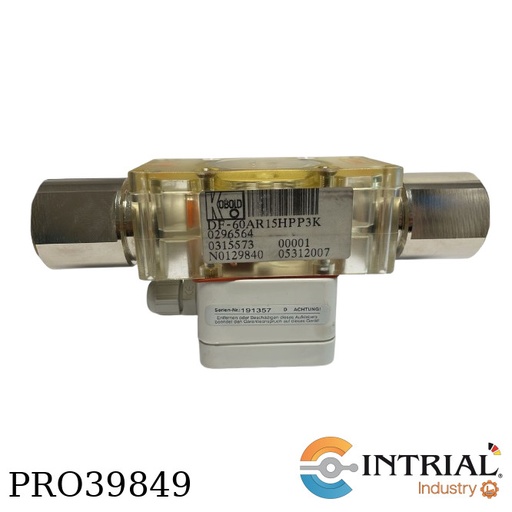

Rotating Vane-Flowmeter with Pulse Output<br />
Brand: Kobold (Alemania)<br />
Model: DF-60-A-R15-HPP-3K<br />
[DF]:<br />
Operating principle Rotating Vane<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
Max. temperature s. material combination<br />
Max. pressure s. material combination<br />
Accuracy +-2,5% FS<br />
[60]: Measuring range, 2,5...60 L/min water<br />
[A]: Material combination, Housing/ cover/ connection/ temp. / Pressure   <br />
Trogamide/Trogamide/ brass/ 60 °C/ 10 bar<br />
[R15]: Connection, Material combination+A83 code: A/D/G G ½<br />
[HPP]: Pulse output, PC-plug socket, PNP, with calibration report<br />
[3K]: Power supply, 5...24 VDC

<div>Rotating Vane Flow Meter<br />
Model: DOR-42-2-F-R8-R0-00-0<br />
Brand: Kobold (Alemania)</div>

<div>[DOR-42]<br />
Operating principle, Rotating Vane<br />
Flow direction, in direction of arrow<br />
Housing material, 316L st. st.<br />
max. temperature, 100°C<br />
max. pressure, 80 bar<br />
Accuracy, ± 1 % of f.s.<br />
version, for pipe sizes 40-900 mm<br />
[2]: Rotor material, PVDF-rotor/ shaft st. Steel<br />
[F]: Seal, FPM (Standard)<br />
[R8]: Mechanical connection, R 1 1/2 male<br />
[R0]: Output, Reed switch + standard cable length  1.5 m,<br />
[00]: Electronic, only frequency output<br />
[0]: Options, none</div>

Welding socket for Sensor PIT<br />
Brand: Kobold - Heinrichs<br />
Model: 60020328<br />
Stainless steel (1.4571/1.4404), 2" Class 150 RF ASME B16.5-2003 , standard length
