KAL-K  Compact Thermal Flow Sensors<br />
Model: KAL-4320<br />
Brand: Kobold (USA)<br /><br />
[KAL-4320]<br />
Ordering Information<br />
Wetted Parts,w/316-Ti  Stainless Steel<br />
3/4” NPT, Extended Probe, std.

<div>Coriolis Massflowmeter<br />
Model: TMU-S-050-210R-A-0-0-B-0-1-1-0-H/UMC4-B-1-1-A-0-0<br />
Brand: Kobold - Heinrichs<br />
[TMU]<br />
[S]: Wetted materials, Stainless steel<br />
[050]: Meter line size, DN50, ANSI 2"<br />
Range,min. 0-20.000 kg/h - max. 0-80.000 kg/h<br />
[210R]: Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Installation length, 853 mm.<br />
[A]: Containment options, Stainless steel containment 1.4301 (304)<br />
[0]: Heating / cooling, None<br />
[0]: Connection for heating / cooling, None<br />
[B]: Sensor configuration, Integral mount transmitter<br />
Process temperature,--4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection, IP65<br />
[0]: Approvals, None<br />
[1]: Calibration flow, Standard, 3-point<br />
[1]: Calibration density, Standard (3-point)<br />
[0]: Supplementary equipment, None<br />
[H]: Design, Heinrichs</div>

<div>[UCMC4],Transmitter , Mounting<br />
[B]: Integral mount, integrated, M 20x1,5<br />
[1]: Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1]: Power supply, 90 - 265V AC, 50/60Hz<br />
[A]: Output,<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none<br />
[0]: Type of protection (signal output), none</div>

Coriolis Massflowmeter<br />
Model:TMU-S-015-201R-A-0-0-A-0-1-1-0-H/UMC4-B-1-1-A-0-0<br />
Brand: Kobold - Heinrichs<br />
[TMU]<br />
[S]: Wetted materials, Stainless steel<br />
[015]: Meter line size, DN15 ANSI ½"<br />
Range, min. 0-1200 kg/h - max. 0-12000 kg/h<br />
[201R]: Process connection, ½" Class 150 RF ASME B16.5-2003<br />
Installation length, 535 mm<br />
[A]: Containment options, Stainless steel containment 1.4301 (304)<br />
[0]: Heating / cooling, None<br />
[0]: Connection for heating / cooling, None<br />
[A]: Sensor configuration, Integral mount transmitter<br />
Process temperature,--4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection, IP65<br />
[0]: Approvals, None<br />
[1]: Calibration flow, Standard, 3-point<br />
[1]: Calibration density, Standard (3-point)<br />
[0]: Supplementary equipment, None<br />
[H]: Design, Heinrichs<br /><br />
[UCMC4],Transmitter , Mounting<br />
[B]: Integral mount, integrated, M 20x1,5<br />
[1]: Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1]: Power supply, 90 - 265V AC, 50/60Hz<br />
[A]: Output,<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none<br />
[0]: Type of protection (signal output), none

<div>Coriolis Massflowmeter. Range: min. 0-600 kg/h - max. 0-12.000 kg/h. Accuracy: +/-0.15% of actual flow. output 1: 4 - 20mA with HART®. Analog output 2: 4 - 20mA. Pulse output: passive Um=30V DC.  connection 1" Class 150 RF ASME B16.5-2003, Integral mount Transmitter. Pressure: 40 bar. Temperature: -20°C t 100°C</div>

<div></div>
<br />
Coriolis Massflowmeter<br />
Modelo: TME-S-90-203R-0-L-2-0-1-1-H/UMC4-B-1-1-A-0-0<br />
Marca: Kobold - Heinrichs<br />
[TME]<br />
Accuracy: +/-0.15% of actual flow<br />
Temperature: -20°C t 100°C<br />
Pressure: 40 bar<br />
[S]:Stainless Steel<br />
[90]: min. 0-600 kg/h - max. 0-12.000 kg/h(SENSOR TME020)<br />
[203R]: 1" Class 150 RF ASME B16.5-2003<br />
[0]: Heating Cooling, without<br />
[L]: Flow direction, Left to right<br />
[2]: Sensor configuration, Integral mount transmitter<br />
[0]: Approvals,  without approval<br />
[1]: Certificate,  Certificate of compliance with the order, 2.1<br />
[1]: Supplementary equipment,density calibration de 3-points<br />
[H]: Design, Heinrichs<br /><br />
[UCMC4],Transmitter , Mounting<br />
[B]: Integral mount, integrated, M 20x1,5<br />
[1]: Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1]: Power supply, 90 - 265V AC, 50/60Hz<br />
[A]: Output,<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none<br />
[0]: Type of protection (signal output), none

Coriolis Massflowmeter<br />
Modelo: TME-S-58-208R-0-L-2-0-1-1-H/UMC4-B-1-1-A-0-0<br />
Marca: Kobold - Heinrichs<br />
[TME]<br />
Accuracy: +/-0.15% of actual flow<br />
Temperature: -20°C t 100°C<br />
Pressure: 40 bar<br />
[S] Stainless Steel<br />
[58]: min. 0-6.000 kg/h - max. 0-60.000 kg/h (SENSOR TME080)<br />
[208R], 3" Class 150 RF ASME B16.5-2003<br />
[0] Heating Cooling, without<br />
[L]: Flow direction, Left to right<br />
[2]: Sensor configuration, Integral mount transmitter<br />
[0]   Approvals,  without approval<br />
[1] Certificate,  Certificate of compliance with the order, 2.1<br />
[1] Supplementary equipment,density calibration de 3-points<br />
[H] Design, Heinrichs<br /><br />
[UCMC4],Transmitter , Mounting<br />
[B] Integral mount, integrated, M 20x1,5<br />
[1] Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Output, <br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA

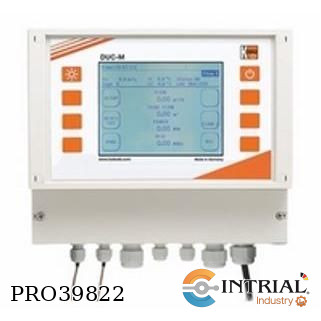

<strong>Transmitter Clamp-on  Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-MF-1-0-0-S-R4</strong><br />
[DUC-MF]:<br />
Operating principle: Ultrasonic<br />
Mounting position: stationary, wall mount<br />
Measuring units: volume flow, flow velocity, thermal output<br />
Counter: heat quantity, volume<br />
Housing: ABS<br />
Additional input for heat measuring: 2x Pt100<br />
Output: 2x4-20 mA, 1(2) pulse, 1x micro-USB,<br />
1 relay; optional RS232/RS485<br />
Measuring channels: 1, optional 2 channels<br />
Protection: IP 65<br />
[1]: Measuring channels, 1 channel<br />
[0]: Power supply, 90-240 VAC<br />
[0]: Ex-approval, without<br />
[S]: Language packages, german/spanish/french<br />
[R4]: Options, RS 485

Plastic Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSM-2-020-Q-P40-R0<br />
[KSM-2]<br />
Operating principle: Variable area<br />
Mounting position: Vertical<br />
Flow direction: From bottom<br />
Armature material: <span class="tlid-translation translation" lang="en" xml:lang="en"><span title="">Polysulfone</span></span><br />
Accuracy: +/-4% FS<br />
Max. Temperature: 100°C<br />
Max. Pressure: 16 bar<br />
[020] Measuring range: 200...2000 m3/h water<br />
[Q] either scales for liquid media: m3/h water <br />
[P40] Option connection PVC G 1 ½ Female<br />
[R0] Option contact: w/o contact

Plastic Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSM-2-060-Q-P50-R0<br /><br />
[KSM-2]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Polysulfone<br />
Accuracy ±4 % FS<br />
Max. temperature 60 °C <br />
Max. pressure 16 bar<br />
Fluid Chlorinated water 0.2%<br />
[060]: Measuring range, 0.6 – 6 m3/h <br />
[Q]: either scales for liquid media, m3/h<br />
[P50]: Option connection for size 060, PVC G 2 female

<strong>Plastic Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSM-2-301-Q-P50-R0</strong><br />
[KSM-2]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Polysulfone<br />
Accuracy ±4 % FS<br />
Max. temperature 60 °C <br />
Max. pressure 16 bar<br />
Fluid Chlorinated water 0.2%<br />
[301]: Measuring range, 2.8 – 28 m3/h <br />
[Q]: either scales for liquid media, m3/h<br />
[P50]: Option connection for size >=200, PVC G 2 female<br />
[R0]: Option contact, w/o contact

<div>Oval Gear Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: OVZ-Y43000/30FU</div>

<div>[OVZ-Y43000/30FU]:<br />
Operating principle Oval Gear<br />
Mounting position horizontal / vertical</div>

Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWU-3-6-W50-X-L-T-0<br /><br />
[DWU-3]:<br />
Operating principle paddle-bellow<br />
Indication pointer indication<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT<br />
max. temperature 100 °C<br />
Connection weld-on flan.<br />
Flow range, 3.0 (min) – 36 (max) m3/h<br />
Process connection DN25 PN16<br />
[6]: Material combination, st.st.<br />
[W50]: Connection, weld-on flange for tube DN 50<br />
[X]: Signal lamp, without signal lamp<br />
[L]: Flow direction, flow from left to right<br />
[T]: Location of indicator, above lead<br />
[0]: Options, w/o option

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-20H-H4-3-Z3-N-0</strong><br />
[DON-2]:                 <br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[20H]: Measuring range, 1 - 40 L/min (0.06 - 2.4 m3/h)<br />
[H4]: Mech. Connection, G 1/2 (100 bar)<br />
[3]: Seal, FEP O-seal / EPDM-core for DON-x20<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without

<div>EP magnetic inductive flowmeter<br />
Brand: Kobold<br />
Model Transmitter: EP-P-336B-1-H-H-2-0<br />
Model Sensor: UMF2-C-1-1-G-0BH / 1</div>

<div>[EP]: Model Transmitter<br />
[P]: Material – lining, PTFE  (PFA)<br />
Temperature, standard 3 Hastelloy electrodes, -20°C...150°C<br />
[336B]: Process Connection, DN100 PN40 Form B1 DIN EN 1092-1<br />
Max. measuring range (Water 20°C, 1 mPas), 288 m³/h<br />
Installation length, 250 mm<br />
[1]: Material flanges, steel (painted)<br />
[H]: Material electrodes, Hastelloy C-4<br />
[H]: Earthing electrode, Hastelloy C-4<br />
[2]: Transmitter mounting, Remote transmitter<br />
Protection class sensor, IP67, junction box via M20 x 1,5<br />
[0]: Approvals, without</div>

<div>[UMF2]: Model Sensor<br />
[C]: Mounting, IP67, Remote transmitter<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output,<br />
current output 1: 4 - 20mA  with HART-protocol       <br />
pulse output:  passive Um=24VDC                           <br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs<br />
[1]: Extended cable length, IP67, 5m, breakout cable</div>

EP magnetic inductive flowmeter<br />
Brand: Kobold<br />
Model Transmitter: EP-P-331B-1-H-H-2-0<br />
Model Sensor: UMF2-C-1-1-G-0BH / 1<br /><br />
[EP]: Model Transmitter<br />
[P]: Material – lining, PTFE  (PFA)<br />
Temperature, standard 3 Hastelloy electrodes, -20°C...150°C<br />
[331B]: Process Connection, DN80 PN40 Form B1 DIN EN 1092-1<br />
Max. measuring range (Water 20°C, 1 mPas), 155 m³/h<br />
Installation length, 200 mm<br />
[1]: Material flanges, steel (painted)<br />
[H]: Material electrodes, Hastelloy C-4<br />
[H]: Earthing electrode, Hastelloy C-4<br />
[2]: Transmitter mounting, Remote transmitter<br />
Protection class sensor, IP67, junction box via M20 x 1,5<br />
[0]: Approvals, without<br /><br />
[UMF2]: Model Sensor<br />
[C]: Mounting, IP67, Remote transmitter<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output,<br />
current output 1: 4 - 20mA  with HART-protocol        <br />
pulse output:  passive Um=24VDC                            <br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs<br />
[1]: Extended cable length, IP67, 5m, breakout cable

Oval Gear Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: OVZ-30-3-N5-V-I303<br /><br />
[OVZ-30]:<br />
Operating principle Oval Gear<br />
Mounting position horizontal / vertical<br />
Measuring range by 10-100 mm²/s, 1,6-40 L/min<br />
Max. temperature 80 °C<br />
Accuracy +-2,5% FS<br />
Protection IP 65<br />
[3]: Body material / cover / max. pressure, Aluminium / PMMA / PN 16<br />
[N5]: Connection, 3/4 NPT<br />
[V]: Seals, FPM<br />
[I303*]: Electronic, Hall sensor / round plug M12x1<br />
* with Aluminium housing

Model: V31-60401S-01-D2W-F-F-A-1-0-2-0-0-0-0-1-0-0-H   <br />
Brand: Kobold – Heinrichs<br />
[V31]:<br />
[60401S]: Thread, NPT ¾"(F) Verschraubung<br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
[01]: Type of float, Material, Stainless steel 1.4571<br />
guide rod 1.4571, without<br />
[D2W]: Measuring range - stainless steel float with guide and not guided, H2O: 65 - 650 l/h<br />
1000kg/m³, 1mPas <br />
[F]: Gasket, Viton®                <br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[1]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[1]: Approvals, ATEX 2 GD IIC TX (BVS 10 ATEX H/B 119)<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrichs

Variable Area Flowmeter<br />
Model: V31-60501S-01-D6W-F-F-A-1-0-2-0-0-0-0-1-0-0-H        <br />
Brand: Kobold – Heinrichs<br />
[V31]:<br />
[60501S]: Thread, NPT 1"(F) Verschraubung<br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
[01]: Type of float, Material, Stainless steel 1.4571<br />
guide rod 1.4571, without<br />
[D6W]: Measuring range - stainless steel float with guide and not guided, H2O: 160 - 1600 l/h<br />
1000kg/m³, 1mPas  <br />
[F]: Gasket, Viton®                 <br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[1]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[1]: Approvals, ATEX 2 GD IIC TX (BVS 10 ATEX H/B 119)<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrichs

Model: VKM-11-06-U0-R15-0-B     <br />
Brand: Kobold (Alemania)<br />
[VKM-11]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass <br />
Seal NBR <br />
Switch point adjustable<br />
Accuracy ±4 % FS  (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar <br />
Viscosity range 1...540 mm²/s<br />
[06]: Measuring range: 3...9 L/min oil<br />
[U0]: Contact, 1 SPDT<br />
[R15]**: Connection, G 1/2 female<br />
** for 1,2 up to 20 L/min<br />
[0]: Option special connection, w/o<br />
[B]: Flow direction, from bottom

<strong>All-Metal-Flowmeter / Switch<br />
Brand: Kobold (Alemania)<br />
Model: SMV-31-13H-R0-R15</strong><br />
[SMV-31]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Body material: Brass<br />
Seal: NBR<br />
Side mounted indication: yes<br />
Switch point, adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
[13H] Adjustment range: 2.5...20 L/min water<br />
[R0] Contact ,1 N/O<br />
[R15] Connection G 1/2 female

Magnetic inductive flowmeter.<br />
Model: EP-P-208R-2-H-S-3-0/UMF2-G-1-2-G-0BK-C<br />
Brand: Kobold-Heinrichs<br />
[EP-P]:<br />
Material - lining: PTFE (PFA) standard 3 Hastelloy electrodes<br />
Temperature, -20°C...150°C<br />
[208R]: Process Connection, 3" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 163 m³/h<br />
Installation length, 200mm<br />
[2]: Material flanges, stainless steel (1.4301)<br />
[H]: Material electrodes, Hastelloy C-4<br />
standard for PTFE<br />
[S]: Earthing electrode (from DN20...),  Stainless steel<br />
[3]: Transmitter mounting, integrated transmitter<br />
IP68, junction box via M20 x 1,5, encapsulated<br />
[0]: Approvals, without<br /><br />
Include:<br />
[UMF2]<br />
[G]: Mounting, IP67,remote transmitter,<br />
Connection to sensor,incl. 2,5m cable and wall mounting bracket<br />
Thread - electrical connection, Transmitter c/w terminal connection box ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output 1: 4 - 20mA with HART-protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold<br />
[C]:Extended cable length,10m<br />
