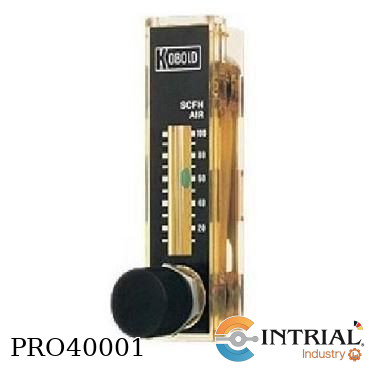

Low Volume Flowmeters<br />
Brand: Kobold (Alemania)<br />
Model: KSV-14-01<br />
[KSV-14]<br />
Operating principle, variable area<br />
Mounting position vertical, from bottom<br />
Accuracy ± 6% FS<br />
Max. temperature, 120 °C<br />
Max. pressure 6 bar<br />
Needle valve (only KSV-1), bottom<br />
Connection,1/8 NPT female on rear<br />
Seal, NBR<br />
Housing material, Polysulfone<br />
[01]: Measuring range, 0,25...1,5 L/h water

Low Volume Flowmeter/-switch<br style="color:rgb(0,0,0);font-family:'Times New Roman';font-size:16px;font-style:normal;font-variant:normal;font-weight:400;letter-spacing:normal;text-align:left;text-decoration:none;text-indent:0px;text-transform:none;word-spacing:0px;" />
Model: KSK-1-015-H-K16-00<br />
Brand: Kobold (Alemania)<br />
[KSK-1]<br />
Operation principle variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Material, Trogamide<br />
Accuracy, Class 4<br />
Max. temperature, 60 °C<br />
Max. pressure, PN 10<br />
Seal, EPDM<br />
[015]:Measuring range, 1,5...11 L/h water<br />
[H]: Scale, L/h waterscale<br />
[K16]: Connection for size, PVC-glue connection o.d. 16 (standard)<br />
[00]: Option contact, w/o

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-21-153-N-15-U-1</strong><br />
[PSR-21]:<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Approvals: ATEX / IECEx<br />
incl. fitting: Brass<br />
Body material: Brass<br />
max. pressure* 100 bar<br />
[153]: Measuring range/paddle; 2.5-6.4 L/min paddle: 3<br />
[N]: Connection; NPT-thread<br />
[15]: Connection; 1/2" (for PSR-xx15...)<br />
[U]: Contact version; SPDT (ATEX IECEx)<br />
[1]: Connecting cable; PVC-cable 1.5 m (standard)

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S15-202R-H-0-S-0-1-S-5-6-0-H<br />
Brand: Kobold – Heinrichs</strong><br />
[BGN]:<br />
[S15]: Stainless Steel, process temperature ≤ 350°C<br />
[202R]: Connection, size ¾" Class 150 RF ASME B16.5-2003<br />
[H]: Range (water 20°C, 1mPas): H2O: 1.22…..8.37 Nm3/H<br />
[0]: Heating/cooling, without heating / Cooling<br />
[S]: Damping/spring stop, Gas damping and spring stop<br />
[0]: Self-draining, without<br />
[1]: Certificates, Certificate of compliance with the order 2.1<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

Paddle Type Flow Switch. Measuring range/paddle, 2.5-6.4 L/min paddle: 3. Connection: 1/2". Contact SPDT (ATEX IECEx), cable 1.5 m<br />
Stainless steel. max. presure* 250bar.  Mounting position all directions.<br /><br /><br />
Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-22-153-N-15-U-1<br /><br />
[PSR-22]:<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Approvals: ATEX / IECEx<br />
incl. fitting: St St<br />
Body material: St St<br />
max. presure* 250bar<br />
[153]: Measuring range/paddle; 2.5-6.4 L/min paddle: 3<br />
[N]: Connection; NPT-thread<br />
[15]: Connection; 1/2" (for PSR-xx15...)<br />
[U]: Contact version; SPDT (ATEX IECEx)<br />
[1]: Connecting cable; PVC-cable 1.5 m (standard)

<strong>Gear Wheel Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DZR-1-017-S40-P-S-3</strong><br />
[DZR-1]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Medium-viscosity low<br />
Lubricating property of the medium good<br />
Storage ball bearing<br />
Material cast<br />
Accuracy (of actual range) +-0,3%<br />
Max. Temperature 120/150 °C<br />
[017]: measuring range / pressure, 2...600 L/min / 400 bar<br />
[S40]: Mech. connection, Flansch SAE 1½" side moun.(only Code: 017/018)<br />
[P]: Seal, PTFE/FEP<br />
[S]: Electronic, up to 120 °C / 24 VDC<br />
[3]: Electr. Connection, plug-on display with 0(4)..20 mA output

Acrylic Flowmeter<br />
Brand: Kobold (USA)<br />
Model: KFR-5356<br />
[KFR-5356]<br />
Specifications<br />
Accuracy: ±2% of Full Scale<br />
Max Pressure:100 PSIG<br />
Max Temperature: 150 °F<br />
Body: Clear Acrylic<br />
Range: 0.4-5 GPM<br />
Float material: SS<br />
Fitting material: PVC<br />
Process connection: 1” NPT

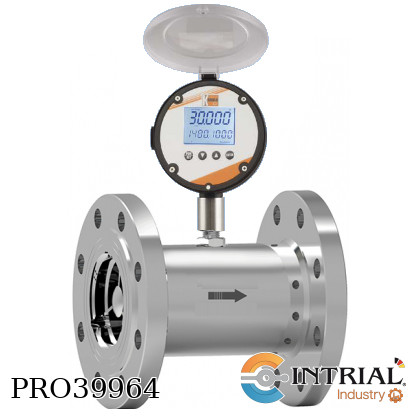

<strong>Turbine Wheel Flowmeter<br />
Brand: Kobold<br />
Model: DOT-13-50H-AE-Z3N-L</strong><br />
[DOT-13]<br />
Operating principle Turbine wheel<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Connection/ Housing material st. Steel / st. steel<br />
max. temperature -20…+120 °C<br />
max. pressure PN 250 bar<br />
Linearity ± 0.5 % of Reading<br />
[50H]: measuring range, 55-550 m³/h<br />
[AE]: Mechanical connection, 6" ANSI 150 RF Flange for range code 50<br />
[Z3N]: Electronics / cable entry, dual LCD totaliser/rate, outputs: pulse, analogue, cable entry  1/2 NPT<br />
[L]: Flow direction, from left to right, indication on top

Paddle Wheel Flow Sensor<br />
Model:  DRH-1998-N6-F300<br />
Brand: Kobold (USA)<br />
[DRH-1998-N6]:<br />
Specifications<br />
Accuracy: ±2.5% of Full Scale<br />
Frequency: PNP, 25 mA max.14-28  VDC<br />
Flow Range (GPM):  0.66...13.2<br />
Fitting (NPT) 1 "<br />
[F300]:  <br />
Frequency Output<br />
Power Supply: 12-28 VDC<br />
Power Consumption: 10 mA<br />
Pulse Output:PNP, Open Collector, Max. 25 mA<br />
Electrical Connection: Plug Connector M12 x 1<br /><br />
Include:<br />
Accessories:<br />
[807.037]:<br />
(Cable: M12 4-PIN, 6 Feet)

Paddle Wheel Flow Sensor<br />
Model:  DRH-1990-N3-F300<br />
Brand: Kobold (USA)<br />
[DRH-1990-N3]:<br />
Specifications<br />
Accuracy: ±2.5% of Full Scale<br />
Frequency: PNP, 25 mA max.14-28  VDC<br />
Flow Range (GPM): 0.26...6.8<br />
Fitting (NPT) 3/8"<br />
[F300]:  <br />
Frequency Output <br />
Power Supply: 12-28 VDC<br />
Power Consumption: 10 mA<br />
Pulse Output:PNP, Open Collector, Max. 25 mA<br />
Electrical Connection: Plug Connector M12 x 1<br /><br />
Include:<br />
Accessories:<br />
[807.037]: (Cable: M12 4-PIN, 6 Feet)

<div>Oval Wheel Flowmeter DON<br />
Brand: Kobold ( Alemania)<br />
Model: DON-1-55H-NC-1-ZB-N-0</div>

<div>[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80°C<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[55H]: Measuring range, 75-1500 L/min<br />
[NC]: Mech. connection, 4" NPT<br />
[1]: Seal, FKM<br />
[ZB]: LCD totaliser with rate, supply: battery 3,6 V<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Option, without<br />
[Y]: Not include battery.</div>

Replacement wheel-turbine sensorTUR<br />
Brand : Kobold ( Alemania)<br />
Model: 801.044<br /><br />
Accessory for model:801.044<br />
Input: TUR<br />
Display: 0 to 5 m3 / h<br />
Output: 4 to 20 mA<br />
S-Nr: 284326

Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-82-08-C4P-N20-T<br />
[VKM-82]:<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, St.St. <br />
Seal, FPM<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 350 bar<br />
Viscosity range 1...540 mm²/s<br />
[08]: Measuring range, 5...18 L/min oil<br />
[C4P]: Output/Indicator, Compact electr. 24 VDC, 4-20 mA, 1xPNP<br />
[N20]: Connection, 3/4 NPT female<br />
[T]: Flow direction, from top<br /><br />
Include:<br />
Model: ZUB-KAB-12-D500<br />
Brand: Kobold <br />
[D500]:M12x1 box with terminal , 5-pin

<strong>All-Metal-Flowmeter / Switch<br />
Brand: Kobold (Alemania)<br />
Model: SMV-11-01H-R0-R08</strong><br />
[SMV-11]: <br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Body material: Brass<br />
Seal: NBR<br />
Side mounted indication: ----<br />
Switch point, adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C*<br />
Max. pressure 250 bar** <br />
** Measuring range 1 L/min only 16 bar<br />
[01H]: Adjustment range: 0.1...1 L/min water<br />
[R0]: Contact ,1 N/O<br />
[R08*]: Connection G 1/4 female<br />
* for <= 20 L/min

Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-55-28H-I4-0-Y<br />
[URM-55]<br />
Mounting position: vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. temperature: 100°C<br />
Max. pressure: 6 bar...16 bar depend see data sheet<br />
Material: connection, float / seal/ ring, 1.4404 / FPM / PTFE<br />
[28H]: Range Full Scale* water, 250 L/h<br />
[I4]: Connection female: G 1/2<br />
[0]: Contacts: w/o, for meas. range: all

<strong>​All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs<br />
Model: BGN-S10-202R-D-0-0-0-1-S-5-0-0-K</strong><br />
[BGN]:  Model<br />
[S10]: Stainless Steel, process temperature ≤ 350°C<br />
[202R]: ¾" Class 150 RF ASME B16.5-2003<br />
[D]: Range (water 20 °C, 1 mPas), H2O: 2,5 - 25 l/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[0]: Damping / spring stop, without<br />
[0]: Self draining, without<br />
[1]: Certificates, Certificate of compliance with the order 2.1<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media), <br />
[0]: Switches, without<br />
Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

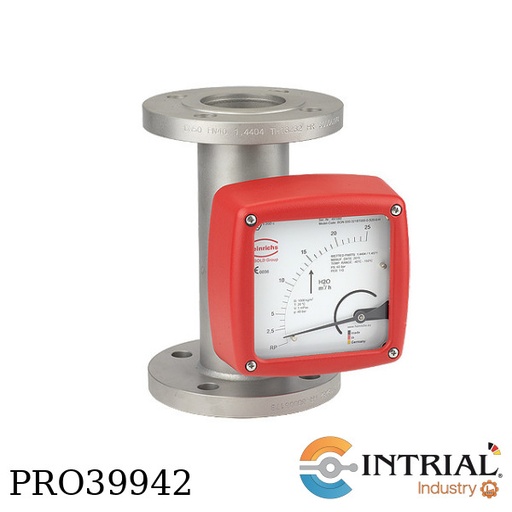

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S50-206R-R-0-0-0-0-S-5-6-0-H</strong><br />
[BGN]:  Model<br />
[S50]: Stainless Steel, process temperature ≤ 350°C<br />
[206R]: 2" Class 150 RF ASME B16.5-2003<br />
[R]: Range: (FT1106), 690  a  6800 L/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media), <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia <br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

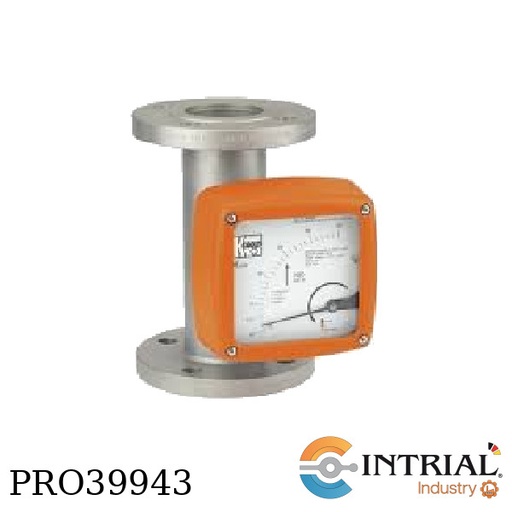

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S50-206R-R-0-0-0-0-S-5-6-0-H</strong><br />
[BGN]:  Model<br />
[S50]: Stainless Steel, process temperature ≤ 350°C<br />
[206R]: 2" Class 150 RF ASME B16.5-2003<br />
[R]: Range: (FT1105), 690  a  6800 L/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media), <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia <br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S25-203R-P-0-0-0-0-S-5-6-0-H</strong><br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[203R]: 1" Class 150 RF ASME B16.5-2003<br />
[P]: Range: (FT1104), 280  a  2800 L/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media), <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia <br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S25-203R-P-0-0-0-0-S-5-6-0-H</strong><br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[203R]: 1" Class 150 RF ASME B16.5-2003<br />
[P]: Range: (FT1103), 250  a  2500 L/h<br />
[0]: Heating/cooling, without heating/Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media), <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia <br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs
