Model: EP-P-211R-2-H-S-3-0/UMF2-G-1-2-G-0BK-C<br />
Brand: Kobold-Heinrichs<br />
[EP-P]: <br />
Material - lining: PTFE (PFA) standard 3 Hastelloy electrodes<br />
Temperature, -20°C...150°C<br />
[211R]: Process Connection, 5" Class 150 RF ASME B16.5-2003  <br />
Max. measuring range (Water 20°C, 1 mPas), 456 m³/h <br />
Installation length, 250mm<br />
[2]: Material flanges, stainless steel (1.4301)<br />
[H]: Material electrodes, Hastelloy C-4<br />
standard for PTFE<br />
[S]: Earthing electrode (from DN20...),  Stainless steel<br />
[3]: Transmitter mounting, integrated transmitter <br />
IP68, junction box via M20 x 1,5, encapsulated<br />
[0]: Approvals, without<br /><br />
Include:<br />
[UMF2]<br />
[G]: Mounting, IP67,remote transmitter,<br />
Connection to sensor,incl. 2,5m cable and wall mounting bracket<br />
Thread - electrical connection, Transmitter c/w terminal connection box ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output 1: 4 - 20mA with HART-protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold<br />
[C]:Extended cable length,10m

<strong>EP magnetic inductive flowmeter<br />
Model: EP-H-212R-2-H-S-3-0/UMF2-G-1-2-G-0BK-C<br />
Brand: Kobold-Heinrichs</strong><br />
[EP-H]: <br />
Material - lining: hard-rubber, standard 3 stainless steel electrodes<br />
Temperature, 0°C...80°C<br />
[212R]: Process Connection, 6" Class 150 RF ASME B16.5-2003  <br />
Max. measuring range (Water 20°C, 1 mPas), 670 m³/h  <br />
Installation length, 300mm<br />
[2]: Material flanges, stainless steel (1.4301)<br />
[H]: Material electrodes, Hastelloy C-4<br />
standard for PTFE<br />
[S]: Earthing electrode (from DN20...),  Stainless steel<br />
[3]: Transmitter mounting, integrated transmitter <br />
IP68, junction box via M20 x 1,5, encapsulated<br />
[0]: Approvals, without<br /><br /><strong>Include:<br />
[UMF2]</strong><br />
[G]: Mounting, IP67,remote transmitter,<br />
Connection to sensor,incl. 2,5m cable and wall mounting bracket<br />
Thread - electrical connection, Transmitter c/w terminal connection box ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output 1: 4 - 20mA with HART-protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold<br />
[C]:Extended cable length,10m

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-42-42-N0</strong><br />
[KFR-42]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Total length 165 mm<br />
Accuracy ±3 % FS<br />
Max. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material, st.st.<br />
Connection size 1/8 NPT female on rear<br />
Seal ,FPM<br />
[42] Measuring range, 2...20 L/min air<br />
[N0] Options, Needle valve

<div>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-21-16-N0</div>

<div>[KFR-21]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Total length 102 mm<br />
Accuracy ±5 % FS<br />
Max. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material brass<br />
Connection size 1/8 NPT female on rear<br />
Seal NBR<br />
[16]: Measuring range, 2...25 L/min air<br />
[N0]: Options, Needle valve</div>

Bypass-Level Indicators with glass tube<br />
Brand: Kobold<br />
Model: SZM-S-2-1-A4-00-0<br /><br />
[SZM-S]:<br />
Bypass- tube Borosilicate glass<br />
O-ring FPM<br />
Protecting tube st. steel 1.440<br />
Connection st. steel 1.440<br />
Max. temperature 100 °C<br />
Max. pressure 10 bar<br />
Installation length 500 mm<br />
[2]: Version (top/bottom), top: closed, bottom: cleaning hole<br />
[1]: Valves, 2 shut-off valves in connection<br />
[A4]: Connection, loose flange ANSI B16.5 1/2" 150 lbs<br />
[00]: Scale, without<br />
[0]: Limit switch, without

Coriolis Massflowmeter<br />
Brand: Kobold – Heinrichs<br />
Model Sensor:  TME-S-95-206R-0-L-6-0-0-1-H<br />
Model Transmitter: UMC4-D-1-1-A-0-0<br /><br />
[TME]: Model Sensor <br />
[S]: Wetted materials, Stainless steel<br />
[95]: Range, min. 0-3.000 kg/h - max. 0-30.000 kg/h, Sensor, TME025<br />
[206R]: Process connection, 2" Class 150 RF ASME B16.5-2003<br />
Face to face dimension, 500 mm<br />
[0]: Heating / Cooling, without<br />
[L]: Flow direction, Left to right<br />
[6]: Sensor configuration, Remote mount transmitter<br />
Temperature Service Rating, -40°C to 100°C, -40°F to 212°F<br />
Sensor cable connection, Terminal block via ½" NPT (f)<br />
[0]: Approvals, without approval<br />
[0]: Certificate, without<br />
[1]: Supplementary equipment, density calibration 3-points<br />
[H]: Design, Heinrichs<br /><br />
[UMC4]: Model Transmitter<br />
[D]: Mounting, Remote mount / terminal connection box, mounted<br />
Specify cable length in writing, 15 meters<br />
[1]: Display / Interface board, Integral within transmitter housing for ambient temperature up to 60°C <br />
Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1]: Power supply, 90 - 265V AC, 50/60Hz<br />
[A]: Outputs<br />
Analog output 1: 4 - 20mA with HART<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none<br />
[0]: Type of protection (signal output), none

<strong>Coriolis Massflowmeter<br />
Brand: Kobold – Heinrichs<br />
Model Sensor:  TME-S-95-206R-0-U-6-0-0-1-H<br />
Model Transmitter: UMC4-D-1-1-A-0-0</strong><br />
[TME]: Model Sensor <br />
[S]: Wetted materials, Stainless steel<br />
[95]: Range, min. 0-3.000 kg/h - max. 0-30.000 kg/h, Sensor, TME025<br />
[206R]: Process connection, 2" Class 150 RF ASME B16.5-2003<br />
Face to face dimension, 500 mm<br />
[0]: Heating / Cooling, without<br />
[U]: Flow direction, Bottom to top<br />
[6]: Sensor configuration, Remote mount transmitter<br />
Temperature Service Rating, -40°C to 100°C, -40°F to 212°F<br />
Sensor cable connection, Terminal block via ½" NPT (f)<br />
[0]: Approvals, without approval<br />
[0]: Certificate, without<br />
[1]: Supplementary equipment, density calibration 3-points<br />
[H]: Design, Heinrichs<br /><br />
[UMC4]: Model Transmitter<br />
[D]: Mounting, Remote mount / terminal connection box, mounted<br />
Specify cable length in writing, 15 meters<br />
[1]: Display / Interface board, Integral within transmitter housing for ambient temperature up to 60°C <br />
Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1]: Power supply, 90 - 265V AC, 50/60Hz<br />
[A]: Outputs<br />
Analog output 1: 4 - 20mA with HART<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none<br />
[0]: Type of protection (signal output), none

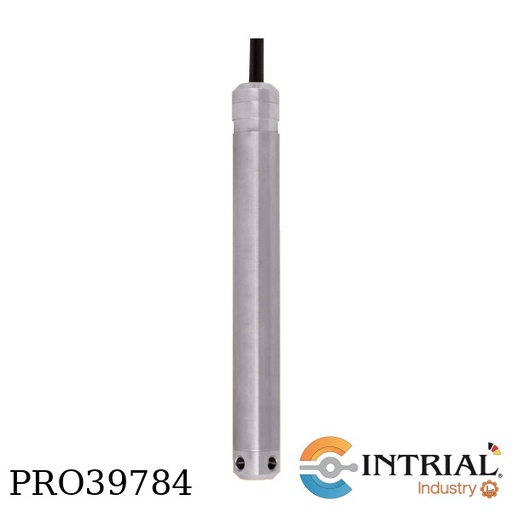

Hydrostatic Pressure Sensor<br />
Brand: Kobold (Alemania)<br />
Model: NTB-13-10-YY-(22mts)<br /><br />
[NTB-13]:<br />
Sond- material stainless steel<br />
Cable-material Polyurethane<br />
Output signal  (2 wire) 4..20 mA<br />
Power supply 12...30 VDC<br />
Overloading 3x measuring range<br />
[10]: Measuring range, 10 mWs<br />
[YY]: Length of cable, 22 metros

<div>Turbine Wheel Flowmeter<br />
Model: DOT-13-05H-G4-F4S-0<br />
Brand: Kobold - Alemania</div>

<div>[DOT-13]:<br />
Operating principle, Turbine wheel<br />
Mounting position,  all directions<br />
Flow direction, in direction of the arrow<br />
Connection/ Housing material, st.steel / st. steel<br />
max. temperature, max. temperature -20…+120 °C<br />
max. pressure, 250 bar (with flange acc. flange specification)<br />
Linearity, ± 0.5 % of reading<br />
[05H]: measuring range, 0.11-1.1 m³/h<br />
[G4]: Mechanical connection, G 1/2 for range code 05<br />
[F4S]: Electronics / cable entry,<br />
only pulse output pre-amplified/ MS (military style), max. 120°C<br />
[0]: Flow direction, all directions (only frequency output)</div>

Turbine Wheel Flowmeter<br />
Model: SFL-1220-R10<br />
Brand: Kobold - Alemania<br /><br />
[SFL-1220]:<br />
Operating principle, Turbine wheel<br />
Mounting position,  all directions<br />
Flow direction,  in direction of the arrow<br />
Material, st. st. / FPM<br />
max. temperature, 90 °C<br />
max. pressure,  250 bar<br />
Accuracy,  +- 1% FS<br />
Measuring range (water),  0,5...20 L/min<br />
Output, 6250 Pulse/L<br />
[R10]: Connection, G 3/8 female

Variable Area Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: DSV-11-08H-00-N25<br /><br />
[DSV-11]:<br />
Operating principle: variable area<br />
Mounting position: vertical<br />
Flow direction: from bottom<br />
Fitting material: Brass<br />
Sight glass: Borosilicate<br />
Accuracy: ±4 % FS<br />
Max. temperature: 100 °C (metal-float)<br />
Max. pressure: 10 bar<br />
[08H]: Measuring range, 10...100 L/min water<br />
[00]: Contact: w/o<br />
[N25]: Connection measuring range,1 NPT fem. (betw. 25 and 100 L/min)

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDF-22-17-N-V-0-00-0</strong><br />
[KDF-22]:<br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 2.5<br />
Max. temperature without/with contact  100 °C / 80 °C<br />
Max. pressure PN 16<br />
[17]: Measuring range, 0.25...2.5 L/h water<br />
[N]: Connection, 1/4 NPT  <br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S80-208R-T-0-F-0-0-S-2-0-0-H<br />
Brand: Kobold – Heinrichs</strong><br />
[BGN]<br />
[S80]: Stainless Steel, process temperature ≤ 350°C<br />
[208R]: Connection, 3" Class 150 RF ASME B16.5-2003<br />
[T]: Range (water 20°C, 1 mPas), H2O:  1.6- 16 m3/h)<br />
[0]: Heating/cooling, without heating / Cooling<br />
[F]: Damping/spring stop, with liquid damping<br />
[0]: Self-draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

VARIABLE AREA FLOWMETER<br />
Modelo: V31-305B5S-01-C7W-F-F-S-0-0-4-0-1-0-0-0-1-0-H  ( 55 - 550 L/h )<br />
Marca: Kobold-Heinrichs<br />
[305B5S]:<br />
Flange, DN15 PN10/16/25/40 Form B1 EN1092-1<br />
Length, 500 mm<br />
connection - wetted parts, Stainless steel<br />
[01]:<br />
Type of float, Material,Stainless steel 1.4571<br />
guide rod 1.4571, without<br />
[C7W]:<br />
Measuring range - stainless steel float (not guided), 55 - 550 l/h<br />
[F]: Gasket, Viton® FKM<br />
[F]: Float - stop, PVDF<br />
[S]:  Union nut, Stainless steel<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[1]: Calibration certificate,Standard confirmed accuracy class (4.2.1)<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[1]: Marking, stainless steel plate 40x20mm<br />
[0]: Accessories, without<br />
[h]: Make, Heinrichs

VARIABLE AREA FLOWMETER<br />
Modelo:V31-309B5S-01-D4W-F-F-S-0-0-4-0-1-0-0-0-1-0-H  ( 115 - 1150 L/h )<br />
Marca: Kobold-Heinrichs<br />
[309B5S]:<br />
Flange, DN25 PN10/16/25/40 Form B1 EN1092-1<br />
Length, 500 mm<br />
connection - wetted parts, Edelstahl<br />
[01]:<br />
Type of float, Material,Stainless steel 1.4571<br />
guide rod 1.4571, without<br />
[D4W]:<br />
Measuring range - stainless steel float (not guided), 115 - 1150 l/h<br />
[F]: Gasket, Viton® FKM<br />
[F]: Float - stop, PVDF<br />
[S]:  Union nut, Stainless steel<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[1]: Calibration certificate,Standard confirmed accuracy class (4.2.1)<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[1]: Marking, stainless steel plate 40x20mm<br />
[0]: Accessories, without<br />
[h]: Make, Heinrichs<br />


VARIABLE AREA FLOWMETER<br />
Modelo: V31-305B5S-01-B6W-F-F-S-0-0-4-0-1-0-0-0-1-0-H (11.5 - 115 L/h)<br />
Marca: Kobold-Heinrichs<br />
[305B5S]: <br />
Flange, DN15 PN10/16/25/40 Form B1 EN1092-1<br />
Length, 500 mm<br />
connection - Stainless steel<br />
[01]: <br />
Type of float, Material,Stainless steel 1.4571<br />
guide rod 1.4571, without<br />
[B6W]:<br />
Measuring range - stainless steel float (not guided), 11.5 - 115 l/h <br />
[F]: Gasket, Viton® FKM<br />
[F]: Float - stop, PVDF<br />
[S]:  Union nut, Stainless steel<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[1]: Calibration certificate,Standard confirmed accuracy class (4.2.1)<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[1]: Marking, stainless steel plate 40x20mm<br />
[0]: Accessories, without<br />
[h]: Make, Heinrichs

<strong>VARIABLE AREA FLOWMETER<br />
Modelo: V31-309B5S-03-D4W-F-F-S-0-1-4-0-1-0-0-0-1-0-H  ( 110 - 1100 L/h )+TAG<br />
Marca: Kobold-Heinrichs</strong><br />
[309B5S]: Flange, DN25 PN10/16/25/40 Form B1 EN1092-1<br />
Length, 500 mm<br />
connection - wetted parts, Edelstahl<br />
[03]: Type of float, Material,Stainless steel 1.4571 - with magnet<br />
guide rod 1.4571, without<br />
[D4W]: Measuring range - stainless steel float (not guided), 110 - 1100 l/h <br />
[F]: Gasket, Viton® FKM<br />
[F]: Float - stop, PVDF<br />
[S]:  Union nut, Stainless steel<br />
[0]: Shatter protection max. 80°C, without<br />
[1]: electrical output,1 x K 17 A Contact closes below limit<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[1]: Calibration certificate,Standard confirmed accuracy class (4.2.1)<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[1]: Marking, stainless steel plate 40x20mm<br />
[0]: Accessories, without<br />
[h]: Make, Heinrichs

VARIABLE AREA FLOWMETER<br />
Modelo: V31-309B5S-01-D6W-F-F-S-0-0-4-0-1-0-0-0-1-0-H  (185 - 1850 L/h )<br />
Marca: Kobold-Heinrichs<br />
[309B5S]: <br />
Flange, DN25 PN10/16/25/40 Form B1 EN1092-1<br />
Length, 500 mm<br />
connection - wetted parts, Edelstahl<br />
[01]: Type of float, Material,Stainless steel 1.4571<br />
guide rod 1.4571, without<br />
[D6W]: Measuring range - stainless steel float (not guided), 185 - 1850 l/h <br />
[F]: Gasket, Viton® FKM<br />
[F]: Float - stop, PVDF<br />
[S]:  Union nut, Stainless steel<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[1]: Calibration certificate,Standard confirmed accuracy class (4.2.1)<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[1]: Marking, stainless steel plate 40x20mm<br />
[0]: Accessories, without<br />
[H]: Make, Heinrichs

VARIABLE AREA FLOWMETER<br />
Modelo: V31-309B5S-01-D6W-F-F-S-0-0-4-0-1-0-0-0-1-0-H<br />
Marca: Kobold-Heinrichs<br />
[309B5S]<br />
Process connection - Flange: DN25 PN10/16/25/40 Form B1 EN1092-1<br />
Length 500mm<br />
Connection - wetted parts, Stainless steel<br />
[01] Type of float, 1.4571 (316 TI)<br />
Magnet / weighted<br />
[D6W] Measuring range : 185  a 1850 LPH<br />
[F] Gasket, Viton® FKM<br />
[F] Float - stop, PVDF<br />
[S] Union nut, Stainless steel<br />
[0] Shatter protection without<br />
[0] electrical output,without<br />
[4] Scale, Measuring range-scale (Medium)<br />
[0] Certificates, without<br />
[1] Calibration certificate, Standard confirmed accuracy class (4.2.1)<br />
[0] Cleaning, without<br />
[0] Pressure / leakage test, without<br />
[0] Approvals, without<br />
[1] Marking, stainless steel plate 40x20mm<br />
[0] Accessories, without<br />
[H] Design, Heinrichs<br /><br />
Fluid: Water with DAF<br />
Range: 185 to 1850 GPH<br />
Density: 1 Kg/L<br />
Viscosity: 0.32 mPas<br />
Temperature. : 80°C

VARIABLE AREA FLOWMETER<br />
Modelo: V31-305B5S-01-C4W-F-F-S-0-0-4-0-1-0-0-0-1-0-H  ( 28 - 280 L/h)<br />
Marca: Kobold-Heinrichs<br />
[305B5S]:<br />
Flange, DN15 PN10/16/25/40 Form B1 EN1092-1<br />
Length, 500 mm<br />
connection - wetted parts, Stainless steel<br />
[01]:<br />
Type of float, Material,Stainless steel 1.4571<br />
guide rod 1.4571, without<br />
[C4W]:<br />
Measuring range - stainless steel float (not guided), 28 - 280 l/h<br />
[F]: Gasket, Viton® FKM<br />
[F]: Float - stop, PVDF<br />
[S]:  Union nut, Stainless steel<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[1]: Calibration certificate,Standard confirmed accuracy class (4.2.1)<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[1]: Marking, stainless steel plate 40x20mm<br />
[0]: Accessories, without<br />
[h]: Make, Heinrichs
