<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S25-203R-P-0-0-0-0-S-5-6-0-K</strong><br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[203R]: 1" Class 150 RF ASME B16.5-2003<br />
[P]: Range: Etanol 50% V/V, 290 a 2900 LPH<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media),<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[K] Design, Kobold

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S25-203R-P-0-0-0-0-S-5-6-0-H<br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[203R]: 1" Class 150 RF ASME B16.5-2003<br />
[P]: Range: (FT1101), 290 - 2900 L/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media), <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia <br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-82-08-C4P-N20-T<br />
[VKM-82]:<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, St.St.<br />
Seal, FPM<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 350 bar<br />
Viscosity range 1...540 mm²/s<br />
[08]: Measuring range, 5...18 L/min oil<br />
[C4P]: Output/Indicator, Compact electr. 24 VDC, 4-20 mA, 1xPNP<br />
[N20]: Connection, 3/4 NPT female<br />
[T]: Flow direction, from top

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-H-10H-N2-1-E1-N-0</strong><br />
[DON-H]:                 <br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 400 Bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[10H]: Measuring range, 2 - 100 L/h <br />
[N2]: Mech. Connection, NPT 1/4 <br />
[1]: Seal, FKM<br />
[E1]: Z1 electronic with ATEX approval (Exi)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without<br />
[Y]: Does not include Battery

Model: EP-H-208R-1-S-S-1-0 / UMF2-A-1-4-G-0BH<br />
Brand: Heinrichs - Kobold<br />
[EP-H]:<br />
Material - lining, hard-rubber<br />
Temperature, standard 3 stainless steel electrodes 0°C...80°C<br />
[208R]: Process Connection, 3" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas),163 m³/h  <br />
Installation length, 200 mm<br />
[1]: Material flanges, steel (painted)<br />
[S]: Material electrodes, Stainless steel, standard for hard rubber,<br />
[S]: Earthing electrode (from DN20...), Stainless steel, standard for hard rubber,<br />
[1]: Transmitter mounting, integrated transmitter,<br />
Protection class sensor, IP67<br />
[0]: Approvals, without<br /><br />
Include:<br />
[UMF2-A]:<br />
Mounting -integrated transmitter IP67<br />
Thread - electrical connection -standard, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output,<br />
current output 1: 4 - 20mA  with HART-protocol      <br />
pulse output:  passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs

<div>Low Volume Flowmeter</div>
Brand: Kobold (Alemania)<br />
Model: KDG-22-YY-N-V-0-00-0<br />
[KDG-22]<br /><br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 2.5<br />
Max. temperature without/with contact  100 °C / 80 °C<br />
Max. pressure PN 16<br />
With needle valve<br />
[YY]: Measuring range, 3,5 – 47 Nl/h nitrogen gas<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o<br />
Operating pressure: 6 bar (g)<br />
Operating temperature: 20 °C

<strong>Oval Wheel Flowmeter DON<br />
Model: DON-2-30H-N8-1-Z3-N-0-Y<br />
Brand: Kobold ( Alemania)</strong><br />
[DON-2]<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16…100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[30H]: Measuring range, 15-250 L/min<br />
[N8]: Mech. connection, 1 1/2" NPT<br />
[1]: Seal, FKM<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Accessory, without<br />
[Y]:Not include battery

Oval Gear Flowmeter<br />
Model: DON-230GN8-1-Z3-N-0<br />
Brand: Kobold (USA)<br /><br />
[DON-230G]<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
max. pressure, 16…100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Flow Range (GPM), 4.0...66<br />
Housing material, st. steel<br />
[N8]: Connection, 1½" NPT<br />
[1]: O-ring Material, FKM<br />
[Z3]: Electronic/ Display,LCD Totalizer,<br />
Rate, Outputs: 4-20 mA<br />
[N]: Cable Entry,  ½" NPT<br />
[0]: Option, Without

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-10H-N2-3-Z3-N-0  </strong><br />
[DON-2]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C <br />
max. pressure 16...100 bar <br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[10H]: Measuring range, 2-100 L/h<br />
[N2]: Mech. connection, for range 10H , 1/4 NPT<br />
[3]: Seal, FEP O-seal / EPDM-core up to DON-x15<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue <br />
[N]: Cable entry, 1/2 NPT  <br />
[0]: Options, withou

Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C<br />
max. pressure 16...100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[15H]: Measuring range, 15-550 L/h <br />
[N3]: Mech. connection, for meas. range 15H, G 3/8<br />
[3]: Seal, FEP O-seal / EPDM-core up to DON-x15<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT <br />
[Y]: Options, Special gear wheels for viscosity > 1000 cP for range 15H<br />
*Not incl. batterie

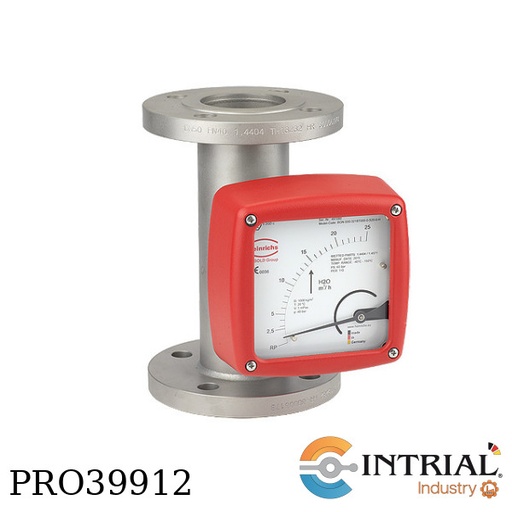

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S40-205R-Q-0-F-L-0-E-1-0-0-K<br />
[S40]: Model, Stainless Steel, process temperature ≤ 350°C<br />
[205R]: Connection, size, 1½" 150 lbs RF ASME B16.5-2003<br />
[Q]: Range (water 20°C, 1 mPas), H2O: 0.4 – 4.0 m3/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[F]: Damping/spring stop, with liquid damping<br />
[L]: Self-draining, with self-draining body<br />
[0]: Certificates, without<br />
[E]: Display, Stainless steel display housing IP67, working temperature ≤ 150°C <br />
[1]: Scale, % Scale (Water)<br />
[0]: Switches, without<br />
[0]:  Accessories, without<br />
[K]: Design, Heinrichs

<div><strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S50-206R-T-0-0-0-0-S-5-6-0-H</strong>   <br />
[BGN]:<br />
[S50]: Model, Stainless Steel, process temperature ≤ 350°C <br />
[206R]: Connection, size 2" Class 150 RF ASME B16.5-2003  <br />
[T]: Range (TAG FT_EX503), 1.8  a  18.00 m3/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Measuring range-Scale (Media) <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia <br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs</div>

<div><strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S50-206R-T-0-0-0-0-S-5-6-0-H</strong><br />
[BGN]:<br />
[S50]: Model, Stainless Steel, process temperature ≤ 350°C <br />
[206R]: Connection, size 2" Class 150 RF ASME B16.5-2003  <br />
[T]: Range (TAG FT_TK0402B), 1.9  a  19.00 m3/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Measuring range-Scale (Media) <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia <br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs</div>

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S50-206R-R-0-0-0-0-S-5-6-0-H   <br />
[BGN]:<br />
[S50]: Model, Stainless Steel, process temperature ≤ 350°C <br />
[206R]: Connection, size 2" Class 150 RF ASME B16.5-2003  <br />
[R]: Range (TAG FT_TK0505), 0.67-6.7 m3/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Measuring range-Scale (Media) <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia <br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>Modular, compact Inline flow meter<br />
Brand: Kobold (Alemania)<br />
Model: KME-7-15-N-1-L-1-N-Q-4</strong><br />
[KMT-7]:<br />
Function principle, Direct thermal flow<br />
Measuring tube, Aluminium<br />
Sensor head/ sensor, st. steel 1.4404/ glass <br />
Housing, Polycarbonet<br />
Flow direction, +/- 3% of meas. value +0,3% full scale<br />
Power supply, 18-30 VDC<br />
Electr. connection, M12x1<br />
max. pressure / max. temperature, PN 16 / -20…+60 °C<br />
[15]: Measuring range, 0.2-76.3 Nm³/h for tube DN 15 (1/2")<br />
[N]: Connection, NPT- femal connection <br />
[1]: Display, LCD-display<br />
[L]: Medium, air<br />
[1]: Units, SI units<br />
[N]: Physical size,output 1, Standard volume flow (standard Nm³/h)<br />
[Q]: Physical size,output 2, Consumption (standard Nm³)<br />
[4]: Analogue-output 0-40 mA / totalizer output

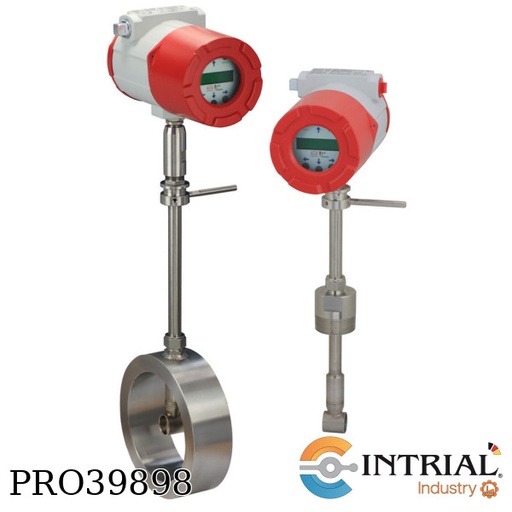

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Modelo:DVE-P-S-L-L-2-H-2-A</strong><br />
[DVE]: MODEL CODE Insertion Version<br />
[P]: Electronic-Options, Flow Velocity including temperature and pressure sensor<br />
[S]: Probe length: Standard (max. stem length app. 690 mm)<br />
[L]: Sensor Configuration / Mounting Option, compact incl. Display, IP 66 / Nema 4<br />
[L]: Input Power: 12-36 VDC, loop powered<br />
[2] Output: 1x 4-20mA, HART, Loop powered,1x Pulse,only with input power L,passive<br />
[H] Process temperatura -200….+400 °C, -330 …+750 °F <br />
[2] Option Pressure Sensor,  Incl. Pressure Sensor, 7 bar abs (100 psia)<br />
[A] Process connection: 2" NPT Male thread, sensor-bushing compression fitting

Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs<br />
Model Sensor: TME-S-58-208R-0-L-1-0-0-1-H<br />
Model Transmitter: UMC4-B-1-1-A-0-0<br /><br />
[TME]: Model Sensor<br />
[S]: Wetted materials, Stainless Steel<br />
[58]: Range, min. 0-6.000 kg/h - max. 0-60.000 kg/h<br />
[208R]: Process connection, 3" Class 150 RF ASME B16.5-2003<br />
Face to face dimension, 600 mm<br />
[0]: Heating / Cooling, with connection: Without<br />
[L]: Flow direction, Left to Right<br />
[1]: Sensor configuration, Integral mount transmitter<br />
Temperature Service Rating, -20°C to 100°C, -4°F to 212°F<br />
[0]: Approvals, without approval<br />
[0]: Certificate, without<br />
[1]: Supplementary equipment, density calibration 3-points<br />
[H]: Design, Heinrichs<br /><br />
[UMC4]: Model Transmitter<br />
[B]: Mounting, Integral mount, Conduit port opening M20x1,5<br />
[1]: Display / Interface board,<br />
Integral within transmitter housing for ambient temperature up to 60°C<br />
[1]: Power Supply, 90 - 265V AC, 50/60Hz<br />
[A]: Outputs,<br />
Analog output 1: 4 - 20mA with HART<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approval, None<br />
[0]: Type of protection (signal output), None

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-5NA-25-A-C34P<br />
Brand: Kobold (Alemania)</strong><br />
[MIK-5NA]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS <br />
Electrodes St. st.<br />
Seal NBR<br />
[25]: Measuring range (liquid >30 µS/cm),0,8...16 L/min G 3/4 male <br />
[A]: Connection set, without<br />
[C34P]*: Evaluation electronic for MIK, 24 VDC, 4-20 mA, 1x PNP <br /><br /><br />
Include:<br />
Accessories Round Plug<br />
Model: ZUB-KAB-12-D500<br />
Brand: Kobold <br />
[D500]: M12x1 box with terminal , 5-pin<br /><br />
Direction of flow: from left to right

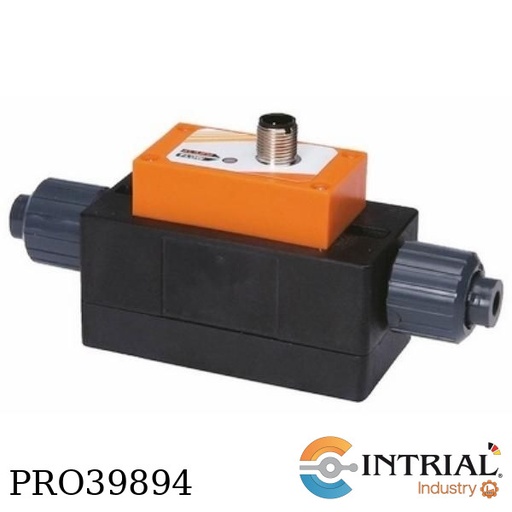

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-5NA-25-A-C34P</strong><br />
Brand: Kobold<br />
[MIK-5NA]<br />
Operating principle, Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal NBR<br />
[25] Measuring range,0,8...16 L/min G 3/4 male<br />
[A] Connection set, without<br />
[C34P] Evaluation electronic for MIK, <br />
Compact electronic, 24 VDC, 4-20 mA, 1x PNP

<strong>Variable Area Flowmeter-Plastic KSM<br />
Brand: Kobold (Alemania)<br />
Model: KSM-1-001-0-P15-R0</strong><br />
[KSM-1]<br />
Operating principle: variable area<br />
Mounting position: vertical<br />
Flow direction: from bottom<br />
Armature material: Trogamide<br />
Accuracy: ±4 % FS<br />
Max. temperature 60 °C<br />
Max. pressure 16 bar**<br />
[001] Measuring range, 0,8...5 Nm³/h air*<br />
* at 0 bar relative<br />
[0] Scales for air (measuring range s. data sheet), 0 bar rel.<br />
[P15] Option connection, PVC G 1/2 female<br />
[R0] Option contact, w/o contact
