<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-35H-A9-4-Z1-N-0   </strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[35H]: Measuring range, 30-450 L/min<br />
[A9]: Mech. connection for meas. range 35H, ANSI flange 2" 150 lbs<br />
[4]: Seal, NBR<br />
[Z1]: Electronic, LCD totaliser with rate<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without<br />
*Not include battery

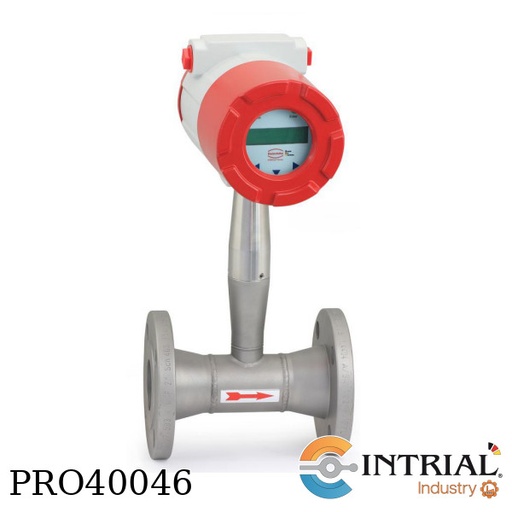

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold <br />
Model: DVH-V-1H-2-S-L-A-2-S-0-H</strong><br />
[DVH]<br />
[V]: Elektronic - Options,Volume Measurement of Liquids,<br />
Gases and Steam - Velocity and Volumetric Meter<br />
[1H]: Flow Body FLANGE, DN 100 DIN EN 4 inch ANSI JIS 100<br />
[2]: Process Connection, ANSI 300 lbs ASME B16.5.2003<br />
[S]: Material Flow Body, st.st. 1.4404 / 316 L<br />
[L]: Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4<br />
[A]: Input Power, 85-240 VAC 50/60 Hz 12 W requested for output options H / M / 3 / 4<br />
[2]: Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L passive<br />
[S]: Process Temperature, Standard Temperature -200….+260 °C -330….+500 °F<br />
[0]: Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor            <br />
[H]: Version Heinrichs

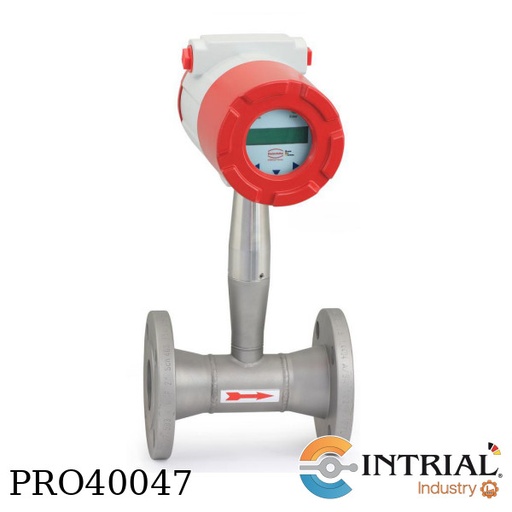

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold <br />
Model: DVH-V-50-2-S-L-A-2-S-0-H</strong><br />
[DVH]<br />
[V]: Elektronic - Options, Volume Measurement of Liquids,<br />
Gases and Steam - Velocity and Volumetric Meter<br />
[50]: Flow Body FLANGE, DN 50 DIN EN 2 inch ANSI JIS 50<br />
[2]: Process Connection, ANSI 300 lbs ASME B16.5.2003<br />
[S]: Material Flow Body, st. st. 1.4404 / 316 L<br />
[L]: Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4<br />
[A]: Input Power, 85-240 VAC 50/60 Hz 12 W requested for output options H / M / 3 / 4<br />
[2]: Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L passive<br />
[S]: Process Temperature, Standard Temperature -200….+260 °C -330….+500 °F<br />
[0]: Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor<br />
[H]: Version Heinrichs

Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold<br />
Model: DVH-V-25-2-S-L-A-2-S-0-H<br />
[DVH]<br />
[V]: Elektronic - Options,Volume Measurement of Liquids,<br />
Gases and Steam - Velocity and Volumetric Meter<br />
[25]:Flow Body FLANGE, DN 25 DIN EN 1 inch ANSI JIS 25<br />
[2]: Process Connection, ANSI 300 lbs ASME B16.5.2003<br />
[S]:Material Flow Body, st.st. 1.4404 / 316 L<br />
[L]:Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4<br />
[A]:Input Power, 85 to 240 VAC 50/60 Hz 12 W requested for output options H / M / 3 / 4<br />
[2]:Output Signal, Loop powered 1x 4 to 20mA, HART 1 x pulse only with Input Power L passive<br />
[S]: Process Temperature, Standard Temperature 200….+260 °C  330….+500 °F<br />
[0]: Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor            <br />
[H] - Version Heinrichs

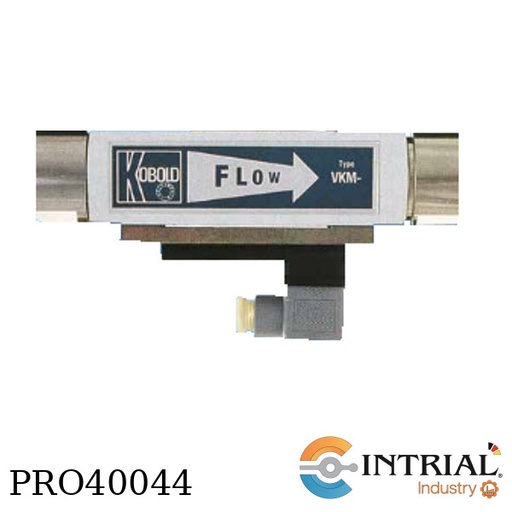

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold<br />
Model: VKM-32-07-U0-R20-0-T</strong><br />
[VKM-32]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 350 bar<br />
Viscosity range: 1...540 mm²/s<br />
[07] Measuring range, 4...14 L/min oil<br />
[U0] Contact: 1 SPDT<br />
[R20] Connection: G 3/4 female<br />
[0] Option special connection, w/o<br />
[T] Flow direction: from top

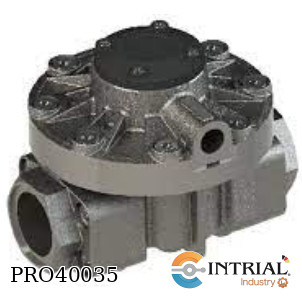

Oval Gear Flow Meter/Counter for viscosity < 1000 cP<br />
Brand: KOBOLD (Alemania)<br />
Model: DON-1-10H-R2-1-H0-N-0<br />
[DON-1]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16...64 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material: PPS<br />
[10H]: Measuring range,2-100 L/h<br />
[R2]: Mech. connection, G 1/4 for range 10H<br />
[1]: Seal, FKM up to DON-x25<br />
[H0]: Electronic, Pulse output Hall sensor/Reed switch, Push Pull (8-30 VDC)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-8-55H-AC-4-Z1-N-0 <br />
Brand: Kobold </strong><br />
[DON-8]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: PPS<br />
[55H]: Measuring range, 75-1500 L/min <br />
[AC]: Mech. connection, for meas. range 55H, ANSI flange 4" 150 lbs<br />
[4]: Seal, NBR<br />
[Z1]: Electronic, LCD totalizer with rate <br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without<br />
*Does not include battery

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-35H-B9-4-Z1-N-0<br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120 °C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[35H]: Measuring range, 30-450 L/min<br />
[B9]: Mech. connectionfor meas. range 35H, ANSI flange 2" 300 lbs<br />
[4]: Seal, NBR<br />
[Z1]: Electronic, LCD totaliser with rate<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options,without<br />
* does not include battery.

Viscosity Compensated Flowmeter /-switch.  Range, 0,8...3,4 L/min oil. Connection, G 1/2 female. Contact, 1 N/O. Switch point adjustable. Accuracy ±4 % FS  (at 105 mm²/s). Viscosity range 1...540 mm²/s. Max. temperature 100 °C<br /><br />
Model: VKM-31-05-R0-R15-0-B<br />
Brand: Kobold<br />
[VKM-31]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Switch point adjustable<br />
Accuracy ±4 % FS  (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
Viscosity range 1...540 mm²/s<br />
[05]: Measuring range, 0,8...3,4 L/min oil<br />
[R0]: Contact, 1 N/O<br />
[R15]: Connection, G 1/2 female<br />
[0]: Option special connection, w/o<br />
[B]: Flow direction, from bottom

<strong>Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-12-15-N6-Z340</strong><br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane) <br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar) <br />
Accuracy of final value: +/-2,5% <br />
Material Housing: St. St.<br />
Material Axis Hard metal <br />
[15]: Measuring range, 20-80 L/min <br />
[N6]: Mech. connection, for MR-Code: 15, 1 NPT female <br />
[Z340]: Electronic, Pointer indicator 4-20 mA, plug M12x1

<strong>All Metal  Variable Area Flow Meter BGN<br />
Model: BGN-S50-206R-S-0-F-0-0-S-2-6-0-H<br />
Brand: Kobold  - Heinrichs</strong><br />
[BGN]: Model <br />
[S50]: Model, Stainless Steel, process temperature  ≤ 350°C <br />
[206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003 <br />
[S]: Range (water 20°C, 1 mPas), H2O: 1000 - 10000 l/h<br />
[0]: Heating / cooling, without heating / Cooling <br />
[F]: Damping / spring stop, with liquid damping<br />
[0]: Self draining, without <br />
[0]: Certificates, without <br />
[S]: Display, Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
[0]: Accessories, without <br />
[H]: Design, Heinrichs

<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-1-40H-N9-1-RE-N-0<br />
Brand: Kobold (Alemania)</strong><br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80°C <br />
max. pressure, 16...64 bar <br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[40H]: Measuring range, 50-580 L/min<br />
[N9]: Mech. connection, 2" NPT<br />
[1]: Seal, FKM <br />
[RE]: Electronic: Pulse output / Reed switch with ATEX approval (Exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text): without

Paddle Wheel Flow Sensors<br />
Brand: Kobold USA<br />
Model: DF-0403-B<br />
Ordering Details:<br />
DF Flow Sensor Material Combination: IV<br />
Temperature Range: -4...176 °F<br />
Protection: IP 65<br />
Accuracy: ± 2.5% of F.S<br />
Pressure: 230 PSI<br />
Option B.: HNPT 3/8"<br />
Power: 5 - 24 VDC<br />
Range (Water): 0.05...0.6 GPM<br />
(GPM 0.18 - 2.27 LPM )<br />


Viscosity Compensated Flow Meter/Monitor<br />
Brand: Kobold USA<br />
Model: VKA-3102-R0-R25-B<br /><br />
[VKA-3102]: Measuring range, 0.35-1.25 l/min Oil<br />
[R0]: Contact,  1 Contact<br />
[R25]: Connection Female, G1<br />
[B]: Mounting Position, From bottom to the top

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: UTR-0-28H-1-N4-0<br />
[UTR-0]:<br />
Mounting length 240 mm<br />
Material: body / valve POM-C<br />
Float PTFE for liquids<br />
Measuring glass Borosilicate<br />
Operating principle Float<br />
Flow direction from bottom to top<br />
Accuracy class 4<br />
Max. temperature without/with contact  65°C<br />
Max. pressure PN 10<br />
[28H]: Measuring range, 63...630 L/h water<br />
[1]: Valve, with valve<br />
[N4]: Connection, 1/2" NPT<br />
[0]: Contacts, w/o

<strong>All-Metal-Flowmeter / Switch<br />
Brand: Kobold (Alemania)<br />
Model: SMV-22-11H-00-N15</strong><br />
[SMV-22]: <br />
Operating principle variable area, St.St.<br />
Mounting position vertical, FPM<br />
Flow direction from bottom, yes<br />
Switch point --<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 350 bar<br />
[11H]: Adjustment range, 2...14 L/min water<br />
[00]: Contact, w/o contact<br />
[N15]: Connection, 1/2 NPT female

Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold<br />
Model: URM-55-35H-I4-0<br />
[URM-55]<br />
Mounting position: vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. temperature: 100°C<br />
Max. pressure: 16 bar<br />
Material: connection, float / seal/ ring, 1.4404 / FPM / PTFE<br />
[35H]: Range Full Scale* water,  63-630 L/h<br />
[I4]: Connection female: G 1/2<br />
[0]: Contacts: w/o, for meas. range: all

Flowindicator with Rotating Vane<br />
Model: DAF-1-1-05H-R-20<br />
Brand: Kobold (Alemania)<br />
[DAF-1]<br />
Operating principle, Rotating vane<br />
Mounting position, all directions, rotating vane axle horizontal<br />
Flow direction, in direction of the arrow<br />
max. temperature ,  60 °C<br />
max. pressure, 10 bar<br />
[1]: Material (housing/connection), Trogamide/brass nickel- plated<br />
[05H]: Indication range, 1...25 L/min water<br />
[R]: Thread/flange, G-thread female<br />
[20]: Connection, 25 + 50 L/min 3/4"

Calorimetric Flowswitch, Compact Version. Connection, 3/4" NPT.  Output: relay output 230 VAC. Max. temp,: 80 °C.<br />
Mounting position: all directions. Indication: DUO-LED and LED-chain.<br /><br /><br />
Calorimetric Flowswitch, Compact Version<br />
Model: KAL-K1-3-20-S-PG0<br />
Brand: Kobold<br />
[KAL-K1]<br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. temperature: 80 °C (120 °C for KAL-KH)<br />
max. pressure: 100 bar<br />
Protection class: IP 65<br />
Connection thread: G<br />
[3]: Probe material, st.st. 1.4301<br />
Version: Standard<br />
[20]: Connection, 3/4"<br />
[S]: Contact version, N/O<br />
[PG0]: Electron. connection/power supply,<br />
M 16x1,5 relay output 230 VAC

Flow Limiter<br />
Brand: Kobold (Alemania)<br />
Model: REG-0-1-25<br />
[REG-0]:<br />
operating temperature, max. 300 °C<br />
operating pressure, max. 200 bar<br />
differential pressure, min. 2 bar / max. 10 bar<br />
type of thread, outside<br />
size of thread, G 3/4<br />
[1]: housing material, brass<br />
[25]: flow rate, 25 L/min
