Gear Wheel Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DZR-1-005-S10-F-S-3<br />
[DZR-1]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Medium-viscosity low<br />
Lubricating property of the medium good<br />
Storage ball bearing<br />
Material cast<br />
Accuracy (of actual range) +-0,3%<br />
Max. Temperature 120/150 °C<br />
[005]: measuring range / pressure, 0,4...80 L/min / 400 bar<br />
[S10]: Mech. connection, G 3/8 side mounted (only for code: 001-005)<br />
[F]: Seal, FPM<br />
[S]: Electronic, up to 120 °C / 24 VDC<br />
[3]: Electr. Connection, plug-on display with 0(4)..20 mA output

<strong>Low Volume Vane Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DTK-12-18-N2-L343</strong><br />
[DTK-12]<br />
Operating principle: Rotating vane<br />
Mounting position: horizontal<br />
Flow direction: in direction of the arrow<br />
Material: st. st.<br />
max. temperature: 80 °C (140 °C)*<br />
max. pressure: 30 bar<br />
Accuracy: +-2% v. EW,+-5% v. EW OEM<br />
[18]:Measuring range (water), 0,2-2,0 L/min<br />
[N2]:Connection, 1/4 NPT<br />
[L343]:Evaluating Electronic, <br />
Analogue output 4-20mA, M12x1, 3-wire

<div>Low Volume Vane Flowmeter<br />
Brand: Kobold<br />
Model: DTK-12-18-N2-L343<br />
[DTK-12]<br />
Operating principle: Rotating vane<br />
Mounting position: horizontal<br />
Flow direction: in direction of the arrow<br />
Material: st. st.<br />
max. temperature: 80 °C (140 °C)*<br />
max. pressure: 30 bar<br />
Accuracy: +-2% v. EW,+-5% v. EW OEM<br />
[18]:Measuring range (water), 0,2-2,0 L/min<br />
[N2]:Connection, 1/4 NPT<br />
[L343]:Evaluating Electronic,<br />
Analogue output 4-20mA, M12x1, 3-wire</div>

<div>Include:<br />
Accessories round plug<br />
Brand: Kobold<br />
Model: ZUB-KAB-12-K002</div>

Calorimetric Flowswitch, Compact Version<br />
Model: KAL-K1-2-15-S-SK3<br />
Brand: Kobold<br />
[KAL-K1]<br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. temperature: 80 °C (120 °C for KAL-KH)<br />
max. pressure: 100 bar<br />
Protection class: IP 65<br />
Connection thread: G<br />
[2]: Probe material, st.st. 1.4305<br />
Version: Standard<br />
[15]: Connection, 1/2"<br />
[S]: Contact version, N/O<br />
[SK3]: Electron. connection/power supply,<br />
plug conn. M12; 2m cable NPN/PNP 24 VDC

<strong>All-Metal Variable Area Flowmeter BGF<br />
Brand: Heinrichs<br />
Model: BGF-S25-203R-N-P-R-0-0-S-5-6-0-H</strong><br />
[BGF]: Model<br />
[S25]: Model, Stainless Steel, process temperature ≤ 200°C<br />
[203R]: Connection, size, 1" Class 150 RF ASME B16.5-2003<br />
[N]: Range (water 20°C, 1 mPas), 160 - 1600 l/h<br />
[P]: Magnet bearer, maximum 125 °C PTFE<br />
[R]: Flow direction, Right to left<br />
[0]: Heating / cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40°C to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-20G-N4-1-Z3-N-0<br />
[DON-1]: <br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 64 Bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[20G]: Measuring range, 0.264 – 10.56 GPM<br />
[N4]: Mech. connection, 1/2" NPT (for meas. range 20G)<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue <br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Accessory, without

Baffle Plate System Flow Transmitter for Liquids<br />
Brand: Kobold<br />
Model: DWD-16-R15-3-R-T-7<br />
[DWD-16]:<br />
Operating principle Baffle plate system<br />
Indication LCD-display<br />
Flow direction in direction of the arrow<br />
Output 2 switching contacts + 4-20 mA<br />
Max. temperature 120 °C<br />
Connection thread<br />
Material (T-piece) st. st.<br />
[R15]: Connection size, G 1/2 female<br />
[3]: Power supply, 24 VDC<br />
[R]: Flow direction, from right to left<br />
[T]: Mounting position, on top of the lead<br />
[7]: Option, Interface RS232C

Turbine Wheel Flowmeter<br />
Brand: Kobold(Alemania)<br />
Model: DOT-13-30H-N8-Z3N-L<br />
[DOT-13]:<br />
Operating principle, Turbine wheel.<br />
Mounting position, all directions.<br />
Flow direction, in direction of the arrow.<br />
Connection/Housing material, st. Steel/st. steel.<br />
Max. temperature -20…+120 °C.<br />
Max. pressure 250 bar.<br />
Linearity, ± 0.5 % of Reading.<br />
[30H]: Measuring range, 3.4-34 m³/h.<br />
[N8]: Mechanical connection, 1 1/2 " NPT.<br />
[Z3N]: Electronics/cable entry, dual LCD totaliser/rate, outputs: pulse, analogue, cable entry 1/2 NPT.<br />
[L]: Flow direction, from left to right, indication on top.

<strong>Turbine Wheel Flowmeter<br />
Brand: Kobold<br />
Model: DOT-13-35H-F9-Z3N-L</strong><br />
[DOT-13]<br />
Operating principle Turbine wheel<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Connection/ Housing material st. Steel / st. steel<br />
max. temperature -20…+120 °C<br />
max. pressure 250 bar<br />
Linearity ± 0.5 % of Reading<br />
[35H] measuring range, 6.8-68 m³/h<br />
[F9] Mechanical connection, DIN Flange DN 50/ PN 16 <br />
[Z3N] Electronics / cable entry, dual LCD totaliser/rate,<br />
outputs: pulse, analogue, cable entry 1/2 NPT<br />
[L] Flow direction, from left to right, indication on top

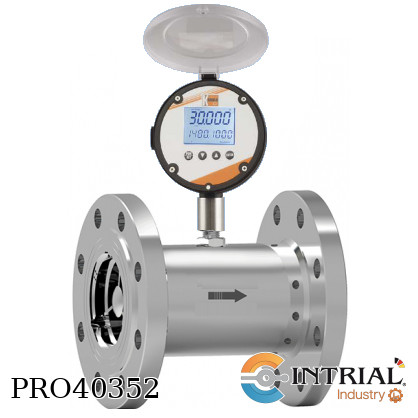

Turbine Wheel Flowmeter<br />
Brand: Kobold(Alemania)<br />
Model: DOT-13-35H-N9-Z3N-L<br />
[DOT-13]:<br />
Operating principle, Turbine wheel.<br />
Mounting position, all directions.<br />
Flow direction, in direction of the arrow.<br />
Connection/Housing material, st. Steel/st. steel.<br />
Max. temperature -20…+120 °C.<br />
Max. pressure 250 bar.<br />
Linearity, ± 0.5 % of Reading.<br />
[35H]: Measuring range, 6.8-68 m³/h.<br />
[N9]: Mechanical connection, 2" NPT.<br />
[Z3N]: Electronics/cable entry, dual LCD totaliser/rate, outputs: pulse, analogue, cable entry 1/2 NPT.<br />
[L]: Flow direction, from left to right, indication on top.

<div>BGN-S80-331BV000-0-S21-0-H<br />
Complete new unit:<br />
Full compatible to ser. no.: 283090<br />
Con la siguiente configuración</div>

<div>Modelcode BGN-S80-331BV000-0-S21-0-H</div>

<div>Process data:<br />
Media Water<br />
installation position vertical<br />
Flow direction bottom to top<br />
Indication range 67 - 667 l/min<br />
Density 1.000 kg/m³<br />
Process temperature 20 °C<br />
Working pressure p e 40 bar<br />
Viscosity 1 mPa s</div>

<div>Armature data:<br />
measuring range BGN Water: 4000-40000 l/h<br />
model stainless steel<br />
Process connection DN80 PN40 Form B1 EN1092-1<br />
Nominal pressure of armature 40 bar<br />
Length 250 mm</div>

<div>Display:<br />
Display model Standard Display</div>

<div>Electrical outputs KEI 1 (SJ3,5-N) 1xMin o. 1xMax<br />
1 Inductive proximity switch<br />
Pepperl + Fuchs<br />
SJ3,5-N<br />
NAMUR NC<br />
Nominal voltage: 8 V<br />
Ambient temperature: -25...100 °C<br />
Standard conformity: DIN EN 60947-5-6 (NAMUR)<br />
EN 50014: 1997<br />
EN 50020: 1994<br />
EG- Design inspection certificate: PTB 99 ATEX 2219 X<br />
Ex- Marking: II 1 G Ex ia IIC T6...T1 Gb<br />
EMV in accordance with: EN 60947-5-2<br />
Switching amplifier required<br />
Scale measuring range scale (water)<br />
Switching activating point 1 10%<br />
accuracy (local) +/- 1,6% of measured value</div>

<div>Documentation:<br />
User manual language english<br />
Quantity (per unit) 1<br />
Design Heinrichs</div>

<strong>DW - Paddle-Bellows Flowmeter and Switch<br />
Brand: Kobold (USA)<br />
Model: DWU-5310-F-K2-P12</strong><br />
[DWU-5310-F]:<br />
Flowmeter/Switch, <br />
Material: Stainless Steel.<br />
Fitting: 3/8" ANSI Flange . <br />
Maximum Temperature, Liquid: 212 °F<br />
Maximum Temperature, Ambient: 160 °F<br />
Protection: NEMA 4 <br />
Range Min (GPM): 0.26– 1.3.<br />
Range Max (GPM): 1.3– 6.6.<br />
[K2]:Second SPDT Microswitch®.<br />
[P12]: 110 VAC Power Supply For Status Lamps.

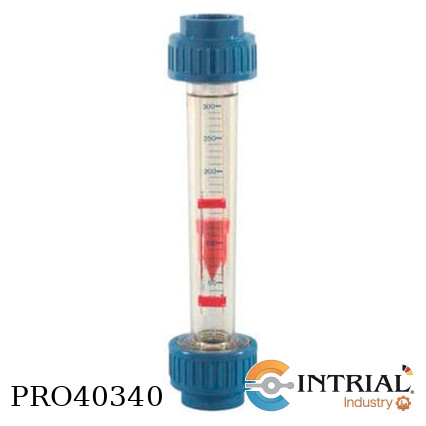

Low Volume Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSK-1-999-H-P15-00<br />
[KSK-1]:<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material Trogamide<br />
Accuracy Class 4<br />
Max. temperature 60 °C<br />
Max. pressure PN 10<br />
Seal EPDM<br />
[999]: Measuring range, 100...1000 L/h water<br />
[H]: Scale, L/h waterscale<br />
[P15]: Connection for size, PVC G 1/2 female<br />
[00]: Option contact, w/o

 Calorimetric Flowswitch, Compact Version<br />
Modelo: KAL-K5-3-15-S-SK3<br />
Marca: Kobold<br />
[KAL-K5]:<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED and LED-chain<br />
max. temperature, 80 °C<br />
max. pressure, 100 bar<br />
Protection class, IP 65<br />
Connection thread, NPT<br />
[3]: Probe material, st.st. 1.4301<br />
Version, Standard<br />
[15]: Connection, 1/2" NPT<br />
[S]: Contact version, N/O<br />
[SK3]: Electron. connection/power supply,<br />
plug conn. M12; 2m cabel NPN/PNP 24 VDC

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S80-208R-V-0-0-0-0-S-5-6-0-H</strong><br />
[BGN]: Model<br />
[S80]: Stainless Steel, process temperature ≤ 350°C <br />
[208R]: Connection, size: 3" Class 150 RF ASME B16.5-2003 <br />
[V]: Range (water 20°C, 1 mPas), 5000 a 50000 LPH<br />
[0]: Heating/cooling: without heating / Cooling <br />
[0]: Damping/spring stop: without<br />
[0]: Self-draining: without<br />
[0]: Certificates: without<br />
[S]: Display: <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale: Measuring range-Scale (Media)<br />
[6]: Switches; Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature; 40° to +70°C/ SIL1<br />
[0]: Accessories: without<br />
[H]: Design: Heinrichs<br /><br />
Data Process:<br />
(Hexane D=660Kg/m3 V=0,3 cP T=60°C P=3 bar); <br />
Rango de caudal determinado 5000 a 50000 LPH.

Model: EPS-H-309B-1-S-S-1-0 / UMF2-A-1-2-G-0BK<br />
Brand: Kobold-Heinrich<br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes,  Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[309B]:Process connection, DN25 PN40 Form B1 DIN EN 1092-1<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 17,6 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI) <br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o<br />
[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply,115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br /><br />
Data Process: <br />
Precision : 0.3 %<br />
Rango de Caudal:<br />
0.44 m3/h   a 17 m3/h<br />
(  7  LPM a 283 LPM)

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-25H-N6-4-D0-N-0</strong><br />
[DON-1]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 80 °C<br />
max. pressure 40 Bar<br />
Accuracy ±0,2 % …1 % of reading <br />
Housing material Aluminium<br />
Rotor material PPS<br />
[25H]: Measuring range, 10-150 L/min<br />
[N6]: Mech. Connection, for meas. range 25H, NPT 1”<br />
[4]: Seal, NBR<br />
[D0]: Electronic, 2x pulse output, 90° phased<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without

Plastic Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSM-1-601-Q-P50-R0<br />
[KSK-1]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure, 16 bar<br />
[601]: Measuring range, 8 - 60 m³/h<br />
[Q]: either scales for liquid, media m³/h water<br />
[P50]: Option connection, PVC G 2 female<br />
[R0]: Option contact, w/o contact

Gear Wheel Flowmeter<br />
Brand: Kobold<br />
Model: DZR-6-001-R06-F-S-3<br />
[DZR-6]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Medium-viscosity low<br />
Lubricating property of the medium good<br />
Storage ball bearing<br />
Material, st. st.<br />
Accuracy (of actual range) +-0,3%<br />
Max. Temperature 120/150 °C<br />
[001]: measuring range / pressure, 0,008...2 L/min / 400 bar<br />
[R06]: Mech. connection, G 1/8 side mounted (only for code: 001/002)<br />
[F]: Seal, FPM<br />
[S]: Electronic, up to 120 °C / 24 VDC<br />
[3]: Electr. Connection, plug-on display with 0(4)..20 mA output<br /><br />
Include:<br />
Accessories Round Plug<br />
Brand: Kobold<br />
Model: ZUB-KAB-12-K002<br />
M12x1 socket with 2 m cable, 4 pins

Flow indicator with Flange Connection<br />
Brand: Kobold<br />
Model: DAR-2-1-07H-F-65<br />
[DAR-2]<br />
Operating principle, Rotor<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120 °C<br />
max. pressure, 16 bar<br />
[1]: Housing, cast iron<br />
[07H]: Nom. diameter, 65<br />
[F]: Flanges, flange acc. EN 1092-1<br />
[65]: Connection*, DN 65 / 2 1/2"
