Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-8-35H-A9-1-M4-0-0<br />
[DON-8]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: PPS<br />
[35H]: Measuring range, 30-450 L/min<br />
[A9]: Mech. connection, ANSI flange 2" 150 lbs<br />
[1]: Seal, FKM for DON-x30…DON-x40<br />
[M4]: Electronic, mech. totaliser 4-digit (not for DON-x05, -x10, -x15)<br />
[0]: Cable entry, without (only for mechanical totaliser "M4")<br />
[0]: Options, without

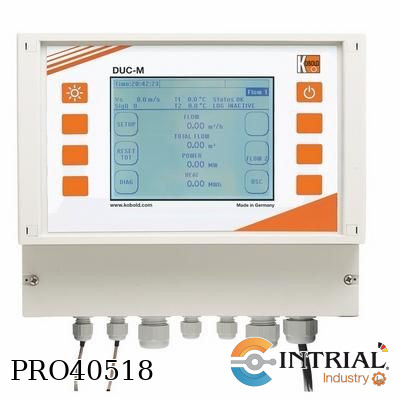

<strong>Transmitter Clamp-on Ultrasonic Flow Meter<br />
Model: DUC-MF-2-0-0-D-00<br />
Brand: Kobold (Alemania)</strong><br />
[DUC-MF]<br />
Operating principle: Ultrasonic<br />
Mounting position: stationary, wallmount<br />
Measuring units: volume flow, flow velocity, thermal output<br />
Counter: heat quantity, volume<br />
Housing: ABS<br />
Additional input for heat measuring: 2x Pt100<br />
Output: 2x4-20 mA, 1(2) pulse, 1x micro-USB, 1 relay; <br />
optional RS232/RS485<br />
Measuring channels: 1, optional 2 channels<br />
Protection: IP 65<br />
[2] Measuring channels: 2 channel<br />
[0] Power supply: 90-240 VAC<br />
[0] Ex-approval: without<br />
[D] Language packages: German/english/french<br />
[00] Options: without

<strong>Turbine Wheel Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DOT-13-35H-G9-Z3N-L</strong><br />
[DOT-13]<br />
Operating principle Turbine wheel<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Connection/ Housing material st. Steel / st. steel<br />
max. temperature -20…+120 °C<br />
max. pressure 250 bar<br />
Linearity ± 0.5 % of Reading<br />
[35H]: measuring range, 6.8-68 m³/h<br />
[G9]: Mechanical connection, G 2 for range code 35 <br />
[Z3N]: Electronics / cable entry, dual LCD totaliser/rate, <br />
outputs: pulse, analogue, cable entry 1/2 NPT<br />
[L]: Flow direction, from left to right, indication on top

<div>Model:  EPS-H-206R-1-S-S-1-0 / UMF2-A-1-1-G-0BK<br />
Brand: Kobold-Heinrich<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[206R]:Process connection, 2" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 1.77  m3/hr a 70 m3/hr, Installation length 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o</div>

<div>[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold</div>

<div>Model: EPS-H-205R-1-S-S-1-0 / UMF2-A-1-1-G-0BK<br />
Brand: Kobold-Heinrich<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[205R]:Process connection, 1½" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 1.13  m3/hr a 45 m3/hr, Installation length 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o</div>

<div>[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold</div>

Model: EPS-H-213R-1-H-H-1-0_UMF2-A-1-1-G-0BK<br />
Brand: Kobold-Heinrich<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[213R]:Process connection, 8" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 56 m3/hr a 1,110 m3/hr<br />
Installation length 350 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o<br /><br />
[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

EPS Electromagnetic Flow Meter.<br />
Model: EPS-H-217R-1-H-H-1-0_UMF2-A-1-1-G-0BK<br />
Brand: Kobold-Heinrich<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[217R]:Process connection, 16" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 150, m3/hr a 4,190 m3/hr<br />
Installation length 600 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o<br /><br />
[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

Paddle Wheel Flow Sensor<br />
Model: DRH-1975-N3-L343<br />
Brand: Kobold (USA)<br />
[DRH-1975-N3]:<br />
Specifications<br />
Accuracy: ±2.5% of Full Scale<br />
Flow Range (GPM): 0.13...1.6<br />
Fitting (NPT) 3/8"<br />
[L343]:<br />
Analog Output<br />
Power Supply: 24 VDC ± 20%<br />
Output: 4-20 mA, 3-wire Micro-DC Plug<br />
Electrical Connection:Plug Connector M12 x 1

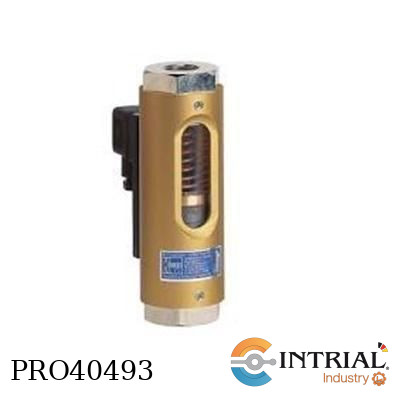

Low Volume Flowmeter/-switch<br />
Model: KSK-2999-H-P25-00<br />
Brand: Kobold<br />
[KSK-2]<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material,  Polysulfone<br />
Accuracy,  Class 4<br />
Max. temperature, 100 °C *<br />
Max. pressure,  PN 10<br />
Seal, EPDM<br />
[999]: Measuring range, 100...1000 L/h water<br />
[H]: Scale, L/h waterscale<br />
[P25]: Connection for size, PVC G 1 female<br />
[00]: Option contact, w/o

DON-2-45H-AB-3-Z3-N-0<br />
Brand: Kobold (Alemania)<br />
Model:  DON-2-45H-AB-3-Z3-N-0<br />
[DON-2]:                 <br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[45H]: Measuring range ,35-750 L/min<br />
[AB]: Mech. Connection, ANSI flange 3" 150 lbs<br />
[3]: Seal, FEP O-seal / EPDM-core for DON-x45<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without<br />
*Not include Baterry

Viscosity Compensated Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKG-21-04-R0-R15-B<br />
[VKG-21]:<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, Brass<br />
Seal, NBR<br />
Sight glass, Duran<br />
Side mounted dial, w/o<br />
Switch point, adjustable<br />
Accuracy, ±4 % FS (at 105 mm²/s)<br />
Max. temperature, 100 °C<br />
Max. pressure, 12 bar<br />
Viscosity range, 1...540 mm²/s<br />
[04]: Measuring range, 0,6...3,4 L/min oil<br />
[R0]: Contact, 1 N/O<br />
[R15]: Connection, G 1/2 female<br />
[B]: Option special connection, on top female thread, bottom BVB

Flap Flow Meter<br />
Brand: Kobold – Heinrichs<br />
Model: TSK-S-335B-F1-L-5-V-0-0-S-5-1-0-H<br />
***************************************************<br />
NOTE:<br />
Viscosities > 1 cP cannot be considered at<br />
calibration, add. measuring error possible.<br />
***************************************************<br />
Process data:<br />
Media Transmission oil<br />
installation position horizontal<br />
Flow direction left to right<br />
Indication range 100 - 720 l/min<br />
Density 880 kg/m³<br />
Process temperature 20 °C<br />
Viscosity 1 mPa s<br />
Working pressure 16 bar<br /><br />
Armature data:<br />
Process connection for flange DN100 PN16 Form B1 EN1092-1<br />
Standard-range TSK Water: 6 - 40 m³/h<br />
Temperature class T5:Fluid temperature max.100°C<br />
Material body Stainless Steel<br />
Material paddle Stainless Steel<br />
Material torsion spring Stainless steel<br />
Material Sealing Viton<br />
Material coating magnet PVDF<br />
Nominal pressure of armature 16 bar<br />
Length 64 mm<br /><br />
Display:<br />
Display model Standard Display<br />
Electrical outputs KEI 1 (SJ3,5-N) 1xMin o. 1xMax<br />
1 Inductive proximity switch<br />
Pepperl + Fuchs<br />
SJ3,5-N<br />
NAMUR NC<br />
Nominal voltage: 8 V<br />
Ambient temperature: -25...100 °C<br />
Standard conformity: DIN EN 60947-5-6 (NAMUR)<br />
EN 50014: 1997<br />
EN 50020: 1994<br />
EG- Design inspection certificate: PTB 99 ATEX 2219 X<br />
Ex- Marking: II 1 G Ex ia IIC T6...T1 Gb<br />
EMV in accordance with: EN 60947-5-2<br />
Switching amplifier required<br />
Scale measuring range scale (media)<br />
Switching activating point 1 MIN = 100/MIN<br />
Accuracy (local) +/- 2,5% of upper range value<br /><br />
Note:<br />
Available according to the model code and process data readable on the scale.<br />
The nominal diameter DN100 is only available with a stainless steel fitting.

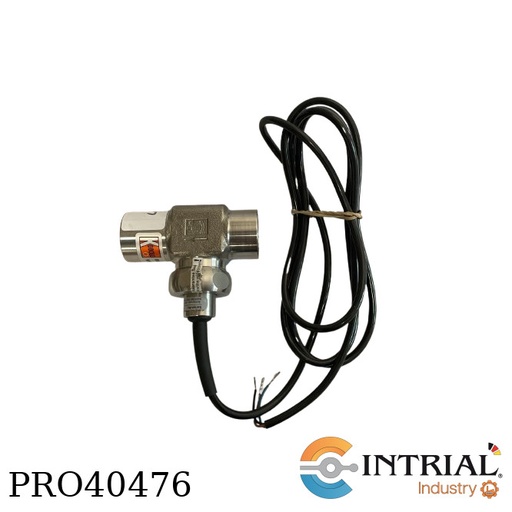

Rotating Vane Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DRS-0-2-50-I4-K000-0<br />
[DRS-0]: <br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80 °C<br />
max. pressure, 200/16 bar<br />
Accuracy, +/- 5%<br />
Protection, IP 65          <br />
[2]: Material, st. st.<br />
[50]: Measuring range, 2-40 L/min<br />
[I4]: Mech. connection, G 1/2 female<br />
[K000]: Evaluating Electronic, <br />
Frequency output 1,5 m PVC-cable, OEM w/o CE<br />
[0]: Options,w/o

<strong>Flow Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWN-1-7-N25-X-L-T-0</strong><br />
[DWN-1]:<br />
Operating principle paddle-bellow<br />
Indication w/o<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT, adjustable<br />
Max. temperature, 60°C<br />
Connection male thread<br />
[7]: Material combination, PVC<br />
[N25]: Connection, 1” NPT<br />
[X]: Signal lamp, without signal lamp<br />
[L]: Flow direction, from left to right<br />
[T]: Mounting pos. of indicat., above pipe<br />
[0]: Options, w/o option

<strong>Electronic Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFG-3-1-05</strong><br />
[KFG-3]<br />
Operating principle Rotating vane<br />
Indication, Digital indication<br />
Mounting position horizontal<br />
Flow direction in direction of the arrow<br />
max. temperature 50 °C<br />
max. pressure 2,5 bar<br />
Accuracy +-3% FS<br />
Power supply 12,5 VDC<br />
Output 0...5 VDC<br />
[1]: Material, Brass<br />
[05]: Measuring range,

Low Volume Flowmeter <br />
Brand: Kobold (Alemania)<br />
Model: KFR-4253-N0+KFR-PPHW024<br />
[KFR-42]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, st.st.<br />
Connection size, 1/8 NPT female on rear<br />
Seal, FPM<br />
[53]: Measuring range, 100...1500 cm³/min water<br />
[N0]: Needle valve<br /><br />
Accessories:<br />
[KFR-PPHW024]<br />
hose connector set, straight for ¼" hose

Oval Gear Flowmeter<br />
Brand: Kobold<br />
Model: OVZ-15-5-N4-N-L343<br />
[OVZ-15]:<br />
Operating principle Oval Gear<br />
Mounting position horizontal / vertical<br />
Measuring range 0.9 – 23.00 LPM<br />
Max. temperature 80 °C<br />
Accuracy +-2,5% FS<br />
Protection IP 65<br />
Measuring range 320 mm2/s<br />
[5]: Body material / cover / max. pressure, Aluminium / Aluminium / PN 40<br />
[N4]: Connection, 1/2 NPT<br />
[N]: Seals, NBR<br />
[L343]: Electronic, Analogue output 4-20 mA, M12x1, 3-wire

<strong>Low Volume Vane Flowmeter<br />
Model: DPL-1-P15-S4-F300<br />
Brand: Kobold (Alemania)</strong><br />
[DPL]:<br />
Operating principle Rotating vane<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Polypropylene<br />
max. temperature 70 °C<br />
max. pressure 10 bar<br />
Accuracy +-2,5(5,0)% of FS<br />
Protection IP 65<br />
[1]: Versión, Standard<br />
[P]: Seal, NBR<br />
[15]: Measuring range, 0,2...6 L/min water<br />
[S4]: Mech. Connection, Hose connection<br />
[F300]: Electronic, Frequency output, PNP, plug M12x1

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-30H-N8-3-E3-N-Y<br />
[DON-1]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16...64 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material: PPS<br />
[30H]: Measuring range, 15-250 L/min<br />
[N8]: Mech. connection, 1 1/2 NPT<br />
[3]: Seal, FEP O-seal / EPDM-core for DON-x30<br />
[E3]: Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N]: Cable entry, 1/2 NPT<br />
[Y]: Options, Special gear wheels for viscosity > 1000 cP for range 30H<br />
* Not include battery

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-8-30H-N8-3-E3-N-Y</strong><br />
[DON-8]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: PPS<br />
[30H]: Measuring range, 15-250 L/min<br />
[N8]: Mech. connection, 1 1/2 NPT<br />
[3]: Seal, FEP O-seal / EPDM-core for DON-x30<br />
[E3]: Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N]: Cable entry, 1/2 NPT<br />
[Y]: Options, Special gear wheels for viscosity > 1000 cP for range 30H<br />
* Not include battery
