Oval Gear Flowmeter<br />
Brand: Kobold<br />
Model: OVZ-15-1-N4-E-I401<br />
[OVZ-15]<br />
Operating principle: Oval Gear<br />
Mounting position: horizontal / vertical<br />
Measuring range by 10-100 mm²/s: 1-25 L/min<br />
Max. temperatura: 80 °C<br />
Accuracy: +-2,5% FS<br />
Protection: IP 65<br />
[1]: Body material / cover / max. pressure; POM / POM / PN 10<br />
[N4]: Connection; 1/2 NPT<br />
[E]: Seals; EPDM<br />
[I401]: Electronic; Hall sensor / DIN 43650

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-45H-NB-1-R0-N-0<br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80 °C<br />
max. pressure, 16 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[45H]: Measuring range, 35-750 L/min<br />
[NB]: Mech. Connection, 3” NPT<br />
[1]: Seal, FKM for DON-x45…DON-x60<br />
[R0]: Electronic, Pulse output / Reed switch<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Accessory, without

EPS-W-210R-1-S-S-1-0 UMF2-A-1-4-G-0BH<br />
Brand: Kobold-Heinrich<br />
[EPS]:Sensor<br />
[W]: Material Lining, Soft Rubber<br />
Electrodes,  Standard 2x Measuring- + 2x Groundelectrodes, 0°C...70°C<br />
[210R]:Process connection, 4" Class 150 RF ASME B16.5-2003 <br />
Max. Proc measuring range, 7 m3/h …... 282 m3/h<br />
[1]: Material Process connection,Flange steel painted<br />
[S]:Material electrodes,st.st. 1.4571 (316 -TI), (Standard for soft rubber)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI), (Standard for soft rubber)<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o<br /><br />
[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

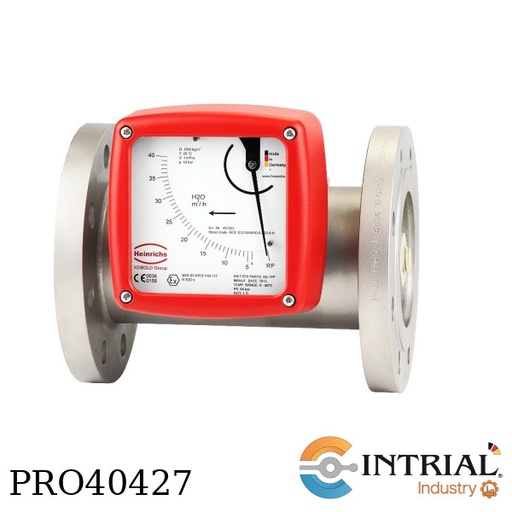

<strong>All-Metal Variable Area Flowmeter BGF<br />
Brand: Kobold - Heinrichs<br />
Model: BGF-S80-208R-T-K-L-0-0-S-5-0-0-H</strong><br />
[BGF]: Model,<br />
[S80]: Model, Stainless Steel, process temperature ≤ 200°C<br />
[208R]: Connection, 3" Class 150 RF ASME B16.5-2003<br />
[T]: Range, 1.6 m3/h …... 16 m3/h<br />
[K]: Magnet bearer, Standard PP bis 80 °C<br />
[L]: Flow direction, Left to right<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

Oval Gear Flow Meter/Counter<br />
Brand: Alemania<br />
Model: DON-2-50H-AB-1-Z3-N-0<br />
[DON-2]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[50H]: Measuring range, 50-1000 L/min<br />
[AB]: Mech. Connection, ANSI flange 3" 150 lbs<br />
[1]: Seal, FKM for DON-x45…DON-x60<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options , without<br />
*Not include battery

<strong>Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br />
Brand: Kobold (Alemania)<br />
Model: DUK-11-G8H-C34P-L</strong><br />
[DUK-11]: <br />
Operating principle Ultrasonic<br />
Mounting position all directions<br />
Indication/Output see electronic version<br />
Max. temperature/pressure 90 °C / 16 bar <br />
Protection IP 65<br />
Seal NBR <br />
Sensor Housing Brass<br />
[G8H]: Measuring range/connection, 0,6…150 L/min, G 1½ female<br />
[C34P]: Evaluation electronic for DUK,<br />
Compact electronic 24 VDC, 4-20 mA, 1x PNP <br />
[L]: Flow direction, from left to right

<div>Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br />
Brand: Kobold (Alemania)<br />
Model: DUK-11-G8H-C34P-L<br />
[DUK-11]:<br />
Operating principle Ultrasonic<br />
Mounting position all directions<br />
Indication/Output see electronic version<br />
Max. temperature/pressure 90 °C / 16 bar<br />
Protection IP 65<br />
Seal NBR<br />
Sensor Housing Brass<br />
[G8H]: Measuring range/connection, 0,6…150 L/min, G 1½ female<br />
[C34P]: Evaluation electronic for DUK,<br />
Compact electronic 24 VDC, 4-20 mA, 1x PNP<br />
[L]: Flow direction, from left to right</div>

<div>Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K502<br />
[ZUB-KAB-12]<br />
[K502]: Version: M12x1 box 2 m cable, 5-pin</div>

Brand: Kobold<br />
Model: DON-1-25G-N6-1-Z3-N-0<br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
max. temperature, 80 °C<br />
max. pressure, 64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[25G]: Measuring range, 2.64 – 39.62 GPM<br />
[N6]: Mech. connection, 1” NPT<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Accessory, without<br />
Not include Battery
<hr /><hr />

Accessories:<br />
Brand: Kobold(USA)<br />
Model: 807.007-5M<br />
(Cable: M12 5-PIN, 16 Feet)

<strong>Differential Pressure Flow Meter/Monitor<br />
Model: RCD-12-17H-N6-K-3-4-2<br />
Brand: Kobold - Alemania</strong><br />
[RCD-12]<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class, IP 65<br />
max. temperature, 80 °C (100 °C)<br />
max.pressure, 40 bar<br />
Material, st. st<br />
[17H]: Measuring range, 20-118 L/min water<br />
[N6]: Process Connection, 1 NPT female <br />
[K]: ADI-indication<br />
ADI Electronics for Flow Switch<br />
Housing 97 x 96<br />
Display 3.5 LED + Bar graph<br />
Temperature range -20...80 °C<br />
Min./Max. memory Yes<br />
Housing Aluminium/PA66<br />
Protection IP 65<br />
[3]: Supply voltage, 18-30, 10-40 VDC<br />
[4]: Output, 0-10 VDC, 0(4)-20 mA selectable<br />
[2]: Contacts, 2 change over contacts

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S15-203R-J-0-0-0-0-S-5-6-0-H<br />
Brand: Kobold – Heinrichs </strong><br />
[BGN]: Model<br />
[S15]: Stainless Steel, process temperature ≤ 350°C<br />
[203R]: Connection,1" Class 150 RF ASME B16.5-2003<br />
[J]: Range: 28-270 L/H<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, with liquid damping<br />
[0]: Self-draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S25-203R-M-0-0-0-0-S-5-6-0-H</strong><br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[203R]: 1" Class 150 RF ASME B16.5-2003<br />
[M]: Range: 110-1100 L/H<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>Variable Area Flowmeter <br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V31-40401S-01-D6W-F-F-A-0-0-2-0-0-0-0-0-0-0-H</strong><br />
[V31]: Model <br />
[40401S]: Thread, G 1"(F) Verschraubung<br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
[01]: Type of float, Material, Stainless steel 1.4571; guide rod 1.4571 without<br />
[D6W]: Measuring range - stainless steel float, 160 a 1600 LPH<br />
[F]: Gasket, Viton®<br />
[F]: Float Stop, PVDF <br />
[A]: Union nut, Aluminium lacquered <br />
[0]: Shatter protection max. 80°C, without <br />
[0]: Electrical output, without <br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals, without <br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without <br />
[0]: Pressure / leakage test, without <br />
[0]: Approvals, without <br />
[0]: Marking, without <br />
[0]: Accessories, without <br />
[H]: Make, Heinrich

Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V31-40401S-01-D6W-B-F-A-0-0-4-0-0-0-0-0-0-0-H<br />
[V31]: Model<br />
[40401S]: Thread, G 1"(F) Verschraubung<br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
[01]: Type of float, Material, Stainless steel 1.4571; guide rod 1.4571 without<br />
[D6W]: Measuring range - stainless steel float,190 a 1900 LPH<br />
[B]: Gasket, EPDM<br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrich

All-Metal Flowmeter - Switch<br />
Brand: Kobold<br />
Model: SMW-12-13H-L-R0-R25<br />
[SMW-12]:<br />
Operating principle variable area<br />
Mounting position horizontal<br />
Flow direction s. below<br />
Body material St.St.<br />
Seal FPM<br />
Switch point adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 350 bar<br />
[13H]: Adjustment range, 10...120 L/min water<br />
[L]: Flow direction, from left<br />
[R0]: Contact, 1 N/O<br />
[R25]: Connection, G 1 female<br />
***for >=90 L/min water

Flowindicator with Flange Connection<br />
Brand: Kobold (Alemania)<br />
Model: DAK-2-2-03H-A-25-P<br />
[DAK-2]:<br />
Operating principle, Flap<br />
Mounting position, Horizontal<br />
Flow direction, in direction of the arrow<br />
max. temperature, 150 °C<br />
max. pressure, 16 bar<br />
[2]: Housing, st.st<br />
[03H]: Nom. diameter, 25<br />
[A]: Flanges, ANSI-flange<br />
[25]: Connection, DN 25 / 1"<br />
[P]: Option, DN 25/32 pmax. 25 bar<br /><br />
* Material certificate<br />
*  Pressure Test for DAK

Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs<br />
Model: TME-S-58-208R-0-R-1-0-0-0-H<br />
[TME]:<br />
[S]: Wetted materials, Stainless Steel<br />
[58]: Range: min. 0-6.000 kg/h - max. 0-60.000 kg/h (Sensor TME080)<br />
[208R]: 3" Class 150 RF ASME B16.5-2003<br />
Face to face dimension 600mm<br />
[0]: Heating Cooling, without<br />
[R]: Flow direction, Right to left<br />
[1]: Sensor configuration, Integral mount transmitter<br />
Temperature Service Rating -20°C to 100°C  -4°F to 212°F<br />
[0]: Approvals, without approval<br />
[0]: Certificate, without<br />
[0]: Supplementary equipment, without<br />
[H]: Design, Heinrichs<br /><br />
Include:<br />
Transmitter UMC4<br />
Model: UMC4-B-1-1-A-0-0<br />
[B]:Mounting, Integral mount, Conduit port opening, M20 x 1,5<br />
[1]:Display / Interface board, Integral within transmitter housing,<br />
for ambient temperature up to 60°C<br />
[1]:Power supply, 90 - 265V AC, 50/60Hz<br />
[A]:Outputs:<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]:Approvals, none<br />
[0]:Type of protection (signal output), none<br /><br />
Data Process Y1:<br />
Flujo Másico : RBD - Oleína<br />
Caudal: 17.000 kg/h

oriolis Massflowmeter<br />
Brand: Kobold - Heinrichs<br />
Model: TME-S-58-208R-0-L-1-0-0-0-H<br />
[TME]:<br />
[S]: Wetted materials, Stainless Steel<br />
[58]: Range: min. 0-6.000 kg/h - max. 0-60.000 kg/h (Sensor TME080)<br />
[208R]: 3" Class 150 RF ASME B16.5-2003<br />
Face to face dimension 600mm<br />
[0]: Heating Cooling, without<br />
[L]: Flow direction, Left to right<br />
[1]: Sensor configuration, Integral mount transmitter<br />
Temperature Service Rating -20°C to 100°C  -4°F to 212°F<br />
[0]: Approvals, without approval<br />
[0]: Certificate, without<br />
[0]: Supplementary equipment, without<br />
[H]: Design, Heinrichs<br /><br />
Include:<br />
Transmitter UMC4<br />
Model: UMC4-B-1-1-A-0-0<br />
[B]:Mounting, Integral mount, Conduit port opening, M20 x 1,5<br />
[1]:Display / Interface board, Integral within transmitter housing, <br />
for ambient temperature up to 60°C<br />
[1]:Power supply, 90 - 265V AC, 50/60Hz<br />
[A]:Outputs: <br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]:Approvals, none<br />
[0]:Type of protection (signal output), none<br /><br />
Data Process Y1:<br />
Flujo Másico : Aceite de Plama Cruda<br />
Caudal: 17.000 kg/h

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-206-R-20-R-1</strong><br />
[PSR-11]:<br />
Operating principle, paddle<br />
Mounting position, all directions<br />
incl. fitting, brass<br />
Body material, brass<br />
max. pressure* 100 bar<br />
* only 25 bar at PSR-..32 and PSR-..40<br />
[206]: Measuring range/paddle, 7.7-13.4 L/min paddle: 6<br />
[R]: Connection, G-thread<br />
[20]: Connection, 3/4" (for PSR-xx20...)<br />
[R]: Contact version, N/O<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

Gear Wheel Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DZR-1-005-S10-F-S-3<br />
[DZR-1]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Medium-viscosity low<br />
Lubricating property of the medium good<br />
Storage ball bearing<br />
Material cast<br />
Accuracy (of actual range) +-0,3%<br />
Max. Temperature 120/150 °C<br />
[005]: measuring range / pressure, 0,4...80 L/min / 400 bar<br />
[S10]: Mech. connection, G 3/8 side mounted (only for code: 001-005)<br />
[F]: Seal, FPM<br />
[S]: Electronic, up to 120 °C / 24 VDC<br />
[3]: Electr. Connection, plug-on display with 0(4)..20 mA output<br /><br />
Include:<br />
Accessories Round Plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002
