Paddle Type Flow Switch<br />
Brand: Kobold (USA)<br />
Model: PSR-5120<br />
Switching Tolerance: ± 15%<br />
Media Temperature  Brass/NBR Seal: -4...158 °F<br />
Max. Pressure, Brass: 1/4"...1" = 1450 PSIG<br />
Cable Length: Standard: 5 Ft. (1.5m)<br />
Connection (NPT): 3/4"<br />
Approximate Switching Range*:<br />
Increasing GPM (Water): 2.0...3.5<br />
Decreasing GPM (Water): 1.6...3.4

Thermal Mass Flow Meter for Gas. Measuring range: 2.26-904 Nm³/h for tube DN 40 (11/2"). Analogue-output 4-20 mA / totalizer output (standard), Connection: Ball valve with NPT-Thread 1 1/2". LCD-display<br /><br />
Thermal Mass Flow Meter for Gas<br />
Brand: Kobold (Alemania)<br />
Model: KMT-3-28-N-1-5-L-2-N-Q-4<br />
[KMT-3]:<br />
Function principle: Direct thermal flow<br />
Sensor: remote<br />
Flow direction: acc. Mounting<br />
Power supply 18-30 VAC/DC<br />
max. pressure / max. temperature PN 16 / 80 °C<br />
Sensor material st. st./ plastic<br />
[28]: Measuring range: 2.26-904 Nm³/h for tube DN 40 (11/2")<br />
[N]: Connection: Ball valve with NPT-Thread 1 1/2"<br />
[1]: Display, LCD-display<br />
[5]: Cable length sensor/electronic: 5 m with plug M12, 4-pins<br />
[L]: Medium, Air<br />
[2]: Units, US units<br />
[N]: Physical size, output 1: Standard volume flow (standard Nm³/h)<br />
[Q]: Physical size, output 2: Consumption (standard Nm³)<br />
[4]: Output 1/ Output 2: Analogue-output 4-20 mA / totalizer output (standard)

Thermal Mass Flow Meter for Gas<br />
Brand: Kobold (Alemania)<br />
Model: KMT-3-18-N-1-5-L-2-N-Q-4<br />
[KMT-3]:<br />
Function principle: Direct thermal flow<br />
Sensor: remote<br />
Flow direction: acc. Mounting<br />
Power supply 18-30 VAC/DC<br />
max. pressure / max. temperature PN 16 / 80 °C<br />
Sensor material st. st./ plastic<br />
[18]: Measuring range: 2.26-452 Nm³/h for tube DN 40 (1 1/2")<br />
[N]: Connection: Ball valve with NPT-Thread 1 1/2"<br />
[1]: Display, LCD-display<br />
[5]: Cable length sensor/electronic: 5 m with plug M12, 4-pins<br />
[L]: Medium, Air<br />
[2]: Units, US units<br />
[N]: Physical size, output 1: Standard volume flow (standard Nm³/h)<br />
[Q]: Physical size, output 2: Consumption (standard Nm³)<br />
[4]: Output 1/ Output 2: Analogue-output 4-20 mA / totalizer output (standard)

<strong>Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-12-20-N8-F390</strong><br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane) <br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar) <br />
Accuracy of final value: +/-2,5% <br />
Material Housing: St. St.<br />
Material Axis Hard metal  <br />
[20]: Measuring range, 25-250 L/min<br />
[N8]: Mech. connection, for MR-Code: 20, 1 1/2 NPT female<br />
[F390]: Electronic, Frequency divider 1...1/128, plug M12x1<br /><br /><strong>Include:<br />
Accessories Round Plug<br />
Model: ZUB-KAB-12-K002</strong><br />
M12x1 box 2 m cable, 4-pin

<div>Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-12-30-NB-F390<br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: St. St.<br />
Material Axis Hard metal <br />
[30]: Measuring range, 50-750 L/min<br />
[NB]: Mech. connection, for MR-Code: 30, 3 NPT female<br />
[F390]: Electronic, Frequency divider 1...1/128, plug M12x1</div>

<div>Include:<br />
Accessories Round Plug<br />
Model: ZUB-KAB-12-K002<br />
Brand: Kobold<br />
M12x1 box 2 m cable, 4-pin</div>

Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-12-25-N9-F390<br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: St. St.<br />
Material Axis Hard metal  <br />
[25]: Measuring range, 30-350 L/min<br />
[N9]: Mech. connection, for MR-Code: 25, 2 NPT female<br />
[F390]: Electronic, Frequency divider 1...1/128, plug M12x1<br /><br />
Include:<br />
Accessories Round Plug<br />
Model: ZUB-KAB-12-K002<br />
Brand: Kobold<br />
M12x1 box 2 m cable, 4-pin

<div>Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWU-36-W3H-X-L-T-X<br />
[DWU-3]:<br />
Operating principle paddle-bellow<br />
Indication pointer indication<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT<br />
max. temperature 100 °C<br />
Connection weld-on flan.<br />
[6]: Material combination, st.st.<br />
[W3H]: Connection, for tube nom. diam. DN 300<br />
[X]: Signal lamp, without signal lamp<br />
[L]: Flow direction, flow from left to right<br />
[T]: Location of indicator, above lead<br />
[X]: Options, EX-contact</div>

<div>Data process:<br />
Fluid: Water<br />
Flow range: 202 / 525 / 808 m3/h<br />
Operating Pressure: 0 / - / 3.5 Bar<br />
Operating Temperature: 5 / - / 60°C<br />
Amb. Temperature: 5 / - / 30°C</div>

<div>Coriolis Massflowmeter<br />
Model: TMU-S-100-208R-A-0-0-A-A-1-1-0-H<br />
Brand: Kobold - Heinrichs<br />
[TMU]<br />
[S]: Wetted materials, Stainless steel<br />
[100]: Meter line size, DN100, ANSI 4", Range: min. 0-30.000 kg/h - max. 0-200.000 kg/h<br />
[208R]: Process connection, 3" Class 150 RF ASME B16.5-2003<br />
Installation length, 1375 mm<br />
[A]: Containment options, Stainless steel containment 1.4301 (304)<br />
[0]: Heating / cooling, None<br />
[0]: Connection for heating / cooling, None<br />
[A]: Sensor configuration, Integral mount transmitter<br />
Process temperature,--4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection, IP65<br />
[A]: Approvals, II 1/2G EEx ia IIC T6 - T2<br />
[1]: Calibration flow, Standard, 3-point<br />
[1]: Calibration density, Standard (3-point)<br />
[0]: Supplementary equipment, None<br />
[H]: Design, Heinrichs</div>

<div>[UMC4],Transmitter<br />
[B]:Mounting,  Integral mount, Conduit port opening, M20 x 1,5<br />
[1]: Display/Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1]: Power supply, 90 - 265V AC, 50/60Hz<br />
[A]: Output,<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[2]: Approvals, II(1)2G Ex d [ia Ga] IIC T3-T4 Gb (terminal compartment Ex d), ambient to 60°C<br />
[1]: Type of protection (signal output), Ex [ia Ga] intrinsically safe</div>

Brand: Kobold (Alemania)<br />
Model: KEC-1-S-116-1-L-S-0-0<br />
[KEC-1]:<br />
Function principle, direct thermal flow<br />
Mounting position, all directions<br />
version, inserting versión<br />
Output Modbus RTU, 2x4-20 mA (°C/Nm³/h), Modbus TCP, puls, alarm<br />
Counter 1 total counters (resettable)<br />
max. temperature -40…+180 °C<br />
max. pressure 50 (100) bar<br />
Accuracy,<br />
±1,5% of meas. value, ±0,3% of F.S.<br />
Option: ±1,0% of meas. value, ±0,3% of F.S.<br />
sensor material, st. st. 1.4571 /glass<br />
[S]: Measuring range, Standard 92,7 m/s<br />
[0116]: Connection / sensor-length, 160 mm/ 1/2 NPT<br />
[1]: Display, 2" TFT-display, backlight<br />
[L]: Gas type, Standard air, specify gas,  Aire<br />
[S]: max. pressure, 50 bar (standard)<br />
[0]: Calibration, Standard<br />
[0]: Option, w/o<br /><br />
Data Process<br />
Rango: Hasta 1000 Nm3/h<br />
Include:<br />
Accessories for KEC<br />
[KEC-SOFT]: Service software incl. PC-connection

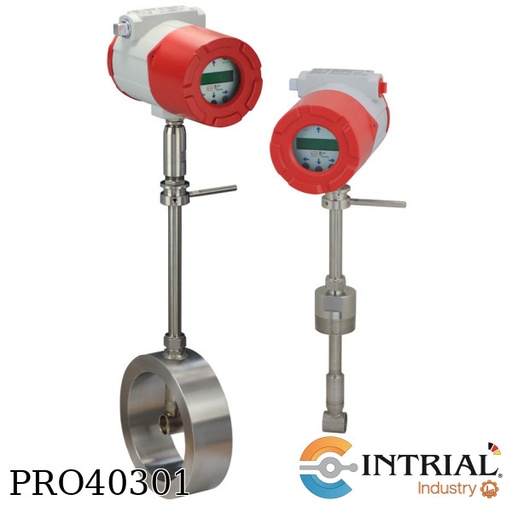

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Modelo: DVE-T-S-L-L-2-S-0-A</strong><br />
[DVE]: Model: Insertion Version<br />
[T]: Electronic-Options, Flow Velocity including temperature sensor<br />
[S]: Probe length, Standard length (Max.Stem Length 690 mm)<br />
[L]: Sensor Configuration/Mounting Option: Compact, incl. LCD Display IP 66 / Nema 4  <br />
[L]: Supply voltaje: 12-36 VDC loop powered<br />
[2]: Output signal, 1x 4-20mA, HART, Loop powered 1x Pulse only with input power L<br />
[S] Process temperatura: Standard temperature -200..+260°C (-330..+500°F)<br />
[0] Option Pressure Sensor: w/o Pressure Sensor<br />
[A] Process connection: 2" NPT Male thread Compression fitting<br /><br />
Data Process:<br />
Rango: 1800 Nm3/h  a 25000 Nm3/h

EPS-H-208R-1-S-S-1-0 / UMF2-A-1-1-F-0BH<br />
Brand: Kobold-Heinrichs<br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes,  Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[208R]:Process connection, 3" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 180 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI), (Standard for hard rubber, soft rubber, EPDM)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI), (Standard for hard rubber, soft rubber, EPDM)<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o<br /><br />
[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs<br /><br />
Data Process:<br />
Rango de caudal: 5.0 m3/h   a  180 m3/h<br />
Precisión: +/- 0.3 %

<strong>EPS Electromagnetic Flow Meter<br />
EPS-H-206R-1-S-S-1-0_UMF2-A-1-1-F-0BH<br />
Brand: Kobold-Heinrichs</strong><br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes,  Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[206R]:Process connection, 2" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 1.77 m3/h a 70 m3/h<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, integrated transmitter. <br />
Protection class sensor, IP67<br />
[0]:Certificates, w/o<br /><br /><strong>[UMF2]</strong><br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs

<div>EPS-H-203R-1-S-S-1-0 / UMF2-A-1-1-F-0BH<br />
Brand: Kobold-Heinrichs<br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes,  Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[203R]:Process connection, 1" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 17,6 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI), (Standard for hard rubber, soft rubber, EPDM)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI), (Standard for hard rubber, soft rubber, EPDM)<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o</div>

<div>[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs</div>

<div>Data Process:<br />
Rango de caudal: 0.45 m3/h   a  17.6 m3/h<br />
Precisión: +/- 0.3 %</div>

Differential Pressure Flow Meter/Monitor<br />
Model: RCD-1204H-N5-K-3-4-2<br />
Brand: Kobold (Alemania)<br />
[RCD-12]:<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class, IP 65<br />
max. temperature, 80 °C (100 °C)<br />
max.pressure, 40 bar<br />
Material, st. st<br />
[04H]: Measuring range, 2 - 21,4 L/min water<br />
[N5]: Process Connection, 3/4 NPT female  <br />
[K]: ADI-indication<br />
ADI Electronics for Flow Switch<br />
Housing 97 x 96<br />
Display 3.5 LED + Bar graph<br />
Temperature range -20...80 °C<br />
Min./Max. memory Yes<br />
Housing Aluminium/PA66<br />
Protection IP 65<br />
[3]: Supply voltage, 18-30, 10-40 VDC<br />
[4]: Output, 0-10 VDC, 0(4)-20 mA selectable<br />
[2]: Contacts, 2 change over contacts

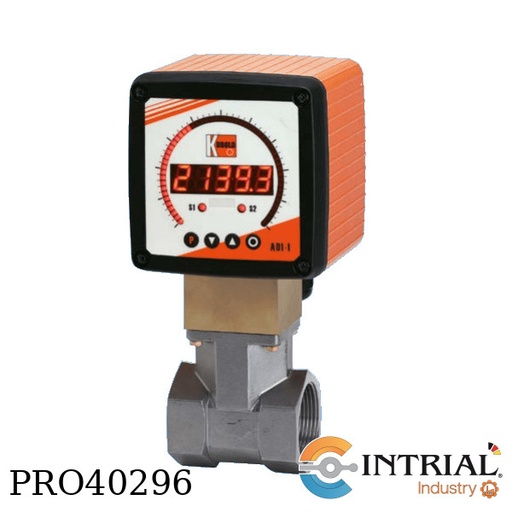

Differential Pressure Flow Meter/Monitor<br />
Model: RCD-12-15H-N6-K-3-4-2<br />
Brand: Kobold (Alemania)<br />
[RCD-12]:<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class, IP 65<br />
max. temperature, 80 °C (100 °C)<br />
max.pressure, 40 bar<br />
Material, st. st<br />
[15H]: Measuring range, 10-66 L/min water<br />
[N6]: Process Connection, 1 NPT female<br />
[K]: ADI-indication<br />
ADI Electronics for Flow Switch<br />
Housing 97 x 96<br />
Display 3.5 LED + Bar graph<br />
Temperature range -20...80 °C<br />
Min./Max. memory Yes<br />
Housing Aluminium/PA66<br />
Protection IP 65<br />
[3]: Supply voltage, 18-30, 10-40 VDC<br />
[4]: Output, 0-10 VDC, 0(4)-20 mA selectable<br />
[2]: Contacts, 2 change over contacts

Differential Pressure Flow Meter/Monitor<br />
Model: RCD-1216H-N6-K-3-4-2<br />
Brand: Kobold (Alemania)<br />
[RCD-12]:<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class, IP 65<br />
max. temperature, 80 °C (100 °C)<br />
max.pressure, 40 bar<br />
Material, st. st<br />
[16H]: Measuring range, 10-85 L/min water<br />
[N6]: Process Connection,  1 NPT female  <br />
[K]: ADI-indication<br />
ADI Electronics for Flow Switch<br />
Housing 97 x 96<br />
Display 3.5 LED + Bar graph<br />
Temperature range -20...80 °C<br />
Min./Max. memory Yes<br />
Housing Aluminium/PA66<br />
Protection IP 65<br />
[3]: Supply voltage, 18-30, 10-40 VDC<br />
[4]: Output, 0-10 VDC, 0(4)-20 mA selectable<br />
[2]: Contacts, 2 change over contacts

<strong>EPS Electromagnetic Flow Meter<br />
EPS-H-214R-2-H-H-1-0 / UMF2-A-1-1-F-0BH<br />
Brand: Kobold-Heinrich</strong><br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes,  Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[214R]:Process connection, 10" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 1767 m³/h<br />
[2]: Material Process connection, Flange st.st. 1.4301<br />
[H]:Material electrodes, Hastelloy, (Standard for PTFE / PFA -lining)<br />
[H]: Earthing electrode, Hastelloy, (not available for PTFE / PFA / ceramic lining)<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o<br /><br /><strong>[UMF2]</strong><br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs<br /><br />
Dara Process:<br />
Rango de caudal: 44.18 m3/h   a  1767 m3/h<br />
Precisión: +/- 0.3 %

<div>EPS-H-210R-2-H-H-1-0 / UMF2-A-1-1-F-0BH<br />
Brand: Kobold-Heinrich<br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes,  Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[212R]:Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 282 m³/h<br />
[2]: Material Process connection, Flange st.st. 1.4301<br />
[H]:Material electrodes, Hastelloy, (Standard for PTFE / PFA -lining)<br />
[H]: Earthing electrode, Hastelloy, (not available for PTFE / PFA / ceramic lining)<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o</div>

<div>[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs</div>

<div>Dara Process:<br />
Rango de caudal: 7 m3/h   a  282 m3/h<br />
Precisión: +/- 0.3 %</div>

<div>EPS-H-212R-2-H-H-1-0/UMF2-A-1-1-F-0BH<br />
Brand: Kobold-Heinrichs<br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes,  Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[212R]:Process connection, 6" Class 150 RF ASME B16.5-2003,<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 636 m³/h<br />
[2]: Material Process connection, Flange st.st. 1.4301<br />
[H]:Material electrodes, Hastelloy, (Standard for PTFE / PFA -lining)<br />
[H]: Earthing electrode, Hastelloy, (not available for PTFE / PFA / ceramic lining)<br />
[1]: Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0]:Certificates, w/o<br />
[UMF2]<br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs</div>

<div>Data Process:<br />
Rango de caudal: 15.9 m3/h   a  636 m3/h<br />
Precisión: +/- 0.3 %</div>

Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V3160601S02E2WFFA0020000000H<br />
[V31]: Model<br />
[60601S]: Thread, NPT 1 ¼ ” (F) Screw<br />
Length, 375 mm, connection - wetted parts Stainless Steel<br />
[02]: Type of float, Material, Stainless steel 1.4571-guided, with guide rod 1.4571<br />
[E2W]: Measuring range - stainless steel float (guided), H2O: (8.6-86 LPM), 1000kg/m³, 1mPas<br />
[F]: Gasket, Viton®<br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrich
