Caudal

Vortex Flow Meter. of Liquids, Gases and Steam - Velocity and Volumetric Meter. Wafer 2" ANSI. Compa
Meter Code: DVH-VW52SLL2S0<br />
Brand: Heinrichs Kobold<br />
Tag Number:<br />
DVH - In-Line Multi-Parameter Vortex Flow Meter<br />
V - Volume Measurement of Liquids, Gases and Steam - Velocity and Volumetric Meter<br />
W5 - Wafer 2" / DN 50 / JIS 50 - 1.939 Inch Inside Diameter<br />
2 - ANSI 300 lb<br />
S - st.st. 1.4404 / 316 L - Stainless Steel<br />
L - Compact with LCD Display<br />
L - 12-36 VDC, 2-wire, loop powered<br />
2 - Loop Power, 1x 4-20mA, HART, 1x Pulse, only with Power Supply L, passive<br />
S - Standard Temperature - Process temperature -40° to 500°F (-40° to 260°C)<br />
0 - No Pressure Sensor - Used with VT process fluid
S/ 9,242.77 9242.77 PEN
Variable Area Flowmeter-Low Volume KDF/KDG-2, 30 a 300 LPH
KDG-22-YY-N-V-S-00-0<br />
Variable Area Flowmeter-Low Volume KDF/KDG-2<br />
KDG-22:<br />
Mounting length, 125 mm<br />
Operating principle, variable area<br />
Flow direction, from bottom to top<br />
Body material, st.st.<br />
Glass, Borosilicate<br />
Accuracy, class 2.5<br />
Max. temperature without/with contact, 100 °C / 80 °C<br />
Max. pressure, PN 16<br />
YY: Measuring range, Special measuring range, 30 a 300 LPH (0.5 - 5 LPM)<br />
Calibrated for O2<br />
N: Connection, 1/4 NPT<br />
V: Seal, FPM<br />
0: Panel mounting kit, with panel mounting set<br />
00: Contacts measuring range, w/o<br />
0: Flow differential pressure regulator, w/o
S/ 1,660.61 1660.6100000000001 PEN
Variable Area Flowmeter-All Metal BGN, Measuring range water, 6000-60000 L/h (Equivalent: 6 – 60 m3/
BGN-S-1H335BW-2-0-0-0-S-2-0<br />
Variable Area Flowmeter-All Metal BGN<br />
MODEL: BGN-S-1H335BW-2-0-0-0-S-2-0<br />
BRAND: KOBOLD<br />
BGN-S:<br />
    Operating principle, variable área<br />
    Mounting position, vertical<br />
    Flow direction, from bottom to the top<br />
    Material tube, st. st.<br />
    Accuracy, 1, 6% F.S<br />
    Max. Temperature, 350°C0<br />
    Max. Pressure, class 150<br />
1H335BW: Measuring range water, 6000-60000 L/h (Equivalent: 6 – 60 m3/h) DIN DN 100 PN16<br />
0:     Heating/cooling, without<br />
0:     Damping/spring stop, without<br />
0:     Draining body, without<br />
0:     Certificates, without<br />
S:    Display material, Aluminium<br />
2:    Display measuring range water<br />
0:    Electrical output, without (sin salida)<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_bgn.pdf
S/ 6,415.81 6415.81 PEN
Contador de ultrasonidos/dosificación (1…250 L/min)
<strong>Medidor de Flujo tipo Ultrasónico<br />
MODEL: DUK-12-N9H-C34P-R<br />
Brand: Kobold (Alemania)</strong><br />
[DUK-12] Ultrasonic Flowmeter/-Monitor/-Counter/-Doser<br />
[N9H] Measuring range/connection: 1…250 L/min 2 NPT female<br />
[C34P] Evaluation electronic for DUK Compact electronic: 24 VDC, 4-20 mA, 1x PNP<br />
[R] Flow direction: from right to left<br />
Operating principle: Ultrasonic<br />
Mounting position: all directions<br />
Indication/Output: see electronic version<br />
Max. temperature/pressure 90 °C / 16 bar <br />
Protection: IP 65<br />
Seal: NBR <br />
Sensor Housing: St. st.
S/ 5,338.46 5338.46 PEN
Turbine Wheel-Compact Electronic TUR-2..C3
TUR-21-50-E34R<br />
Turbine Wheel-Compact Electronic TUR-2..C3<br />
[TUR-21] Turbine Wheel Flowmeter<br />
[50] Connection / Measuring range: Connection PVC flange NW 50 / 1,2...20 m³/h water<br />
E34R: Counter electronic, 24 VDC, 0(4)-20 mA<br />
Operating principle: Turbine Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Material: PVDF<br />
Max. Temperatura: 70 °C<br />
Max. Pressure: PN 10<br />
Accuracy: +-1% FS<br />
Protection: IP 65<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_tur.pdf
S/ 9,276.36 9276.36 PEN
Ultrasonic-Counter/Dosing DUK-..E/-G, Measuring range/connection: 1…250 L/min (0.06 - 15 m3/h) 2 NPT
DUK-22-N9H-E34R-L<br />
Ultrasonic-Counter/Dosing DUK-..E/-G<br />
[DUK-22]: Ultrasonic Flowmeter/-Monitor/-Counter/-Doser<br />
[N9H] Measuring range/connection: 1…250 L/min (0.06 - 15 m3/h) 2 NPT female (THREAD)<br />
[E34R] Evaluation electronic for DUK: 4-20 mA, 24 VDC, plug connection<br />
[L] Flow direction: from left to right<br />
Operating principle: Ultrasonic<br />
Mounting position: all directions<br />
Indication/Output: see electronic version<br />
Max. temperature/pressure: 120 °C / 16 bar<br />
Protection: IP 65<br />
Seal: FPM<br />
Sensor Housing : St. st.<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_duk.pdf
S/ 5,743.39 5743.39 PEN

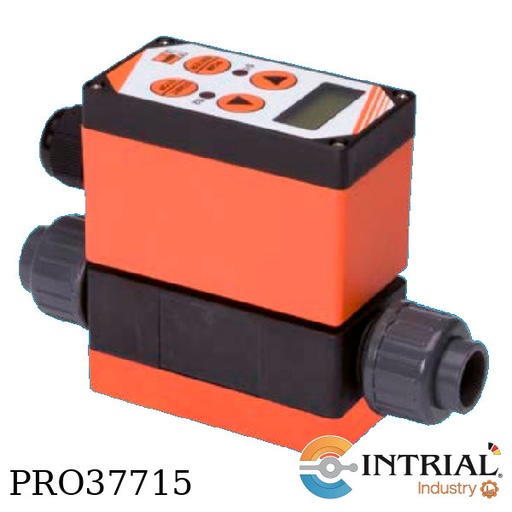

Compact Magnetic Inductive Flow Meter Measuring range (liquid >30 μS/cm), 16...320 L/min G 2 male
<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold<br />
Model: MIK-5NA-65-K-G14R</strong><br />
[MIK-5NA]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions<br />
Max. temperature/pressure, 80 °C / 10 bar<br />
Protection, IP 65<br />
Housing, PPS<br />
Electrodes, St. st.<br />
Seal, NBR<br />
[65]:  Measuring range (liquid >30 μS/cm), 16...320 L/min G 2 male<br />
[K]: Connection set, PVC-glue connection, G 2 - Ø33/40 mm<br />
[G14R]: Evaluation electronic for MIK,<br />
Dosing electronic - 4-20 mA, 1,5 m cable connection<br /><br />
*flow direction: from left to right
S/ 2,492.77 2492.77 PEN
Magnetic Inductive Flow Meter with flange
DMH-2-L25-T-3-3-A-2-5<br />
Electromagnetic Flowmeter DMH<br />
MODELO: DMH-1-L50-H-1-1-A-1-5<br />
[DMH-2] Magnetic Inductive Flow Meter with flange<br />
[L25] Connection flange ASME 16.5: 1" 150 lbs max. 0..17 m³/h<br />
[T] Lining: PTFE<br />
[3] Electrodes material: Hastelloy C4<br />
[3] Grounding Electrodes material: Hastelloy C4<br />
[A] Version/cable length: compact version, 1/2 NPT connection<br />
[2] Electronic: UMF2(B)-Electronic with HART®<br />
[5] Power supply/Cable entries: 230 VAC 1/2 NPT<br />
Mounting position : all directions<br />
Display / Protection class: LCD Display / IP 67<br />
Output: Analogue, frequency, connection and status output<br />
Max. medium temperature:  80°C<br />
Connection: steel<br />
Coating: PTFE<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_dmh.pdf
S/ 10,290.55 10290.550000000001 PEN
Variable Area Flowmeter-Low Volume KDF-2
KDF-22YY-N-T-0-00-0<br />
Variable Area Flowmeter-Low Volume KDF/KDG-2<br />
Measuring range: 0,25 - 2,5 ... 16 - 160 L/h water<br />
0,5 - 5 NL/h ... 500 - 5000 NL/h air<br />
Connection: ¼ NPT, G ¼ female<br />
Material: st. steel<br />
Max. pressure: 16 bar<br />
Max. temperature: 100 °C<br />
Accuracy: ± 2,5% qG=50%<br />
Option: contacts, up/downstream diff. pressure regulator<br />
**************************************************************<br />
KDF-22YY-N-T-0-00-0<br />
KDF-22:<br />
Mounting length, 125 mm<br />
Operating principle, variable area<br />
Flow direction, from bottom to top, st.st.<br />
Glass, Borosilicate<br />
Accuracy, class 2.5<br />
Max. temperature without/with contact, 100 °C / 80 °C<br />
Max. pressure, PN 16<br />
YY: 0.25 - 2.5 L/h (Other Liquids)<br />
N: Connection, 1/4 NPT<br />
T: Seal, FFKM<br />
0: Panel mounting kit, w/o<br />
00: Contacts measuring range, w/o<br />
0: Flow differential pressure regulator, w/o<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_kdf-kdg.pdf
S/ 2,310.73 2310.73 PEN
Turbine Wheel Flowmeter DPE, Measuring range, 10-50 L/min
Model: DPE-11-10-G5-L343<br />
Turbine Wheel Flowmeter DPE<br />
DPE-11:<br />
Operating principle, Pelton Wheel (6-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP 65<br />
Max. temperature, 80 °C<br />
Max. pressure, PN40<br />
Accuracy of final value, +/-2,5%<br />
Material Housing, al. + bronze<br />
Material Axis, Hard metal<br />
10: Measuring range, 10-50 L/min<br />
G5: Mech. connection, G 3/4 female<br />
L343: Electronic, Analogue output 4-20 mA, M12x1, 3-wire<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dpe.pdf
S/ 1,798.06 1798.06 PEN
Low Volume Flowmeters, Range: 10 - 100 SCFH. Accuracy ± 5% FS. Total length, 102 mm. Needle valve. C
Low Volume Flowmeters<br />
Model: KFR-4134-V1-S<br />
Low Volume Flowmeter<br />
Brand: Kobold<br />
KFR-41:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Fitting: Female 1/4" NPT<br />
Max Pressure: 100 PSIG<br />
Max Temperature: 150 °F<br />
Body, Clear Acrylic<br />
Seal, NBR<br />
Float, SS<br />
4134: Measuring range, 10 - 100 SCFH<br />
Options:<br />
V1: Brass Inlet Needle Valve<br />
S: Hose Barb Adapters 1/4"<br />
Datasheet:<br />
http://koboldusa.com/sites/default/files/product
S/ 299.06 299.06 PEN
All-Plastic Low-Flow Flowmeter KSK,Max. temperature, 60 °C Max. pressure, PN 10,Connection for size,
Model: KSK-1-500-G-P15-00<br />
Plastic Flowmeter and Switch KSK<br />
KSK-1: <br />
Operation principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Material, Trogamide<br />
Accuracy, Class 4<br />
Max. temperature, 60 °C<br />
Max. pressure, PN 10<br />
Seal, EPDM<br />
G: Measuring range, 6-42 Nm3/h<br />
P15: Connection for size, PVC G 1/2 female<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_ksk.pdf
S/ 850.74 850.74 PEN
Flujómetro de rueda ovalada
<strong>Oval Wheel Flowmeter Model DON<br />
Model: DON-135H-A9-1-Z3-N-S<br />
Marca: Kobold (Alemania)</strong><br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
35H: Measuring range, 30-450 L/min (1.8 - 27 M3/H)<br />
A9: Mech. connection, ANSI flange 2" 150 lbs<br />
1: Seal, FKM<br />
Z3: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
N: Cable entry, 1/2 NPT<br />
S: Accessory, Special gear wheels for viscosity > 1000 cP for range 35H
S/ 7,077.08 7077.08 PEN
Oval Wheel Flowmeter Model DON, 30 a 450 l/min, 2 Pulg, AL
Model: DON-135H-A9-1-Z3-N-0<br />
Marca: Kobold (Alemania)<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
35H: Measuring range, 30-450 L/min (1.8 - 27 M3/H)<br />
A9: Mech. connection, ANSI flange 2" 150 lbs<br />
1: Seal, FKM<br />
Z3: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
N: Cable entry, 1/2 NPT<br />
0: Accessory, without
S/ 6,820.74 6820.74 PEN
FLOW METER BGN, Measuring range air, 170-1700 m³N/h
MODEL:  BGN-S-1H335BW-0-0-0-0-S-5-6<br />
FLOW METER AREA VARIABLE<br />
BRAND: KOBOLD<br />
BGN-S:<br />
    Operating principle, variable área<br />
    Mounting position, vertical<br />
    Flow direction, from bottom to the top<br />
    Material tube, st. st.<br />
    Accuracy, 1, 6% F.S<br />
    Max. Temperature, 350°C0<br />
    Max. Pressure, PN 40<br />
1H335BW: Measuring range air, 170-1700 m³N/h, DIN DN 100 PN16<br />
0: Heating/cooling, without<br />
0: Damping/spring stop, without<br />
0: Draining body, without<br />
0: Certificates, without certificate<br />
S:    Display material, Aluminium<br />
2:    Display Media measuring range<br />
6:    Electrical output, transmitter ES, EExia, 4-20 mA HART®; SIL<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_bgn.pdf
S/ 8,923.43 8923.43 PEN
TTorsional Paddle Flow Meter/Monitor. Range, 150-800 L/min water. Connection 3 NPT female. Compact e
Torsional Paddle Flow Meter/Monitor<br />
Model:DPT-11-70H-NB-C34P<br />
Brand: KOBOLD<br />
DPT-11:<br />
Operating principle, paddle-torsion<br />
Flow direction, horizontal, in direction of the arrow<br />
max. temperature, 80 °C<br />
Material, Aluminum-bronze<br />
60H: Measuring range, 150-800 L/min water<br />
N6: Connection size, 3 NPT female<br />
C34P: Evaluating electronic, Compact electronic, 4-20mA, 1x PNP<br />
Please mention in order: Flow direction (left ––> right or right ––> left)<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_dpt.pdf
S/ 2,841.98 2841.98 PEN
Torsional Paddle Flow Meter/Monitor DPT,Measuring range, 850-1900 L/min water,max. temperature, 80 °
Model:DPT-11-70H-NB-C34P<br />
Torsional Paddle Flow Meter/Monitor <br />
Brand: KOBOLD<br />
DPT-11:<br />
Operating principle, paddle-torsion<br />
Flow direction, horizontal, in direction of the arrow<br />
max. temperature, 80 °C<br />
Material, Aluminum-bronze<br />
70H: Measuring range, 850-1900 L/min water<br />
N6: Connection size, 3 NPT female<br />
C34P: Evaluating electronic, Compact electronic, 4-20mA, 1x PNP<br />
Please mention in order: Flow direction (left ––> right or right ––> left)<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_dpt.pdf
S/ 2,875.41 2875.41 PEN
Calorimetric Flowswitch
MODEL:KAL-K5-3-15-S-SK6<br />
[KAL-K8] Calorimetric Flowswitch, Compact Version<br />
[3] Probe material: st.st. 1.4301<br />
[15] Version: Standard; Connection: ½”<br />
[S] Contact versión: N/O<br />
[PG0] Electron. connection/power supply: plug conn. 7/8" c/w plug socket 110 VDC<br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. temperature: 80 °C<br />
max. pressure:100 bar<br />
Protection class: IP 65<br />
Connection thread: NPT<br />
Elongated sensor: 50 mm<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_kal-k.pdf
S/ 2,946.00 2946.0 PEN
Calorimetric Flowswitch, Compact Version
MODEL:KAL-K5-3-15-S-SK6<br />
[KAL-K8] Calorimetric Flowswitch, Compact Version<br />
[3] Probe material: st.st. 1.4301<br />
[15] Version: Standard; Connection: ½”<br />
[S] Contact versión: N/O<br />
[PG0] Electron. connection/power supply: plug conn. 7/8" c/w plug socket 110 VDC<br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. temperature: 80 °C<br />
max. pressure:100 bar<br />
Protection class: IP 65<br />
Connection thread: NPT<br />
Elongated sensor: 50 mm<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_kal-k.pdf
S/ 2,946.00 2946.0 PEN
Calorimetric Flowswitch, Compact Version. Connection, 1/2" NPT. Output: relay output 110 VDC. Max.
Calorimetric Flowswitch, Compact Version<br />
MODEL:KAL-K5-3-15-S-SK6<br />
[KAL-K5] Calorimetric Flowswitch, Compact Version<br />
[3] Probe material: st.st. 1.4301<br />
[15] Version: Standard; Connection: ½”<br />
[S] Contact versión: N/O<br />
[PG0] Electron. connection/power supply: plug conn. 7/8" c/w plug socket 110 VDC<br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. temperature: 80 °C<br />
max. pressure:100 bar<br />
Protection class: IP 65<br />
Connection thread: NPT<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_kal-k.pdf
S/ 2,266.15 2266.15 PEN
