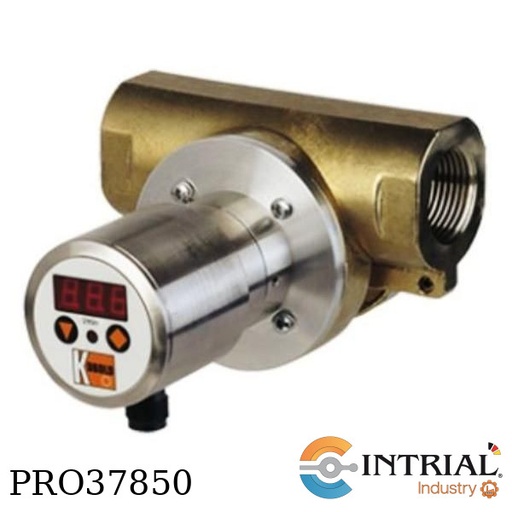

<strong>Rotating Vane Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DRG-11-30-N5-C34P</strong><br />
[DRG-11]:<br />
Operating principle: Rotating Vane<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Accuracy: +/-3%<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: 16 bar<br />
Material of housing: Brass casting<br />
Material housing cover: Polysulfon<br />
[30]: Measuring range, 5-140 L/min<br />
[N5]: Mech. connection, 3/4 NPT female<br />
[C34P]: Electronic, Compact electronics, 4-20 mA, 1x PNP

Mass Flowmeter Coriolis TME<br />
***FLOW: ALIMET RODHIMET***<br />
Mass Flowmeter Coriolis TME<br />
MODEL: TME-S90-203R-0-L-1-0-0-0-0/UMC4-B-1-1-A-0-0<br />
Ordering Information<br />
Measuring range:0-12000 kg/h<br />
[TME-S90] Coriolis Massflowmeter with transmitter UMC4<br />
[203R] Process connection: flange 1" Class 150 RF<br />
[0] heating/cooling element: without<br />
[L] Flow direction: Left to right<br />
[1] Sensor: integrated transmitter up to 100 °C<br />
[0] Approvals: without<br />
[0] Certificates: without<br />
[0] Supplementary equipment: without<br />
[UCMC4] Transmitter IP65, Aluminium painted, display cover out of safety class<br />
[B] Mounting of transmitter, integrated, M 20x1,5<br />
[1] Display/Interface board, integrated in transmitter housing, max.60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Output, 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA, pulse/status output passive<br />
[0] Approvals, without<br />
[0] Ignition without<br />
****************Process Data*******************************<br />
• Medium : ALIMET - Rodhimet<br />
• Process temperature min./max. : 5°C …. 60°C<br />
• Ambient temperature min./max. : -20°C …+ 60°C<br />
• Measuring range : 544.8 – 2260.8 kg/h<br />
• Operating pressure : 7.5 Bar<br />
• Viscosity : 105 Cp<br />
• Density : 1.23 g/cm3<br />
Datasheet:<br />
http://www.heinrichs.eu/uploads/tx_rsbproductdownload/tme_umc4_db_en.pdf

Mass Flowmeter Coriolis TME<br />
***FLOW: NOVAFIL***<br />
Mass Flowmeter Coriolis TME<br />
MODEL: TME-S85-202R-0-L-1-0-0-0-0/UMC4-B-1-1-A-0-0<br />
Ordering Information<br />
Measuring range:0-2500 kg/h<br />
[TME-S85] Coriolis Massflowmeter with transmitter UMC4<br />
[202R] Process connection: ¾" Class 150 RF ASME B16.5-2003<br />
[0] heating/cooling element: without<br />
[L] Flow direction: Left to right<br />
[1] Sensor: integrated transmitter up to 100 °C<br />
[0] Approvals: without<br />
[0] Certificates: without<br />
[0] Supplementary equipment: without<br />
[UCMC4] Transmitter IP65, Aluminium painted, display cover out of safety class<br />
[B] Mounting of transmitter, integrated, M 20x1,5<br />
[1] Display/Interface board, integrated in transmitter housing, max.60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Output, 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA, pulse/status output passive<br />
[0] Approvals, without<br />
[0] Ignition without<br />
****************Process Data*******************************<br />
• Medium : Novafil (GPL 20)<br />
• Process temperature min./max. : 5°C ….. 60°C<br />
• Ambient temperature min./max. : -20°C …+ 60°C<br />
• Measuring range : 240 – 1440 Kg/h<br />
• Operating pressure : 7.5 Bar<br />
• Viscosity : 43.3 Cp<br />
• Density : 0.977 +/- 0.03 g/cm3<br />
Datasheet:<br />
http://www.heinrichs.eu/uploads/tx_rsbproductdownload/tme_umc4_db_en.pdf

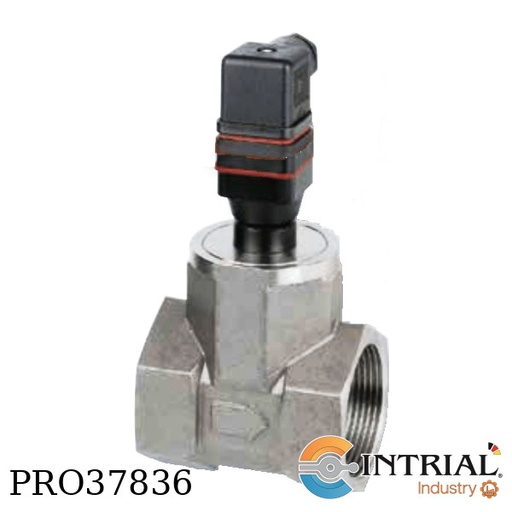

<strong>Pelton Wheel Flow Meter<br />
Brand: Kobold - Alemania<br />
Model: DPE-11-25-N9-L442</strong><br />
[DPE-11]<br />
Operating principle, Pelton Wheel (6-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP 65<br />
Max. temperature, 80 °C<br />
Max. pressure, PN40<br />
Accuracy of final value, +/-2,5%<br />
Material Housing, Brass casting<br />
Material Axis, Hard metal<br />
[25] Measuring range, 30-350 L/min <br />
[N9] Mech. connection, 2 NPT female<br />
[L442] Electronic, Analogue output 4-20 mA, DIN-plug, 2-wire

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSE-11-498-N-15-U-1</strong><br />
[PSE-11]<br />
Operating principle: paddle<br />
Mounting position: horizontal<br />
Approvals: w/o <br />
Body material: brass <br />
max. pressure* 100 bar <br />
*only 25 bar at PSR-..32 and PSR-..40<br />
[498] Measuring range/paddle: Paddle length: 49 mm (60 mm for NPT)<br />
[N] Connection: NPT-thread<br />
[15] Connection: 1/2"<br />
[U] Contact versión: SPDT<br />
[1] Connecting cable: PVC-cable 1.5 m (standard)

DON-810H-N2-1-LE-M-0<br />
Oval Wheel Flowmeter Model DON<br />
Model: DON-810H-N2-1-LE-M-0<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16...100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, PPS<br />
10H: Measuring range, 2 a 100 L/h<br />
N2: Mech. connection, 1/4” NPT<br />
1: Seal, FKM<br />
LE: Transmitter 4-20 mA, loop powered (Exd)<br />
M: Cable entry, M20<br />
0: Accessory, without<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_don.pdf

<div>Paddle Bellows Flow Switch</div>
Modelo: FPS-6200P<br />
Operating principle, paddle bellow<br />
Mounting position paddle, all directions<br />
Mounting position piping, all directions<br />
Bellow, st.st.<br />
Output/SPDT, microswitch<br />
Connection, screw-in<br />
material, st.st.<br />
Max. temperature, 120 °C<br />
Max. pressure, 30 bar<br />
6: Connection, c/w 1 NPT, special measuring range<br />
**********************************<br />
Pipe diameter: 1 ".<br />
Download: 0.2 to 1.0 m3 / h.<br />
Upload: 0.6 to 1.1 m3 / h.<br />
***********************************<br />
2: Material, Stainless Steel<br />
00P: Design, Standard switching range<br /><br />
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_fps.pdf

KFR-1221-V2<br />
Acrylic Flowmeter Model KFR<br />
Float Material: SS<br />
Fitting Material: SS<br />
Rango: 2-20 GPH<br />
Accuracy: ±5% of full scale<br />
V2: Stainless Steel Inlet Needle Valve<br />
Datasheet: http://koboldusa.com/sites/default/files/product_files/KFR_datasheet.pdf

EP-H-216R-1-HH-2-0/UMF2-C-1-1-G-0BK-2 (3286 m3/h)<br />
Magnetic inductive flowmeter<br />
Brand: Kobold-Heinrichs<br />
H: hard-rubber, standard 3 stainless steel electrodes 0°C...80°C<br />
217R:<br />
Process Connection, 14" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 3286 m3/h<br />
1: Material flanges, steel (painted)<br />
HH: Material electrodes, 03 Hastelloy C-4 incl. grounding electrode<br />
2: Transmitter mounting, remote transmitter (IP67, junction box via M20 x 1,5)<br />
0: Approvals, without<br />
UMF2<br />
C:<br />
Mounting, remote transmitter<br />
Connection to sensor, incl. 2,5m cable and wall mounting bracket<br />
Thread - Electrical connection, cable >10m c/w term.conn box on transmitter - ½" NPT (f)<br />
1: Display and control unit, integrated<br />
1: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
G: Output:<br />
current output 1: 4 - 20mA with HART-protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
0BK: Design, Kobold<br />
2: Extended cable Length, 10m, breakout cable<br />
Datasheet: http://www.heinrichs.eu/uploads/tx_rsbproductdownload/ep_umf2b_db_en.pdf<br />
Manual: http://www.heinrichs.eu/uploads/tx_rsbproductdownload/ep_umf2b_ba_en.pdf

DON-125H-F6-1-LE-N-0<br />
Oval Wheel Flowmeter Model DON<br />
Model: DON-125H-F6-1-LE-N-0<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
25H: Measuring range, 10-150 L/min<br />
F6: Mech. connection, DIN flange DN 25, PN 16/40<br />
1: Seal, FKM<br />
LE: Electronic, Transmitter 4-20 mA, loop powered (Exd)<br />
N: Cable entry, 1/2 NPT<br />
0: Accessory, without<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_don.pdf

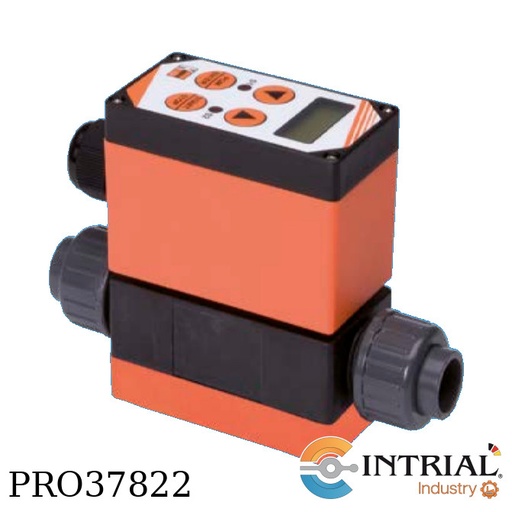

<strong>Magnetic Inductive Flow Meter / Monitor MIK<br />
Brand: KOBOLD<br />
Model: MIK5NA-35-K-E94R</strong><br />
[MIK5NA]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions<br />
Max. temperature/Pressure, 80 °C / 10 bar<br />
Protection, IP 65<br />
Housing, PPS<br />
Electrodes, St. st.<br />
Seal, NBR<br />
[35]: Measuring range (liquid >30 μS/cm), 2,5...50 L/min (G 1 male)<br />
[K]: Connection set, PVC-glue Connection (G 1 - Ø15/20 mm)<br />
[E94R]: Evaluation electronic for MIK, Counter Electronic: 4-20 mA, 24 VDC, cable connection > 1 m<br />
PVC-cable connection for x meter cable: 5 metros

Variable Area Flowmeter-Low Volume<br />
KDG-22-42-N-V-S-0-00-0<br />
KDG-22:<br />
Mounting length, 125 mm<br />
Operating principle, variable area<br />
Flow direction, from bottom to top<br />
Body material, st.st.<br />
Glass, Borosilicate<br />
Accuracy, class 2.5<br />
Max. temperature without/with contact, 100 °C / 80 °C<br />
Max. pressure, PN 16<br />
42: Measuring range, 80 800 L/h air<br />
N: Connection, 1/4 NPT<br />
V: Seal, FPM<br />
0: Panel mounting kit, with panel mounting set<br />
00: Contacts measuring range, w/o<br />
0: Flow differential pressure regulator, w/o<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_kdf-kdg.pdf<br /><br />


Paddle Wheel Flowmeter<br />
Model: DRB-11-75-NB-L343<br />
DRB-1175:<br />
Range flow (GPM): 15...200<br />
Material: Brass<br />
NB: Process Connection; 3"NPT<br />
L343: Evaluating Electronics; 4-20 mA Output, 3-wire, M12 x 1 Plug Connector<br />
DataSheet: <br />
http://koboldusa.com/sites/default/files/product_files/Paddlewheel-flow-turbi

<strong>Variable Area Flowmeter-Low Volume KDG<br />
Model: KDG-92-YY-N-V-W-N3-0</strong><br />
KDG-92:<br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature without/with contact: 100 °C / 70 °C<br />
Max. pressure: PN 16<br />
YY: Measuring range, Special measuring range<br />
N: Connection, 1/4 NPT<br />
V: Seal, FPM<br />
W: wall mounting kit,with wall mounting set<br />
N3: Contacts measuring range, 1 bistable contact with 2 m cable<br />
0: Flow differential pressure regulator, w/o

<strong>Paddle Wheel Flow Sensors<br />
Brand: Kobold (USA)<br />
Model: DF-0408-B</strong><br />
[DF-0408]<br />
Specifications:<br />
Power Supply: 5 to 24 Vdc<br />
Temperature: -4...176 °F<br />
Protection: IP 65<br />
Accuracy: ± 2.5% of F.S.<br />
DF Flow Sensor Material Combination: IV<br />
Max. operating pressure: 230 PSI<br />
Range (Water): 0.5...12.0 GPM<br />
[B]:Special Connection: 1" NPT

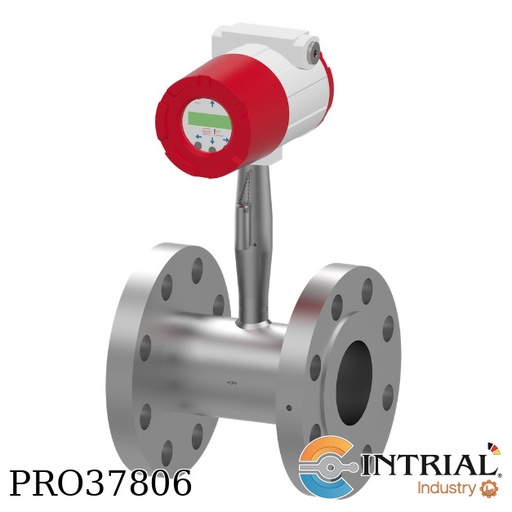

Multivariable VORTEX Flowmeter<br />
Brand: Kobold - Heinrichs<br />
Model: DVH-V-50-1-S-L-L-2-S-0-H<br />
[DVH] Model<br />
[V] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam<br />
[50] Flow Body - Flange, DN 50 DIN EN 2 inch <br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003<br />
[S]: Material Flow Body, Stainless steel 1.4404 / 316 L, (standard)<br />
[L]: Sensor Configuration / Mounting Option, Compact, incl. LCD Display,<br />
IP 66 / Nema 4<br />
[L] Input Power, 12-36 VDC loop powered <br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L<br />
[S] Process Temperature, Standard Temperature, -200….+260 °C, -330….+500 °F<br />
[0] Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor,<br />
Electr.version V / T / E, Max. test pressure<br />
[H] Version, Heinrichs

Turbine Wheel-Pulse-Analogue Output DRB<br />
DRB-11-15-N6-L342<br />
DRB-11:<br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP65<br />
Max. temperature, 80 °C<br />
Max. pressure, 16 bar<br />
Accuracy of final value, +/-3%<br />
Material Housing, al. + bronze<br />
Material Axis, Hard metal<br />
15: Measuring range, 20-80 L/min<br />
N6: Mech. connection, for MR-Code: 25: 1" NPT female<br />
L342: Electronic, Analogue output 4-20 mA, M12x1, 2-wire

KES-1-33-K-D-3-4<br />
Medidor Másico para Gases KES<br />
Function principle, Direct thermal flow<br />
Mounting position, all directions<br />
Version, inserting version<br />
Output, Analogue/contact<br />
Max. temperature, 80°C<br />
Max. pressure, 8 bar<br />
Sensor material, st. st.<br />
033: mounting length/connection, 330 mm<br />
K: electronic version, Compact version<br />
D: Display, LCD-display, backlight, 2x12 digit<br />
3: Power supply, 18-30 VDC<br />
4: Analogue output, 4-20 mA<br />
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_kes.pdf

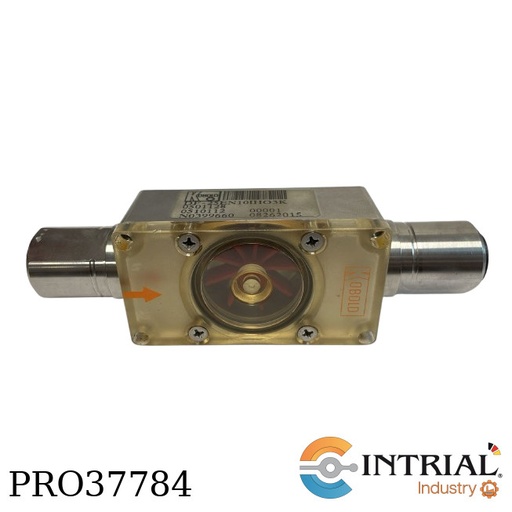

DF-25-E-N10-IHO-3K<br />
Rotating Vane-Low Volume-Pulse Output DF-H<br />
Model: DF-25-E-N10-IHO-3K<br />
Brand: KOBOLD<br />
DF-<br />
Operating principle, Rotating Vane<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Max. temperature, 80 °C<br />
Max. pressure, 16 bar<br />
Accuracy, +-2,5% FS<br />
25: Measuring range, 0,2...2,5 L/min water<br />
E: Material combination, Housing/ cover/ connection/ Temp./ pressure, st.st./ Polysulfone/ st.st./ 80 °C/ 16 bar<br />
N10: Connection, Material combination code: B/C/E/H - 3/8" NPT<br />
IHO: Pulse output, approx. 80 mm open lead, NPN, w/o calibration report<br />
3K: Power supply, 5...24 VDC

Coriolis Massflowmeter. min. 0-6.000 kg/h - max. 0-60.000 kg/h. Connection DN80 (3”) PN40, Integral mount transmitter. Temp: -20°C t 100 C. Pressure: 40 bar. Flow direction, Left to right.<br /><br />
TME-S-58-331B-0-L-1-0-0-0-H/UMC4-B-1-A-0-0<br />
Coriolis Massflowmeter<br />
Marca: Kobold - Heinrichs<br />
Modelo: TME-S-58-331B-0-L-1-0-0-0-H/UMC4-B-1-A-0-0<br />
S: Stainless Steel<br />
58: min. 0-6.000 kg/h - max. 0-60.000 kg/h (SENSOR TME080)<br />
331B: DN80 (3”) PN40 Form B1 DIN EN 1092-1<br />
0: Heating Cooling, without<br />
L: Flow direction, Left to right<br />
1: Sensor configuration, Integral mount transmitter<br />
Accuracy: +/-0.15% of actual flow<br />
Temperature:  -20°C t 100°C<br />
Pressure: 40 bar<br />
Datasheet: http://www.heinrichs.eu/uploads/tx_rsbproductdownload/tme_umc4_gb_en.pdf
