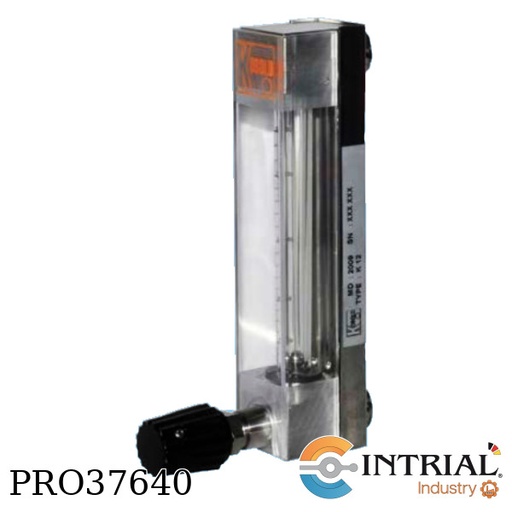

KDF-22YY-N-V-S-00-0<br />
Variable Area Flowmeter-Low Volume KDF/KDG-2<br />
Measuring range: 0,25 - 2,5 ... 16 - 160 L/h water<br />
0,5 - 5 NL/h ... 500 - 5000 NL/h air<br />
Connection: ¼ NPT, G ¼ female<br />
Material: st. steel<br />
Max. pressure: 16 bar<br />
Max. temperature: 100 °C<br />
Accuracy: ± 2,5% qG=50%<br />
Option: contacts, up/downstream diff. pressure regulator<br />
**************************************************************<br />
KDF-22YY-N-V-S-00-0<br />
KDF-22:<br />
Mounting length, 125 mm<br />
Operating principle, variable area<br />
Flow direction, from bottom to top, st.st.<br />
Glass, Borosilicate<br />
Accuracy, class 2.5<br />
Max. temperature without/with contact, 100 °C / 80 °C<br />
Max. pressure, PN 16<br />
YY: 6...60 L/h (Other Liquids)<br />
N: Connection, 1/4 NPT<br />
V: Seal, FPM<br />
S: Panel mounting kit, with panel mounting set<br />
00: Contacts measuring range, w/o<br />
0: Flow differential pressure regulator, w/o<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_kdf-kdg.pdf

MODELO: DRB-12-25-G9-L342<br />
Turbine Wheel-Pulse-Analogue Output DRB-..F<br />
Measuring range: 5-30 L/min ...50-750 L/min water<br />
Connection: G ½... G 3, ½ NPT...3 NPT<br />
Material: aluminum/bronze, st. st.<br />
Max. pressure: 16 bar<br />
Max. temperature: 80 °C<br />
Accuracy: ± 3 % FS<br />
Pulse output, analogue output,<br />
********************************************<br />
DRB-DRB-12-25-G9-L342<br />
DRB-12:<br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP65<br />
Max. temperature, 80 °C<br />
Max. pressure, 16 bar<br />
Accuracy of final value, +/-3%<br />
Material Housing, st. st.<br />
Material Axis, Hard metal<br />
25: Measuring range, 30-350 L/min<br />
G9: Mech. connection, for MR-Code: 25:G 2 female<br />
L342: Electronic, Analogue output 4-20 mA, M12x1, 2-wire

MODELO: DRB-12-25-G9-L442<br />
Turbine Wheel-Pulse-Analogue Output DRB-..F<br />
Measuring range: 5-30 L/min ...50-750 L/min water<br />
Connection: G ½... G 3, ½ NPT...3 NPT<br />
Material: aluminum/bronze, st. st.<br />
Max. pressure: 16 bar<br />
Max. temperature: 80 °C<br />
Accuracy: ± 3 % FS<br />
Pulse output, analogue output,<br />
********************************************<br />
DRB-12-25-G9-L442<br />
DRB-12:<br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP65<br />
Max. temperature, 80 °C<br />
Max. pressure, 16 bar<br />
Accuracy of final value, +/-3%<br />
Material Housing, st. st.<br />
Material Axis, Hard metal<br />
25: Measuring range, 30-350 L/min<br />
G9: Mech. connection, for MR-Code: 25:G 2 female<br />
L442: Electronic, Analogue output 4-20 mA, DIN-plug, 2-wire<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_drb.pdf

Magnetic Inductive Flow Meter<br />
MODEL: DMH-2-A50-H-1-1-A-1-3<br />
MARCA: KOBOLD<br />
DMH-2:<br />
Mounting position, all directions<br />
Display / Protection class, LCD Display / IP 67<br />
Output, Analogue, frequency, connection and status output<br />
max. medium temperature, 80 °C<br />
Connection, St. steel<br />
Coating, hard rubber<br />
A50: Connection flange DIN EN 1092-1/MB, DN 50 PN 40/max. 0..62 m³/h<br />
H: Lining, hard rubber<br />
1: Electrodes material, st.st.<br />
1: Grounding Electrodes material, st.st.<br />
A: Version/cable length, compact version, 1/2 NPT connection<br />
1: Electronic, UMF2-Electronic without HART®<br />
3: Power supply/Cable entries, 24 VDC/M20x1,5<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/es/s5es_dmh.pdf

BRAND: KOBOLD (ALEMANIA)<br />
MODEL: DF-13-D-N20-MAG-3-4<br />
DF<br />
Operating principle, Rotating Vane<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Max. temperature, s. material combination<br />
Max. pressure, s. material combination<br />
Accuracy, +-2,5% FS<br />
Model, Analogue<br />
13: Measuring range, 1...12,5 L/min water<br />
D: Housing/ cover/ connection/ Temp./ pressure, Brass/ Polysulfone/ brass/ 80 °C/ 16 bar<br />
N20: Connection, Material combination code: B/C/E/H NPT 3/4"<br />
MAG: Model of electronic, Plug and socket<br />
3: Power supply, 24 VDC<br />
4: Analogue output, 4...20 mA<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_df.pdf

<strong>Turbine Wheel Flowmeter<br />
Modelo: TUR-20-10-Z300<br />
Brand: Kobold (Alemania)</strong><br />
Operating principle, Turbine Wheel<br />
10: Connection / Measuring range, NW 100 (4â€) / 2,5...100 m³/h water (0.7 – 28 l/s)<br />
Z300: Electronic, Pointer indicator 0-20 mA, plug M12x1<br />
Material: PVC<br />
Conexión: 4â€<br />
Temperature: 60°C<br />
Max. Pressure, +-1% FS<br />
Protection, IP 65<br />
Flow direction, in direction of the arrow<br />
Mounting position, horizontal / vertical

<strong>Coriolis Massflowmeter with transmitter TME/UMC<br />
MODEL: TME-S95-206R-0-L-1-0-1-0-UMC4-B11A00<br />
BRAND: KOBOLD</strong><br />
[TME-S95] Coriolis Massflowmeter with transmitter UMC4<br />
[206R] Process connection: flange 2" Class 150 RF<br />
[0] heating/cooling element: without<br />
[R] Flow direction: left to right<br />
[1] Sensor: integrated transmitter up to 100 °C<br />
[0] Approvals: without<br />
[1] Certificates: Certificate of compliance with the order 2.1<br />
[0] Special versión: without<br />
[UCMC4] Transmitter IP65, Aluminium painted, display cover out of safety class<br />
[B] Mounting of transmitter, integrated, M 20x1,5<br />
[1] Display/Interface board, integrated in transmitter housing, max.60°C<br />
[1] Power supply, 90-265 VAC, 50/60 Hz<br />
[A] Output, 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA, pulse/status output passive<br />
[0] Approvals, without<br />
[0] Ignition protection signal output, without<br />
Operating principle: Coriolis<br />
Mounting position: all directions<br />
Display:LCD Display<br />
max. medium temperature 180 °C<br />
Material: stainless steel<br />
Protection class: IP 65<br />
Measuring range:0-30000 kg/h

<div>FLOW METER plastic (Noryl)<br />
MODELO: DRS-9-3-50-N5—L343-0<br />
Turbine Wheel Flowmeter DRS<br />
GENERAL DESCRIPTION:<br />
Measuring range: 2,0-40 L/min. water<br />
Connection: G1/2, G 3/4, 3/4 NPT<br />
Material: Noryl, Ultem<br />
Max. pressure: 16 bar<br />
Max. temperature: 80 °C<br />
Accuracy: ± 1,5 % FS<br />
Pulse output, analogue output,<br />
Contacts, digital-/pointer indicator<br />
******************************************************<br />
PRODUCT DESCRIPTION:<br />
MODELO: DRS-9-3-50-N5—L343-0<br />
DRS-9:<br />
            Operating principle, rotating vane<br />
            Mounting position, all directions<br />
            Flow direction, in direction of the arrow<br />
            Max. Temperature, 80°C<br />
            Max. Pressure, 16 bar<br />
            Accuracy, +/-1, 5%<br />
            Protection, IP65<br />
3:         Material, plastic (Noryl-PPO)<br />
50:         Range, 2-40 L/M<br />
N5:         Connection, ¾” NPT male<br />
L343:    Evaluating Electronic, Analogue output 4-20mA, M12x1, 3-wire<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_drs.pdf</div>

<strong>Turbine Wheel Flowmeter TUR<br />
Model: TUR-10-50-P<br />
Brand: Kobold (Alemania)</strong><br />
[TUR-10]:<br />
Operating principle Turbine Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
Material PVC<br />
Max. temperature 60 °C<br />
Max. pressure PN 10<br />
Accuracy +-1% FS<br />
Protection IP 65<br />
PVC Flanges according to DIN 2501 standard<br />
Electrical Connection 2m PVC cable<br />
[50]: Connection / Measuring range, NW 50 / 1,2...20 m³/h water <br />
[P]: Electronic, Pulse output PNP (24 VDC, 3 wires)

<div>Plastic Flowmeter and Switch KSK<br />
MODEL: KSK-1999-G-T25-00<br />
MARCA: KOBOLD (USA)</div>

<div>KSK-1999: (Polyamide, 0.44-4.4 GPM Water)<br />
Scale-G: (GPM Water Scale)<br />
Fitting-T25: (PVC, 1" NPT)<br />
Switch-00: (No Switch)<br />
±4% Full Scale<br />
Mounting: Vertical, Flow Up<br />
Max. Media Temperature:<br />
 Trogamid: 60°C<br />
Max. Pressure: 145 PSIG<br />
Datasheet:<br />
http://koboldusa.com/sites/default/files/product_files/KSK_datasheet_0.pdf</div>

MODEL: PSR-22-251-R-25-R-1<br />
Paddle Switch PSR<br />
GENERAL DESCRIPTION<br />
Switching range: 2,3-4,7 L/min...47,6-67,2 L/min water<br />
Connection: G ¼... G 1 ½, ¼...1 ½ NPT<br />
Material: brass, st. st.<br />
Max. pressure: 100 bar<br />
Max. temperature: 110 °C<br />
Reed contact<br />
*****************************<br />
PRODUCT DESCRIPTION<br />
PSR-22-251-R-25-R-1<br />
PSR-22: Paddle Type Flow Switch<br />
251: Measuring range/paddle, 47.6-67.2 L/min paddle: 1<br />
R: Connection, G-thread<br />
25: Connection, 1" (for PSR-xx25...)<br />
R: Contact version, N/O (ATEX IECEx)<br />
1: Connecting cable, PVC-cable 1.5 m (standard)<br />
Operating principle, paddle<br />
Mounting position, all directions<br />
Approvals, ATEX / IECEx<br />
incl. fitting, st.st.<br />
Body material, st. st.<br />
max. pressure, 250 bar<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_psr.pdf

<div>
<div>Turbine Wheel Flowmeter.</div>
</div>
MODEL: TUR-10-10-P<br />
Turbine Wheel-Pulse Output TUR-1<br />
Measuring range: 0,2-5 L/min ...2,5-100 m³/h water<br />
Connection: flange DN 25..DN 100<br />
Material: PVC, PVDF<br />
Max. pressure: PN 10<br />
Max. temperature: 60°C (PVC), 70 °C (PVDF)<br />
Accuracy: ± 1 % FS<br />
Pulse output<br />
*******************************<br />
PRODUCT DESCRIPTION<br />
MODEL: TUR-10-10-P<br />
[TUR-10] Turbine Wheel Flowmeter<br />
[10] Connection / Measuring range: NW 100 / 2,5...100 m³/h water (0.69 L/S-27 L/S)<br />
[P] Compact electronics, Pulse output PNP (24 VDC, 3 wires)<br />
Operating principle: Turbine Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Material: PVC<br />
Max. Temperatura: 60 °C<br />
Max. Pressure: PN 10<br />
Accuracy: +-1% FS<br />
Protection: IP 65<br />
Datasheet<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_tur.pdf

Turbine Wheel Flowmeter<br />
Brand: Kobold(Alemania)<br />
Model: TUR-10-25-P<br />
[TUR-10]<br />
Operating principle, Turbine Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Material, PVC<br />
Max. temperature, 60 °C<br />
Max. pressure, PN 10<br />
Accuracy, +-1% FS<br />
Protection, IP 65<br />
[25]: Connection / Measuring range, NW 25 / 0,2...5 m³/h water<br />
[P]: Electronic,  Pulse output PNP (24 VDC, 3 wires)

KSM-1-301-H-000-R0<br />
GENERAL DESCRIPTION<br />
Variable Area Flowmeter-Plastic KSM<br />
Meas. -/switching range: 15-150...8000-60000 L/h water<br />
0,8-5...100-860 m³/h air ( 0 bar rel., 20°C)<br />
Connection: G 1 ½..G 3 1/2; glue-in - DN 25...DN 65<br />
Material: trogamide-T, polysulfone<br />
Max. pressure: PN 16<br />
Max. temperature: 60 °C (trogamide), 100 °C (polysulfone)<br />
Accuracy class: 4<br />
Option: reed contact<br />
*********************************************<br />
SPECIFIC DESCRIPTION OF THE REQUESTED<br />
MODEL: KSM-1-301-H-000-R0<br />
[KSM-1] Plastic Flowmeter/-switch<br />
[301] Measuring range: 3000...30000 L/h water<br />
[H] Range scale: 3000...30000 L/h water<br />
[000] connection for size >=200: R 3 1/2 male<br />
[RO] Option contact: w/o contact<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_ksm.pdf

KSM-2-060-Q-000-R0<br />
GENERAL DESCRIPTION<br />
Variable Area Flowmeter-Plastic KSM<br />
Meas. -/switching range: 15-150...8000-60000 L/h water <br />
0,8-5...100-860 m³/h air ( 0 bar rel., 20°C) <br />
Connection: G 1 ½..G 3 1/2; glue-in - DN 25...DN 65 <br />
Material: trogamide-T, polysulfone <br />
Max. pressure: PN 16 <br />
Max. temperature: 60 °C (trogamide), 100 °C (polysulfone) <br />
Accuracy class: 4 <br />
Option: reed contact<br />
*********************************************<br />
SPECIFIC DESCRIPTION OF THE REQUESTED<br />
MODEL: KSM-2-060-Q-000-R0<br />
[KSM-2] Plastic Flowmeter/-switch<br />
[060] Measuring range: 600...6000 L/h water<br />
[Q] Range scale: 0.6 - 6 m³/h water<br />
[000] connection for size 120: R 2 3/4 male<br />
[RO] Option contact: w/o contact<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_ksm.pdf

<strong>DOL-A40H-N9-4-V2-0<br />
Dosing Unit-Oval Gear Wheel Flowmeter-Mechanical DOL</strong><br />
Measuring range: 0,5-36 L/h...150-2500 L/min liquid <br />
Connection: G 1/8...G 4 female <br />
Material: aluminum <br />
Max. pressure: 400 bar <br />
Max. temperature: 120 °C <br />
Accuracy: ± 0,2...1% of reading <br />
Viscosity range: 0-1200 cP <br />
Pulse output<br />
DOL-A40H-N9-4-V2-0<br />
DOL-A:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80 °C<br />
max. pressure, 20 bar<br />
Accuracy, ±0,5 % of reading<br />
Housing material, Aluminium<br />
40H: Measuring range, 50-580 L/min<br />
N9: Mech. connection, NPT 2 for meas. Range 40H<br />
4: Seal, NBR<br />
V2: Register style, 5 digit mechanical reset register (US gallon)<br />
0: Close coupled options, without

Low Volume Flowmeter<br />
Model: KDF-22YY-N-V-0-00-0<br />
Brand: Kobold(Alemania)<br />
[KDF-22]:<br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 2.5<br />
Max. temperature without/with contact 100 °C / 80 °C<br />
Max. pressure PN 16<br />
[YY]: 0.2 a 2 LPM<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o

Model: DVH-T-205-S-L-L-2-S-0<br />
Vortex Flow Meter with Flange DVH<br />
Measuring range: liquids 0,2 - 5 ...32 - 970 m³/h<br />
air 3-28 ...549-9034 Nm³/h (20°C, 0 bar rel)<br />
vapour 3-18... 500 - 5797 kg/h (0 bar rel,)<br />
Connection: flange DN 15... DN 200, wafer<br />
Material: st. st., Hastelloy<br />
Max. pressure: PN 16, 40, 100<br />
Max. temperature: 260 °C (400 °C)<br />
Accuracy: liquids ±0,7% of m. value<br />
gas/vapour ±1 % of m. value<br />
1 (3)analogue outputs, 1(3) contacts, digital display<br />
Option: temperature-/pressure sensor<br />
***********************************************************<br />
DVH-T-205-S-L-L-2-S-0<br />
[DVH-T] Vortex Flow Meter with Flange, Integrated temperature sensor<br />
[205] Connection (DIN 1092-1, Form B1): Flange DN 20 PN 40<br />
[S] Material Measuring Tube/Connection: Stainless steel 1.4404/316L<br />
[L] Transmitter Version/ Mounting: compact incl. Display<br />
[L] Supply voltaje: 12-36 VDC, loop powered 1)<br />
[2] Output: 4-20 mA, HART, 1x Pulse, loop powered<br />
[S] Process temperatura: -200..+260°C (-330..+500°F) (standard)<br />
[0] Option Pressure Sensor: without<br />
Version:  Standard<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_dvh.pdf

Model: DVH-T-255-S-L-L-2-S-0<br />
Vortex Flow Meter with Flange DVH<br />
Measuring range: liquids 0,2 - 5 ...32 - 970 m³/h<br />
air 3-28 ...549-9034 Nm³/h (20°C, 0 bar rel)<br />
vapour 3-18... 500 - 5797 kg/h (0 bar rel,)<br />
Connection: flange DN 15... DN 200, wafer<br />
Material: st. st., Hastelloy<br />
Max. pressure: PN 16, 40, 100<br />
Max. temperature: 260 °C (400 °C)<br />
Accuracy: liquids ±0,7% of m. value<br />
gas/vapour ±1 % of m. value<br />
1 (3)analogue outputs, 1(3) contacts, digital display<br />
Option: temperature-/pressure sensor<br />
***********************************************************<br />
DVH-T-501-S-L-L-2-S-0<br />
[DVH-T] Vortex Flow Meter with Flange, Integrated temperature sensor<br />
[255] Connection (DIN 1092-1, Form B1): Flange DN 25 PN 40<br />
[S] Material Measuring Tube/Connection: Stainless steel 1.4404/316L<br />
[L] Transmitter Version/ Mounting: compact incl. Display<br />
[L] Supply voltaje: 12-36 VDC, loop powered 1)<br />
[2] Output: 4-20 mA, HART, 1x Pulse, loop powered<br />
[S] Process temperatura: -200..+260°C (-330..+500°F) (standard)<br />
[0] Option Pressure Sensor: without<br />
Version:  Standard<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_dvh.pdf

Model: BVB-1104<br />
Manifold Valves For Multiple Installation BVB<br />
Max. flow: 24 L/min per group<br />
Connection: G ½ female<br />
Material: aluminum<br />
Max. pressure: PN 64<br />
Max. temperature: 100 °C<br />
Max. 8 fold<br />
**********************************<br />
Ordering information:<br />
BVB:<br />
Housing, Aluminium<br />
Max. temperature, 100 °C<br />
Max. pressure, PN 64<br />
1104: Version, 4 fold blockvalve<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_bvb.pdf
