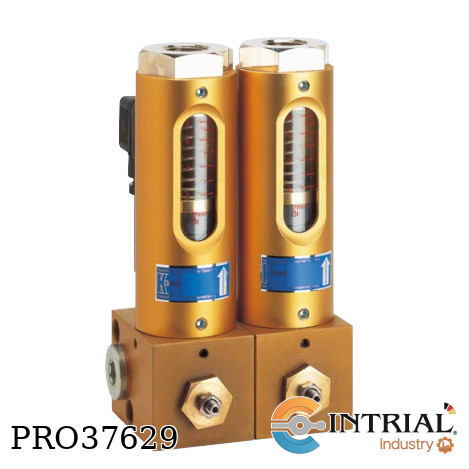

Manifold Valves For Multiple Installation<br />
Brand: Kobold<br />
Model: BVB-1106<br />
[BVB]:<br />
Housing: Aluminium<br />
Max. temperature: 100 °C<br />
Max. pressure: PN 64 <br />
Max. flow per multiple block: 24 L/min<br />
Process connection: G 1/2 IG<br />
[1106]: Version; 6 fold blockvalve<br />
Datasheet: <br />
http://www.kobold.com/uploads/files/s2gb_bvb.pdf

<strong>Manifold Valves For Multiple Installation<br />
Model: BVB-1107<br />
Brand: Kobold</strong><br />
[BVB]<br />
Housing, Aluminium<br />
Max. temperature, 100 °C<br />
Max. pressure, PN 64<br />
Max. flow per multiple block, 24 L/min<br />
Process connection, G 1/2 IG<br />
[1107]:Version, 7 fold blockvalve

Manifold Valves For Multiple Installation<br />
Brand: Kobold(Alemania)<br />
Model: BVB-1108<br />
[BVB}:<br />
Housing, Aluminium<br />
Max. temperature, 100 °C<br />
Max. pressure, PN 64<br />
Max. flow per multiple block, 24 L/min<br />
Process connection, G 1/2 IG<br />
[1108]: Version, 8 fold blockvalve

DSV-21-07H-R0-N15<br />
Variable Area Flowmeter DSV<br />
Measuring -/switching range: 0,25 - 1,25 L/min ...<br />
10 - 130 l /min water<br />
Connection:G ¼ - G 1 ¼ , ¼ - 1 ¼ NPT female<br />
Material: brass, st. st.<br />
Max. pressure: 10 bar<br />
Max. temperature: 100 °C<br />
Accuracy: ± 5% FS<br /><br />
DSV-21-07H-R0-N15<br />
07H: Measuring range, 2,5...50 L/min water<br />
R0: Contact, 1 N/O<br />
N15: Connection measuring range, 1/2 NPT female (up to 18 L/min)<br />
Operating principle, variable area<br />
Flow direction, from bottom<br />
• Fitting material, brass<br />
• Sight glass, Borosilicate<br />
• Posicion de montaje: Vertical<br />
• Temperatura máxima: 100 °C (metalfloat)<br />
• Max. Pressure: 10 bar

MODEL: URM-33-33L-I4-0<br />
Variable Area Flowmeter-Class Cone-Thread Connection URM<br />
Measuring range:<br />
0,25-2,5 L/h ... 250-2500 L/h water<br />
3,2-32 NL/h... 50-500 Nm³/h air<br />
Connection: G ¼...3, DIN 11851, hose connection<br />
Material: st. st.<br />
Max. pressure: 20 bar<br />
Max. temperature: 100 °C<br />
Accuracy: ±2,5...4% f.s.<br />
Option: contacts<br />
*******************************************************<br />
MODEL: URM-33-33L-I4-0<br />
URM-33:<br />
33L: Range Full Scale*, 1.3 - 13 Nm3/h.<br />
I4: Connection, G1/2" female<br />
0: Contacts, W/O<br />
 Mounting position, vertical, flow direction from bottom<br />
 Accuracy, Class 4<br />
 Max. Temperature, 65°C<br />
 Max. Pressure, 16 bar<br />
 Material: connection, float / seal/ ring, 1.4301 / NBR / PVC<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_urm.pdf

Variable Area Flowmeter<br />
MODEL: URM-33-33L-I4-P<br />
Variable Area Flowmeter-Class Cone-Thread Connection URM<br />
Measuring range:<br />
0,25-2,5 L/h ... 250-2500 L/h water<br />
3,2-32 NL/h... 50-500 Nm³/h air<br />
Connection: G ¼...3, DIN 11851, hose connection<br />
Material: st. st.<br />
Max. pressure: 20 bar<br />
Max. temperature: 100 °C<br />
Accuracy: ±2,5...4% f.s.<br />
Option: contacts<br />
*******************************************************<br />
MODEL: URM-33-33L-I4-P<br />
URM-33:<br />
33L:    Range Full Scale*, 1.3 - 13 Nm3/h.<br />
I4:    Connection, G1/2" female<br />
P:    1 x PNP-Open Collector, N/O<br />
    Mounting position, vertical, flow direction from bottom<br />
    Accuracy, Class 4<br />
    Max. Temperature, 65°C<br />
    Max. Pressure, 16 bar<br />
    Material: connection, float / seal/ ring, 1.4301 / NBR / PVC<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_urm.pdf

Viscosity Compensated Flowmeter/-switch<br />
MODEL: VKG-22-11-R0-N25<br />
Viscosity Compensated Flowmeter/-switch VKG<br />
Measuring -/switching range: 0,1 - 0,45 ... 5 - 80 l /min<br />
Connection: G ¼ ... G 1 female<br />
Material: brass, st. st.<br />
Max. pressure: 10 bar<br />
Max. temperature: 100 °C<br />
Accuracy: ± 5% FS<br />
Options: reed contact, pointer indicator, analogue output<br />
***************************************************************<br />
Ordering Information.<br />
VKG-22-11-R0-N25<br />
VKG-22:<br />
[10]: Measuring range, 2,5...70 L/min oil<br />
[R0]: Contact, 1 N/O<br />
N25: Connection, 1 NPT female<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, St.St.<br />
Seal, FPM<br />
Sight glass, Duran<br />
Side mounted dial, w/o<br />
Switch point, adjustable<br />
Accuracy, ±4 % FS (at 105 mm²/s)<br />
Max. temperature, 100 °C<br />
Max. pressure, 12 bar<br />
Viscosity range, 1...540 mm²/s<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_vkg.pdf

<strong>Manifold Valves For Multiple Installation<br />
Brand: Kobold (Alemania)<br />
Model: BVB-1101</strong><br />
[BVB]:<br />
Housing Aluminium<br />
Max. temperature 100 °C<br />
Max. pressure PN 64<br />
Max. flow per multiple block 24 L/min<br />
Process connection G 1/2 IG<br />
[1101]: Version, Single fold blockvalve

Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania).<br />
DRB-11-25-N9-F300<br />
Operating principle, Pelton Wheel (4-vane).<br />
Mounting position / flow direction, in all directions/ in direction of the arrow.<br />
Protection, IP 65.<br />
Max. Temperature, 80 °C.<br />
Max. Pressure, 16 bar.<br />
Accuracy of final value, +/-3%.<br />
Material Housing, Brass casting.<br />
Material Axis, Hard metal.<br />
[25]: Measuring range, 30-350 L/min<br />
[N9]: Mech. connection, for MR-Code: 25 2 NPT female.<br />
[F300]:Electronic, Frequency output, plug M12x1.

<strong>MODELO: DOM-A25H-N6-1-D0-0<br />
Oval Gear-Counter-Pulse Output DOM</strong><br />
Measuring range: 0,5-36 L/h...150-2500 L/min liquid <br />
Connection: G 1/8...G 4 female <br />
Material: aluminum <br />
Max. pressure: 400 bar <br />
Max. temperature: 120 °C <br />
Accuracy: ± 0,2...1% of reading <br />
Viscosity range: 0-1200 cP <br />
Counter, digital indicator<br />
Ordering Information<br />
DOM-A25H-N6-1-D0-0<br />
[DOM-A] Oval Gear Flow Meter/Counter<br />
[25H] Measuring range: 10-150 L/min<br />
[N6] Mech. Connection: N 1"  for meas. range 25H<br />
[1] Seal: FPM (Standard)<br />
[D0] Electronic: pulse output, 2 x NPN 90° phased<br />
without Accessory<br /><br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature: 120 °C<br />
max. pressure: 10...68 bar <br />
Accuracy: ±0,5 % …1 % of reading<br />
Housing material: Aluminium <br />
Rotor material: Aluminium

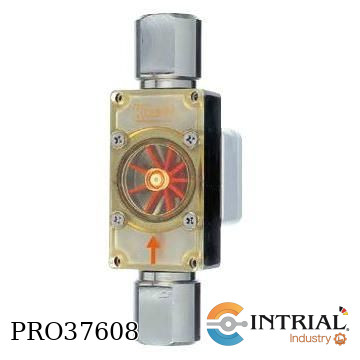

<strong>Paddle Wheel Flow Sensors<br />
Brand: Kobold (USA)<br />
Model: DF-0403-B</strong><br />
[DF-0403]<br />
Specifications:<br />
Power Supply: 5 to 24 Vdc<br />
Temperature: -4...176 °F<br />
Protection: IP 65<br />
Accuracy: ± 2.5% of F.S.<br />
DF Flow Sensor Material Combination: IV<br />
Max. operating pressure: 230 PSI<br />
Range (Water): 0.05...0.6 GPM<br />
[B]: Special Connection: 3/8" NPT

MODELO: DOM-A25H-N6-1-D0-0<br />
Oval Gear-Counter-Pulse Output DOM<br />
Measuring range: 0,5-36 L/h...150-2500 L/min liquid<br />
Connection: G 1/8...G 4 female<br />
Material: aluminum<br />
Max. pressure: 400 bar<br />
Max. temperature: 120 °C<br />
Accuracy: ± 0,2...1% of reading<br />
Viscosity range: 0-1200 cP<br />
Counter, digital indicator<br />
******************************************************<br />
Ordering Information<br />
DOM-A25H-N6-1-D0-0<br />
[DOM-A] Oval Gear Flow Meter/Counter<br />
[25H] Measuring range: 10-150 L/min<br />
[N6] Mech. Connection: N 1"  for meas. range 25H<br />
[1] Seal: FPM (Standard)<br />
[D0] Electronic: pulse output, 2 x NPN 90° phased<br />
without Accessory<br /><br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature: 120 °C<br />
max. pressure: 10...68 bar<br />
Accuracy: ±0,5 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material: Aluminium<br />
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

Torsional Paddle Flow Meter/Monitor<br />
Model: DPT-12-40H-N6-C34P-0-0-2<br />
Brand: KOBOLD<br />
DPT-12:<br />
Operating principle, paddle-torsion<br />
Flow direction, horizontal, in direction of the arrow<br />
max. temperature, 80 °C<br />
Material, st. st.<br />
40H: Measuring range, 70-130 L/min water<br />
N6: Connection size, 1 NPT female<br />
C34P: Evaluating electronic, Compact electronic, 4-20mA, 1x PNP<br />
0: Power supply, 230 VAC<br />
0: Output, w/o<br />
2: Contacts, 2 SPDT<br />
Please specify flow direction in writing

Rotating Vane-Flowmeter with Pulse Output<br />
Model: DF-48-A-N25-ZLK-3-4-Z<br />
Brand: KOBOLD (USA)<br />
DF-...Z:<br />
Operating principle, Rotating Vane<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Max. temperature, s. material combination<br />
Max. pressure, s. material combination<br />
Accuracy, +-2,5% FS<br />
Model, Totalizer, analogue, relay<br />
48: Measuring range, 2...48 L/min water<br />
A: Material combination, Housing/ cover/ connection/ Temp./ pressure, Trogamide// Trogamide/ brass/ 60 °C/ 10 bar.<br />
N25: Connection, Material combination code: A/D/G G 1<br />
ZLK: Model of electronic, LC-Display, 1.5 m cable<br />
3: Power supply, 24 VDC<br />
4: Analogue output, 0(4)...20 mA<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_df.pdf

Calorimetric Flow Monitor, Remote Version <br />
MODEL: KAL-53-20-00<br />
BRAND: KOBOLD<br /><br />
KAL-53:<br />
Model + Code (Thread: NPT)<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
max. temperature, 80° C (option HT: 120 °C)<br />
Protection class, IP 68<br />
Connection thread, NPT<br />
pipe fitting, w/o<br />
Sensor material st.st., 1.4301<br />
20: Connection, 3/4" NPT<br />
00: Electron. connection/version, 2 m PVC-cable (80 °C)<br />


Electronic to KAL-Probe<br />
MODEL: KAL-E-2-3<br />
BRAND: KOBLOD<br />
KAL-E:<br />
Output, Relay/SPDT<br />
Contact rating, max. 250 VAC, max. 3 A<br />
Output indication, LED<br />
Temperature range, -20..+80 °C<br />
Mounting, DIN rail<br />
2: Version, Flow/8-LEDs<br />
3: Power supply/Ex-Version, 24 VDC<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_kal-k.pdf

Calorimetric Flow Monitor, Remote Version<br />
MODEL: KAL-53-15-00<br />
BRAND: KOBOLD<br /><br />
KAL-53:<br />
Model + Code (Thread: NPT)<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
max. temperature, 80° C (option HT: 120 °C)<br />
Protection class, IP 68<br />
Connection thread, G / NPT<br />
pipe fitting, w/o<br />
Sensor material st.st., 1.4301<br />
15: Connection, 1/2 NPT<br />
00: Electron. connection/version, 2 m PVC-cable (80 °C)<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_kal-d.pdf

Calorimetric Flow Switch, Housing st. st.<br />
Brand: Kobold(Alemania)<br />
Model: KAL-D54-15-N-ST3<br />
[KAL-D54]:<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED und LED-chain<br />
max. temperature, 80 °C<br />
max. pressure, 40 bar<br />
Protection class, IP 65<br />
Sensor material, st.st. st.st. 1.4404<br />
Connection thread, NPT<br />
[15]: Connection, 1/2 NPT<br />
[N]: Contact type, NPN - N/O<br />
[ST3]: Electron. connection, Circ. plug conn. M12x1 - 24 VDC

Flujómetro VORTEX multivariable<br />
MODELO: DVH-T-501-S-L-L-2-S-0<br />
MARCA: KOBOLD<br />
[DVH-T] Vortex Flow Meter with Flange, Integrated temperature sensor<br />
[501] Connection (ASME B16.5.2003): Flange ANSI 2 inch 150 lbs<br />
[S] Material Measuring Tube/Connection: Stainless steel 1.4404/316L<br />
[L] Transmitter Version/ Mounting: compact incl. Display<br />
[L] Supply voltaje: 12-36 VDC, loop powered 1)<br />
[2] Output: 4-20 mA, HART, 1x Pulse, loop powered<br />
[S] Process temperatura: -200..+260°C (-330..+500°F) (standard)<br />
[0] Option Pressure Sensor: without<br />
Version:  Standard<br />
Integrated temperature sensor: no<br />
Integrated pressure sensor: no <br />
Transmitter Housing: Aluminium

Coriolis Massflowmeter<br />
Model: TMU-S-008-201R-B-0-O-A-0-1-X-0-H/U M C 4 - B - 1 - 1 - A - 0 - 0<br />
Brand: Heinrichs - Kobold<br />
[TMU-S]:<br />
Wetted materials, Stainless steel<br />
[008]: Meter line size, DN8, ANSI ¼"<br />
Range, min. 0-60 kg/h - max. 0-600 kg/h<br />
[201R]: Process connection, ½" Class 150 RF ASME B16.5-2003<br />
Installation length, 336 mm<br />
[B]: Containment options, Standard containment with drain connection ½" NPT (f)<br />
[0]: Heating / cooling, None<br />
[0]: Connection for heating / cooling, None<br />
[A]: Sensor configuration, Integral mount transmitter<br />
Process temperature, -4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection, IP66<br />
[0]: Approvals, None<br />
[1]: Calibration flow, Standard, 3-point<br />
[X]: Calibration density, Agency approved, customer specified<br />
[0]: Supplementary equipment, None<br />
[H]: Design, Heinrich<br /><br />
[UMC4-B]:<br />
Mounting, Integral mount<br />
Conduit port opening, M20 x 1,5<br />
[1]: Display / Interface board, Integral within transmitter housing,<br />
for ambient temperature up to 60°C<br />
[1]: Power supply, 90 - 265V AC, 50/60Hz<br />
[A]: Outputs<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, None<br />
[0]: Type of protection (signal output), none
