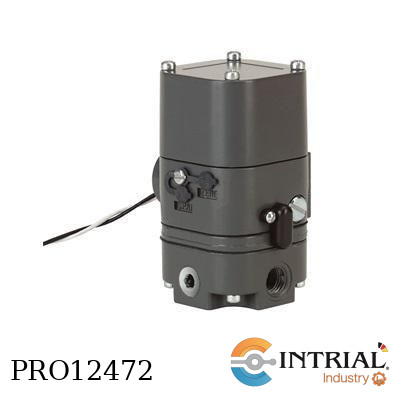

CURRENT TO PRESSURE TRANSDUCER<br />
Brand: DWYER<br />
4-20 mA input<br />
6-30 psi (40-200 kPa) output<br />
Service: Oil free, clean dry air filtered to 40 microns.<br />
Input Signal: 4 to 20 mA.<br />
Input Impedance: IP-42: 180 ohms; IP-43 and IP-44: 220 Ω.<br />
Air Pressure: Min: 3 psig (21 kPa) above max output; Maximum: 100 psig (700 kPa).<br />
Linearity: < ±0.75% of span.<br />
Hysteresis: < 1% of span.<br />
Repeatability: < 0.5% of span.<br />
Supply Pressure Sensitivity: < ±0.1% of span per psig (< ±0.15% of span per 10 kPa).<br />
Power Requirements: Loop-powered.<br />
Temperature Limits: -20 to 140°F (-30 to 60°C)<br />
Pressure Connections: 1/4" female NPT.<br />
Electrical Connection: 1/2" female NPT.<br />
Air Consumption: 0.03 SCFM (0.5 m3/h) typical.<br />
Output Capacity: 4.5 SCFM (7.6 m3/h ANR) at 25 psig (175 kPa) supply; 12 SCFM (20 m3/h) at 100 psig (700 kPa) supply.<br />
Relief Capacity: 2 SCFM (3.4 m3/h) at 5 psig (35 kPa) above 20 psig (140 kPa) setpoint.<br />
Weight: 2.1 lb (0.94 kg).<br />
Agency Approvals: CE, FM.

Chemical Injection Atomizers<br />
STV-LP2-GAS8<br /><br />
STV-LP2, Graphoil Seal (App. Below 1000°F), 316L SS Process Wetted Materials, 0.5in.O.D. Shaft, 1/2 in. Process MNPT<br />
Connection, Patented Locking Device<br /><br />
8S-A1MR48H<br />
Atomizer Shaft, 1/16 in. MNPT Atomizer Connection, 0.5in. Dia. Shaft , Reduced Tip, 316 Stn, Overall Length = 48in,<br />
Insertion Length = 36in<br /><br />
SNR<br />
Spring Loaded Nozzle, 525 psi Cracking Pressure, reduced Diameter, 1/16 in. Female NPT connection<br /><br />
HC6<br />
Handle Insertion Assembly, 12 in. Long Safety Chain, 3/8 in. Diam. Thread Insert

• Screw-in resistance thermometer<br />
• 1 x Pt 100 Ohm DIN EN 60751, class B,<br />
• protective tube ø 9 mm, built-in lenght 150<br />
• mm, thread G1/2", material 1.4571, with<br />
• 25.000 mm connection wire PFA/shield/PFA<br />
• (cable no. 13A), 4 x 0,22 mm², 1 wire cutted,<br />
• white, 3-wire, with 30 mm free ends,<br />
• temperature range: -50°C to +260°C

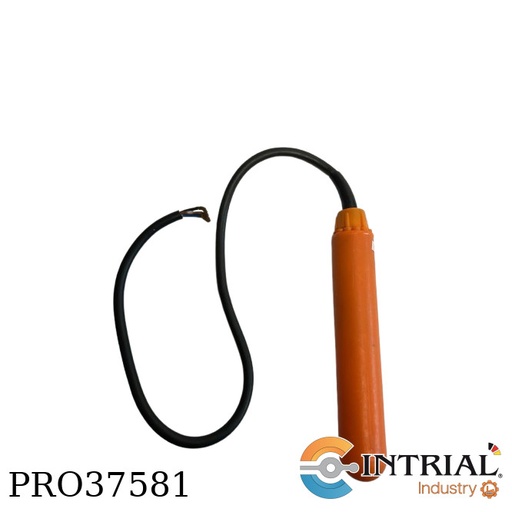

* PERFORMANCE DEL EQUIPO :<br />
==========================<br />
- Rango de medición : 0 a 14 PH (0 a 12 sin el error del ion sodio)<br />
- Respuesta : 95% en menos de 5 segundos<br />
- Presión de operación : Hasta 100PSI<br />
- Temperatura de operación : 0 a 70ºC (Vida del electrodo se reduce<br />
drásticamente a temperaturas encima 50º C)<br />
* MATERIALES :<br />
=============<br />
- Cuerpo de Electrodo : CPVC<br />
- Electrodo de referencia : HDPE<br />
- O-RING : FKM (Vitón)<br />
- Electrodo : Vidrio<br />
- Punto de referencia diferencial : TITANIO<br />
* CONEXIONES DE MONTAJE :<br />
=========================<br />
- Tipo coaxial<br />
- Montaje de inmersión<br />
- 03 metros de cable para conexionado.<br />
- Material de Cubierta : CPVC<br />
- Conexíon de montaje externo : 1" Rosca externa NPT

PLASTIC END CAP<br />
For “MERIDIAN UNIVERSAL GAS DETECTOR”

MODEL: V6EPB-B-D-4-B-CV-GL<br />
FLOTECT® MINI-SIZE FLOW SWITCHES, 1-1/4” NPT, Brass, -4 to 220°F <br />
Brand: DWYER<br />
Upper Housing Material: Brass<br />
Lower Housing Material: Brass<br />
Switch Type: DPDT<br />
Line connection Size: 1-1/4” NPT<br />
Tee/Bushing Material: Brass<br />
Option:<br />
Custom Vane<br />
Ground lead<br />
Service: Gases or liquids compatible with wetted materials.<br />
Wetted Materials: Brass<br />
Magnet: Ceramic; O-ring: Buna-N standard, Fluoroelastomer<br />
Temperature Limits: -4 to 220°F (-20 to 105°C)<br />
Ambient Temperature -4 to 167°F (-20 to75°C) Process Temperature: -4 to<br />
220°F (-20 to 105°C).<br />
Pressure Limit: Brass tee models 250 psi (17.2 bar), iron tee models 1000<br />
psi (69 bar),<br />
ATEX 0344 II 2 G Ex d IIC T6 Gb Process Temp ≤ 75°C Alternate<br />
Temperature Class T5 Process Temp ≤ 90°C, 115°C (T4) Process Temp<br />
≤ 105°C<br />
consult factory. EC-type Certificate No.: KEMA 04ATEX2128.<br />
ATEX Standards: EN 60079-0: 2009; EN 60079-1: 2007.IECEx<br />
Certified: For Ex d IIC T6 Gb Process Temp ≤ 75°C Alternate Temperature<br />
Class T5 Process Temp ≤ 90°C, 115°C (T4) Process Temp ≤ 105°C consult<br />
factory.<br />
IECEx Certificate of Conformity: IECEx DEK 11.0039;<br />
IECEx Standards: IEC 60079-0: 2007; IEC 60079-1: 2007;<br />
Korean Certified (KC) for: Ex d IIC T6 Gb Process Temp ≤ 75°C;<br />
KTL Certificate Number: 2012-2454-75.<br />
Switch Type: DPDT snap switch optional.<br />
Electrical Rating: UL models: 5 A @125/250 VAC. CSA, ATEX and IECEx<br />
models:<br />
5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC (V ). MV option: .1 A<br />
@<br />
125 VAC (V~). MT option: 5 A @125/250 VAC (V~). [MT option not UL,<br />
CSA, ATEX<br />
or IECEx].<br />
Electrical Connections: UL models: 18 AWG, 18" (457.20 mm) long.<br />
ATEX/CSA /IECEx models: terminal block.<br />
Upper Body: Brass<br />
Conduit Connections: 3/4" (19.05 mm) male NPT standard, 3/4" (19.05<br />
mm)<br />
female NPT or M25 with BSPT option on junction box models.<br />
Mounting Orientation: Switch can be installed in any position but the<br />
actuation/<br />
deactuation flow rates in the charts are based on horizontal pipe runs and<br />
are nominal values.<br />
Set Point Adjustment: Standard V6 models none. Without tee models vane<br />
is<br />
trimmable. Low flow models are field adjustable in the range shown. See<br />
set point<br />
chartsu.<br />
Weight: 2 to 6 lb (.9 to 2.7 kg) depending on construction.<br />
Agency Approvals: ATEX, CE, CSA, IECEx, KTL, UL.
<div>
<div class="gtx-trans-icon"></div>
</div>

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-24H-I4-0</strong><br />
[URM-33]:<br />
Mounting position: Vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. Temperature: 65 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Material: Connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[24H]: Range Full Scale: water: 100 L/h, range factor 1:10<br />
[I4]: Connection: G 1/2, female<br />
[0]: Contacts: w/o

<div><strong>FLOWMETER VARIABLE AREA</strong></div>

<div><strong>MODEL: URM-33-45L-I6-0</strong></div>

<div><strong>BRAND: KOBOLD</strong></div>

<div></div>

<div>URM-33:</div>

<div>Mounting position, vertical, flow direction from bottom</div>

<div>Accuracy, Class 4</div>

<div>Max. Temperature, 65°C</div>

<div>Max. Pressure, 16 bar</div>

<div>Material: connection, float / seal/ ring, 1.4301 / NBR / PVC</div>

<div>22L:<span> </span>Range Full Scale*, 0.2 - 2 Nm³/h. </div>

<div>I4:<span> </span>Connection, G1/2" female</div>

<div>0:<span> </span>Without (W/O)</div>

Flow Counter and Batch controller <br />
MODEL: ZOD-Z3-KM-1-F3-E-0<br />
BRAND: KOBOLD<br />
ZOD-Z3:<br />
Housing (mm), Ø122 / 96 x 96<br />
LCD Digital display, 8 digit<br />
Function, Flow + Counter<br />
Counter function, Partial/total value<br />
Switch output, NPN/PNP<br />
Pulse output, NPN/PNP<br />
Analogue output, 4-20 mA<br />
Ambient temperature, -20…+80 °C<br />
Protection, IP 66/67 (NEMA 4X)<br />
KM: Housing version, Universal housing attached<br />
1: Electrical connection/Cable gland, 3 x cable entry M20<br />
F3: Supply voltage, 8…24 VDC, Battery<br />
E: Options, ATEX approval<br />
0: Mechanical protection, w/o<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/z2gb_zod.pdf

Oval Gear Flow Meter/Counte<br />
MODEL: DOM-S-35H-R9-3-H0-0<br />
BRAND: KOBOLD<br />
[DOM-S] Oval Gear Flow Meter/Counter<br />
[35H] Measuring range: 30-450 L/min<br />
[R9] Mech. connection, G 2 for meas. range 35H and 40H<br />
[3] Seal, PTFE encaps. FPM for meas. range 35H and 40H<br />
[H0] Electronic: Pulse output, NPN and reed switch<br />
[0] Accessory, Special gear wheels for viscosity > 1000 cP for range 35H<br />
Operating principle: Gear Wheel<br />
Mounting position:horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature:120 °C<br />
max. pressure: 12...68 bar<br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

Oval Gear Flow Meter/Counter<br />
Model: DOM-A-35H-R9-3-H0-0<br />
Brand: Kobold<br />
[DOM-A] Oval Gear Flow Meter/Counter<br />
[35H] Measuring range: 30-450 L/min<br />
[R9] Mech. Connection: G 2 for meas. range 35H and 40H<br />
[3] Seal: PTFE encaps. FPM for meas. range 35H and 40H<br />
[H0] Electronic: Pulse output, NPN and reed switch<br />
[0] Accessory: Without<br />
Operating principle: Gear Wheel<br />
Mounting position:horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature:120 °C<br />
max. pressure: 12...68 bar<br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

Oval Gear Flow Meter/Counte<br />
MODEL: DOM-S-35H-R9-3-R0-0<br />
BRAND: KOBOLD<br />
[DOM-S] Oval Gear Flow Meter/Counter<br />
[35H] Measuring range: 30-450 L/min<br />
[R9] Mech. connection, G 2 for meas. range 35H and 40H<br />
[3] Seal, PTFE encaps. FPM for meas. range 35H and 40H<br />
[R0] Electronic: Pulse output, reed switch<br />
[0] Accessory, Special gear wheels for viscosity > 1000 cP for range 35H<br />
Operating principle: Gear Wheel <br />
Mounting position:horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature:120 °C<br />
max. pressure: 12...68 bar <br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401 <br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

<strong>Oval Gear Flow Meter/Counter<br />
Model: DOM-A-35H-R9-3-R0-0<br />
Brand: Kobold</strong><br />
[DOM-A] Oval Gear Flow Meter/Counter<br />
[35H] Measuring range: 30-450 L/min<br />
[R9] Mech. Connection: G 2 for meas. range 35H and 40H<br />
[3] Seal: PTFE encaps. FPM for meas. range 35H and 40H<br />
[R0] Electronic: Pulse output, reed switch<br />
[0] Accessory: Without<br />
Operating principle: Gear Wheel <br />
Mounting position:horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature:120 °C<br />
max. pressure: 12...68 bar <br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401

Oval Gear Flow Meter/Counter<br />
Model: DOM-A-35H-R9-3-Z3-0<br />
Brand: Kobold<br />
[DOM-A] Oval Gear Flow Meter/Counter<br />
[35H] Measuring range: 30-450 L/min<br />
[R9] Mech. Connection: G 2 for meas. range 35H and 40H<br />
[3] Seal: PTFE encaps. FPM for meas. range 35H and 40H<br />
[Z3] Electronic: Z3 electronic LCD totaliser, rate, outputs: 4-20 mA, alarm, pulse (ZOD-Z3)<br />
[0] Accessory: Without<br />
Operating principle: Gear Wheel<br />
Mounting position:horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature:120 °C<br />
max. pressure: 12...68 bar<br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401

Oval Gear Flow Meter/Counte<br />
MODEL: DOM-S-35H-R9-3-Z3-0<br />
BRAND: KOBOLD<br />
[DOM-S] Oval Gear Flow Meter/Counter<br />
[35H] Measuring range: 30-450 L/min<br />
[R9] Mech. connection, G 2 for meas. range 35H and 40H<br />
[3] Seal, PTFE encaps. FPM for meas. range 35H and 40H<br />
[Z3] Electronic: LCD totaliser with rate<br />
[0] Accessory, Special gear wheels for viscosity > 1000 cP for range 35H<br />
Operating principle: Gear Wheel<br />
Mounting position:horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature:120 °C<br />
max. pressure: 12...68 bar<br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

FLOW SWITCH WITH PADDLE AND BELLOWS<br />
MODEL: DWN-15-R25-0-R-T-0<br />
BRAND: KOBOLD<br /><br />
DWN-1:    <br />
    Operating principle, paddle-bellow<br />
    Indication, w/o<br />
    Flow direction, in direction of the arrow<br />
    Output, 1 microswitch/SPDT, adjustable<br />
    Max. Temperature, 100 °C<br />
    Connection, male thread<br />
5:    Material combination, brass<br />
R25:    Connection, G 1 male<br />
0:    Signal lamp, 230 VAC<br />
R:    Flow direction, from right to left<br />
T:    Mounting pos. of indicat., above pipe<br />
0:    Options, w/o option<br />
Datasheet:<br /><br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_dwn.pdf

Pressure sensor with ceramik sensor element <br />
MODEL: SEN-87-3-0-B025-N<br />
BRAND: KOBOLD<br />
[SEN-87] Pressure sensor with ceramik sensor element<br />
[3] Electr. Connection:  plug M12x1<br />
[0] Accuracy: 0,5 % of FS<br />
[W/O] Output:  4-20 mA, 2-wire<br />
[B025] Measuring range: 0...1 bar<br />
[N] Option: NPT thread<br />
Version:  with internal sensor<br />
Pressure type:  relative pressure<br />
Accuracy: 0,5 % of FS<br />
measuring principle:  thick film<br />
Medium temperature:  -40..+85 °C<br />
Pressure conn. : st. Steel 1.4301<br />
Thread: NPT 1/4 male <br />
Power supply: 15-32 VDC<br />
Electr. Connection: DIN plug form A<br />
Protection: IP 65<br />
Ficha Técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/p2gb_sen-86-87.pdf

Pressure sensor with ceramik sensor element <br />
MODEL: SEN-86-3-0-B025-N<br />
BRAND: KOBOLD<br />
[SEN-86] Pressure sensor with ceramik sensor element<br />
[3] Electr. Connection:  plug M12x1<br />
[0] Accuracy: 0,5 % of FS<br />
[W/O] Output:  4-20 mA, 2-wire<br />
[B025] Measuring range: 0...1 bar<br />
[N] Option: NPT thread<br />
Version:  with internal sensor<br />
Pressure type:  relative pressure<br />
Accuracy: 0,5 % of FS<br />
measuring principle:  thick film<br />
Medium temperature:  -40..+85 °C<br />
Pressure conn. : st. Steel 1.4301<br />
Thread: NPT 1/2 male <br />
Power supply: 15-32 VDC<br />
Electr. Connection: DIN plug form A<br />
Protection: IP 65

Viscosity Compensated Flowmeter/-switch<br />
Brand: KOBOLD<br />
Model: VKG-22-10-U0-N25<br />
[VKG-22]:<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, St.St.<br />
Seal, FPM<br />
Sight glass, Duran<br />
Side mounted dial, w/o<br />
Switch point, adjustable<br />
Accuracy, ±4 % FS (at 105 mm²/s)<br />
Max. temperature, 100 °C<br />
Max. pressure, 12 bar<br />
Viscosity range, 1...540 mm²/s<br />
[10]: Measuring range, 2,5...70 L/min oil<br />
[U0]: Contact, 1 SPDT<br />
[N25]: Connection, 1 NPT female

Flowindicator<br />
MODEL: DAH-2-2-03H-N-15<br />
BRAND: KOBOLD<br />
DAH-2:<br />
Operating principle, sight glass<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Max. temperature, 100 °C<br />
Max. pressure, 16 bar<br />
2: Material (housing/connection), st. st.<br />
03H: Nom. diameter, 1/2" (Qn:31.5 l/min)<br />
N: Thread, NPT-thread female<br />
15: Connection, 1/2"<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s6gb_dah-1.pdf
