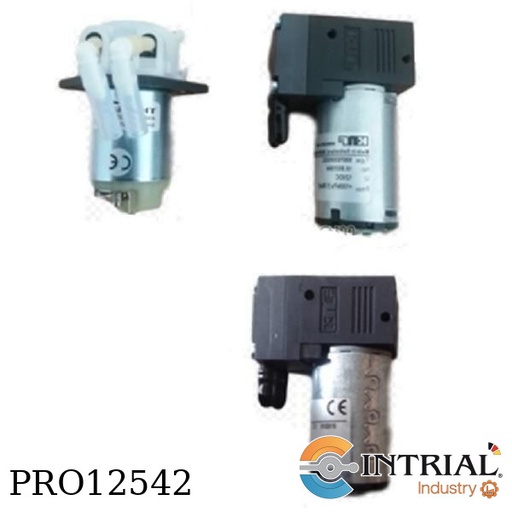

This Kit Include the 3 principal pumps for Byolizer<br />
*0310A-3400200 (Gas Pump for by pass(membrane pump))<br />
*0310B-3400200(Gas pump for measuring gas(membrane pump))<br />
*0207-3400200(Hose pump for condensate removal)<br />
-Brand: AFRISO

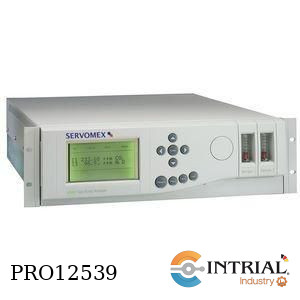

SERVOPRO 4100 (04100D1)<br />
SERVOPRO 4100 Gas Purity Analyser<br />
With the following configuration:<br />
Voltage UK 170-264V 50/60Hz<br />
Background Gas N2<br />
Module 1 0-50/500vpm CO2<br />
Sample System Module 1 Flow Driven<br />
Module 3 Zirconia 704 Trace O2<br />
Sample System Module 3 Flow Driven<br />
Oil/Dust Filter, O2 Zr Mod 3 Required<br />
Chassis Type Long Chassis<br />
Left Flowmeter Not Fitted<br />
Right Flowmeter Not Fitted<br />
Internal Sample Filter Not Fitted<br />
Autocalibration Not Fitted<br />
Mounting 19" Rack Mount Ears Only<br />
User Manual English<br />
Service Manual English<br />
Country of Origin: GB<br />
Commodity code: 902710 10<br />
EU Dual Use Code: NOT CONTROLLED<br />
ECCN Code: EAR99

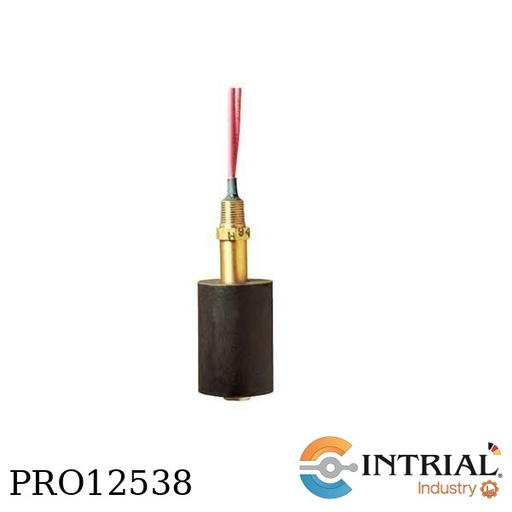

MAGNETIC FLOAT SWITCHES FOR LIQUIDS<br />
Brand: KOBOLD<br />
Compact Size, 1" dia. Float<br />
Precise Repeatability<br />
Reliable, Great Longevity<br />
Stem in 316 SS or Brass<br />
Max. Pressure: 150 PSIG <br />
Op. Temp. Range: <br />
-40-230 °F (Oil) <br />
-40...180 °F (Water) <br />
Fitting: 1/8" NPT

<div>MB SERIES MASS FLOWMETER</div>

<div>•<span> </span>Brand: ALICAT SCIENTIFIC (USA)</div>

<div>•<span> </span>Flow Rate: 100 liters per minute </div>

<div>•<span> </span>Display: Digital display with push button interface</div>

<div>•<span> </span>Pressure Sensor: Standard</div>

<div>•<span> </span>Alarm: Without alarm</div>

<div>•<span> </span>Primary Output: 0-5 vdc</div>

<div>•<span> </span>Primary Output Parameter: Mass flow</div>

<div>•<span> </span>Secondary Output (optional): None</div>

<div>•<span> </span>Secondary Output Parameter: No secondary output</div>

<div>•<span> </span>Totalizer: No</div>

<div>•<span> </span>Gas To Be Calibrated For: Air</div>

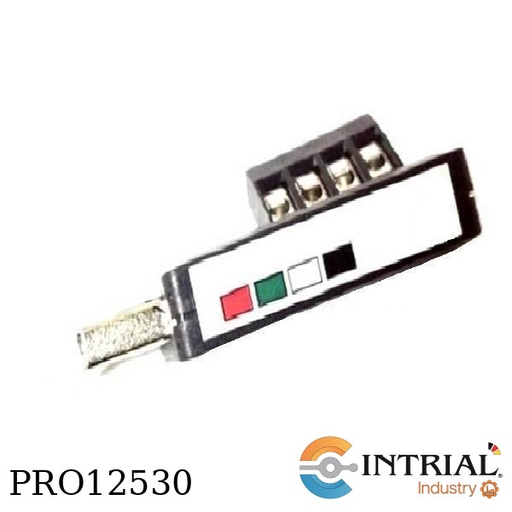

USB adapter for calibration, PVC<br />
Brand: DWYER<br />
One adapter can program multiple units.
<div>
<div class="gtx-trans-icon"></div>
</div>

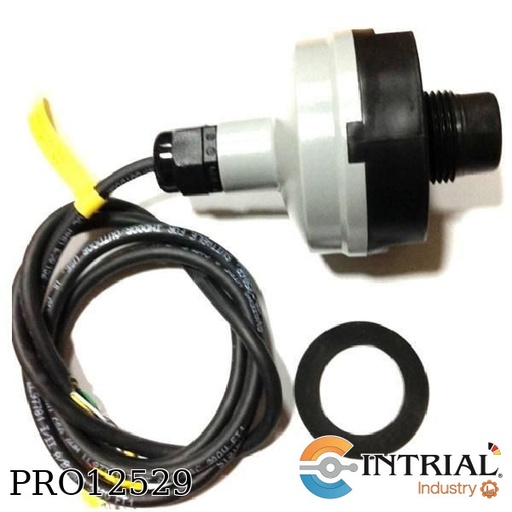

ULTRASONIC LEVEL TRANSMITTER<br />
Brand: DWYER<br />
Non-Contact Transmitter, SPST Programmable Relays<br />
Range: 9.8´ (3 m)<br />
Service: Compatible fluids.<br />
Wetted Materials: Sensor: PVDF; O-ring: FKM.<br />
Ranges: See chart.<br />
Accuracy: ±0.2% of range.<br />
Resolution: 0.039" (1 mm)<br />
Blind Zone: ULSM: 4" (10 cm)<br />
Beam Width: 2" (5 cm)<br />
Temperature Limits: Process: 20 to 140°F (-7 to 60°C); Ambient: -31 to 140°F (-35 to 60°C).<br />
Temperature Compensation: Automatic.<br />
Pressure Limit: 30 psi (2 bar).<br />
Power Requirement: 12 to 28 VDC.<br />
Output Signal: 4 to 20 mA, 2-wire; Invert: 4 to 20 mA or 20 to 4 mA; Fail-safe: 4mA, 20 mA, 21 mA, 22 mA, or hold last.<br />
Loop Resistance: 400 Ω max.<br />
Electrical Connections: 4´ (1.2 m) 9 conductor shielded cable.<br />
Contact Type: 4 SPST relays.<br />
Contact Rating: 1 A max @ 28 VDC max.<br />
Deadband: Selectable (no hysteresis, 1/4", 1/2", 1", 1/2 cm, 1 cm, 2 cm, 5 cm or not available).<br />
Process Connection: 1" NPT, 1" BSPP (optional).<br />
Enclosure Rating: NEMA 6P (IP68).<br />
Enclosure Material: Polycarbonate; Gland: TPE.<br />
Mounting Orientation: Vertical.<br />
Memory: Non-volatile.<br />
Failsafe: Contact: Power loss: Holds last contact; Power on: Open, close, or last contact.<br />
Programming: Free PC software download (USB adapter required).<br />
Weight: 1 lb (0.45 kg).<br />
Agency Approvals: CE, RoHS.

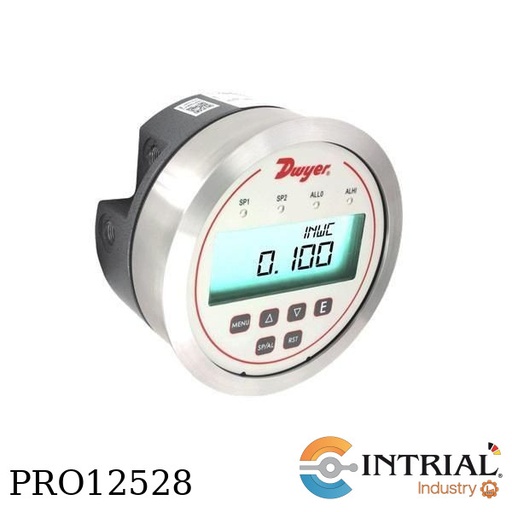

DIGIHELIC 3 DIFFERENTIAL PRESSURE CONTROLLERS<br />
Brand: Dwyer<br />
Range: 0 to 10 in w.c<br />
Service: Air and non-combustible, compatible gases.<br />
Temperature Limits: 32 to 140°F (0 to 60°C).<br />
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).<br />
Power Consumption: 3 VA max.<br />
Output Signal: 4-20 mA DC into 900 Ω max.<br />
Zero & Span Adjustments: Accessible via menus.<br />
Response Time: 250 ms (damping set to 1).<br />
Display: Backlit 4 digit LCD 0.4" height<br />
LED indicators for set point and alarm status.<br />
Electrical Connections: 15 pin male high-density D-sub connection. <br />
18" (46 cm) cable with 10 conductors included.<br />
Process Connections: 1/8" female NPT<br />
Side or back connections.<br />
Mounting Orientation: Mount unit in vertical plane.<br />
Size: 5" (127 mm) OD x 3-1/8" (79.38 mm).<br />
Weight: 1.75 lb (794 g).<br />
Agency Approvals: CE.<br /><br />
SWITCH SPECIFICATIONS<br />
Switch Type: 2 SPDT relays.<br />
Electrical Rating: 1 A @ 30 VAC/VDC.<br />
Set Point Adjustment: Adjustable via keypad on face.

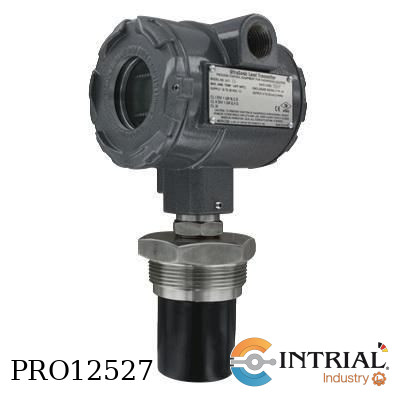

ULTRASONIC LEVEL TRANSMITTER<br />
Explosion-Proof, Mapping Software, 3" (76.2 mm) Measuring Column<br />
Brand: DWYER<br />
Range: 24.6´ (7.5 m)<br />
Service: Compatible fluids. Not for use with powder and bulk solids.<br />
Wetted Materials: Sensor: PVDF; Process connection: 303 SS; O-ring:<br />
Fluoroelastomer.<br />
Ranges: 24.6´ (7.5 m), 32.8´ (10 m).<br />
Accuracy: ±0.2% FS.<br />
Resolution: 0.079" (2 mm).<br />
Blind Zone: Under 8" (20 cm).<br />
Beam Width: 3" (7.6 cm) diameter.<br />
Temperature Limits: Ambient: -40 to 140°F (-40 to 60°C); Process: -4 to 140°F (-20 to 60°C).<br />
Temperature Compensation: -40 to 140°F (-40 to 60°C).<br />
Pressure Limits: 30 psi (2 bar) up to 25°C (77°C). Above 25°C (77°F)<br />
Rating decreases 1.667 psi per 1°C increase. See chart.<br />
Power Requirement: 18 to 28 VDC (two-wire).<br />
Output Signal: 4 to 20 mA or 20 to 4 mA (two-wire).<br />
Max. Loop Resistance: 250Ω at 24 VDC.<br />
Electrical Connections: Screw terminal.<br />
Conduit Connection: 1/2" NPT female (two) or optional M20.<br />
Process Connection: 2" NPT male or optional BSPT.<br />
Enclosure Rating: Weather-proof meets NEMA 4X (IP66), explosion-proof rated<br />
Class I, Div. 1, Groups B, C, D; Class II/III, Div. 1, Groups E, F, G.<br />
Mounting Orientation: Vertical.<br />
Failsafe: On lost echo after 30 seconds, user selectable to 4, 20, 21, 22 mA or last signal.<br />
Memory: Non-volatile.<br />
Display: 6 character LCD.<br />
Units: In, cm, ft, m, percent.<br />
Memory: Non-volatile.<br />
Programming: 4 button.<br />
Weight: 4.0 lb (1.8 kg).<br />
Agency Approvals: CE, FM.

<strong>Amortiguador<br />
Marca : AFRISO</strong><br />
RF63 (0010300015)

Damper RF100 (0034300015)<br />
Marca : AFRISO

FLOWMETER<br />
Brand: DWYER INSTRUMENTS<br />
Range: 0.25 - 2.5 LPM WATER <br />
Service: Compatible gases and liquids.<br />
Wetted Materials: Body: Styrene acrylonitrile; Float: SS, black glass, nylon; Valve:<br />
Polyurethane.<br />
Temperature Limit: 125°F (51°C).<br />
Pressure Limit: 50 psi (3.4 bar). Valve option: 10 psi (0.6 bar).<br />
Accuracy: ±10% FS.<br />
Process Connection: 1/4"<br />
OD for push on rubber or plastic tubing. Connect to rigid<br />
tubing with compression fittings.<br />
Weight: 0.5 oz (14.17 g).

FLOWMETER<br />
Brand: DWYER INSTRUMENTS<br />
Range: 3 - 25 LPM AIR <br />
Service: Compatible gases & liquids.<br />
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available)<br />
Temperature & Pressure Limits: Without valve: 100 psig (6.9 bar) @ 150°F<br />
(65°C); 150 psig (10 bar) @ 100°F (38°C<br />
Accuracy: VFA = 5% <br />
Process Connection: 1/8" female NPT<br />
Scale Length: VFA 2" typical length; VFB 4" typical length.<br />
Mounting Orientation: Mount in vertical position.<br />
Weight: VFA: 4.0 to 4.8 oz (.11 to .14 kg)

<div>MB SERIES MASS FLOWMETER</div>

<div>•<span> </span>Brand: ALICAT SCIENTIFIC (USA)</div>

<div>•<span> </span>Flow Rate: 50 liters per minute </div>

<div>•<span> </span>Display: Digital display with push button interface</div>

<div>•<span> </span>Pressure Sensor: Standard</div>

<div>•<span> </span>Alarm: Without alarm</div>

<div>•<span> </span>Primary Output: 0-5 vdc</div>

<div>•<span> </span>Primary Output Parameter: Mass flow</div>

<div>•<span> </span>Secondary Output (optional): None</div>

<div>•<span> </span>Secondary Output Parameter: No secondary output</div>

<div>•<span> </span>Totalizer: No</div>

<div>•<span> </span>Gas To Be Calibrated For: Air</div>

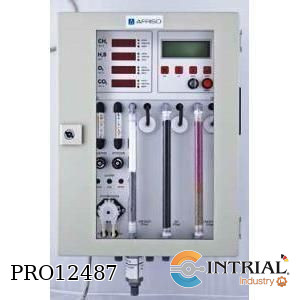

-Controller for Biolyzer  with LCD with parameter setting included, serial no. required<br />
-Brand: AFRISO

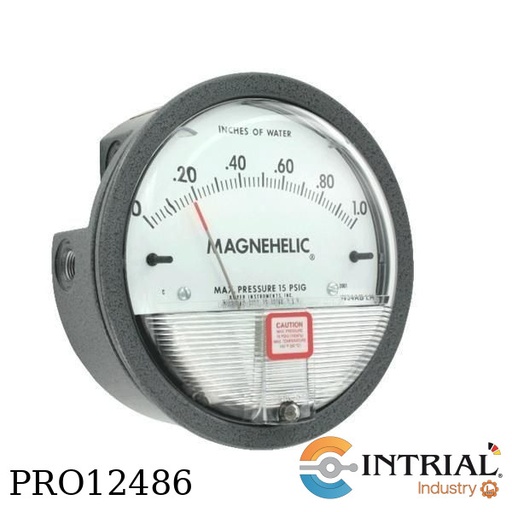

MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL<br />
MARCA: DWYER INSTRUMENTS<br />
Rango:  0 a 3 “ de agua<br />
Conexión: 1/8 NPT hembra<br />
Dial: 4"
<div>
<div class="gtx-trans-icon"></div>
</div>

SENSOR DE FLUIDO EN LÍNEA<br />
Marca: AW LAKE<br />
Salida: 4-20 mA<br />
Alimentación: 15-24 VDC<br />
NEMA6/IP67<br />
Conexión a proceso: 2”<br />
Material: SS

Variable Area Flowmeter-Low Volume KDG<br />
Model: KDG-92YY-N-V-0-00-0<br />
Brand: Kobold<br />
[KDG-92]:<br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature without/with contact: 100 °C / 70 °C<br />
Max. pressure: PN 16<br />
[YY]: Measuring range, 60 a 600 Nml/min air at 25°C & 0 bar relative pressure<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: wall mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o<br />
************************************************************<br />
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_kdf-kdg-
