AWR234SUXXGPX (Transmitter)<br />
==========================<br />
Sultan Remote Transmitter<br />
* Remote 2/3/4 Wire, 5 relays, MODBUS<br />
* 4-20mA analogue OUTPUT<br />
* 5 Relays SPDT 0.5A at 240Vac non-inductive<br />
* Housing: Polycarbonate<br />
• CSA Equip Class 2; Pollution deg 2; Tamb -20°C to 75°C (Ordinar y Locations)<br />
•Power Supply: 12-30 VDC and 90-260VAC<br />
* Enclosure sealing: IP65 (NEMA 4x)<br /><br />
AWRT20T4XXXC6XX (Transducer)<br />
==========================<br />
Acoustic Wave Remote Transducer,<br />
* 20kHz for applications up to 20m Liquids, and 7m Solids(large & Medium Part)<br />
* Facing material: Teflon 80 C<br />
* Housing: Polypropylene<br />
* Connection: IP68 Sealed unit w/cable<br />
* Cable Length: 06m cable<br /><br />
A C C E S S O R I E S<br />
===============<br />
FA4-A4 (FLANGE)<br />
=============<br />
* ANSI 4" Class 150 ; Cone Mounted ; Flange Material: Polypropylene<br /><br />
CO3-4-Z (Focalized Cone)<br />
====================<br />
* OD72mm cone

DIFFERENTIAL PRESSURE GAGE<br />
Brand: DWYER<br />
Range 0-100 cm w.c.<br />
Service: Aluminum case: Air and compatible gases and oil based liquids;<br />
Brass case: Air and compatible gases and water based liquids.<br />
Wetted Materials: Consult factory.<br />
Housing: Die cast aluminum with impregnated hard coating, standard<br />
Optional forged brass housing is required for water or water based fluids.<br />
Special material diaphragms available, contact factory.<br />
Accuracy: ±4%.<br />
Pressure Limits: -20" Hg to 500 psig (-0.677 bar to 34.4 bar).<br />
Temperature Limits: 20 to 200°F (-6.67 to 93.3°C).<br />
Size: 4" (101.6 mm) diameter dial face.<br />
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.<br />
Process Connections: 1/4" female NPT high and low pressure taps, duplicated -one pair top for air and gas, and one pair bottom for liquids.<br />
Weight: 3 lb, 3 oz (1.45 kg) aluminum case.

CAB-0007-USB; CABLE DE INTERFASE<br />
Marca GEMINI (Ing.)<br />
Para descarga de data a PC; c/conector USB

TV-4076 Datalogger<br />
Marca GEMINI (Ing.)<br />
Lecturas: Temperatura, -30 a 50 ºC (+/- 0.2 ºC).<br />
Memoria: 30,000 lecturas.<br />
Funciones: Arranque manual/automático c/temporización; intervalos de registro programables; alarmas.<br />
Construcción: Caja plástica, IP65; 60mm Ø x 35mm alto. Sensor<br />
Integrado en SS316, para inserción.<br />
Alimentación: 01 batería de Litio (LS14250NO), incluida.<br />
Accesorios necesarios (no incluidos): Cable Interface (CAB-0007-USB), Software (SWCD-0040-INT).

MEDIDOR DE FLUJO DE AGUA SATURADA ELECTROMAGNETICO 1/2” (DN015) <br />
PTFE (PFA) - Standard 3 Hastelloy electrodes (-20ºC-150ºC)<br />
3/4" Class 150 RF ASME B16.5 2003 (8 m3/h)<br />
Stainless Steel (1.4301)<br />
Power Supply 230V AC (+10%, -15%), 50/60Hz<br />
Output current output 1: 4 - 20mA with HART<br />
Cable 10m

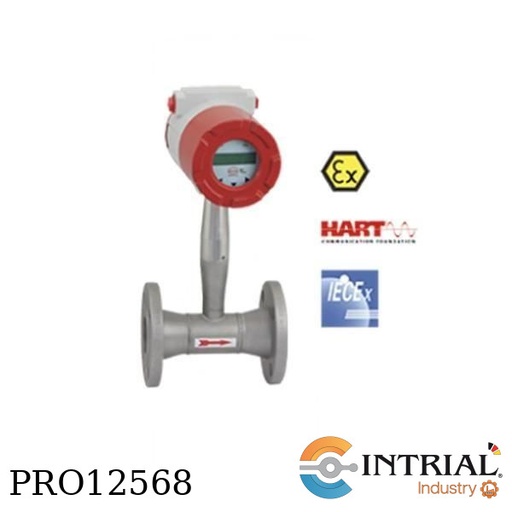

MEDIDOR DE FLUJO DE VAPOR TIPO VÓRTEX DN 1.5” (DN040)<br />
DN 40 DIN EN <br />
ANSI 150 lbs (ASME B16.5.2003) (Not for Wafer)<br />
st st 1.4404/316 L<br />
100-240 VAC (50/60 Hz 12 W)<br />
1x4-20mA HART (1x Alarm, 1x Pulse)<br />
Standart Temperature 200..+260°C (-330..+500°F)

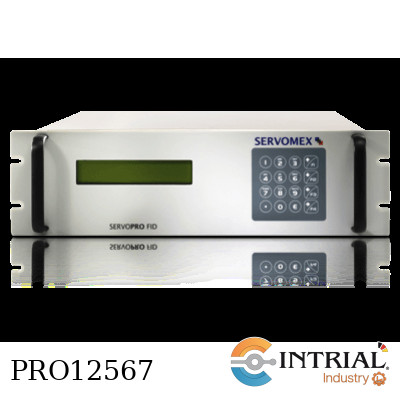

Modelo : K1000A1-Hydrogen<br /><br />
•    SERVOPRO FID Total Hydrocarbons Analyser (THC)<br />
•    With the following configuration:<br />
•    Power Supply European Power Lead (240V)<br />
•    Sample Gas Air<br />
•    ////////Fuel Type H2(Hydrogen/////////<br />
•    ////////Use for:  Syntetic Air, Helium(H2) and CO2///////<br />
•    Range 10/100/1000 ppm<br />
•    RS-232 Serial Port Not required<br />
•    User Manual English<br />
•    Product configuration includes the following items<br />
•    as standard...<br />
•    Ethernet Connection<br />
•    4-20ma output with auto-ranging<br />
•    General fault alarm<br />
•    3 Range ID outputs<br />
•    2 Alarms Dry Contact Output<br />
•    Sample, Fuel and Air 1/8" compression fittings<br />
•    Lithium metal batteries<br />
•    Not restricted PI 970<br />
•    0.40 Ah nominal capacity @ 0.5 mA to 2V<br />
•    3.6V rated voltage<br />
•    1.35 cc volume<br />
•    5.7g Weight<br />
•    UL component MH 12193<br />
•    Ref ER22G75 Model TL-5186

AWR234SUXXGPX<br />
Sultan Remote Transmiter<br />
Remote 2/3/4 Wire, 5 relays<br />
1 x 4-20mA analogue<br />
5 Relays SPDT 0.5A at 240Vac non-inductive<br />
Housing: Polycarbonate<br />
CSA Equip Class 2; Pollution deg 2; Tamb -20°C to 75°C (Ordinary Locations)<br />
Power Supply: 12-30 VDC and 90-260VAC<br />
Enclosure sealing: IP65 (NEMA 4x)

AWI234SU30S4XXMX<br />
SULTAN INTEGRAL Acoustic Wave 3” 2/3/4 wire, 2 Relay. Modbus<br />
Housing: Valox 357U<br />
Power Supply: 12-30 VDC and 90-260VAC<br />
Frequency: 30Khz for aplicatios up to 11 mts (water)<br />
Facing Material: Polyolefin  80C<br />
Transducer Housing: Polypropylene<br />
Additional Comunication: 4-20mA

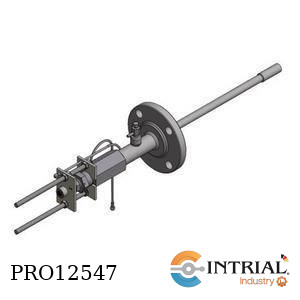

Microcor Transmitter Test Probe<br />
1/2 Full Scale<br />
Brand: COSASCO<br />

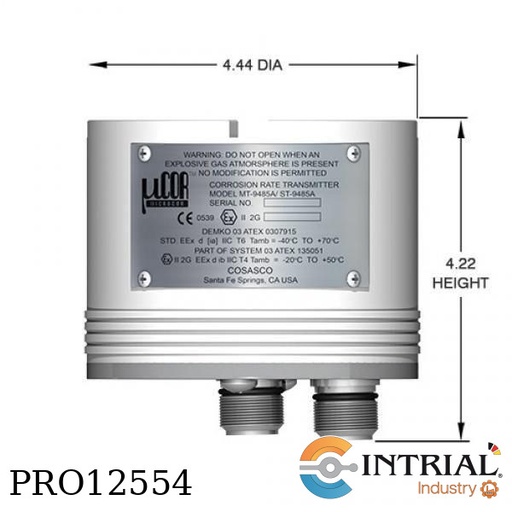

MT-9485A High Resolution Microcor Transmitter<br />
High Resolution Corrosion Measurement<br />
Communication: RS 485 two wire<br />
Power Supply: 10-32 VDC<br />
Rapid Response, Resolution 18 bit<br />
Current Consumption: at 24VDC typical 17 mA<br />
Communication: RS-485 two wire<br />
Enclosure: NEMA 7 and IP 66/ NEMA 4X<br />
Hazardous area Certifications:  Europe (CE/ATEX/EMC)<br />
Class I, Zone 1, AEx d IIC T6/EX d IIC T6

Transmitter Connection cable: <br />
Flexible Ex-proof connection (USA/CSA)<br />
For Microcor Transmitter <br />
Length: 10 Feet (3 mts)

-FF 2 Wire Module (Bus powered)<br />
-Brand: HAWK - Australia

AWR234SUFXGPX<br />
-Sultan Remote Transmiter<br />
-Remote 2/3/4 Wire, 5 relays, Modbus<br />
-Housing: Polypropylene<br />
-Power Supply: 12-30 VDC and 90-260VAC<br />
-CSA Equip Class 2; Pollution deg 2; Tamb -20°C to 75°C<br />
-Foundation Field Bus<br />
-Brand: HAWK

Kit, Front Facia Assembly Spare for 4100 series<br />
S4000980 is new part number for S4000903

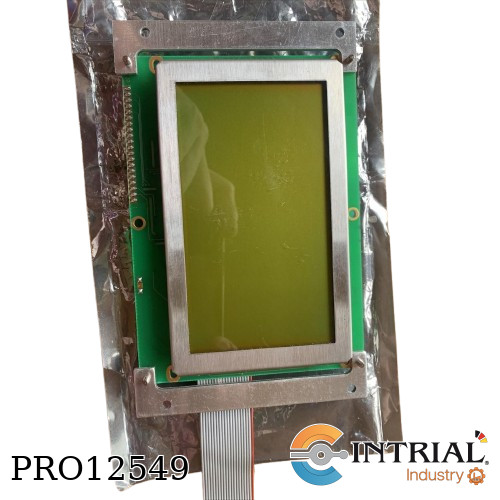

Spare Display Assembly (Green) for 4100 series<br />
S4000925 ES IGUAL S4000932

Modelo:    02001956A                      <br />
Humidity Trap Assembly (254mm), Tested for K2001 analyzer

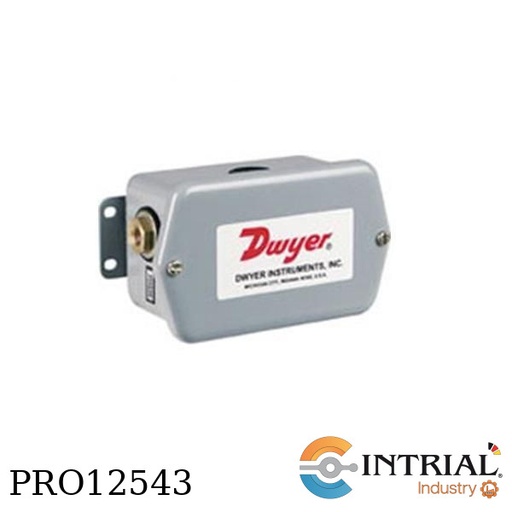

WET/WET DIFFERENTIAL PRESSURE TRANSMITTER<br />
Range: 0 to 3 in w.c.<br />
Brand: DWYER<br />
Service: Compatible gases or liquids on both pressure and reference sides.<br />
Wetted Materials: Brass, vinyl, glassfilled polyester, silicon, and fluorosilicone.<br />
Accuracy: ±1.0% FS.<br />
Stability: ±1.5% FS output/year.<br />
Temperature Limits: 32 to 122°F (0 to 50°C).<br />
Thermal Effects: Zero: ±0.05% FS/°F,<br />
Span: ±0.05% rdg/°F<br />
Power Requirements: 18 to 30 VDC.<br />
Output Signal: 4 to 20 mA, 2-wire.<br />
Zero and Span Adjustments:<br />
Adjustable, ±10%.<br />
Loop Resistance: 400Ω @ 18 VDC,<br />
600Ω @ 24 VDC, 1000Ω @ 30 VDC.<br />
Electrical Connection: Screw terminals,<br />
reverse polarity protected.<br />
Process Connections: Two 1/8" female NPT.<br />
Housing: Gasketed steel epoxy painted,<br />
NEMA 4 (IP56).<br />
Weight: 14 oz (397 g).
