Rotating vane flow meter<br />
MODEL:DPM-1557-N2-F300<br />
BRAND: KOBOLD (USA)<br />
Material: SS<br />
Range: 0.8 - 11.1 GPH<br />
N2: Fitting, 1/4" NPT<br />
F300: Evaluating Electronic, Freq Out, Micro-DC Plug)

Electrode Relay<br />
MODEL: NE-304-0<br />
BRAND: KOBOLD<br />
NE-304: <br />
Input, conductive electrodes<br />
Limit switch or min/max monitoring, 2<br />
Output relay, 2 SPDT<br />
Contact rating, 250 VAC / 5 A / 600 VA<br />
Sensitivity of response, 0-50 kOhm<br />
Power required, 4 VA<br />
Protection (housing/Connector), IP 40/IP 20<br />
0: Power supply, 230 VAC<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/n1gb_ne.pdf

<strong>Coriolis Massflowmeter with transmitter<br />
MODEL: TME-S95-206R-0-R-1-0-0-0-UCMC4-B11A21<br />
BRAND: KOBOLD</strong><br />
[TME-S95] Coriolis Massflowmeter with transmitter UMC4<br />
[206R] Process connection: flange 2" Class 150 RF<br />
[0] heating/cooling element: without<br />
[R] Flow direction: right to left<br />
[1] Sensor: integrated transmitter up to 100 °C<br />
[A] Approvals: without<br />
[0] Certificates: without<br />
[0] Special versión: without<br />
[UCMC4] Transmitter IP65, Aluminium painted, display cover out of safety class<br />
[B] Mounting of transmitter, integrated, M 20x1,5<br />
[1] Display/Interface board, integrated in transmitter housing, max.60°C<br />
[1] Power supply, 90-265 VAC, 50/60 Hz<br />
[A] Output, 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA, pulse/status output passive<br />
[2] Approvals, II(1)2G EEx d [ia Ga] IIC T3-T4 Gb up to 60°C<br />
[1] Ignition protection signal output, EEx ia<br />
Operating principle: Coriolis<br />
Mounting position: all directions<br />
Display:LCD Display<br />
max. medium temperature 180 °C<br />
Material: stainless steel<br />
Protection class: IP 65<br />
Measuring range:0-30000 kg/h

Pressure sensor with ceramik sensor element<br />
MODELO: SEN-8600-C515-N<br />
BRAND: KOBOLD<br />
[SEN-86] Pressure sensor with ceramik sensor element<br />
[0] Electr. Connection: DIN plug form A<br />
[0] Accuracy: 0,5 % of FS<br />
[C515] Measuring range: -1 a 1.5 bar<br />
Version: with internal sensor<br />
Pressure type: relative pressure<br />
Accuracy: 0,5 %/1 % of FS<br />
measuring principle: thick film<br />
Medium temperature: -40..+85 °C<br />
Pressure conn. :st. Steel 1.4301<br />
Thread NPT 1/2 male <br />
Power supply 15-32 VDC<br />
Electr. connection DIN plug form A<br />
Protection IP 65

Low Volume Flowmeter<br />
Model: KFR-4141-N0<br />
Brand: Kobold<br />
KFR-41:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165,1 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, brass<br />
Connection size, 1/8 NPT female on rear<br />
Seal, NBR<br />
42: Measuring range, 2...20 L/min air<br />
Options:<br />
N0: Needle valve<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/es/s1es_kfr.pdf

Low Volume Flowmeter<br />
Model: KFR-41-41-N0<br />
Brand: Kobold<br />
[KFR-41]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, brass<br />
Connection size, 1/8 NPT female on rear<br />
Seal, NBR<br />
[41]: Measuring range, 1...10 L/min air<br />
[N0]: Options, Needle valve

Bypass-Level Indicators with glass tube SZM-K21A4G10<br />
MODELO: SZM-K21A4G10<br />
[SZM-K] Bypass-Level Indicators with glass tube<br />
[2] Version (top/bottom): top: closed, bottom: cleaning hole<br />
[1] Valves: 2 shut off valves in connection<br />
[A4] Connection:  loose flange ANSI B16.5 1/2" 150 lbs<br />
[G1] Length of sclae: 2280 mm, Plastic foil on meas. tube (2 mm-division).<br />
[0] Limit switch: without<br />
Bypass- tube: Borosilicate glass<br />
O-ring:  FPM<br />
Protecting tube: st.steel 1.4301<br />
Connection: st.steel 1.4301<br />
Max. temperature:  100 °C<br />
Max. pressure 10 bar<br />
Installation length: 2400 mm<br /><br />
Ficha Técnica: <br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/n2gb_szm.pdf

<strong>Bimetallic Thermometers<br />
Brand: Kobold<br />
Model: TBE-2-3-C20-9A-8-R10-C01</strong><br />
<br />
[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom <br />
Probe st.st.<br />
Process connection, AISI 316 St. St.<br />
Welding, AISI 304 St. St. TIG<br />
Case, AISI 304 St. St. <br />
Ring, AISI 304 St. St. bayonet lock<br />
Min. order quantity 5 pieces per order<br />
[3]: Diameter, 150mm<br />
[C20]: Measuring Range, Scale °C, ranges 0-200°C<br />
bulb length (150 mm),<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT <br />
[8]:Bulb diameter/-length, 8 mm <br />
[R10]: Options, Glycerine filling (max. 160 °C) IP 67<br />
[C01]: Options, Calibration report

Bimetallic Thermometers<br />
MODEL: TBE-2-3-C20-9A-6-E65-C01<br />
BRAND: KOBOLD<br />
TBE-2:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
3: Diameter, 150 mm<br />
C20: Measuring Range, Scale °C, ranges acc. data sheet (0-200°C)<br />
9A: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
6: Bulb diameter/-length, 6 mm / 280 mm<br />
Options:<br />
E65: Protection degree IP 65 (without filling)<br />
C01: Calibration report<br />

Calorimetric Flow Switch<br />
MODEL: KAL-D54-15-N-ST3<br />
BRAND. KOBOLD (USA)<br />
KAL-D54:<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED und LED-chain<br />
max. temperature, 80 °C<br />
max. pressure, 40 bar<br />
Protection class, IP 65<br />
Sensor material st.st., st.st. 1.4404<br />
Connection thread, NPT<br />
15: Connection: 1/2 NPT<br />
N: Contact type, NPN-N/O<br />
ST3: Electron. connection, Circ. plug conn. M12x1 24 VDC<br />
***************************************************************************<br />
Datasheet: http://koboldusa.com/sites/default/files/product_files/Thermal-flow-switch-KAL-D-datasheet.pdf

Low Volume Flowmeter<br />
MODEL: KFR-22-18-00<br />
Brand: KOBOLD (Alemania)<br />
Air measuring range (at 1 bar abs., 20 °C): 10...100 NL/min air<br />
Float material: St. steel    <br />
Max. pressure: 6,5 bar<br />
Max. temperature: 65 °C<br />
Body material: Acrylic, Seal: FPM<br />
Connection: NPT female at the back; stainless steel.<br />


Viscosity Compensated  Flowmeter/-switch. Range oil, 0.5...18 GPM. Connection, 1" NPT. Contact, SPDT. Switch point adjustable.<br /><br />
Viscosity Compensated Flowmeter and Switch<br />
MODEL: VKG-7110-B-U<br />
MARCA: KOBOLD USA<br />
Range oil: 0.5...18 GPM<br />
Suffix "B": 1" NPT<br />
Suffix "U" SPDT (upgrade)<br />
Datasheet:<br />
http://koboldusa.com/sites/default/files/product_files/VKG_datasheet.pdf

Oval Gear Flow Meter/Counter<br />
Model: DOM-A-20H-N4-1-Z3-0<br />
Brand: Kobold<br />
[DOM-A] Oval Gear Flow Meter/Counter<br />
[20H] Measuring range: 1-40 L/min<br />
[N4] Mech. Connection: NPT 1/2 for meas. range 20H<br />
[1] Seal: FPM (Standard)<br />
[Z3] Electronic: Z3 electronic LCD totaliser, rate, outputs: 4-20 mA, alarm, pulse (ZOD-Z3)<br />
[0] Accessory: Without<br />
Operating principle: Gear Wheel <br />
Mounting position:horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature:120 °C<br />
max. pressure: 12...68 bar <br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401 <br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

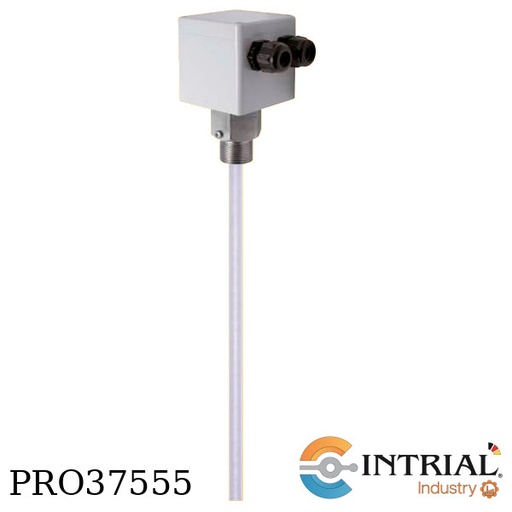

CAPACITIVE LEVEL METER FOR LIQUIDS<br />
Brand: Kobold<br />
MODEL: NMC-N-1-2-G6-0-3<br />
[NMC-N] Capacitive Level Meter for Liquids<br />
[1] Probe length: 0.40m<br />
[2] Material connection: st.st. 1.4305<br />
[G6] Connection: G 1 male<br />
[0] ATEX: without<br />
[3] Power supply: 12...35 VDC<br />
Probe version: 1-probe<br />
Version: standard<br />
Connection material: st.st. 1.4305<br />
Probe material: PTFE <br />
Max. Temperature: 90 ºC<br />
Max. Pressure: 30bar<br />
Media DC-value: εr = min. 1.5<br />
Output: 4-20 mA<br />
Display: 4-lines LCD, alphanumeric (% and mA)<br />
Housing: Polycarbonate<br />
Protection: IP65

<div>FLOW SWITCH WITH PADDLE AND BELLOWS<br />
MODEL: DWN-25-F25-0-R-T-0<br />
BRAND: KOBOLD</div>

<div>DWN-2: <br />
 Operating principle, paddle-bellow<br />
 Indication, w/o<br />
 Flow direction, in direction of the arrow<br />
 Output, 1 microswitch/SPDT, adjustable<br />
 Max. Temperature, 100 °C<br />
 Connection, flange<br />
5: Material combination, brass<br />
F25: Connection, flange DN 25<br />
0: Signal lamp, 230 VAC<br />
R: Flow direction, from right to left<br />
T: Mounting pos. of indicat., above pipe<br />
0: Options, w/o option<br />
Datasheet:</div>

<div>http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_dwn.pdf</div>

Oval Gear Flow Meter/Counte<br />
MODEL: DOM-S-35H-B9-1-Z4-S<br />
BRAND: KOBOLD<br />
[DOM-S] Oval Gear Flow Meter/Counter<br />
[35H] Measuring range: 30-450 L/min<br />
[B9] ANSI flange 2" 300 lbs for range 35H and 40H<br />
[1] Seal, FPM (Standard)<br />
[Z4] Electronic: Z3 (LCD totaliser with rate, 4-20mA) electronic with ATEX approval (Exi)<br />
[S] Accessory, Special gear wheels for viscosity > 1000 cP for range 35H<br />
Operating principle: Gear Wheel<br />
Mounting position:horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature:120 °C<br />
max. pressure: 12...68 bar<br />
Accuracy: ±0,5 % ...1 % of reading<br />
Housing material:st. st. 1.4401<br />
Rotor material: st. st. 1.4401<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

PRESSURE SENSOR STANDARD <br />
MODELO: SEN-3297-B025-F-3<br />
[SEN-3297] Pressure sensor for standard application<br />
Output/ power supply: 4....20 mA (8-30 VDC), standard: ohne<br />
[B025] Measuring range: 0...1 bar<br />
[F] Mech. Connection: 1/2 NPT, male<br />
[3] Plug M12x1 (4-pin, IP67) <br />
Version:  with internal sensor<br />
Pressure type:  relative pressure<br />
Accuracy class: 1,0<br />
Medium temperature: -30..+100 °C<br />
Pressure conn:. st. Steel 1.4404<br />
Electr. Connection: see below<br />
Protection: IP 65 (IP 67)<br />
measuring principle: piezoresistive

Liquid Level Switches<br />
Brand: Kobold (Alemania)<br />
Model: NWS-N20-2E-F-0070<br />
[NWS]:<br />
Material, st. steel<br />
Max. Pressure, 45 bar<br />
Max. Temperature, 90°C<br />
CIP-Cleaning, 150°C<br />
Power supply VDC or VAC, 24 – 240<br />
Protection, IP68<br />
[N20] Connection, 3/4 NPT<br />
[2E] Power supply, namur agreement with ATEX-approval<br />
[F] Electrical connection, 1.5 m fixed cable<br />
[0070] Sensor version, short 70 mm

<div>FLOWMETER VARIABLE AREA<br />
MODEL: URM-33-45L-I6-0<br />
BRAND: KOBOLD</div>

<div>URM-33:<br />
 Mounting position, vertical, flow direction from bottom<br />
 Accuracy, Class 4<br />
 Max. Temperature, 65°C<br />
 Max. Pressure, 10 bar<br />
 Material: connection, float / seal/ ring, 1.4301 / NBR / PVC<br />
45L: Range Full Scale*, 50 Nm³/h.<br />
I6: Connection, G1 female<br />
0: Without (W/O)</div>
