PRO12720<br />
•Screw-in resistance thermometer<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
•3-wire, protective tube ø 6 mm,<br />
•Built-in length 50 mm,<br />
•Material stainless steel,<br />
•Clamp thread G1/4",<br />
•Connection head form B, IP68,<br />
•Temperature range: -50 to +400°C,<br />
•According our drawing<br />
•Marca: INTRIAL (Alemania)

Modelo: PRO12719<br />
Screw-in resistance thermometer<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
3-wire, protective tube ø 6 mm, <br />
Built-in length 120 mm, <br />
Material stainless steel, <br />
Clamp thread G1/4", <br />
Temperature range: -50 to +400°C, <br />
According our drawing<br />
Marca: INTRIAL (Alemania)

PRO12718<br />
•Screw-in resistance thermometer<br />
•1 x Pt 100 Ohm DIN EN 60751, class B,<br />
•3-wire, protective tube ø 6 mm,<br />
•Built-in length 170 mm,<br />
•Material stainless steel,<br />
•Clamp thread G1/4",<br />
•Connection head form B, IP68,<br />
•Temperature range: -50 to +400°C,<br />
•Accordingour drawing<br />
•Marca: INTRIAL (Alemania)

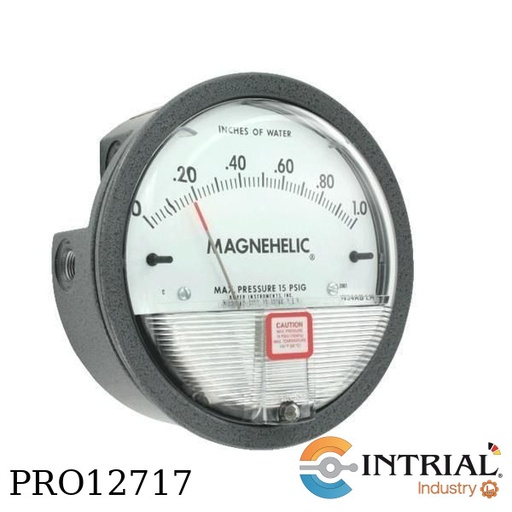

MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL<br />
MARCA: DWYER INSTRUMENTS<br />
Rango:  0 - 0.25 Inch Of water<br />
Conexión: 1/8 NPT hembra<br />
Dial: 4" <br />
Precisión: +/-4%
<div>
<div class="gtx-trans-icon"></div>
</div>

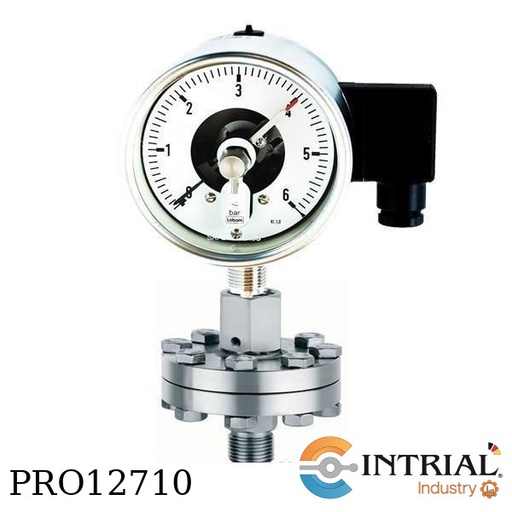

RF100 Ch MK1.1 D402<br />
•    MANÓMETRO TIPO BOURDON CON CONTACTO ELECTRICO<br />
•    Marca: AFRISO(Alemania)<br />
•    Rango: 0 a 6 Bar<br />
•    Diámetro de Carcasa: 4''(100 mm)<br />
•    Precisión: 1.0<br />
•    Material caja /conexión:Acero inoxidable 304/Acero Inoxidable 316<br />
•    Contacto eléctrico: MK1.1<br />
•    Función de conmutación en el sentido de las agujas del reloj<br />
•    Normalmente abierto (NO)<br /><br />
MD30 (31417W)(Hastelloy)<br />
•    SELLO DE DIAFRAGMA MD 30 CON<br />
•    RECUBRIMIENTO EN HASTELLOY<br />
•    Marca: AFRISO (Alemania)<br />
•    Presión Nominal: PN25<br />
•    Conexión a Proceso: ½” NPT<br />
•    Conexión a Instrumento: Conexión Soldada<br />
•    Material del diafragma: Hastelloy<br /><br /><br />

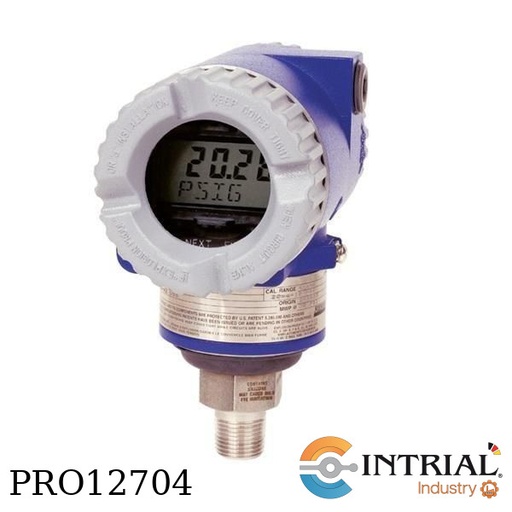

PRESSURE TRANSMITTER<br />
[IGP10] FUNCTION:<br />
Calibrated Range: 0-300 PSI<br />
Measures Pressure And Transmits A Proportional Electrical Signal.<br />
[T] ELECTRONIC VERSION AND OUTPUT SIGNAL:<br />
Intelligent; Digital HART & 4 To 20 mA<br />
[22] STRUCTURE CODE MATERIALS AND TYPE:<br />
316L ss Process Connection, 316L ss Diaphragm, Silicone Fill Fluid<br />
1/2 NPT External & 1/4 NPT Internal Thread Connection Type<br />
[D] SPAN LIMITS:<br />
0.07 & 2.1 MPa, 10 & 300 psi, 0.70 & 21 bar or kg/cm²<br />
[1] CONDUIT CONNECTION & HOUSING MATERIAL:<br />
1/2 NPT Conduit Connection, Both Sides, Aluminum Housing<br />
[F]  ELECTRICAL SAFETY:<br />
FM Intrinsically Safe For Class I, Division 1, Groups A, B, C, & D<br />
Class II, Division 1, Groups E,F, & G; And Class III<br />
Division 1. Also Class I, Division 2, Groups A,B,C, & D; Class II<br />
Groups F & G; And Class III, Division 2<br />
Explosionproof For Class I, Division 1, Groups B,C, & D<br />
Dust-Ignitionproof For Class II, Division 1, Groups E,F,G<br />
And Class III, Div 1. Zone Certified Intrinsically<br />
Safe AEx ia IIC And AEx n IIC.<br />
[M1] OPTIONAL MODEL SUFFIX(ES) INCLUDED:<br />
Painted Steel Mounting Bracket With Plated Steel Bolts<br />
[L1] OPTIONAL MODEL SUFFIX(ES) INCLUDED:<br />
Digital Indicator, Internal Pushbuttons, And Window Cover<br />
[K1] OPTIONAL MODEL SUFFIX(ES) INCLUDED:<br />
Without Instruction Book & CD

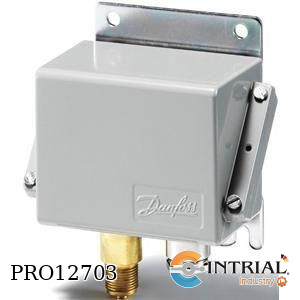

PRESOSTATO KPS 39<br />
Marca: Danfoss,<br />
Procedencia: Polonia,<br />
Modelo: KPS 39(060-310766)<br />
Rango de regulación de presión: 10 a 35 Bar,(145 A 508 PSI) ,<br />
Dif. Presión: 2.0-6 bar, <br />
Material de la cubierta: Aluminio ,<br />
Tipo de contactos: SPDT (1NA + 1NC),<br />
Conexión al proceso: G1/4” (Hembra),<br />
Grado de protección: IP67

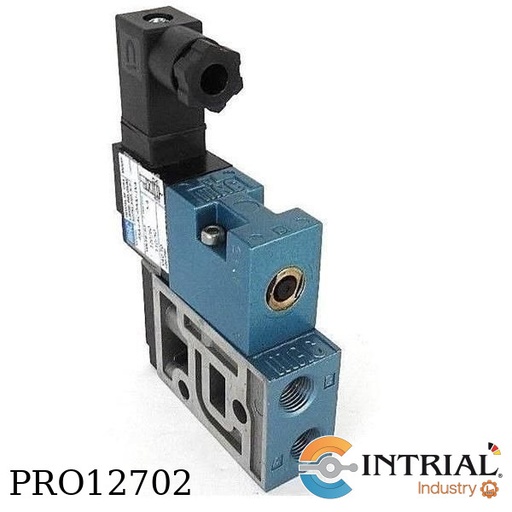

<div><strong>SELENOID VALVE</strong></div>

<div><strong>•<span> </span>Brand: MAC</strong></div>

<div>•<span> </span>Volts: 24 VDC</div>

<div>•<span> </span>Watts: 5.4</div>

<div>•<span> </span>VAC TO 120 PSI</div>

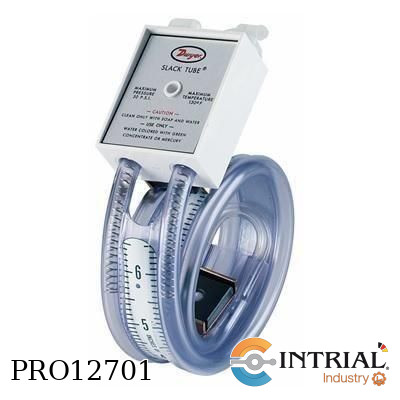

SLACK TUBE® MANOMETERS<br />
Range, In: 18 to 0 to 18<br />
Manometer, range 18-0-18, 17-1/2 oz water<br />
or mercury required.<br />

<div>
<div class="gtx-trans-icon"></div>
</div>

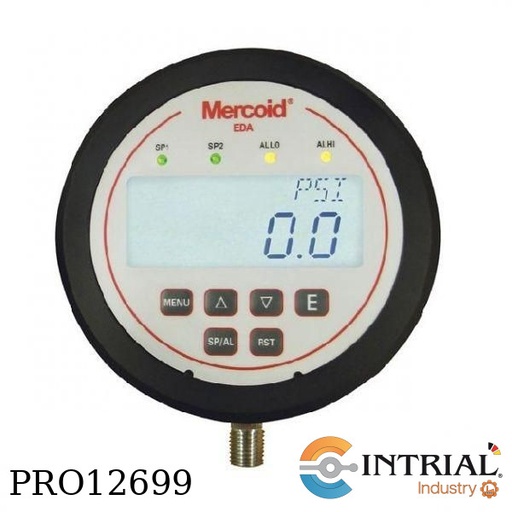

ELECTRONIC PRESSURE CONTROLLER <br />
Brand: DWYER <br />
2 Switches, Indicating Gage, and Transmitter in One Package <br />
EDA:Series <br />
W: Housing: W: Weatherproof <br />
N1: Process Connection: 1/4" NPT male bottom <br />
E1: Electrical Connection: Two 1/2" female NPT conduit connections <br />
10: Range: 0 to 3000 psi (206.8 bar) <br />
T1: Transmitter Output: 4 a 20 mA <br />
Switch Type: 2 SPDT relays.
<div>
<div class="gtx-trans-icon"></div>
</div>

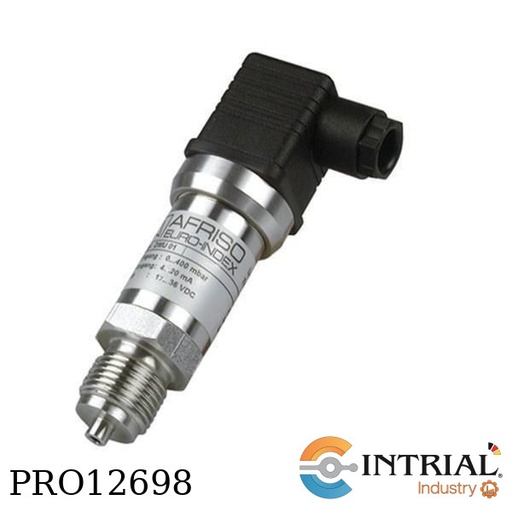

TRANSMISOR DE PRESION<br />
Marca: AFRISO(Alemania)<br />
Principio de Medición: Piezo Resistivo<br />
Precisión: 0.5 % FSO<br />
Partes en contacto: Acero Inoxidable 316<br />
Conexión 1/2” NPT <br />
Salida: 4 a 20 mA,<br />
Conexion Eléctrica: Conector y Caja según ISO 440,43650-A)<br />
Alimentación: 8 a 32 VDC<br />
Rango de 0 a 200 bar

MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL<br />
MARCA: DWYER INSTRUMENTS<br />
Rango:  10 - 0 - 10 Inch Of wáter<br />
Zero center ranges<br />
Conexión: 1/8 NPT hembra<br />
Dial: 4" <br />
Precisión: +/-4%
<div>
<div class="gtx-trans-icon"></div>
</div>

MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL<br />
MARCA: DWYER INSTRUMENTS<br />
Rango:  5 - 0 - 5 Inch Of wáter<br />
Zero center ranges<br />
Conexión: 1/8 NPT hembra<br />
Dial: 4" <br />
Precisión: +/-4%
<div>
<div class="gtx-trans-icon"></div>
</div>

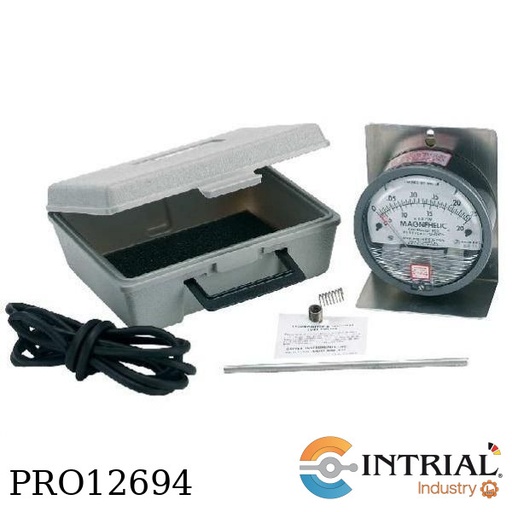

PORTABLE KIT; COMBINE CARRYING CASE <br />
WITH ANY MAGNEHELIC® GAGE OF STANDARD RANGE<br />
Brand: DWYER INSTRUMENTS<br />
except high pressure connection.<br />
Includes 9 ft (2.7 m) of 3/16" ID rubber tubing, standhang<br />
bracket and terminal tube with holder
<div>
<div class="gtx-trans-icon"></div>
</div>

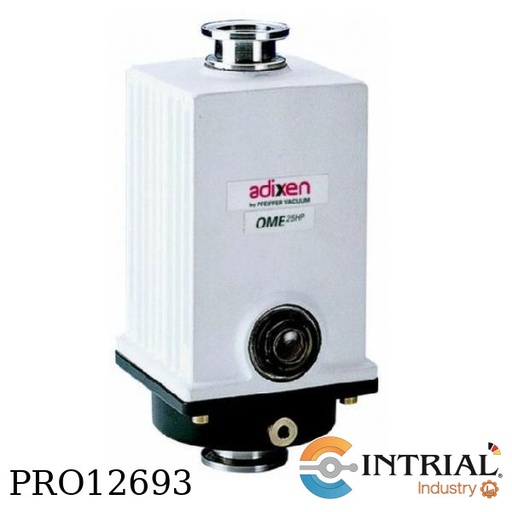

<div><strong>ROCEADOR DE ACEITE DE ALTA PRESION</strong></div>

<div><strong>•<span> </span>Marca: ADIXEN BY PFEIFFER VACUUM</strong></div>

<div>•<span> </span>OME 25 HP</div>

EXPRESS ENCODER<br />
Brand: BEI SESNSORS<br />
Model: XHS35F-100-R2-SS-1024-ABZC-28V/V-SM18<br />
• HS = Hollow Shaft<br />
• 35 = 3.5” Encoder Diameter<br />
• F = HOUSING CONFIG: Standard<br />
• 100 = SHAFT BORE: 1.00”<br />
• R2 = TETHER: Tether Arm<br />
• SS = SHAFT SEAL CONFIGURATION: Through Shaft Rubber Seals<br />
• 1024 0 = CYCLES PER TURN: 1024<br />
• ABZC = NO. OF CHANNELS:<br />
• 28V/V = VOLTAGE/OUTPUT: 5–28Vin/out<br />
• SM18 = OUTPUT TERMINATION: MS3102R18-1P

ULTRA-VIEW™ POLYSULFONE FLOWMETERS<br />
Brand: DWYER<br />
Range: 2.0 to 20.0 (8 to 76 LPM)<br />
High Corrosion - Resistant Body, Dual Scales<br />
Service: Compatible liquids and gases.<br />
Wetted Materials: Polysulfone body and fittings<br />
fluoroelastomer O-rings and virgin PTFE float.<br />
Temperature Limits: 35 to 212°F (2 to 100°C); 35 to 130°F (2 to 54°C) for PVC fitting option.<br />
Pressure Limit: 150 psi (10.34 bar).<br />
Accuracy: ±2% FS @ 70°F ±2°F (21.1°C) and 14.7 psia (in line connection rating only).<br />
Repeatability: ±1% FS @ 70°F ±2°F (21.1°C) and 14.7 psia (in line connection rating only).<br />
Process Connections: 1 female NPT. Optional 90° polysulfone elbow – 1 male NPT.<br />
Scale Length: 6 (152.40 mm) – 7 (177.80 mm), depending on model.<br />
Fitting Torque: Maximum 22 ft - lb.<br />
Weight: 1 lb (457 g) for 20 GPM range.
