Modelo : TC4S-14R<br />
Marca : AUTONICS<br />
Control digital de temp, 4 díg,<br />
W48xH48mm,<br />
Ent TC + Pt100,<br />
Alim 100-240VAC,<br />
Sal SSR,<br />
Relé + 1alarma

Avtron AV685 SMARTach II Encoders<br />
SEVERE MILL DUTY<br />
PART NUMBER: AV685N1E8Y8YC000<br />
Temperature Rating (N):  -20°C to +80°C (Standard)<br />
Tether    (1):  12 inch Threaded Rod Tether (B32809)<br />
Shaft Mounting Style ( E ): Standard (End of Shaft) Mount<br />
Left Module Line Driver     (8): 5-24v in, 5-15v out hi-power standard (4125) differential line driver.<br />
Left Module PPR (Y) 1024 PPR<br />
Right Module Line Driver (8): 5-24v in, 5-15v out hi-power standard (4125)<br />
Right Module PPR (Y): 1024 PPR<br />
Connector Options ( C ): 10 pin MS style w/Plug & Flex Cond. Adapt.<br />
Modifications (000): None

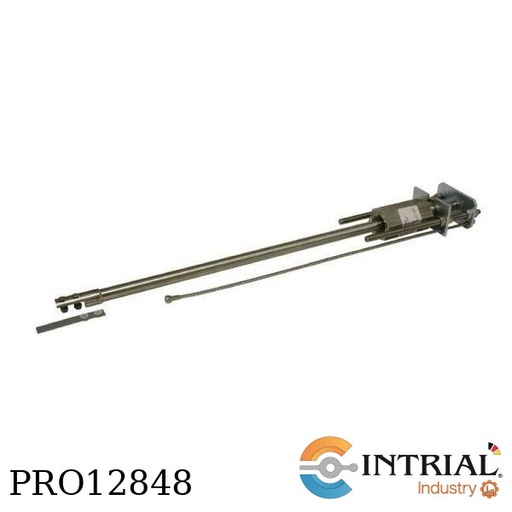

Model 6210 Retractable Coupon Holder for Strip and Scale Coupon<br />
Pressure Rating: 1500 Psi<br />
Temperature Rating: 260 C<br />
Mounting 1” Full Port Valve Minimum<br />
Material 316 S.S.<br />
Complete Coupon Holder Assembly With 1” NPT Stuffing Box<br />
Safety Clamp INCLUDED<br />
Length: 36”

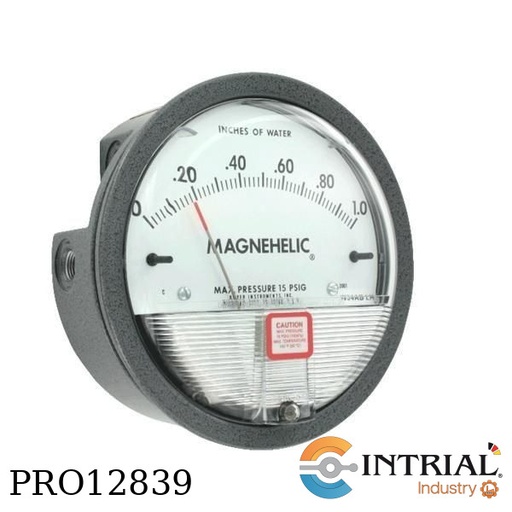

DIFERENTIALPRESSURE GAUGE<br />
Brand: DWYER INSTRUMENTS, INC<br />
Series: MAGNEHELIC<br />
2010D: Range: 0-10" w.c. & 0-2.5 kPa<br />
BUNA: Buna-N Elastomers<br />
IC: Impregnated Case<br />
Process Connections: 1/8" female NPT<br />
duplicate high and low pressure taps - one pair side and one pair back.
<div>
<div class="gtx-trans-icon"></div>
</div>

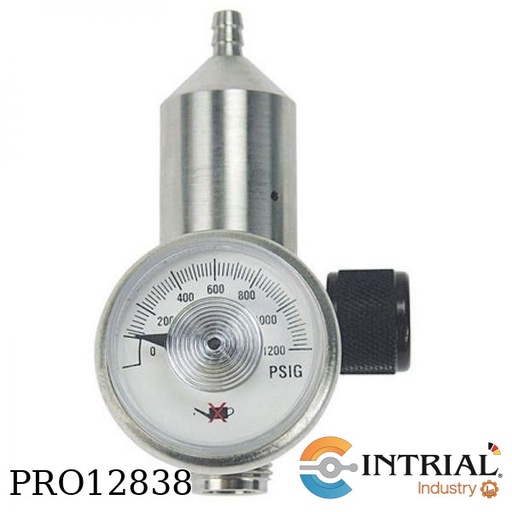

70-SS-0.5 LPM<br />
•    Brand Intrial<br />
•    Valve Inlet: C-10<br />
•    Flow Rate: 0.5 LPM FIXED<br />
•    Gauge PSI: 1500 PSI / 10000 kpa<br />
•    Material: Stainless Steel<br />
•    Fits Cylinder: 34L Aluminum, 58L Aluminum, 74L Aluminum, 116L Aluminum<br />
•    ecosmart™: 44ES Aluminum, 66ES Aluminum

VANE OPERATED FLOW SWITCH<br />
Brand: DYWER<br />
Service: Gases or liquids compatible with wetted materials.<br />
Vane: 316 SS;<br />
Body: 316 SS standard;<br />
Temperature Limit: -4 to 275°F (-20 to135°C) standard,<br />
ATEX and IECEx options,<br />
Ambient temperature -4 to 163°F (-20 to 73°C);<br />
Process temperature -4 to 163°F (-20 to 73°C).<br />
Pressure Limit: 316 SS body 2000 psig (138 bar),<br />
available with 316 SS body and SPDT switch only.<br />
Switch Type: DPDT contact.<br />
Electrical Connections: UL and CSA models: 16AWG,<br />
6"(152 mm) long. ATEX and IECEx unit:Terminal block.<br />
Process Connection: 1 1/2" male NPT.<br />
Mounting Orientation: Within 5° of vertical for proper operation.<br />
Units for horizontal installation (vertical pipe with up flow) available.<br />
Set Point Adjustment: For universal vane: five vane combinations.<br />
Agency Approvals: ATEX, CE, CSA, FM, IECEx, UL<br />
Electrical Rating: UL, FM, ATEX and IECEx models 10A @ 125/250 VAC<br />
Conduit Connection: Incluye adaptador de 3/4" a ½ “ NPT (A-2024-6)<br />
****Instalacion Vertical del equipo para tuberia horizontal****

<div>RTD, BEARING SENSOR</div>

<div>•<span> </span>Brand: TYCOELEC</div>

<div>•<span> </span>Platinum</div>

<div>•<span> </span>100 Ohm</div>

CAJA DE 4 CANALES<br />
Marca: WILCOXON<br />
para sensores remotos
<div>
<div class="gtx-trans-icon"></div>
</div>

SENSOR SALIDA LATERAL, PROPOSITO GENERAL<br />
Marca: WILCOXON<br />
case aislado<br />
conector MIL-C-5015 , 100 mv/g<br />
±10% Tolerancia sensibilidad

<div>FLOW MONITOR</div>

<div>SN series</div>

<div>Brand: UFM</div>

Empty DIPA Bottle<br />
0.8 Liter of Capacity<br />
For Sodium Analyzer 2111XP

•    Flow sensor - stainless steel compatible (S1760000)<br />
•    Brand: (Servomex)

•    Oxygen sensor assembly, with 357 cell  (01160702)<br />
•    Brand: (Servomex)

•    Measuring cell, corrosive and/or high pressure use  (00357000)<br />
•    Brand: (Servomex)

THERMOWELL AC. INOXIDABLE SS316<br />
Marca: INTRIAL<br />
Largo del bulbo 340 mm<br />
Conexion a instrumento: 1/2" G<br />
Conexion a proceso: 1'' NPT

FTh 160 Ch D442 (64375442)<br />
TERMÓMETROS CON GAS PARA APLICACIONES QUÍMICAS<br />
•    Marca: AFRISO (Alemania)<br />
•    Vivienda Ø: 6''(160 mm)<br />
•    Carcasa: acero inoxidable 304 con bisel de ventana de cristal instrumento de calidad de tipo bayoneta,<br />
•    Vástago: Acero inoxidable 321,<br />
•    Diámetro bulbo:10 mm<br />
•    Relleno: relleno de gas a presión<br />
•    Rango: 0 a 120 º C<br />
•    Grado de protección: IP65<br />
•    Precisión: Clase 1 según EN 13190<br />
•    Montaje: Soporte de Pared<br /><br />
64527(3)<br />
•    Longitud del bulbo Termómetro: 340 mm + Hilo<br /><br />
64464(2)<br />
•    TUBO CAPILAR: ACERO INOXIDABLE 316<br />
•    3 metros<br /><br />
64460<br />
•    Conexión Termómetro Fija Macho: G½B

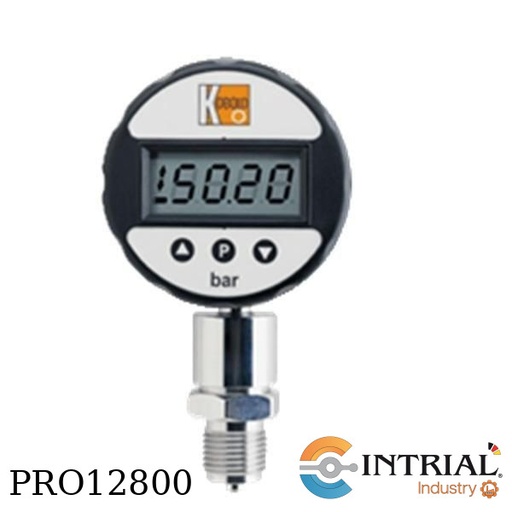

<strong>Digital manometer<br />
Brand: Kobold (Alemania)<br />
Model: MAN-SD1-S5-C5-0-C</strong><br />
[MAN-SD1]<br />
Output: w/o<br />
Accuracy class: 0,5<br />
Diameter: 74 mm<br />
Housing: Glass fibre reinforced PA<br />
MIN/MAX memory: MIN or MAX<br />
Power supply: Battery, 9V battery<br />
Medium temperature: -30..+85 °C<br />
Protection : IP65<br />
[S5] Connection , G 1/4<br />
[C5] Measuring range , 0...400 bar<br />
[0] Electrical connection , without<br />
[C] Automatic disconnecting time, 8 Minutes (Standard for MAN-SD1)
