AV38CB4C2<br />
AV38 (Local Monitor Controller)<br />
• 02 Analog Output 4-20mA<br />
• 02 Form “C” Relay (1 amp with NO and NC) for Control, Alarm, Wash<br />
• Mounting: 1/4 DIN NEMA 4X Wall Mount Enclosure<br />
• Modbus RTU communication (For sensor)<br />
• Power: 100 to 240 VAC<br />
• Approvals: Meet s CE requirements<br />
Please read Datasheet for more information attached to this Quote

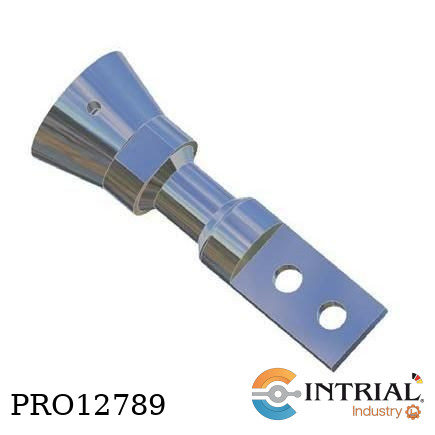

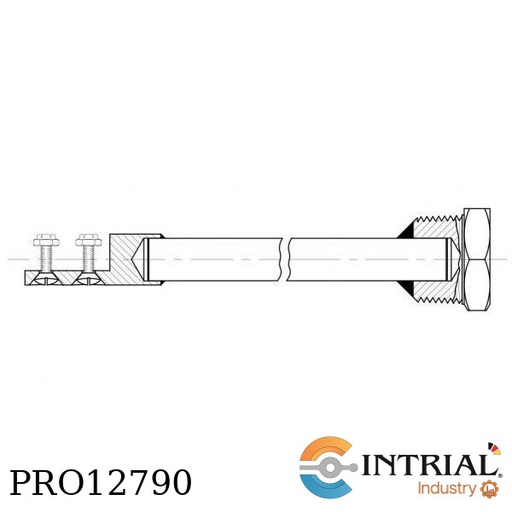

Strip Coupon Holder<br />
* AISI 316 Stailess Steel<br />
* Lenght: 6.25"

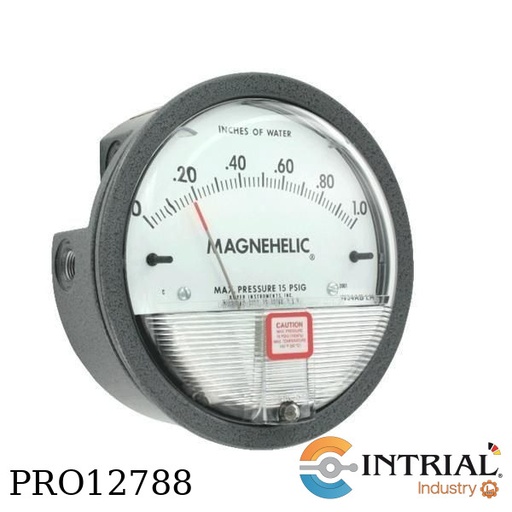

MAGNEHELIC DIFFERENTIAL PRESSURE GAGES<br />
Marca: DWYER INSTRUMENTS<br />
Model: 2002<br />
Rango: 0 - 2 " de agua<br />
Conexión: 1/8 NPT hembra<br />
Dial: 4"<br />
Precisión: +/-4%
<div>
<div class="gtx-trans-icon"></div>
</div>

Modelo: 096-3480-01 + 096-3473-56<br />
///Medidor/Detector de Gases Combustibles (LEL), Versión Compacta///<br />
Especificaciones Exactas del modelo cotizado<br />
///096-3480-01///: ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END<br />
CAP (Transmisor Universal que se puede usar para todo tipo de Sensores)<br />
///096-3473-56///: ///MERIDIAN COMBUSTIBLE INFRARED SENSOR(Sensor de<br />
Combustible Infraroja, de larga vida Útil///<br />
Rango de medición: ///0 – 100 % LEL///(AUTO-AJUSTABLE)<br />
Material de la carcasa: ///Aluminio libre de cobre///<br />
Voltaje de servicio 3/4 hilos: /// 10-30 VCC (24 VCC nominal)///<br />
Protección de la carcasa NEMA 4X, IP66<br />
Alarmas: 3 alarmas programables con inicio y reseteo (banda muerta ajustable);<br /><br />
MERIDIAN COMBUSTIBLE INFRARED SENSOR, <br />
///096-3473-56///: ///MERIDIAN COMBUSTIBLE INFRARED SENSOR(Sensor de<br />
Combustible Infraroja, de larga vida Útil///<br />
Rango de medición: ///0 – 100 % LEL///(AUTO-AJUSTABLE)<br /><br />
Hoja técnica :<br />
https://app.box.com/s/bbkinwyle85zmed6hvgwuv169yd0ypf4

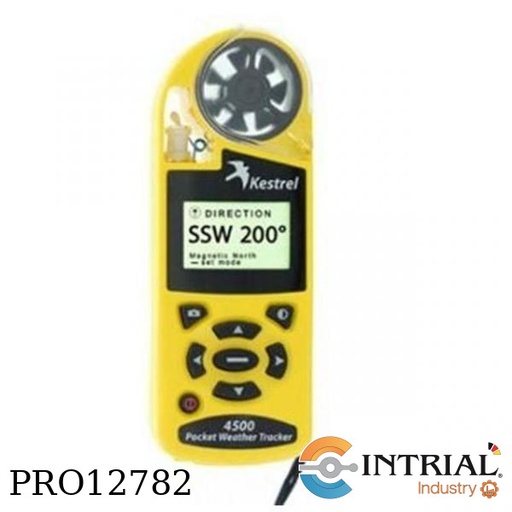

<div>MEDIDOR AMBIENTAL PORTATIL </div>

<div>•<span> </span>Marca: KESTREL</div>

<div>•<span> </span>(Mide velocidad y dirección del aire;temperatura)</div>

<span class="VIiyi" lang="es" xml:lang="es"><span class="JLqJ4b ChMk0b"><span>MEDIDOR DE FLUJO</span></span><br />
<span class="JLqJ4b ChMk0b"><span>Marca: DWYER INSTRUMENTS</span></span><span class="JLqJ4b"><span> </span></span><br />
<span class="JLqJ4b ChMk0b"><span>ALCANCE 0.6-5 LPM AIRE<br />
CON</span></span><span class="JLqJ4b"><span> </span></span><span class="JLqJ4b ChMk0b"><span>VALVULA ACERO INOXIDABLE</span></span><span class="JLqJ4b"><span> </span></span><br />
<span class="JLqJ4b ChMk0b"><span>Precisión: VFA = 5% de FS</span></span></span>
<div>
<div class="gtx-trans-icon"></div>
</div>

Mounting Clamp<br />
* Corrosion proof quick disconect Mountign braket<br />
* For Resin Colum RC-100<br />
* Brand: SENTRY

CONTROLLER, TEMPERATURE, 4 RELAY UNIV<br />
BRAND: CAREL<br />
THERMOCOUPLE TYPE:J, K; OPERATING<br />
TEMPERATURE MAX:55 C; OPERATING<br />
TEMPERATURE MIN:-10 C; TEMPERATURE

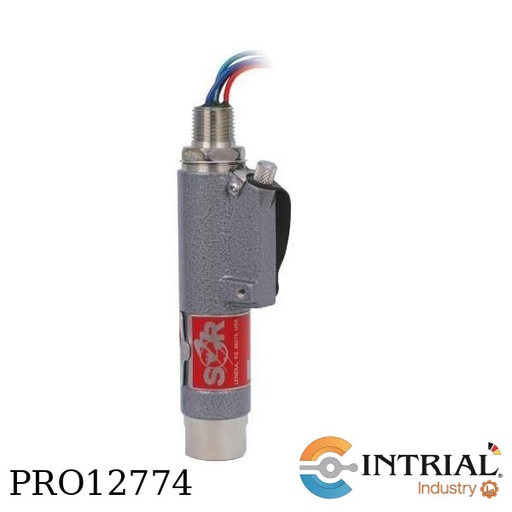

SWITCH DE PRESION MINI-HERMET<br />
Marca: SOR<br />
Modelo: 9AG-EF5-U8-C2A-TBTTC4<br />
RANGE: 200-1000 PSI<br />
OVERRANGE: 2500 PSI<br />
PROOF: 6000 PSI<br />
ELECTRICAL RATING: 5 AMPS  250 VAC, 5 AMPS 30 VDC<br />
9 = NO. 9 PISTON<br />
AG = EXPLOSION PROOF/WEATHERTIGHT HOUSING,<br />
ALUMINUM, 1/2 IN. NPT (M) CONDUIT WITH WIRE<br />
LEADS, IP66<br />
EF = SPDT, DEAD BAND FIXED, HERMETICALLY<br />
SEALED/EXPLOSION PROOF/WEATHERTIGHT<br />
SWITCH HOUSING, CLASS 1, GRPS. A, B, C, D,<br />
DIV. 1&2, UL LISTED/CSA CERTIFIED<br />
5 = NO. 5 SPRING<br />
U8 = WELDED FIRESAFE ASSEMBLY (MATCHES<br />
PRESSURE PORT MATERIAL) FM APPROVED<br />
C = 316/316LSST PROCESS CONNECTION<br />
2A = 1/2 INCH NPT (F)<br />
TB = EXPLOSION PROOF/WEATHERTIGHT JUNCTION<br />
BOX ALUMINUM, 3/4 INCH NPT(F) CONDUIT<br />
CONNECTION<br />
TT = STAINLESS TAG PERMANENTLY ATTACHED TO<br />
HOUSING<br />
C4 = CERTIFICATE OF COMPLIANCE/ CONFORMANCE

<div>MEDIDOR DE CAUDAL TIPO DESPLAZAMIENTO POSITIVO<br />
MODELO: JVA-90KL+BC80100+RT-30SD-D11+AWSW<br />
JVA-90KL FLOWMETER</div>

<div>•<span> </span>Brand: AW LAKE</div>

<div>•<span> </span>Meter Type: Positive Displacement</div>

<div>•<span> </span>Flow Range: 1.0-120 GPM</div>

<div>•<span> </span>Body Material: Aluminum</div>

<div>•<span> </span>Ports: 1-1/4" Bottom Port (Not Threaded)</div>

<div>•<span> </span>Pressure Rating: 5000 PSI Max</div>

<div>•<span> </span>Filtration Recommended: 200 Micron</div>

<div>•<span> </span>PTFE Seal</div>

<div></div>

<div>BC80100</div>

<div>•<span> </span>AW NPT-JVM-90 90DEGREE NPTF</div>

<div>•<span> </span>90 Degree 1.25” Code 62 Flange</div>

<div>•<span> </span>Mounting Bolts Included</div>

<div></div>

<div>RT-30SD-D11</div>

<div>•<span> </span>BRAND: AW LAKE</div>

<div>•<span> </span>Flow Transmitter with Local Display</div>

<div>•<span> </span>Dual Access Enclosure</div>

<div>•<span> </span>Displays both Rate / Total</div>

<div>•<span> </span>Analog Output / Pulse Output</div>

<div>•<span> </span>9 – 24 VDC Powered</div>

<div>•<span> </span>Integral MAG-PB Single Hall Effect</div>

<div>•<span> </span>Sourcing Sensor </div>

<div></div>

<div>AW SW-JV80G1</div>

<div>•<span> </span>Swivel Sensor Mounting Adaptor for JV-KL </div>

<div>•<span> </span>Series Positive Displacement Meters</div>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;">Model: H307-57-K (117079103)<br />
Stromteiler H307-57-K (117079103)<br />
6-section high pressure flow divider<br />
Max inlet flow: 240 l/min<br />
Max working pressure continuous: 240 bar<br />
with adapter for inductive sensor<br />
One inlet port closed<br />
Including mounting feet<br />
Net weight 27,8/each piece</p>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"></p>

<p></p>

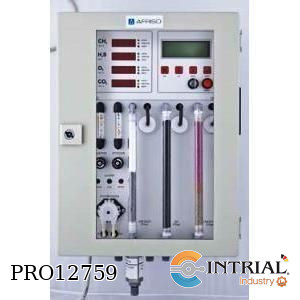

-Keypad completely with power switch and key switch for Biolyzer<br />
-Brand: AFRISO

COMPACT LOW DIFFERENTIAL PRESSURE SWITCH<br />
Brand: DWYER<br />
Range 0.07-0.15" w.c.<br />
Deadband @ min. set point 0.04<br />
Service: Air and non-combustible,compatible gases.<br />
Temperature Limits: -30 to 180°F (-34 to 82.2°C).<br />
Pressure Limits: 45 in w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge.<br />
Switch Type: Single-pole double-throw (SPDT).<br />
Repeatability: ±3%.<br />
Electrical Rating: 15 A @ 120-480 VAC,60 Hz. Resistive 1/8 HP @125 VAC, 1/4HP @ 250 VAC, 60 Hz. Derate to 10 A<br />
For operation at high cycle rates.<br />
Electrical Connections: 3 screw type,<br />
common, normally open and normally closed.<br />
Process Connections: 1/8" female NPT.<br />
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.<br />
Set Point Adjustment: Screw type inside conduit enclosure.<br />
Weight: 1 lb 4.5 oz (581 g).<br />
Agency Approvals: CE, CSA, FM,and UL. Optional-EXPL explosion-proof<br />
enclosure does not possess any agency approvals.

FLUJOMETRO EN POLICARBONATO<br />
Marca: DWYER<br />
RMB 5" escala<br />
Con  válvula de acero inoxidable<br />
52: Rango:  4 a 50 SCFH Air<br />
Proceso de conexión: 1/4"<br />
Precision: 3%<br />
Límite de temperatura: 130°F (54°C)<br />
Límite de presión: 100 psi (6,9 bar)<br />
Materiales en contacto: Cuerpo: en policarbonato<br />
O-ring: neopreno y buna-N<br />
Piezas de metal: Acero Inoxidable<br />
Flotador: Acero Inoxidable

VISI-FLOAT® ACRYLIC FLOWMETERS<br />
Brand: DWYER<br />
131: Range:  100 a 700 LPM AIR<br />
Process Connection: 1” FNPT – Back<br />
Service: Compatible gases & liquids.<br />
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available);<br />
Metal parts: SS; Float: SS.<br />
Fittings: VFC: PVC<br />
Temperature & Pressure Limits: 100 psig (6.9 bar) @ 120°F (48°C).<br />
Accuracy: 2% of FS.<br />
Scale Length: 5" typical length.<br />
Mounting Orientation: Mount in vertical position.

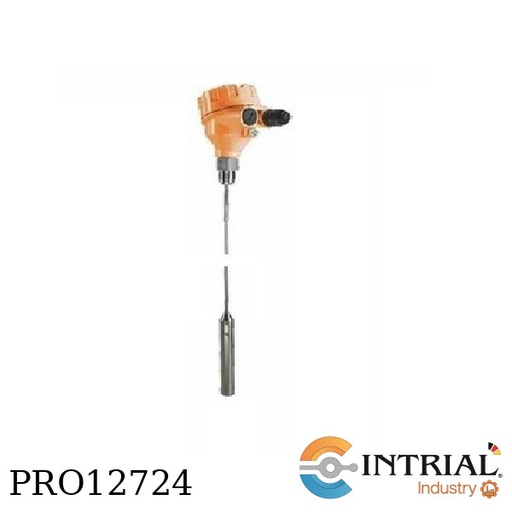

GUIDED WAVE RADAR LEVEL TRANSMITTER<br />
Brand: KOBOLD<br />
Material(Probe/O-ring): 200 = stainless steel, PEEK/without O-ring<br />
Connection, 1½" ASME B16.5 CL150, 1.4404/316L<br />
Output, 4-20 mA, PNP, ATEX version<br />
Lenght probe: 3000 mm<br />
Supply voltage: 12-30 VDC<br />
Output: 4-20 mA

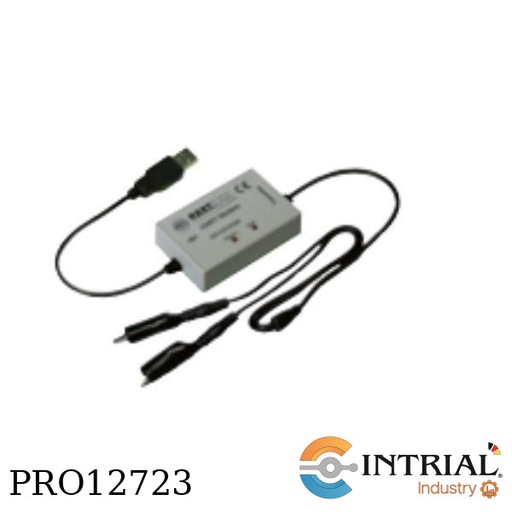

Accessories NGM<br />
Model: NGM-HART<br />
Brand: Kobold <br />
HART®-Modem
<div>
<div class="gtx-trans-icon"></div>
</div>

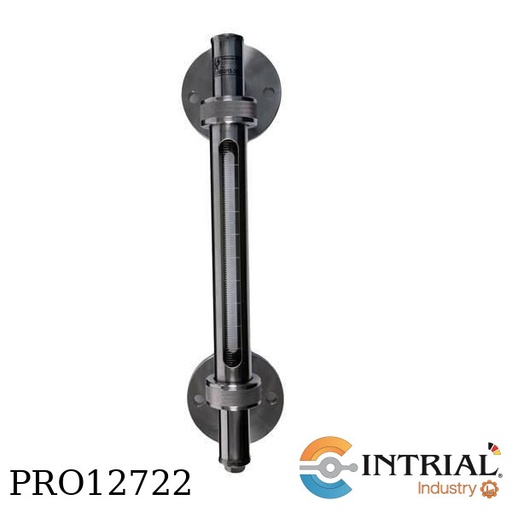

BYPASS-LEVEL INDICATORS WITH GLASS TUBE<br />
BRAND: KOBOLD<br />
Protecting tube: st. steel 1.4301<br />
Connection: st. steel 1.4301<br />
Max. temperature:  100 °C<br />
Max. pressure 10 bar<br />
Installation length:  25 ½”<br />
Version: top: closed, bottom: outlet screw<br />
Connection: union nut 1/2" NPT male

MODELO : LGO LINDBERG/BLUE<br />
MARCA : THERMO SCIENTIFIC<br />
CODIGO : BF51732PBFMC-1<br /><br />
Especificaciones:<br />
• Temperatura mínima:  100 ° C / 212 ° F<br />
• Temperatura máxima:  1200 ° C / 2192 ° F<br />
• Capacidad: 0.6 cu. ft / 16.4 L<br />
• Dimensiones interiores (Ancho x Alto x Profundidad): 11 x 12 x 11 pulgadas / 27,9 x 33,0 x 17• Sistema eléctrico:  208/240V / 20A / 4500W<br />
• Construcción de  la puerta: Puerta de elevación vertical<br />
• Control de Temperatura:  Digital Multi Seg / Multi Prog /OTC/ FM<br />
• Rango de temperatura:  100 ° C a 1200 ° C / 212 ° a 2192 ° F<br />
• Hertz:  50/60<br />
• Dimensiones externas (Ancho x Alto x Profundidad):  23 x 24 x 27 "/ 58,4 x 61 x 68,6 cm<br />
• Peso del producto:  165 libras / 75 kg
