Modelo: DMU08(31565)+40m-Cable PUR<br />
Pressure transducers HydroFox (Submergible by Hydrostatic principle)<br />
/////Measuring ranges: 0 to 4 bar (o to 40 mH2O)/////<br />
/////Cable: 40 meters PUR cable(Only for water and not corrosive liquids)////<br />
Operating temperature range<br />
Medium: -10/+70 °C<br />
Ambient: -10/+70 °C<br />
Storage: -25/+70 °C<br />
Temperature error band<br />
In compensated range<br />
0/70 °C ≤ 400 mbar ≤ ± 1 % FSO/10 K<br />
≤ 400 mbar ≤ ± 0.75 % FSO/10 K<br />
Dynamic characteristics<br />
Response time ≤ 10 ms<br />
Materials<br />
Housing: Stainless steel 316 L<br />
Diaphragm: Stainless steel 316 L<br />
Seals: FKM (Viton)<br />
Pressure transmission liquid<br />
Silicone oil<br />
Supply voltage<br />
DC 8–32 V<br />
Output signal<br />
4–20 mA, 2-wire<br />
Load<br />
4–20 mA: Rmax = [(UB – UBmin) / 0.02 A] Ω<br />
Current input<br />
4–20 mA < 25 mA<br />
Electrical protection<br />
Short circuit proof and protected against reverse polarity<br />
Electrical connection (degree of protection)<br />
PUR cable (IP 68)<br />
With integrated breather tube for reference to the<br />
ambient atmospheric pressure<br />
Accessories (options)

<div>100<span> </span>ppm chloride  standard, 1<span> </span>pint<span> </span>(475mL)<span> </span>bottle</div>

<div>Thermo Scientific</div>

Etiqueta HRC 4<br />
Fondo azul<br />
Calidad: Damasco<br />
Medidas: 67mm X 40mm

Etiqueta HRC 3<br />
Fondo azul<br />
Calidad: Damasco<br />
Medidas: 67mm X 40mm

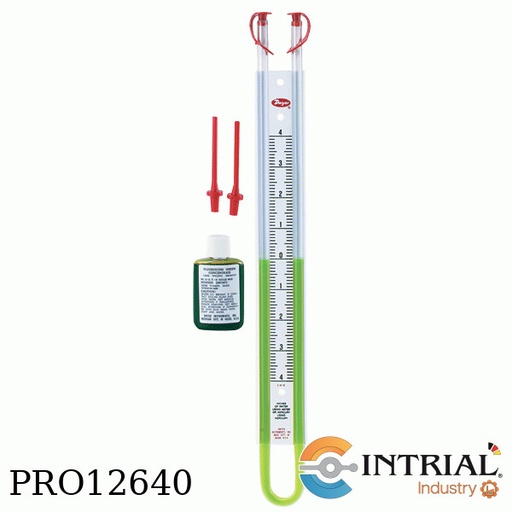

Modelo:1223-36-W/M<br />
U-tube manometer, <br />
range 18-0-18" w.c., <br />
17.3 oz (491.1 g) mercury required to fill. <br />
Series 1221/1222/1223 Flex-Tube® U-Tube Manometer Suitable for Pressures up to 100 psi, <br />
Better Precision<br />
Country Of Origin: United States<br />
Brand: Dwyer<br />
****Incluye Certificado de calibracion****

Corrosometer Probe Cylindrical Element<br />
3500-T20-K03005-24-1-1-0<br />
•    Model 3500 complete probe Assembly with Stuffing Box<br />
•    Mounting 1” Full Port Valve Minimum<br />
•    Temp Rating + 218C; Pressure Rating 1500 Psi<br />
•    Element Seal Material ALL WELDED<br />
•    Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order Length: 24 Inches<br />
•    Safety Clamp INCLUDED<br />
•    Shield Protector: INCLUDED Standard Shield Protector (Liquids 25ft/sec)

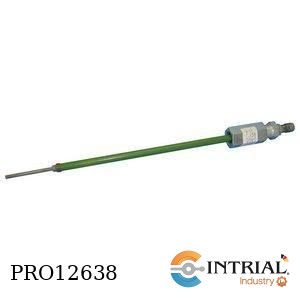

Corrosometer Probe Cylindrical Element<br />
3500-T20-K03005-18-1-1-0<br />
•    Model 3500 complete probe Assembly with Stuffing Box<br />
•    Mounting 1” Full Port Valve Minimum<br />
•    Temp Rating + 218C; Pressure Rating 1500 Psi<br />
•    Element Seal Material ALL WELDED<br />
•    Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order Length: 18 Inches<br />
•    Safety Clamp INCLUDED<br />
•    Shield Protector: INCLUDE Standard Shield Protector (Liquids 25ft/sec)

Marca : AW-LAKE<br />
DH DUAL HALL EFFECT PICKUT DUAL SENSOR WITH X2 RESOLUTION MARCA: AW FLOW METERS

DH DUAL HALL EFFECT PICKUT <br />
DUAL SENSOR WITH X2 RESOLUTION <br />
MARCA: AW FLOW METERS

Encoder OPTICO “Light Mill Duty” INCREMENTAL<br /><br />
PPR (5): 2500 PPR<br />
Line Driver (4): 5-28v In, 5v Out (7272)<br />
Shaft Size (C) : 10mm diameter Shaft, w/Flat<br />
Connector Options (M): 7 pin MS style w/plug, Avtron pinout<br />
Wiring    (E): End Exit<br />
Mounting Style (1): 2.65" Square Flange w/1.25 in. Male Pilot<br />
Face/Bolt Pattern (3): 4 x 4-40 tapped holes on a 2.00 in. B. C.<br />
Seals (A): Shaft Seals (best all around) (male pilot only)<br />
Channels (E): A, B, Z (no complements, marker)<br />
Modifications    (000): No Special Features<br />
Brand: AVTRON

<div>• Screw-in resistance thermometer<br />
• 2 x Pt 100 Ohm DIN EN 60751, class B,<br />
• protective tube ø 9 mm, built-in lenght 150<br />
• mm, thread G1/2", material 1.4571, with<br />
• 35.000 mm connection wire<br />
• PTFE/shield/PTFE (cable no. 16), 6 x 0,22<br />
• mm², 2 x 3-wire, with 6000 mm stainless<br />
• steel hose, with 30 mm free ends,<br />
• temperature range: -50°C to +260°C</div>

<div>• Screw-in resistance thermometer<br />
• 1 x Pt 100 Ohm DIN EN 60751, class B,<br />
• protective tube ø 9 mm, built-in lenght 150<br />
• mm, thread G1/2", material 1.4571, with<br />
• 35.000 mm connection wire PFA/shield/PFA<br />
• (cable no. 13A), 4 x 0,22 mm² 1 Leiter<br />
• abgeschnitten, weiß, 3-wire, with 6000 mm<br />
• stainless steel hose, with 30 mm free ends,<br />
• temperature range: -50°C to +260°C</div>

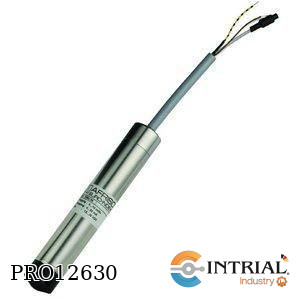

<div>Modelo: DMU08(31560)+10m-Cable PUR</div>

<div>Pressure transducers HydroFox (Submergible by Hydrostatic principle)</div>

<div>/////Measuring ranges: 0 to 600mbar (o to 6 mH2O)/////</div>

<div>/////Cable:<span> </span>10 meters PUR cable(Only for water and not corrosive liquids)////</div>

<div>Operating temperature range</div>

<div>Medium: -10/+70 °C</div>

<div>Ambient: -10/+70 °C</div>

<div>Storage: -25/+70 °C</div>

<div>Temperature error band</div>

<div>In compensated range</div>

<div>0/70 °C < 400 mbar ≤ ± 1 % FSO/10 K</div>

<div>≥ 400 mbar ≤ ± 0.75 % FSO/10 K</div>

<div>Dynamic characteristics</div>

<div>Response time ≤ 10 ms</div>

<div>Materials</div>

<div>Housing: Stainless steel 316 L</div>

<div>Diaphragm: Stainless steel 316 L</div>

<div>Seals: FKM (Viton)</div>

<div>Pressure transmission liquid</div>

<div>Silicone oil</div>

<div>Supply voltaje DC 8–32 V</div>

<div>Output signal 4–20 mA, 2-wire</div>

<div>Load 4–20 mA: Rmax = [(UB – UBmin) / 0.02 A] Ω</div>

<div>Current input 4–20 mA < 25 mA</div>

<div>Electrical protection</div>

<div>Short circuit proof and protected against reverse polarity</div>

<div>Electrical connection (degree of protection)</div>

<div>PUR cable (IP 68)</div>

<div>With integrated breather tube for reference to the ambient atmospheric pressure</div>

<div>Accessories (options)</div>

AQUAPRO (AP1238K)<br />
Multi-Input Intelligent Process Analyzer<br />
* Controls up to 4 parameter with TWO 4-20mA output for each one (Capacity for a total 8 Analog outputs)<br />
* Display all 4 parameter in just one screen<br />
* Temperature measurements for all sensors as STANDARD<br />
**** Channel 1: PH Analog ROSS<br />
**** Channel 2: ORP Analog Plus<br />
**** Channel 3: Conductivity Sensor<br />
**** Channel 4: Turbidity wide range (Data Stick)<br />
* Power Supply 90 to 240 VAC with 3 Relays<br />
More Details see PDF Attached

• Ring thermocouple, <br />
• 1 x type J, <br />
• ring inner-ø6,5 mm,<br />
• material brass, <br />
• with stainless steelsleeve ø 5 x 30 mm, <br />
• mit 2000 mm thermos cable glass silk/stainless steel braided, <br />
• freeends, according your drawing<br />
• part no. 79696030<br />

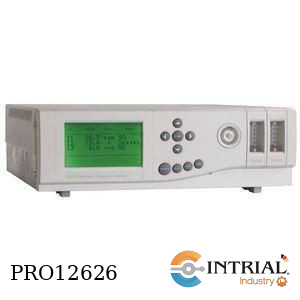

Modelo: 04900C1(500ppmN2O)<br /><br />
•    SERVOPRO 4900 Gas Analyzer<br />
•    · CHASSIS TYPE: Long Chassis (2 long sensor modules)<br />
•    · Long Sensor Modules 1: GFX N2O 0-50/500vpm<br />
•    · Flow Driven GFX for sensor 1<br />
•    · FLOWMETER (LEFT): 2500ml Flowmeter for Module 1<br />
•    INTERNAL SAMPLE FILTER (fitted to front panel), Stream 1<br />
•    · · MOUNTING: Bench Mount, 19" Rack ears only<br />
•    · POWER: EUR 170-264V AC<br /><br />
Opciones: El precio Incluye, la calibración, pues en marcha y arranque del equioo en sus oficinas de Lima

RF100CH,D402(85217402S)(0 a 25 bar/ 0 a 370 psi)<br />
Manometro 4"  Post. Acero (0 - 25 bar/psi)<br />
Marca AFRISO(Alemania),<br />
RANGO : 0 a 25 bar/ 0 a 370 psi <br />
Diámetro de Carcasa, 4''(100mm),<br />
Precisión 1.6(EN 837-1/6),<br />
Temp,eratura operación Max 120°C,<br />
Conexión POSTERIOR,,1/2''NPT,<br />
Material:caja y conección en acero inoxidable 1.4571.,<br />
Con o/sin glicerina,especificar al momento de ordenar

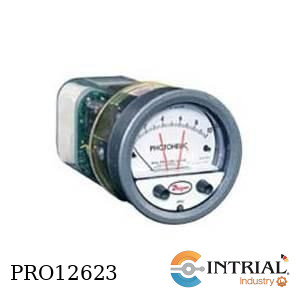

PHOTOHELIC® PRESSURE SWITCH/GAGES <br />
3-in-1 Indicating Gage, Lo-Limit and Hi-Limit Control<br />
Range: 0 a 50 In w.c<br />
Brand: DWYER<br />
GAGE SPECIFICATIONS<br />
Service: Air and non-combustible, compatible gases.<br />
Wetted Materials: Consult factory.<br />
Accuracy: ±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models.<br />
Pressure Limits: -20" Hg to 25 psig (-0.677 to 1.72 bar)<br />
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C)<br />
Process Connections: 1/8" female NPT.<br />
Size: 4" (101.6 mm) dial face, 5" (127 mm) OD x 8-1/4" (209.55 mm).<br />
Weight: 4 lb (1.81 kg).<br />
SWITCH SPECIFICATIONS<br />
Switch Type: Each setpoint has 2 form C relays (DPDT).<br />
Repeatability: ±1% of FS.<br />
Electrical Rating: 10 A @ 28 VDC, 10 A @ 120, 240 VAC.<br />
Electrical Connections: Screw terminals. Use 167°F (75°C) copper conductors only.<br />
Power Requirements: 120 VAC <br />
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.<br />
Set Point Adjustment: Adjustable knobs on face.<br />
Agency Approvals: CE, CSA, U

FLOTECT® VANE OPERATED FLOW SWITCH<br />
Field Adjustable – 1 to 6 Inch Pipe<br />
Leak Proof Body, Chemical Resistance<br />
Brand: DWYER<br />
Service: Compatible gases or liquids.<br />
Wetted Materials: Vane and body: Polyphenylene Sulfide (PPS)<br />
Pin and spring: 316 SS or Inconel®; Magnet: Ceramic 8.<br />
Temperature Limit: 212°F (100°C).<br />
Pressure Limit: 150 psig (10.34 bar).<br />
Enclosure Rating: General purpose, WP/WP2 option is weatherproof.<br />
Switch Type: SPDT snap switch.<br />
Electrical Rating: 5 A @ 125/250 VAC, 5 A resistive, 3 A inductive @ 30 VDC;<br />
MV option: 1 A @ 125 VAC, 1 A resistive, 0.5 A inductive @ 30 VDC.<br />
Electrical Connections: 18 AWG, 18" (460 mm) long.<br />
Conduit Connection: 1/2" male NPT, 1/2" female NPT on WP and WP2.<br />
Process Connection: 1" male NPT.<br />
Mounting Orientation: Actuation/deactuation flow rates are based on horizontal<br />
pipe runs and are nominal values. Unit cannot be used with vertical down flow.<br />
Set Point Adjustment: Vane is trimmable.<br />
Agency Approvals: CE, cURus.<br />
Option.- -WP.- Weatherproof enclosure; optional housing is phenylpolioxide and provides weatherproof protection for electrical wiring; not UL approved

MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL<br />
MARCA: DWYER INSTRUMENTS<br />
Rango:  0 - 6 Inches of water<br />
Conexión: 1/8 NPT hembra<br />
Dial: 4" <br />
Precisión: +/-4%
