Strip Coupon Holder<br />
* AISI 316 Stailess Steel<br />
* Lenght: 4.25"

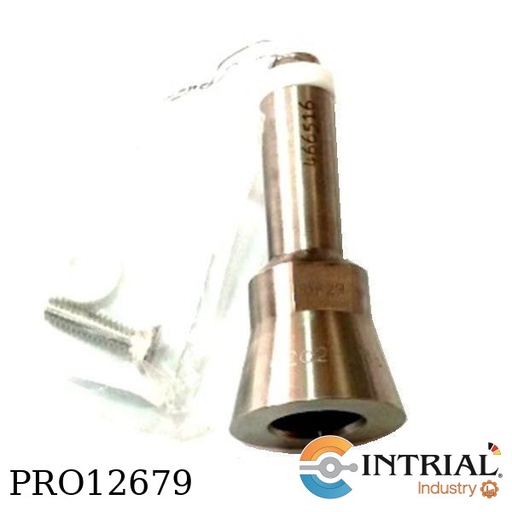

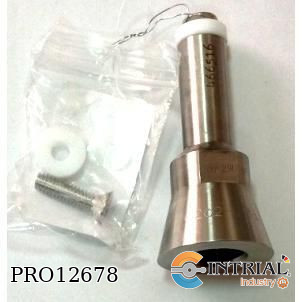

Disc Coupon Holder High Pressure Two Inch System<br />
•    Material: 316 SS.<br />
•    Meets NACE MR0175 and MR0103<br />
•    Length: 2.875”

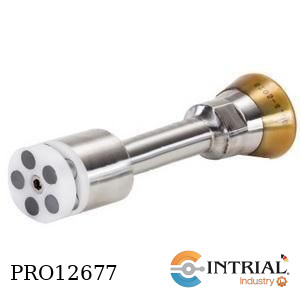

6205-5.0-K03005 (BioProbe)<br />
Used to collect samples of bacteria in oil and gas systems, including refineries, offshore, platforms, pipelines, etc.    <br />
•    Fixed Bio-Probe Assembly<br />
•    Include 5 Sample elements in Carbon Steel for Analysis<br />
•    Body Material 316 S.S.<br />
•    Order Length: 5 inches<br />
•    Element Alloy: K03005 (Carbon Steel)

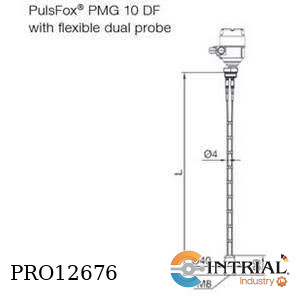

<div>GUIDED MICROPULSE LEVEL INDICATOR WITH FLEXIBLE DUAL PROBE PULSFOX® PMG 10 DF</div>

<div>•<span> </span>Brand: AFRISO (GERMANY)</div>

<div>•<span> </span>Measuring range: Max. 24,000 mm</div>

<div>•<span> </span>Dielectric constant (εr) of medium: ≤ 1.8</div>

<div>•<span> </span>Measuring accuracy</div>

<div>•<span> </span>Better than: ±0.05 % of probe length (min. ±5 mm) in the case of liquids</div>

<div>•<span> </span>±0.2 % of probe length (min. ±20 mm) in the case of powder/solids</div>

<div>•<span> </span>Probe material: Stainless steel 316</div>

<div>•<span> </span>Wetted parts: Stainless steel 316, PTFE, FKM</div>

<div>•<span> </span>53536: Probe type: Dual probe flexible PMG 10 DF </div>

<div>•<span> </span>D: Display and temperature range: With local display and with window, flange temperature max. 90 °C</div>

<div>•<span> </span>A: Housing: Aluminium die cast IP 65 (EN 60529)</div>

<div>•<span> </span>41: Process connection/probe material: 1½ NPT PN 16 / stainless steel 316 / 4 mm</div>

<div>•<span> </span>03000: Probe length (L): 3000 mm</div>

<div>•<span> </span>N: Output signal: 4–20 mA + HART</div>

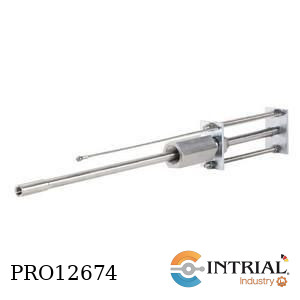

Retractable Injection/Sampling Tube Assembly<br />
• Pressure Rating 1500 Psi<br />
• Mounting 1” Full Port Valve<br />
• Temperature Rating 260 C<br />
• Tube and Adaptor Material: 304 SS<br />
• Stuffing Box: 316 SS<br />
• Seal Material: Teflon<br />
• Order Length: 18 Inches<br />
• Safety Clamp INCLUDED

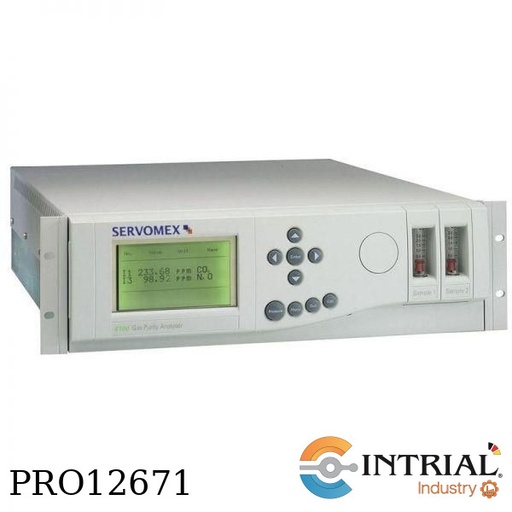

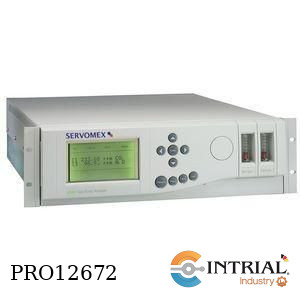

SERVOPRO 4100 Gas Purity Analyser<br />
With the following configuration:<br />
Voltage UK 170-264V 50/60Hz<br />
Background Gas N2<br />
Module 1 Paramagnetic O2 , 0.1% precision for Medical and Industrial Purpose<br />
Sample System Module 1 Flow Driven<br />
Back Pressure Valve Module 1 Not required<br />
Chassis Type short Chassis<br />
Right Flowmeter 500ml/min Fitted to Module 1<br />
Internal Sample Filter Internal Fitted to Module 1<br />
Autocalibration Internal Autocal Pm Module 1<br />
Mounting 19" Rack Mount Ears Only<br />
User Manual Spanish

Modelo : 04100C1(1000ppmCO)-Praxair<br />
·    CHASSIS TYPE: Long Chassis (2 long sensor modules)<br />
·    Long Sensor Modules 1: **Simplified SIPS GFX CO 0-100/1000vpm**<br />
·    Flow Driven GFX for sensor 1<br />
·    FLOWMETER (LEFT): 2500ml Flowmeter for Module 1<br />
·    MOUNTING: Bench Mount, 19" Rack ears only<br />
·    POWER: EUR 170-264V AC<br />
Opciones: El precio Incluye, la calibración, pues en marcha y arranque del equipo en sus oficinas de Lima

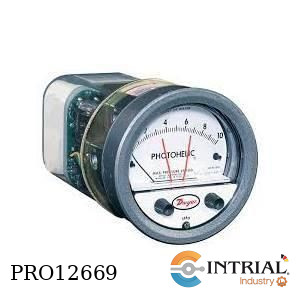

PHOTOHELIC® PRESSURE SWITCH/GAGES <br />
3-in-1 Indicating Gage, Lo-Limit and Hi-Limit Control<br />
Brand: DWYER<br />
GAGE SPECIFICATIONS<br />
Service: Air and non-combustible, compatible gases.<br />
Wetted Materials: Consult factory.<br />
Accuracy: ±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models.<br />
Pressure Limits: -20" Hg to 25 psig (-0.677 to 1.72 bar)<br />
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C)<br />
Process Connections: 1/8" female NPT.<br />
Size: 4" (101.6 mm) dial face, 5" (127 mm) OD x 8-1/4" (209.55 mm).<br />
Weight: 4 lb (1.81 kg).<br />
SWITCH SPECIFICATIONS<br />
Switch Type: Each setpoint has 2 form C relays (DPDT).<br />
Repeatability: ±1% of FS.<br />
Electrical Rating: 10 A @ 28 VDC, 10 A @ 120, 240 VAC.<br />
Electrical Connections: Screw terminals. Use 167°F (75°C) copper conductors only.<br />
Power Requirements: 240 VAC <br />
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.<br />
Set Point Adjustment: Adjustable knobs on face.<br />
Agency Approvals: CE, CSA, U

Sensor: 1 x Pt 100, 2-, 3- o 4-wire, Clase B, IEC 751<br />
Unidad de medida: reemplazable 6mm<br />
Termopozo: Según DIN 43 772 Ø 9 x 1 mm, acero inoxidable 316 Ti<br />
Cuello: Ø 9 x 1 mm, 120 mm de largo, acero inoxidable 316 Ti<br />
Proceso de conexión: G¼B acero inoxidable 316 Ti<br />
Longitud de montaje: 100<br />
Cabeza de conexión: Tipo B según DIN 43729 troquel de aluminio fundido (IP54)<br />
Rango de medición: -35 / + 400 ° C

GAGE SPECIFICATIONS<br />

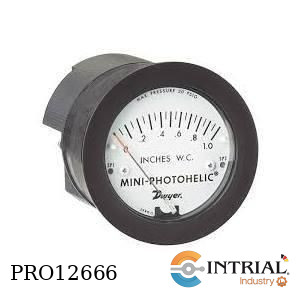

MINI-PHOTOHELIC® DIFFERENTIAL PRESSURE SWITCH/GAGE<br />
Compact, Low Cost Switch Gage<br />
Range: 0-10 Inches of water<br />
Brand: DWYER<br />
Service: Air and non-combustible, compatible gases.<br />
Wetted Materials: Consult factory.<br />
Accuracy: ±5% of FS @ 70ºF (21.1ºC). Gage face mounted in vertical position.<br />
Pressure Limits: 30 psig (2.067 bar).<br />
Temperature Limits: 20 to 120ºF (-6.7 to 49ºC).<br />
Process Connections: Barbed for 3/16" ID tubing (STD); 1/8" male NPT (optional).<br />
Size: 4-1/8" (104.78 mm) depth x 3-1/16" (77.79 mm) diameter.<br />
Weight: 23 oz (652 g).<br />
SWITCH SPECIFICATIONS<br />
Switch Type: (2) SPDT relays.<br />
Electrical Rating: 5 A @ 120/240 VAC resistive; 5 A @ 30 VDC.<br />
Electrical Connections: Screw type terminal block. Accepts 22-12 AWG wire.<br />
Power Requirements: 24 VDC / 24 VAC 50/60 Hz 4 watts.<br />
Mounting Orientation: Gage face in vertical position.<br />
Set Point Adjustment: Push buttons.<br />
Standard Accessories: (2) mounting screws, (1) .050" hex allen wrench.<br />
Agency Approvals: CE, cULus.
<div>
<div class="gtx-trans-icon"></div>
</div>

VARIABLE AREA FLOWMETER<br />
Brand: Kobold – Heinrichs<br />
Thread, NPT 1"(F) <br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
Type of float, Material, Stainless steel 1.4571<br />
Measuring range - stainless steel float with magnet, 95 - 950 l/h<br />
Scale, Measuring range-scale (H2O)

<div>
<div>VARIABLE AREA FLOWMETER.</div>
</div>

<div>Model: V31-60801S-03-E2W-B-F-A-0-5-2-0-0-0-0-0-0-0-K<br />
Brand: Kobold – Heinrichs<br />
[V31]:<br />
[60801S]: Thread, NPT 2"(F) Verschraubung<br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
[03]: Type of float, Material, Stainless steel 1.4571 - with magnet<br />
guide rod 1.4571, without<br />
[E2W]: Measuring range - stainless steel float with magnet, H2O: 480 - 4800 l/h<br />
1000kg/m³, 1mPas<br />
[B]: Gasket, EPDM                  <br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[5]: Electrical output, 2 x K 33i Inductive contact closes on descending float<br />
only available for float with magnet<br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[K]: Make, KOBOLD</div>

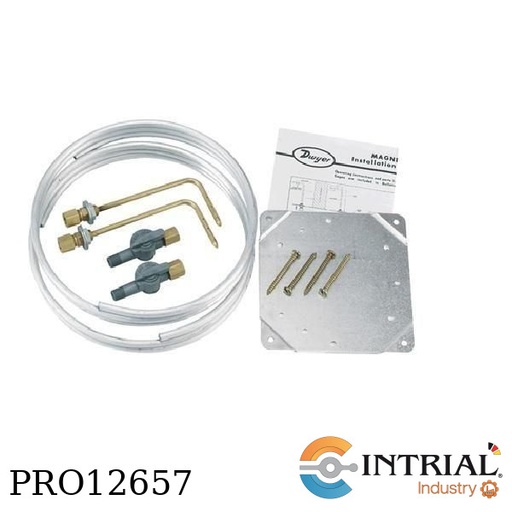

Air filter gage accessory kit; adapts any standard<br />
Magnehelic® gage for use as an air filter gage. Includes<br />
aluminum surface mounting bracket with screws<br />
two 5 ft (1.5 m) lengths of 1/4" aluminum tubing<br />
two static pressure tips and two molded plastic vent valves, <br />
integral compression fittings on both tips and valves<br />
MARCA: DWYER INSTRUMENTS

Model: M01-ELN6WWXX0EY<br />
Brand: Kobold<br />
Float: Cylinder Ø18 material NBR<br />
Density: >0.6<br />
Tmax: 80ºC<br />
Pmax: 10 bar at 20ºC<br />
Tube material: st. st. AISI 316L<br />
Process connection: 1" NPT in st.st.<br />
1.4404<br />
Housing: Aluminum<br />
L1: Contact SPDT<br />
L2: Contact SPDT<br />
Electr. connection: 1/2" NPT<br />
L0: 300mm<br />
L1: 240mm<br />
L2: 270mm<br />
ATEX: II 1 GD Ex ia IIC T6 Ga / Ex ia<br />
IIIC T85 ºC Da<br />
Y: Electrical connection 1/2" NPT<br />
*************************************************************************************************<br />
Datasheet: http://koboldusa.com/sites/default/files/product_files/magnetic-level-switch-liquids-KOBOLD_0.pdf

<div>ADJUSTABLE CONTROL THERMOSTAT</div>

<div>•<span> </span>Brand: THERMON MANUFACTURING COMPANY.</div>

<div>•<span> </span>Ratings/Specifications</div>

<div>•<span> </span>Voltage rating: 125/250/480 VAC</div>

<div>•<span> </span>Switch rating: 22 amps</div>

<div>•<span> </span>Switch type: SPDT1</div>

<div>•<span> </span>Electrical connection2: terminal blocks</div>

<div>•<span> </span>Adjustable control range:  -4°C to 163°C</div>

<div>•<span> </span>Maximum control differential: 3.9°C</div>

<div>•<span> </span>Setpoint repeatability:  ±1.9°C</div>

<div>•<span> </span>Maximum bulb exposure temperature: 182.2°C</div>

<div>•<span> </span>Bulb dimensions: 6.4 x 210 mm</div>

<div>•<span> </span>Bulb material: stainless steel</div>

<div>•<span> </span>Capillary length : 3 m</div>

<div>•<span> </span>Capillary materia:. stainless steel</div>

Interruptor tipo Paleta en linea<br />
Latón,G 1/4 Rango de 2,3-4,6 L/min
<div>
<div class="gtx-trans-icon"></div>
</div>

<strong>TRANSMISOR DE PRESION<br />
Marca: AFRISO (Alemania)<br />
MODELO: DMU 01 VM</strong><br />
Número de Parte: 31626<br />
Principio de Medición: Piezo resistivo<br />
Precisión: 0.5 % FSO<br />
Material: Cerámico - Acero inox 304<br />
Conexión: G1/2” DIN 3852 tipo E<br />
con sello de diafragma<br />
Salida: 4 a 20 mA,SIL:SIL2<br />
Alimentación: 8 a 32 VDC<br />
Conexión Eléctrica: Plug DIN 43650-A<br />
Sistema: 2 Hilos<br />
Rango: 0 a 4 bar (0 a 58 PSI)
