<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N15-C-3-E-0-0</strong><br />
[MWD-L]<br />
Version Protective tube acc. DIN 43772,<br />
filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8] Diameter / length thermowell, 8 mm / 200 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[E] Terminal head, aluminium head with LCD<br />
dis-play and HART® transmitter included<br />
[0] Head-mounted transmiter, without transmitter<br />
[0] Options, without

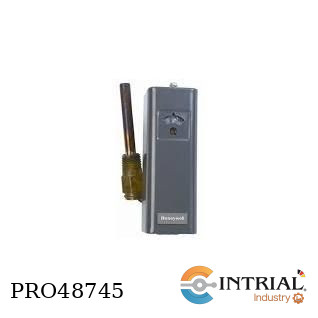

AQUASTAT<br />
BRAND: HONEYWELL<br />
Amperage Rating: 5.1 to 48<br />
Bulb Size : 3/8 x 2-7/8 in Copper<br />
Differential: 5 to 30<br />
Mounting Type: Horizontal/Vertical<br />
Spud Size: 1/2<br />
Switch Type: Micro Switch™ Snap-Acting<br />
Temperature Rating: 100 to 240 degF<br />
Type: Breaks on Rise<br />
Voltage Rating: 120 to 240 VAC/0.25 to 12 VDC

Model: GEFEDERTE-KV-Ø5-M8X1<br />
Spring-loaded compression fitting for ø5<br />
with PTFE clamping ring, spring travel ~12 mm, <br />
connection thread M8x1, width across flats <br />
SW22, material 1.4571<br />

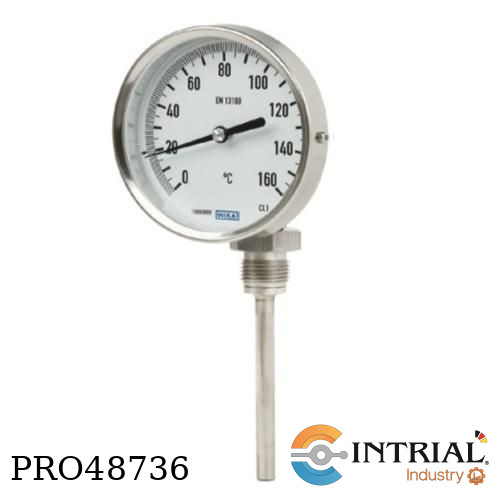

BIMETAL THERMOMETER FOR INDUSTRIAL<br />
APPLICATIONS<br />
Brand: WIKA<br />
Mechanical temperature measuring<br />
instrument<br />
Lower mount (radial)<br />
Nominal size 160<br />
Connection position bottom<br />
Connection type: 2<br />
Connection rotatable<br />
Display range: 0 °C ... 80 °C<br />
Process connection: G 1/2 B<br />
Stem diameter: 8 mm<br />
Immersion length L1: 74 mm<br />
Additional ordering information: Connection at 55°C<br />
Housing: CrNi steel<br />
Stem material: CrNi Steel<br />
Protection class: IP 43<br />
Viewing window: Instrument flat glass<br />
Manufactured in accordance with EN 1319<br />
Scale spacing in °C : 1

CONTROLADOR DE TEMPERATURA TIPO INTERRUPTOR TÁCTIL<br />
Marca: AUTONICS<br />
Método de visualización : 4 dígitos 7 segmentos LED<br />
Método de control : ON/OFF control, P, PI, PD, Control PID<br />
Tipo de entrada : Termopar: K (CA), J (IC), L (IC)<br />
RTD: DPt100Ω, Cu50Ω<br />
Ciclo de muestreo : 100ms<br />
Salida de control : Relé (250 V CA ~ 3 A) o SSR (12 V CC ) <br />
[ON / OFF, fase, ciclo]<br />
Fuente de alimentación : 100-240VCA~50/60Hz<br />

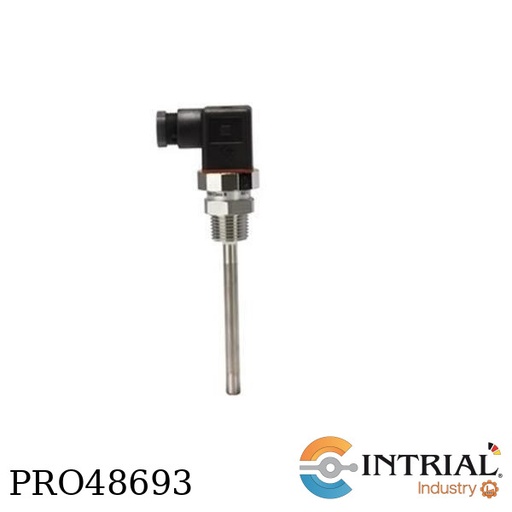

Sensor de Temperatura Pt100<br />
Modelo: MBT5252<br />
Marca: Danfoss<br />
Longitud de Inserción: 50 mm<br />
Rango de Temperatura: -50 a 200 °C<br />
Diámetro del tubo protector: 8 mm<br />
Conexión al Proceso: 1/2" NPT<br />
Elemento del Sensor: Pt100<br />
Sin Transmisor

TRANSMITTER<br />
Brand: PR Electronics <br />
HART protocol<br />
4 - 20 mA<br />
Measuring range must be<br />
specified when ordering!

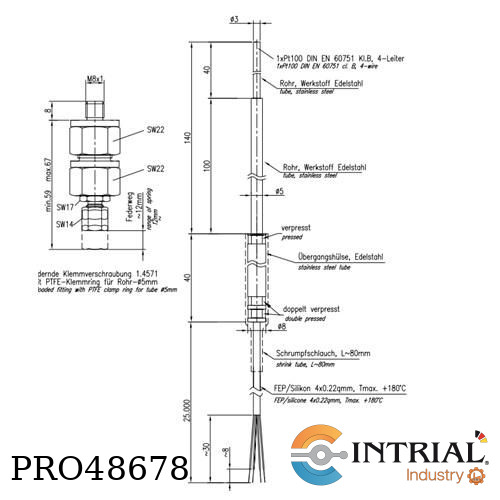

<p class="MsoNormal">Modelo: PRO48678<br /><br />
Screw-in resistance thermometer<br />
Brand:  INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
protective tube ø 5 x 100 mm / ø 3 x 40 mm,<br />
nominal length 140 mm, with over sleeve<br />
length ø 8 x 40 mm, with shrinking tube<br />
length ~80 mm, spring clamping union with<br />
screw reducing union thread M8 x 1, material<br />
1.4571, SW14/SW22, with 25.000 mm<br />
connection cable FEP/Silicone, 4-wire, with<br />
free ends, Temperature range: -50°C to<br />
+260°C, acc</p>

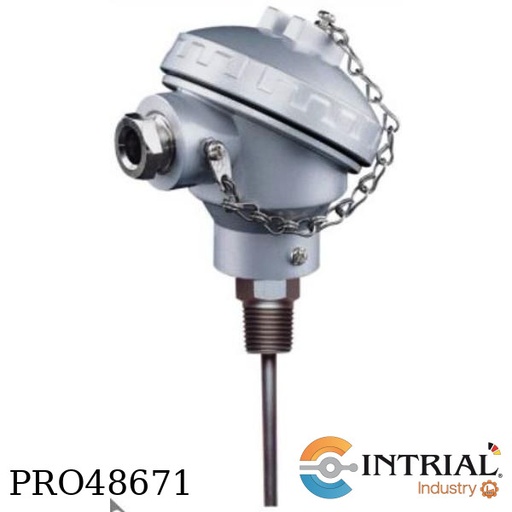

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-A-N15-C-3-G-A-0</strong><br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[A] Diameter / length thermowell, 10 mm / 200 mm<br />
[N15] Process Connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 wires<br />
[G] Terminal Head, screw cap with chain, aluminium<br />
[A] Head-mounted transmitter, programable 2 wire transmitter <br />
model 5333D or equivalent<br />
[0] Options, without

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-1-C25-9A-8-C40</strong><br />
[TBE-3]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to, bottom<br />
Probe st.st.<br />
[1] Diameter, 100 mm<br />
[C25] Measuring Range, 0-250°C<br />
[9A] Probe type/Process connection, Sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length, 8 mm / 100 mm<br />
[C40] Options, Case and ring stainless steel AISI 316

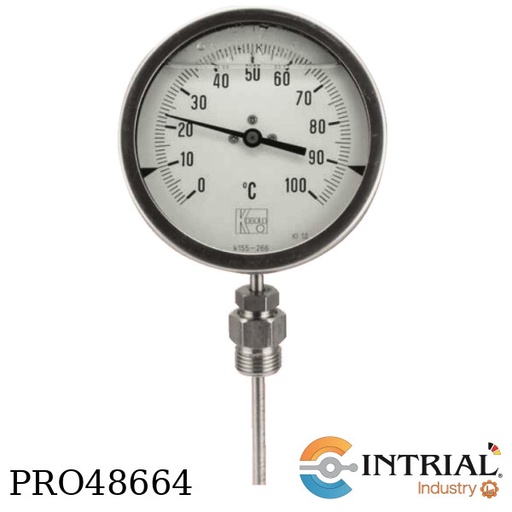

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-1-C20-9A-8-C40</strong><br />
[TBE-3]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to, bottom<br />
Probe st.st.<br />
[1] Diameter, 100 mm<br />
[C20] Measuring Range, 0-200°C<br />
[9A] Probe type/Process connection, Sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length, 8 mm / 100 mm<br />
[C40] Options, Case and ring stainless steel AISI 316

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-1-C06-9A-6-C40-E65-C01</strong><br />
[TBE-1]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to rear<br />
Probe st.st.<br />
[1] Diameter, 100mm<br />
[C06] Measuring Range, Scale °C, ranges acc. data sheet, 0-60°C<br />
[9A] Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[6] Bulb diameter/-length, 6 mm / 150 mm<br />
[C40] Options, Case and ring stainless steel AISI 316<br />
[E65] Protection degree IP 65 (without filling)<br />
[C01] Calibration report

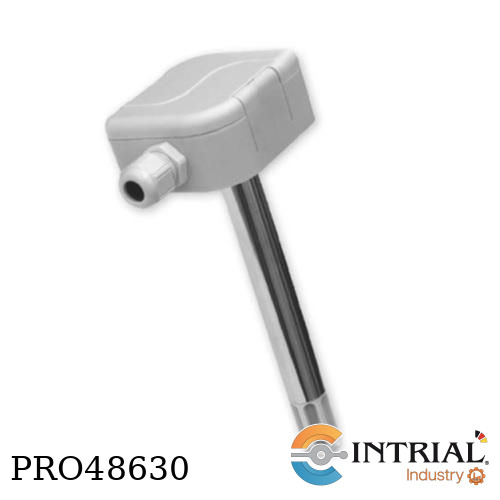

TEMPERATURE AND HUMIDITY SENSORS FOR USAGE<br />
INTO AIR CONDITION DUCTS WITH 4 TO 20 mA OUTPUT<br />
Brand: GUILCOR<br />
Type of sensing element Pt 1000/3850<br />
Analog outputs two galvanically separated signals 4 to 20 mA<br />
Current output in the case of error < 3.8 mA or > 24 mA<br />
Power supply (U) 9 to 30 V DC, maximum ripple 0.5 %<br />
Standard length of the stem 150 mm<br />
Range of temperature measurement* -30 to 125 °C<br />
Accuracy } 0.4 °C in the range 0 to 100 °C, otherwise <br />
0.4 % of the measuring value<br />
Range of relative humidity measurement ** 0 to 100 % RH <br />
(the reading is temperature compensated in all temperature range)<br />
Accuracy } 2.5 % RH in the range 5 to 95 % RH at 23 °C<br />
Ingress protection electronics IP 65 in accordance with EN 60529,<br />
as amended sensors are placed behind the cover with ingress protection <br />
IP 40 in accordance with EN 60529, as amended<br />
Dust filter of the sensors filtration efficiency 0.025 mm<br />
Operating temperature range of the device -30 to 80 °C<br />
Operating humidity range of the device 0 to 100 % RH<br />
Working position the measure stem downwards<br />
Elektomagnetic compatibility in accordance with EN 61326-1, as amended<br />
Storage conditions temperature -30 to 80 °C, humidity 0 to 100 % RH<br />
without condensation<br />
Material of the stem stainless steel DIN 1.4301<br />
Weight approximately 225 g<br />
Material of the box POLYAMIDE

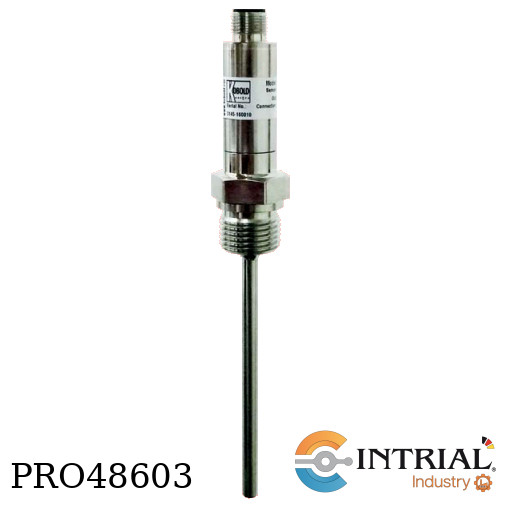

<strong>Insertion Resistance Thermometers compact<br />
Brand: Kobold (Alemania)<br />
Model: MMA-0-xx-N15-C-3-M-A-0-80mm</strong><br />
[MMA-0]<br />
Probe material st.st. 1.4404<br />
Connection fixed<br />
Design w/o stand-off<br />
Max. temperature - 70...+150°C<br />
[xx] Immersion length / diameter: 80 mm / Ø6<br />
[N15] Connection, 1/2 NPT<br />
[C] Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3] Wiring, 3-wire<br />
[M] Electr. Connection, Plug M12x1 <br />
[A] Head Transmitter, 4..20 mA, range 0 bis 100 °C<br />
[0] Options, without<br />


<strong>Insertion Resistance Thermometers compact<br />
Brand: Kobold (Alemania)<br />
Model: MMA-0-xx-N15-C-3-M-A-0-80mm+ZUB-KAB-12-K002</strong><br />
[MMA-0]<br />
Probe material st.st. 1.4404<br />
Connection fixed<br />
Design w/o stand-off<br />
Max. temperature - 70...+150°C<br />
[xx] Immersion length / diameter: 80 mm / Ø6<br />
[N15] Connection, 1/2 NPT<br />
[C] Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3] Wiring, 3-wire<br />
[M] Electr. Connection, Plug M12x1 <br />
[A] Head Transmitter, 4..20 mA, range 0 bis 100 °C<br />
[0] Options, without<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pinSensor

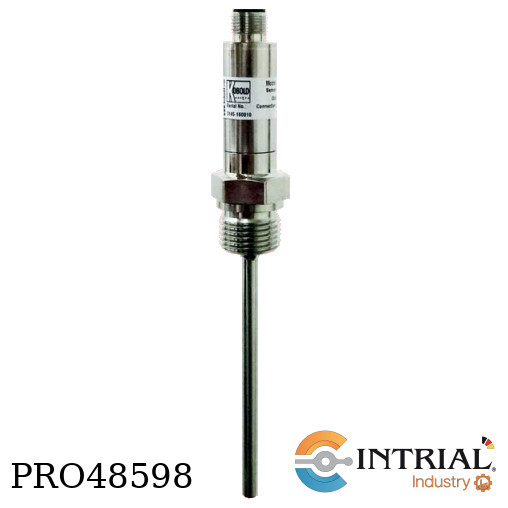

<strong>Insertion Resistance Thermometers compact<br />
Brand: Kobold (Alemania)<br />
Model: MMA-0-xx-N15-C-3-M-A-0</strong><br />
[MMA-0]<br />
Probe material st.st. 1.4404<br />
Connection fixed<br />
Design w/o stand-off<br />
Max. temperature - 70...+150°C<br />
[xx] Immersion length / diameter: 70 mm / Ø6<br />
[N15] Connection, 1/2 NPT<br />
[C] Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3] Wiring, 3-wire<br />
[M] Electr. Connection, Plug M12x1 <br />
[A] Head Transmitter, 4..20 mA, range 0 bis 100 °C<br />
[0] Options, without<br /><br />


<strong>Insertion Resistance Thermometers compact<br />
Brand: Kobold (Alemania)<br />
Model: MMA-0-xx-N15-C-3-M-A-0</strong><br />
[MMA-0]<br />
Probe material st.st. 1.4404<br />
Connection fixed<br />
Design w/o stand-off<br />
Max. temperature - 70...+150°C<br />
[xx] Immersion length / diameter: 70 mm / Ø6<br />
[N15] Connection, 1/2 NPT<br />
[C] Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3] Wiring, 3-wire<br />
[M] Electr. Connection, Plug M12x1 <br />
[A] Head Transmitter, 4..20 mA, range 0 bis 100 °C<br />
[0] Options, without<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

<strong>Electronic temperature sensor with 3 digit LED Display<br />
Brand: Kobold (Alemania)<br />
Model: TDA-15H2-N4-1-P-3M</strong><br />
[TDA-15H2] :<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
Version, compact<br />
[N4] Connection: 1/2 NPT male<br />
[1] Sensor length: 100 mm / 7mm<br />
[P] Output:0(4)-20 mA, PNP switch output<br />
[3M] Electrical connection: M12x1 plug connector<br /><br />
Incluye:<br />
Accessories Round Plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K005<br />
[ZUB-KAB-12]<br />
[K005]: Version: M12x1 socket with 5 m cable, 4 pins

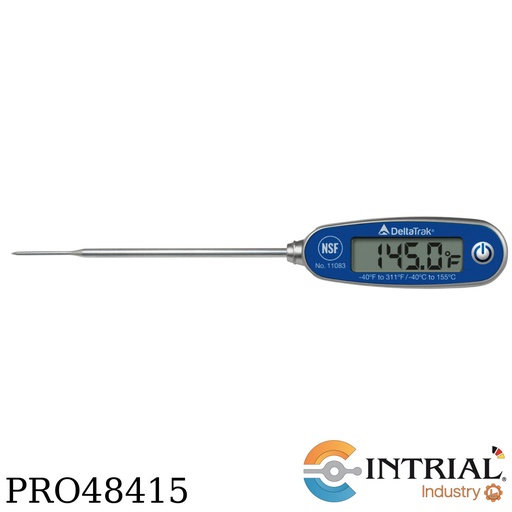

THERMOMETER<br />
Brand: DELTATRACK<br />
Model: 11083<br />
Measurement Range: ‐40°F to 311°F (‐40°C to 155°C)<br />
Resolution: 0.1°(F or C)<br />
Display Size/Update: 1.5" x 0.5" (38mm x 12.7mm)/Every 2 Seconds<br />
Waterproof Rating: IP56<br />
Probe Length and Tip Diameter: Stainless steel probe<br />
length 3.90 +/‐ 0.004 in. (99 +/‐ 0.1mm)<br />
14 Gauge ‐ Needle probe 0.067 in. (1.7mm)<br />
IP56 waterproof & grease resistant

TERMOHIGROMETRO (TEMPERATURA Y HUMEDAD)<br />
Marca: ELITECH<br />
Modelo: BT-3<br />
Rango de medición de temperatura: -50 ~ + 70 C°<br />
Rango de medición de humedad: 20% - 99% (humedad relativa)<br />
Resolución: 0,1 °C / 0,1 F; 1% de humedad relativa<br />
Fuente de alimentación: 1 bateria AA<br />
Paquete: 1x termómetro BT-3 con sensor externo<br />
